3-08 — PARKING BRAKE (#171379) — 107 parça

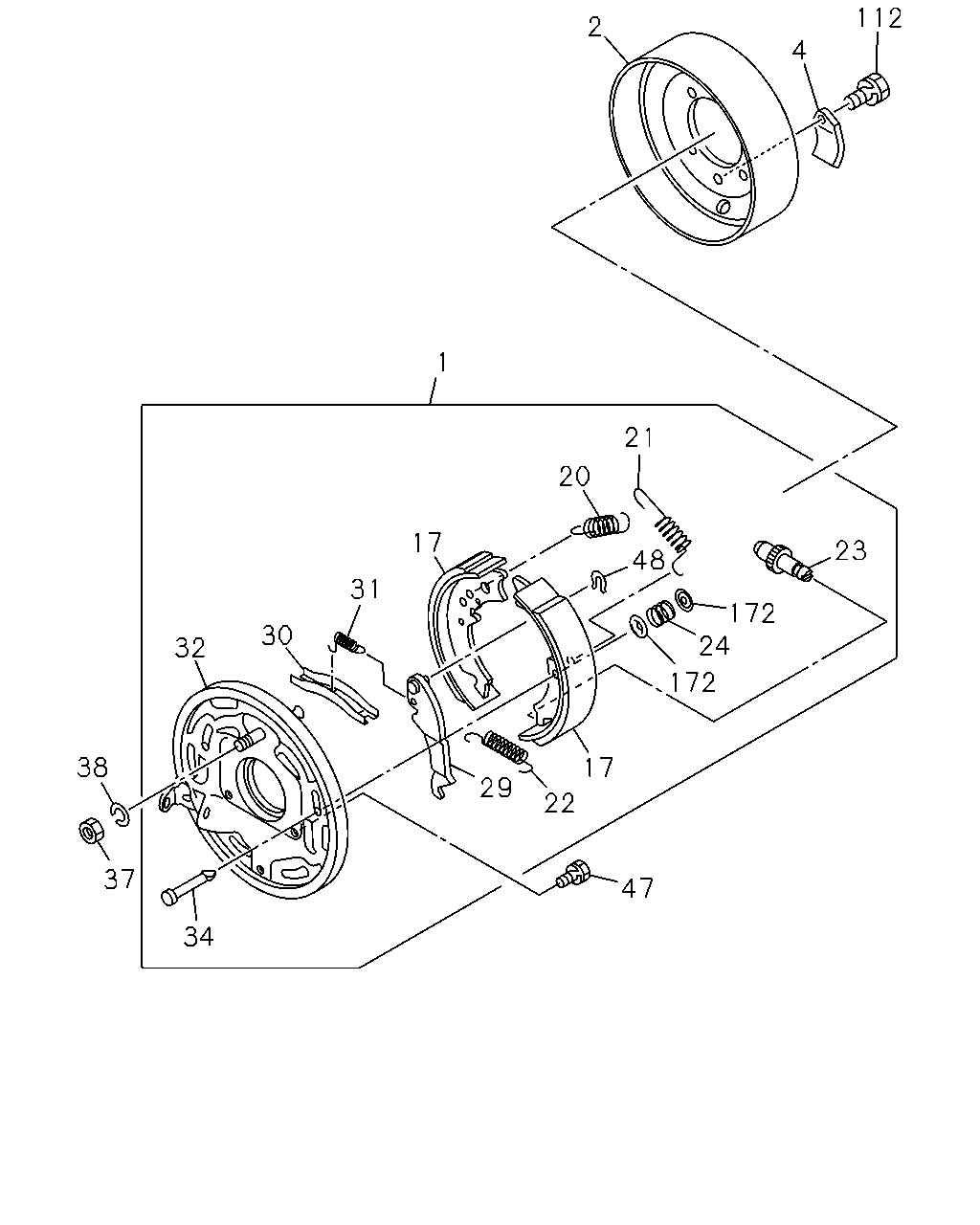

çizim 507466
2 4 112 1 21 20 48 172 24 172 17 22 47 29 31 17 30 32 38 37 34 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 05.610 BRAKE ASM; CENTER,PARKING
M/T MYY5T(RSM) 		8-98029-922-0 01 1 1512- ●
1 05.610 BRAKE ASM; CENTER,PARKING 8-98029-922-0 01 1 1512- ●
1 05.610 BRAKE ASM; CENTER,PARKING
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-97034-553-2 01 1 1512- ●
2 05.605 DRUM; PARKING BRK
M/T MYY5T(RSM) IDN 		8-97033-989-1 01 1 1512- ●
2 05.605 DRUM; PARKING BRK
IDN 		8-97033-989-1 01 1 1512- ●
2 05.605 DRUM; PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 		5-46210-005-3 01 1 1512- ●
4 05.606 COVER; ADJ HOLE
M/T MYY5T(RSM) 		8-98029-820-0 01 1 1512- ●
4 05.606 COVER; ADJ HOLE 8-98029-820-0 01 1 1512- ●
4 05.606 COVER; ADJ HOLE
M/T MSB5M(RM5),M/T MSB5S(R45) 		5-42319-003-0 01 1 1512- ●
17 05.606 SHOE; PARKING BRK
M/T MYY5T(RSM) 		8-97020-250-2 02 1 1512- ●
17 05.606 SHOE; PARKING BRK 8-97020-250-2 02 1 1512- ●
17 05.606 SHOE; PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-97042-933-1 02 1 1512- ●
20 05.606 SPRING; RETURN,SECONDARY,PARKING
M/T MSB5M(RM5),M/T MSB5S(R45) 		9-09942-553-1 01 1 1512- ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
M/T MYY5T(RSM) 05.605 		8-94132-157-0 02 1 1512- ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
05.605 		8-94132-157-0 02 1 1512- ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
M/T MSB5M(RM5),M/T MSB5S(R45) 		9-09942-552-1 01 1 1512- ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
M/T MYY5T(RSM) 05.605 		8-94107-618-0 01 1 1512- ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
05.605 		8-94107-618-0 01 1 1512- ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 		9-09942-340-1 01 1 1512- ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
M/T MYY5T(RSM) 		8-98043-954-0 01 1 1512- ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE 8-98043-954-0 01 1 1512- ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
M/T MSB5M(RM5),M/T MSB5S(R45) 		5-47165-025-0 01 1 1512- ●
24 05.605 SPRING; BRK SHOE
M/T MYY5T(RSM) 		8-94132-155-1 02 1 1512- ●
24 05.605 SPRING; BRK SHOE 8-94132-155-1 02 1 1512- ●
24 05.605 SPRING; BRK SHOE
M/T MSB5M(RM5),M/T MSB5S(R45) 		9-09941-062-1 02 1 1512- ●
29 04.591 LEVER; PARKING BRK
M/T MYY5T(RSM) 		8-98043-949-0 01 1 1512- ●
29 04.591 LEVER; PARKING BRK 8-98043-949-0 01 1 1512- ●
29 04.591 LEVER; PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-94128-765-0 01 1 1512- ●
30 05.605 STRUT; PARKING BRK
M/T MYY5T(RSM) 		8-98043-953-0 01 1 1512- ●
30 05.605 STRUT; PARKING BRK 8-98043-953-0 01 1 1512- ●
30 05.605 STRUT; PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 		5-46251-007-0 01 1 1512- ●
31 05.605 SPRING; SHOE TO STRUT
M/T MYY5T(RSM) 		8-94132-158-0 01 1 1512- ●
31 05.605 SPRING; SHOE TO STRUT 8-94132-158-0 01 1 1512- ●
31 05.605 SPRING; SHOE TO STRUT
M/T MSB5M(RM5),M/T MSB5S(R45) 05.606 		9-09942-521-1 01 1 1512- ●
32 05.610 PLATE; SUPPORT,PARKING BRK
M/T MYY5T(RSM) 		8-97308-176-0 01 1 1512- ●
32 05.610 PLATE; SUPPORT,PARKING BRK 8-97308-176-0 01 1 1512- ●
32 05.610 PLATE; SUPPORT,PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 		9-46213-601-2 01 1 1512- ●
34 05.605 PIN; BRK SHOE
M/T MYY5T(RSM) 		8-98043-955-0 02 1 1512- ●
34 05.605 PIN; BRK SHOE 8-98043-955-0 02 1 1512- ●
34 05.605 PIN; BRK SHOE
M/T MSB5M(RM5),M/T MSB5S(R45) 05.043 		9-47162-034-0 02 1 1512- ●
37 05.610 NUT; SUPPORT PLATE
M/T MYY5T(RSM) M12 LOCK NUT 		8-98029-927-0 04 1 1512- ●
37 05.610 NUT; SUPPORT PLATE
M12 LOCK NUT 		8-98029-927-0 04 1 1512- ●
37 05.610 NUT; SUPPORT PLATE
M/T MSB5M(RM5),M/T MSB5S(R45) M12 		8-97033-122-0 01 1 1512- ●
38 05.610 WASHER; LK,SUPPORT PLATE
M/T MSB5M(RM5),M/T MSB5S(R45) 02.559 ID=8.2 		0-91510-808-0 02 1 1512- ●
47 05.610 BOLT; SUPPORT PLATE
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-98073-190-0 02 1 1512- ●
48 05.605 RETAINER; PIN,PARKING BRK
M/T MYY5T(RSM) 		8-98043-958-0 01 1 1512- ●
48 05.605 RETAINER; PIN,PARKING BRK 8-98043-958-0 01 1 1512- ●
48 05.605 RETAINER; PIN,PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 05.158 		9-46349-005-1 01 1 1512- ●
112 05.606 BOLT; COVER TO BRK DRUM
00.662 M6X16 W/LK WASHER 		0-50540-616-0 01 1 1512- ● ●
172 05.605 CUP; SHOE HOLD
M/T MYY5T(RSM) 		8-98043-956-0 04 1 1512- ●
172 05.605 CUP; SHOE HOLD 8-98043-956-0 04 1 1512- ●
172 05.605 CUP; SHOE HOLD
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-94378-404-0 04 1 1512- ●

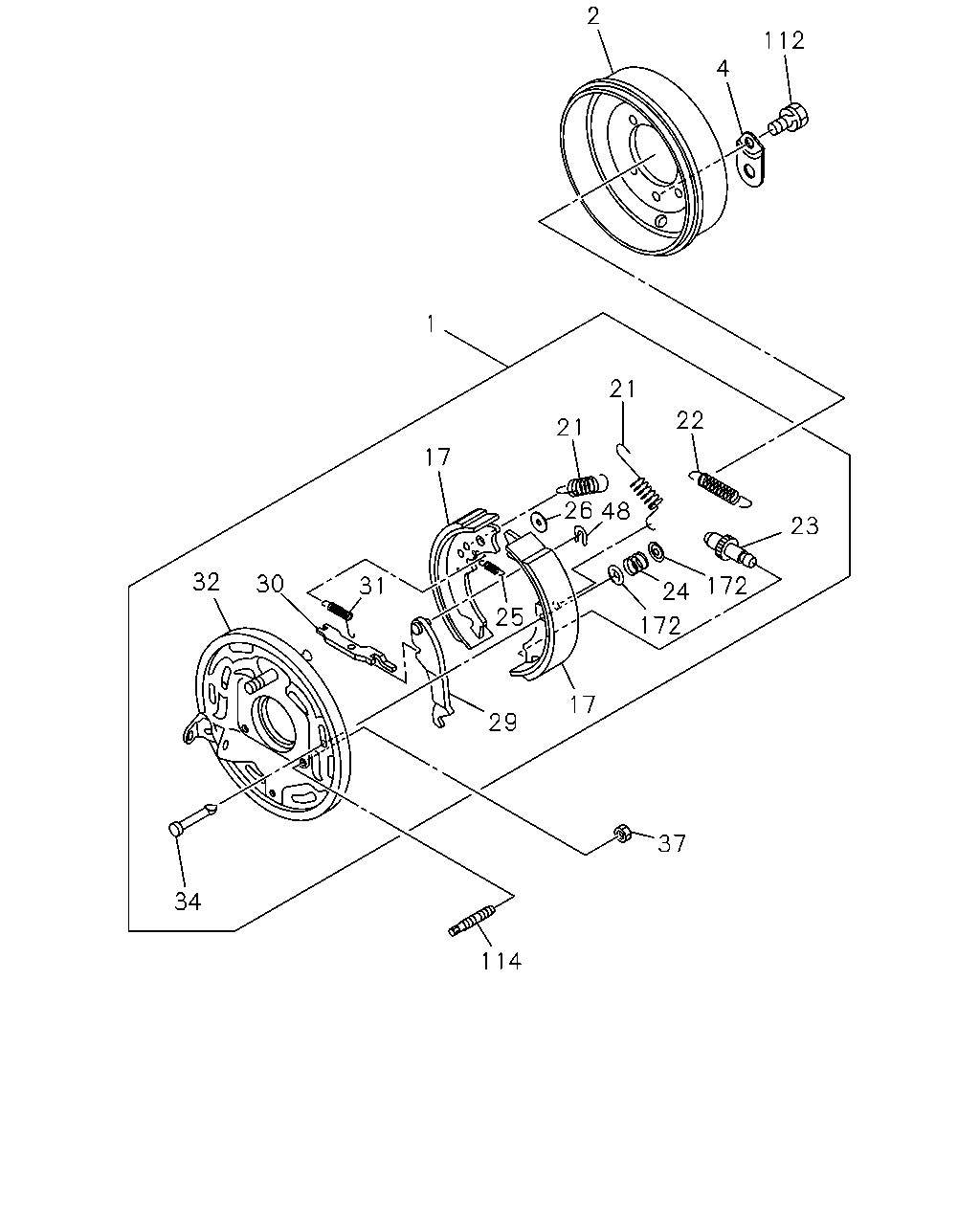

çizim 507484
112 4 2 1 21 21 17 22 172 23 24 172 26 48 17 29 25 31 30 32 34 114 37
BalonParca AdiParca NoAdetTipApplied Date A B
1 05.610 BRAKE ASM; CENTER,PARKING
M/T MYY5T(RSM) 		8-98029-922-0 01 1 1512- ●
1 05.610 BRAKE ASM; CENTER,PARKING 8-98029-922-0 01 1 1512- ●
1 05.610 BRAKE ASM; CENTER,PARKING
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-97034-553-2 01 1 1512- ●
2 05.605 DRUM; PARKING BRK
M/T MYY5T(RSM) IDN 		8-97033-989-1 01 1 1512- ●
2 05.605 DRUM; PARKING BRK
IDN 		8-97033-989-1 01 1 1512- ●
2 05.605 DRUM; PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 		5-46210-005-3 01 1 1512- ●
4 05.606 COVER; ADJ HOLE
M/T MYY5T(RSM) 		8-98029-820-0 01 1 1512- ●
4 05.606 COVER; ADJ HOLE 8-98029-820-0 01 1 1512- ●
4 05.606 COVER; ADJ HOLE
M/T MSB5M(RM5),M/T MSB5S(R45) 		5-42319-003-0 01 1 1512- ●
17 05.606 SHOE; PARKING BRK
M/T MYY5T(RSM) 		8-97020-250-2 02 1 1512- ●
17 05.606 SHOE; PARKING BRK 8-97020-250-2 02 1 1512- ●
17 05.606 SHOE; PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-97042-933-1 02 1 1512- ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
M/T MYY5T(RSM) 05.605 		8-94132-157-0 02 1 1512- ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
05.605 		8-94132-157-0 02 1 1512- ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
M/T MSB5M(RM5),M/T MSB5S(R45) 		9-09942-552-1 01 1 1512- ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
M/T MYY5T(RSM) 05.605 		8-94107-618-0 01 1 1512- ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
05.605 		8-94107-618-0 01 1 1512- ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 		9-09942-340-1 01 1 1512- ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
M/T MYY5T(RSM) 		8-98043-954-0 01 1 1512- ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE 8-98043-954-0 01 1 1512- ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
M/T MSB5M(RM5),M/T MSB5S(R45) 		5-47165-025-0 01 1 1512- ●
24 05.605 SPRING; BRK SHOE
M/T MYY5T(RSM) 		8-94132-155-1 02 1 1512- ●
24 05.605 SPRING; BRK SHOE 8-94132-155-1 02 1 1512- ●
24 05.605 SPRING; BRK SHOE
M/T MSB5M(RM5),M/T MSB5S(R45) 		9-09941-062-1 02 1 1512- ●
25 05.605 SPRING; SHOE ALIGNMENT
M/T MYY5T(RSM) 		8-94132-156-0 01 1 1512- ●
25 05.605 SPRING; SHOE ALIGNMENT 8-94132-156-0 01 1 1512- ●
26 05.605 PLATE; SHOE GUIDE
M/T MYY5T(RSM) 		8-98043-959-0 01 1 1512- ●
26 05.605 PLATE; SHOE GUIDE 8-98043-959-0 01 1 1512- ●
29 04.591 LEVER; PARKING BRK
M/T MYY5T(RSM) 		8-98043-949-0 01 1 1512- ●
29 04.591 LEVER; PARKING BRK 8-98043-949-0 01 1 1512- ●
29 04.591 LEVER; PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-94128-765-0 01 1 1512- ●
30 05.605 STRUT; PARKING BRK
M/T MYY5T(RSM) 		8-98043-953-0 01 1 1512- ●
30 05.605 STRUT; PARKING BRK 8-98043-953-0 01 1 1512- ●
30 05.605 STRUT; PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 		5-46251-007-0 01 1 1512- ●
31 05.605 SPRING; SHOE TO STRUT
M/T MYY5T(RSM) 		8-94132-158-0 01 1 1512- ●
31 05.605 SPRING; SHOE TO STRUT 8-94132-158-0 01 1 1512- ●
31 05.605 SPRING; SHOE TO STRUT
M/T MSB5M(RM5),M/T MSB5S(R45) 05.606 		9-09942-521-1 01 1 1512- ●
32 05.610 PLATE; SUPPORT,PARKING BRK
M/T MYY5T(RSM) 		8-97308-176-0 01 1 1512- ●
32 05.610 PLATE; SUPPORT,PARKING BRK 8-97308-176-0 01 1 1512- ●
32 05.610 PLATE; SUPPORT,PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 		9-46213-601-2 01 1 1512- ●
34 05.605 PIN; BRK SHOE
M/T MYY5T(RSM) 		8-98043-955-0 02 1 1512- ●
34 05.605 PIN; BRK SHOE 8-98043-955-0 02 1 1512- ●
34 05.605 PIN; BRK SHOE
M/T MSB5M(RM5),M/T MSB5S(R45) 05.043 		9-47162-034-0 02 1 1512- ●
37 05.610 NUT; SUPPORT PLATE
M/T MYY5T(RSM) M12 LOCK NUT 		8-98029-927-0 04 1 1512- ●
37 05.610 NUT; SUPPORT PLATE
M12 LOCK NUT 		8-98029-927-0 04 1 1512- ●
37 05.610 NUT; SUPPORT PLATE
M/T MSB5M(RM5),M/T MSB5S(R45) M12 		8-97033-122-0 01 1 1512- ●
48 05.605 RETAINER; PIN,PARKING BRK
M/T MYY5T(RSM) 		8-98043-958-0 01 1 1512- ●
48 05.605 RETAINER; PIN,PARKING BRK 8-98043-958-0 01 1 1512- ●
48 05.605 RETAINER; PIN,PARKING BRK
M/T MSB5M(RM5),M/T MSB5S(R45) 05.158 		9-46349-005-1 01 1 1512- ●
112 05.606 BOLT; COVER TO BRK DRUM
00.662 M6X16 W/LK WASHER 		0-50540-616-0 01 1 1512- ● ●
114 05.605 STUD; SUPPORT PLATE
M/T MYY5T(RSM) 		8-98029-929-0 04 1 1512- ●
114 05.605 STUD; SUPPORT PLATE 8-98029-929-0 04 1 1512- ●
172 05.605 CUP; SHOE HOLD
M/T MYY5T(RSM) 		8-98043-956-0 04 1 1512- ●
172 05.605 CUP; SHOE HOLD 8-98043-956-0 04 1 1512- ●
172 05.605 CUP; SHOE HOLD
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-94378-404-0 04 1 1512- ●
