3-05 — REAR WHEEL BRAKE (#171378) — 61 parça

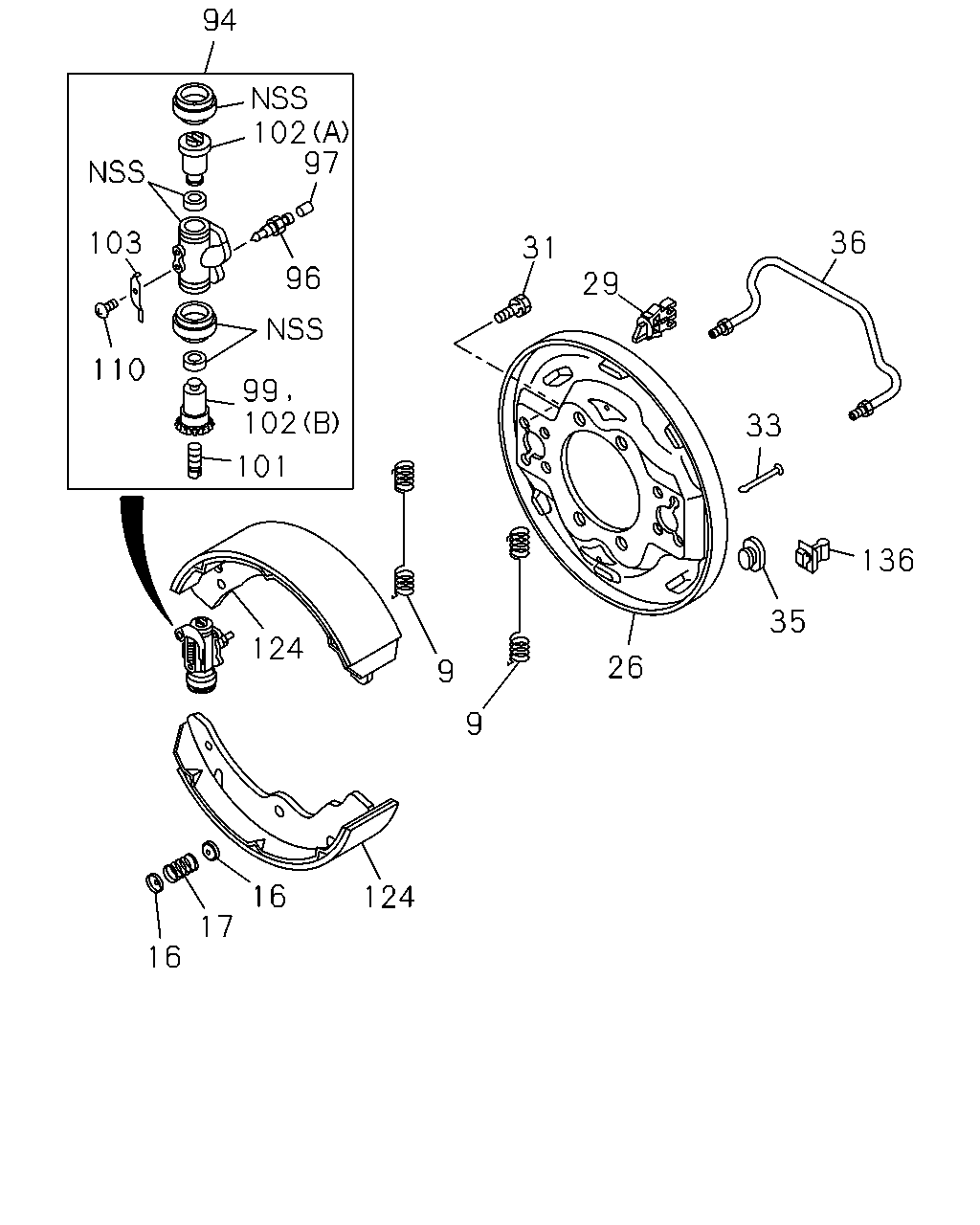

çizim 507448
36 33 29 31 26 35 136 9 9 124 124 16 17 16 101 102 99 96 97 102 94 103 110
BalonParca AdiParca NoAdetTipApplied Date A B
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 4.0-4.5TON(RPR) 		8-97078-739-0 04 1 1512- ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 3.0-3.5TON(RPP) 		8-97081-150-0 04 1 1512- ●
9 05.026 SPRING; RETURN,BRK SHOE 8-97022-087-0 04 1 1512- ●
16 05.043 CUP; SHOE HOLDING 9-47162-033-0 08 1 1512- ●
16 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 1512- ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		9-09940-989-1 04 1 1512- ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		5-09580-101-1 04 1 1512- ●
26 05.001 PLATE; BACK,RR BRK 8-97223-573-0 01 1 1512- ●
26 05.001 PLATE; BACK,RR BRK 8-97223-574-0 01 1 1512- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 4.0-4.5TON(RPR) 		8-97093-934-0 01 1 1512- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 4.0-4.5TON(RPR) 		8-97093-935-0 01 1 1512- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 3.0-3.5TON(RPP) 		8-97081-138-0 01 1 1512- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 3.0-3.5TON(RPP) 		8-97081-139-2 01 1 1512- ●
29 04.685 CLIP; PIPE,BRK
G.V.W. 4.0-4.5TON(RPR) 		8-94128-307-0 02 1 1512- ●
29 04.685 CLIP; PIPE,BRK 8-97022-086-0 02 1 1512- ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) 		5-09030-036-1 16 1 1512- ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 3.0-3.5TON(RPP) 04.686 M8X16 		9-09602-119-1 16 1 1512- ●
31 04.665 BOLT; RR WHEEL CYL 8-97081-305-0 16 1 1512- ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 4.0-4.5TON(RPR) 		9-47162-607-0 04 1 1512- ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 3.0-3.5TON(RPP) L=52 		9-47162-045-0 04 1 1512- ●
33 05.043 PIN; SHOE HOLD DOWN 8-97022-089-0 04 1 1512- ●
35 05.002 GROMMET; CHECK HOLE 8-94344-919-0 02 1 1512- ●
35 05.002 GROMMET; CHECK HOLE 8-97017-507-0 02 1 1512- ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 4.0-4.5TON(RPR) 		8-94128-192-0 02 1 1512- ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 3.0-3.5TON(RPP) 		8-94134-650-1 01 1 1512- ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 3.0-3.5TON(RPP) 		8-94134-651-1 01 1 1512- ●
36 04.685 PIPE; OIL,RR BRK 8-97192-215-0 02 1 1512- ●
94 04.665 CYLINDER; WHEEL,RR BRK
FRONT 		8-97139-822-0 01 1 1512- ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR 		8-97139-824-0 01 1 1512- ●
94 04.665 CYLINDER; WHEEL,RR BRK 8-97139-825-0 02 1 1512- ●
94 04.665 CYLINDER; WHEEL,RR BRK
FRONT 		8-97179-335-0 01 1 1512- ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR 		8-97179-336-0 01 1 1512- ●
94 04.665 CYLINDER; WHEEL,RR BRK 8-97179-337-0 02 1 1512- ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-476-0 01 1 1512- ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 01 1 1512- ● ●
99 04.668 PISTON; RR WHEEL CYL 8-97081-149-0 03 1 1512- ●
99 04.668 PISTON; RR WHEEL CYL 8-94414-700-1 04 1 1512- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
05.110 		8-97078-623-0 04 1 1512- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL 8-94414-702-0 04 1 1512- ●
102 04.668 PISTON; REAR WHEEL CYL
(A) D=22.22 		8-94128-533-1 04 1 1512- ●
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97081-149-0 01 1 1512- ●
102 04.668 PISTON; REAR WHEEL CYL
(A) 		8-97078-045-0 04 1 1512- ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 1512- ● ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 1512- ● ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 4.0-4.5TON(RPR) 		8-97035-085-1 04 1 1512- ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 3.0-3.5TON(RPP) 		8-97035-084-0 04 1 1512- ●
124 05.017 SHOE ASM; BRK,RR 8-97201-061-0 04 1 1512- ●
136 05.002 GROMMET 9-09956-640-0 04 1 1512- ●
136 05.002 GROMMET 8-97044-742-1 04 1 1512- ●

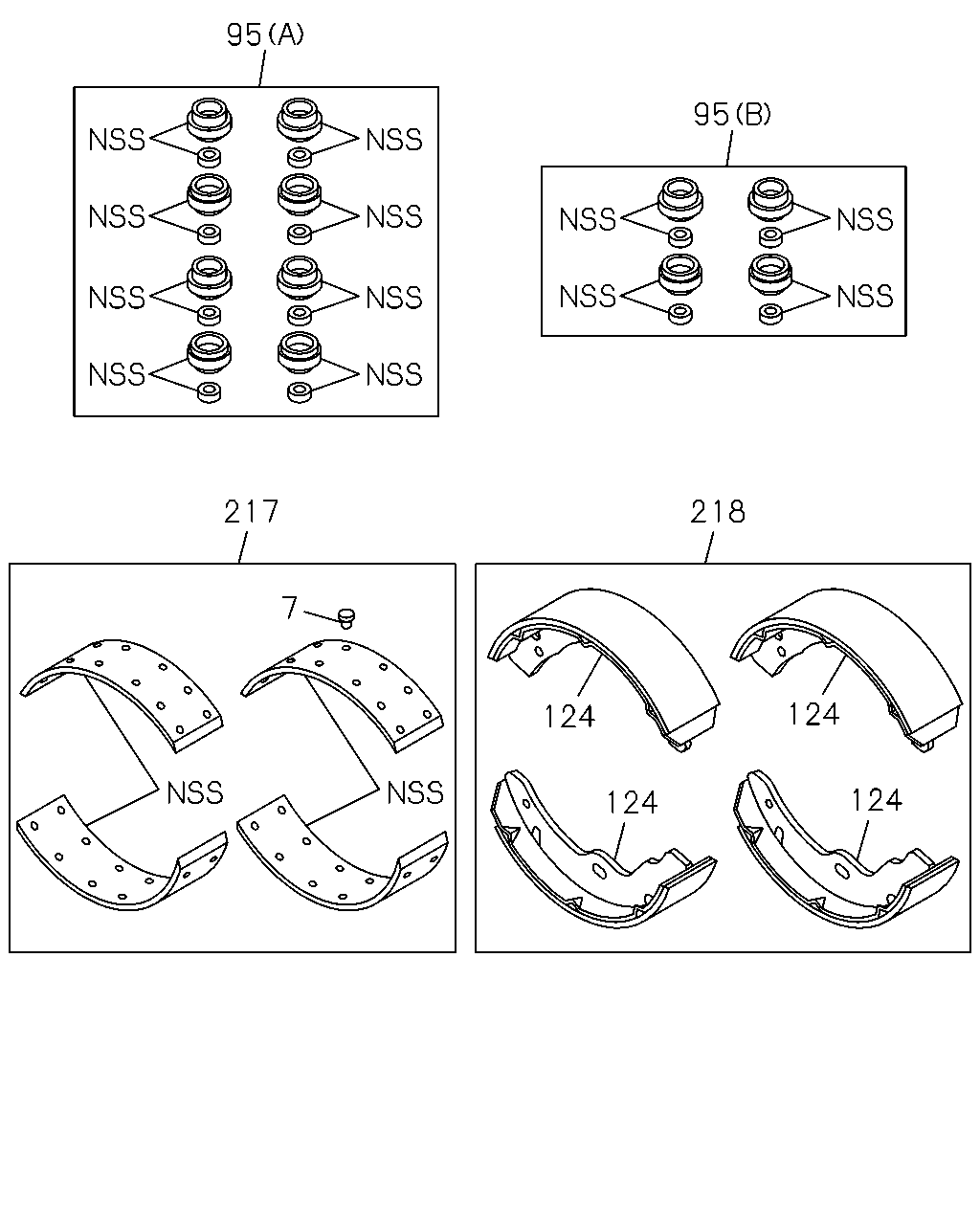

çizim 507450
95 95 217 7 124 124 124 124 218
BalonParca AdiParca NoAdetTipApplied Date A B
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 48 1 1512- ●
95 04.665 CUP SET; RR WHEEL CYL
(B) 		5-87831-598-0 02 1 1512- ●
95 04.665 CUP SET; RR WHEEL CYL
(A) 		5-87831-625-0 01 1 1512- ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 4.0-4.5TON(RPR) 		8-97035-085-1 04 1 1512- ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 3.0-3.5TON(RPP) 		8-97035-084-0 04 1 1512- ●
124 05.017 SHOE ASM; BRK,RR 8-97201-061-0 04 1 1512- ●
217 05.018 LINING KIT; RR BRK
FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43) 		5-87831-774-0 01 1 1512- ●
217 05.018 LINING KIT; RR BRK
FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43) BEST VALUE PARTS 		5-87610-120-0 01 1 1512- ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 3.0-3.5TON(RPP) 		5-87832-084-0 01 1 1512- ●
218 05.017 SHOE KIT; BRK,RR 5-87831-775-0 01 1 1512- ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 4.0-4.5TON(RPR) 		5-87832-045-0 01 1 1512- ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 3.0-3.5TON(RPP) BEST VALUE PARTS 		5-87610-122-0 01 1 1512- ●
