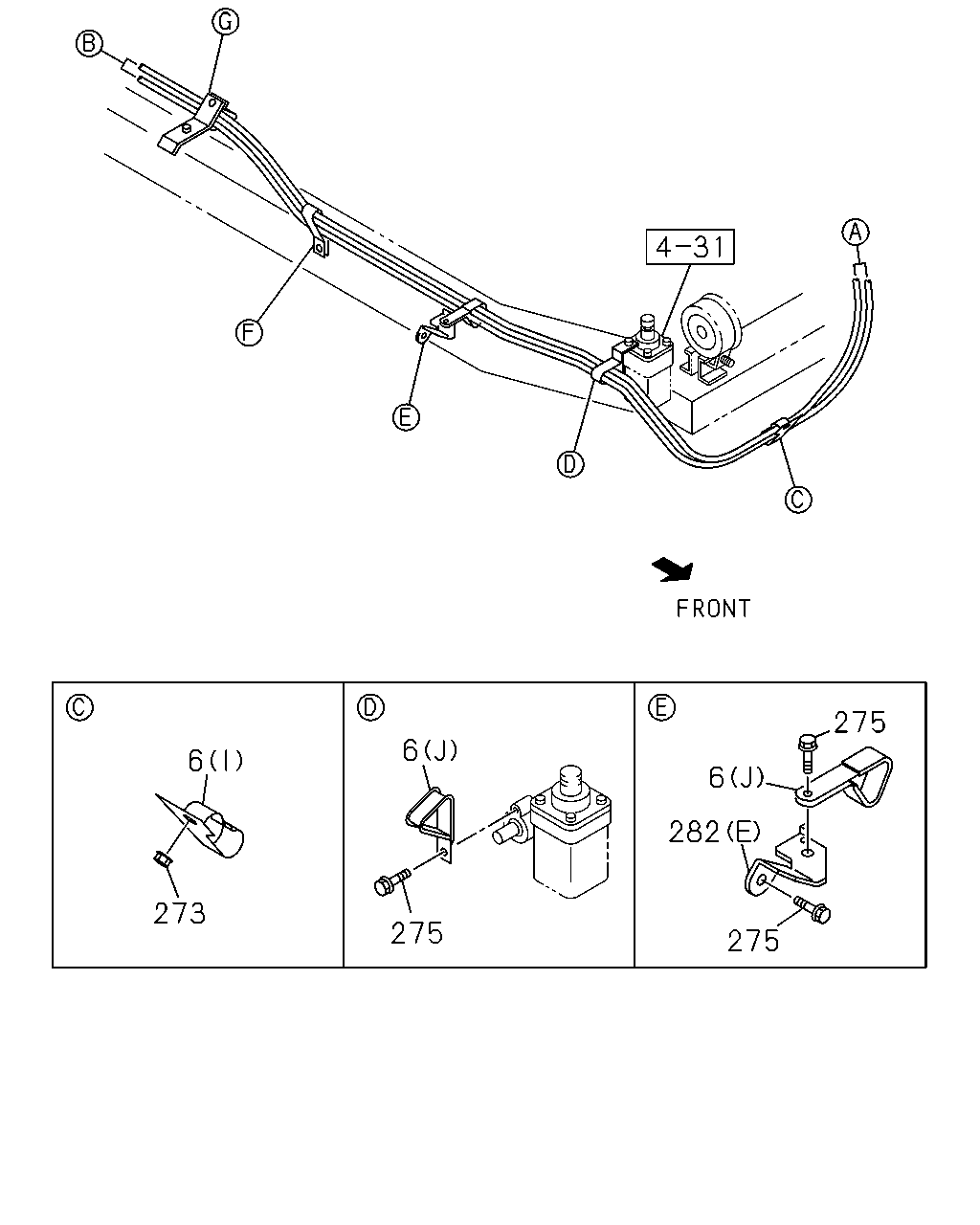

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#171376) — 137 parça

6 275 6 43 275 275 282 273 275 6 275 273 282 6 43 275 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	04.047 CLIP; CABLE (G)	8-97039-296-1	01	1	1512-	●	●
6	04.047 CLIP; CABLE (E)	8-97039-295-0	01	1	1512-	●	●
6	04.047 CLIP; CABLE (F)	8-97039-517-1	01	1	1512-	●	●
6	04.047 CLIP; CABLE (J)	8-97036-333-1	01	1	1512-	●	●	●	●
6	04.047 CLIP; CABLE (J)	8-97036-333-1	01	1	1512-			●	●
6	04.047 CLIP; CABLE (D)	8-97036-329-2	01	1	1512-			●	●
6	04.047 CLIP; CABLE (H)	8-98023-697-0	01	1	1512-			●	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	1512-	●	●	●	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	1512-			●	●
6	04.047 CLIP; CABLE 00.854 (A) ID=22.2	1-09701-209-1	01	1	1512-	●	●
6	04.047 CLIP; CABLE (C)	8-97011-448-0	02	1	1512-	●	●	●	●
6	04.047 CLIP; CABLE 04.785 (I)	8-98023-622-0	01	1	1512-	●	●	●	●
6	04.047 CLIP; CABLE EXC. MANUAL TILT CAB<RWZ> 04.008 (K)	8-97093-491-1	01	1	1512-	●	●	●	●
43	04.040 NUT; BRKT 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●	●
273	04.047 NUT; CONT CABLE 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-	●	●	●	●
273	04.047 NUT; CONT CABLE 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-	●	●	●	●
273	04.047 NUT; CONT CABLE 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-	●	●	●	●
275	04.047 BOLT; CONT CABLE CLIP 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●	●
275	04.047 BOLT; CONT CABLE CLIP 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●	●	●	●
275	04.047 BOLT; CONT CABLE CLIP 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●	●	●	●
275	04.047 BOLT; CONT CABLE CLIP 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●	●	●	●
275	04.047 BOLT; CONT CABLE CLIP 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-			●	●
275	04.047 BOLT; CONT CABLE CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1512-	●	●	●	●
282	04.010 BRACKET; TRANS SIDE 04.047 (C)	8-97028-496-1	01	1	1512-	●	●
282	04.010 BRACKET; TRANS SIDE 04.047 (D)	8-97205-549-1	01	1	1512-	●	●
282	04.010 BRACKET; TRANS SIDE (A)	8-97311-441-1	01	1	1512-	●	●
282	04.010 BRACKET; TRANS SIDE (B)	8-97034-142-1	01	1	1512-			●	●
282	04.010 BRACKET; TRANS SIDE 04.785 (E)	8-98034-115-0	01	1	1512-	●	●	●	●

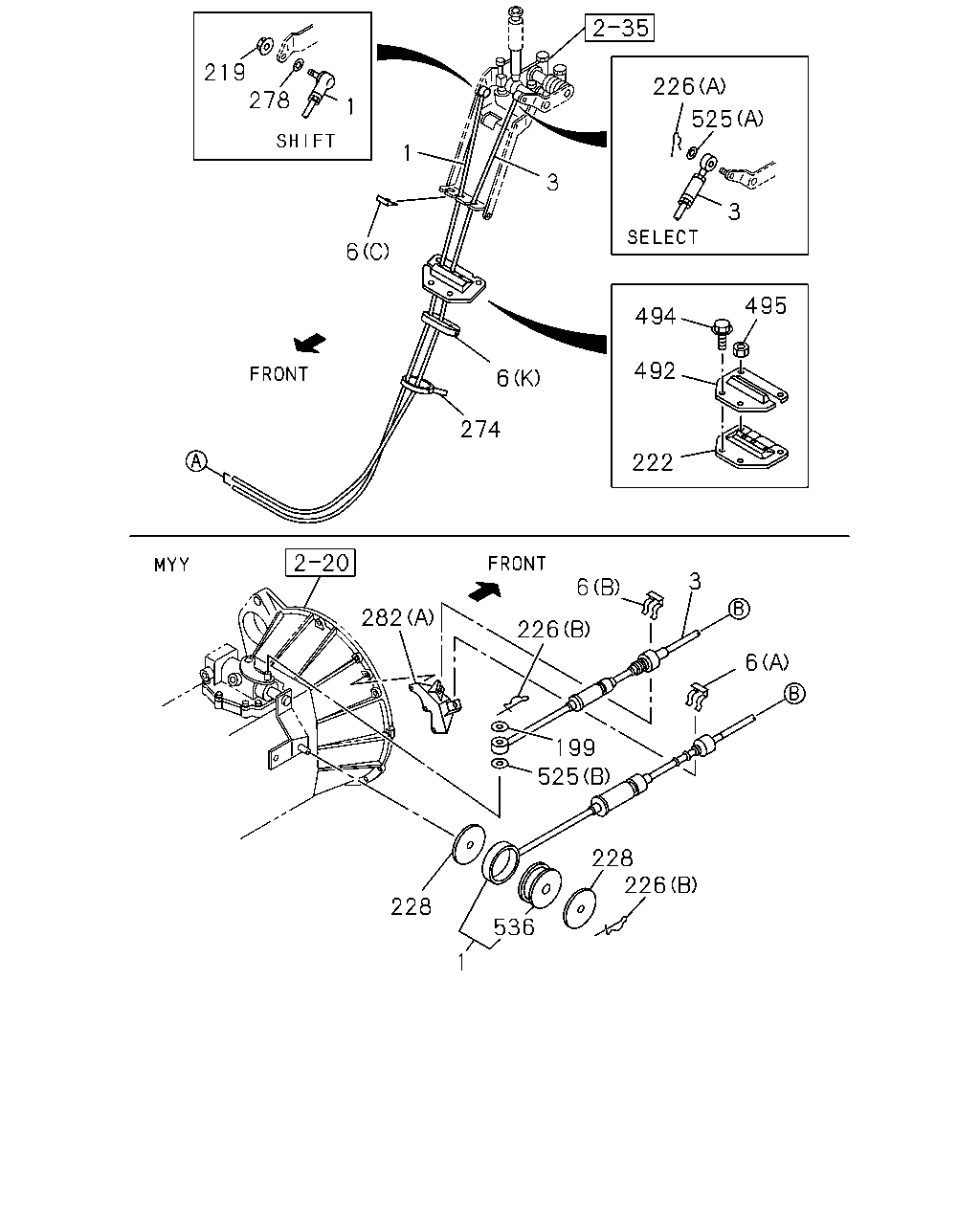

219 278 1 1 6 3 6 274 226 525 3 495 494 492 222 3 6 6 226 199 525 228 226 536 1 228 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.854 CABLE; SHIFT,TRANS CONT IDN	8-97695-481-0	01	1	1512-	●	●
1	00.854 CABLE; SHIFT,TRANS CONT IDN	8-97695-480-0	01	1	1512-			●	●
3	00.852 CABLE; SELECT,TRANS CONT IDN	8-97695-483-0	01	1	1512-	●	●
3	00.852 CABLE; SELECT,TRANS CONT IDN	8-97695-482-0	01	1	1512-			●	●
6	04.047 CLIP; CABLE (G)	8-97039-296-1	01	1	1512-	●	●
6	04.047 CLIP; CABLE (E)	8-97039-295-0	01	1	1512-	●	●
6	04.047 CLIP; CABLE (F)	8-97039-517-1	01	1	1512-	●	●
6	04.047 CLIP; CABLE (J)	8-97036-333-1	01	1	1512-	●	●	●	●
6	04.047 CLIP; CABLE (J)	8-97036-333-1	01	1	1512-			●	●
6	04.047 CLIP; CABLE (D)	8-97036-329-2	01	1	1512-			●	●
6	04.047 CLIP; CABLE (H)	8-98023-697-0	01	1	1512-			●	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	1512-	●	●	●	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	1512-			●	●
6	04.047 CLIP; CABLE 00.854 (A) ID=22.2	1-09701-209-1	01	1	1512-	●	●
6	04.047 CLIP; CABLE (C)	8-97011-448-0	02	1	1512-	●	●	●	●
6	04.047 CLIP; CABLE 04.785 (I)	8-98023-622-0	01	1	1512-	●	●	●	●
6	04.047 CLIP; CABLE EXC. MANUAL TILT CAB<RWZ> 04.008 (K)	8-97093-491-1	01	1	1512-	●	●	●	●
199	04.012 WASHER; PL,SELECT 03.417 ID=8.4 OD=16 IDN	0-91610-508-0	01	1	1512-	●	●	●	●
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	1512-	●	●	●	●
222	04.010 GROMMET; CABLE	8-97065-212-1	01	1	1512-	●	●	●	●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	02	1	1512-	●	●	●	●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	1512-	●	●	●	●
228	04.047 WASHER; PL,SHIFT CABLE ID=8.2 OD=40	8-97182-975-0	02	1	1512-	●	●	●	●
274	04.008 CLIP; CONT CABLE 03.162 L=140	5-09707-031-1	01	1	1512-	●	●	●	●
278	00.854 WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	1512-	●	●	●	●
282	04.010 BRACKET; TRANS SIDE 04.047 (C)	8-97028-496-1	01	1	1512-	●	●
282	04.010 BRACKET; TRANS SIDE 04.047 (D)	8-97205-549-1	01	1	1512-	●	●
282	04.010 BRACKET; TRANS SIDE (A)	8-97311-441-1	01	1	1512-	●	●
282	04.010 BRACKET; TRANS SIDE (B)	8-97034-142-1	01	1	1512-			●	●
282	04.010 BRACKET; TRANS SIDE 04.785 (E)	8-98034-115-0	01	1	1512-	●	●	●	●
492	04.010 RETAINER; GROMMET 04.047	1-33657-674-0	01	1	1512-	●	●	●	●
494	04.010 BOLT; GROMMET 00.785 M6X20 FLANGE	0-28450-620-0	02	1	1512-	●	●	●	●
495	04.010 NUT; GROMMET 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	1512-	●	●	●	●
525	04.047 WASHER; SHIFT CABLE 00.854 (B) ID=8.4 OD=14	5-09550-002-0	01	1	1512-	●	●	●	●
525	04.047 WASHER; SHIFT CABLE 06.056 (A) ID=8.4 OD=16	0-91614-508-0	01	1	1512-	●	●	●	●
536	00.854 DAMPER; CABLE IDN	8-98097-681-0	01	1	1512-	●	●	●	●

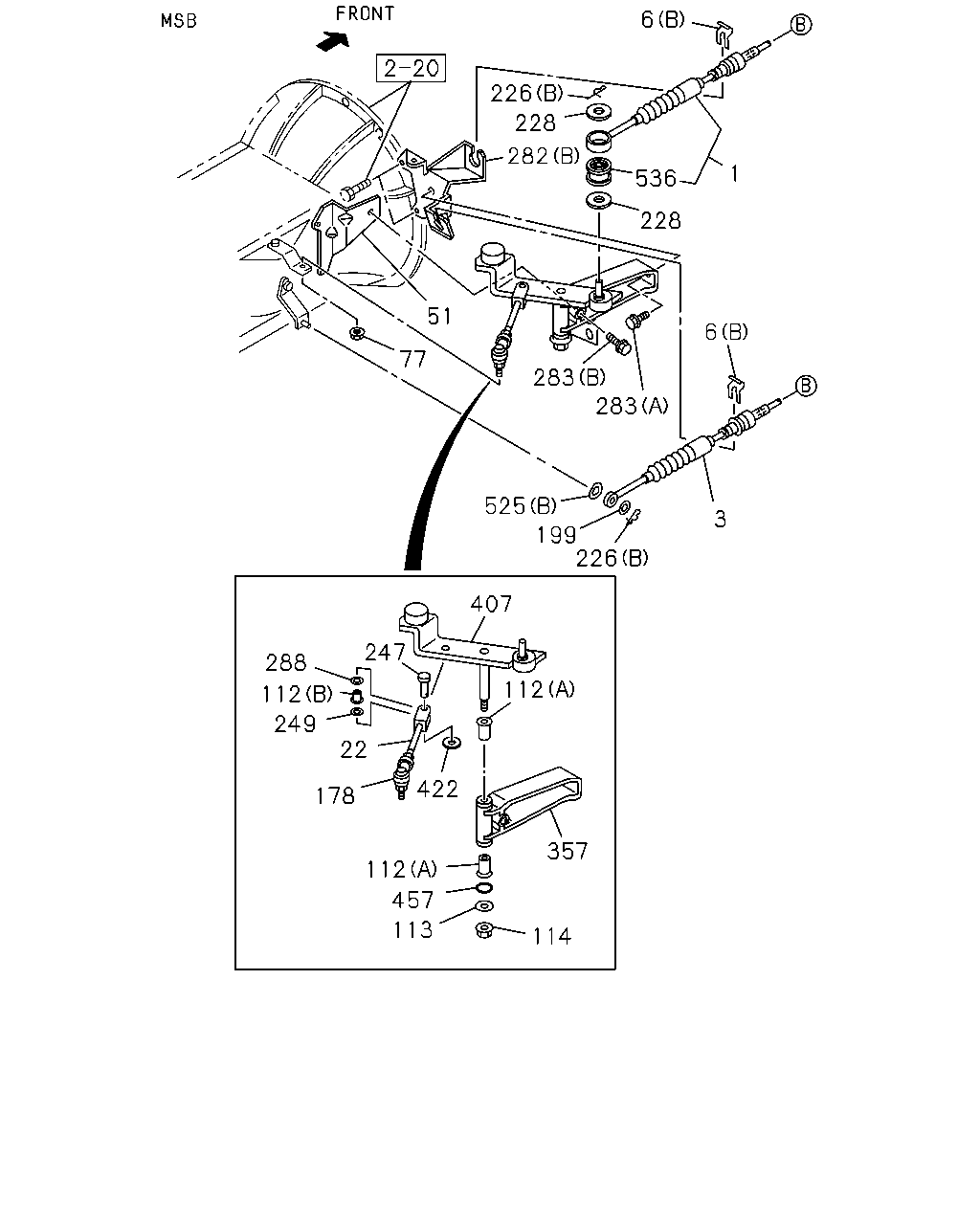

6 1 536 228 282 228 226 51 77 283 6 3 283 525 226 199 407 112 357 114 113 457 112 422 178 22 249 112 288 247

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.854 CABLE; SHIFT,TRANS CONT IDN	8-97695-481-0	01	1	1512-	●	●
1	00.854 CABLE; SHIFT,TRANS CONT IDN	8-97695-480-0	01	1	1512-			●	●
3	00.852 CABLE; SELECT,TRANS CONT IDN	8-97695-483-0	01	1	1512-	●	●
3	00.852 CABLE; SELECT,TRANS CONT IDN	8-97695-482-0	01	1	1512-			●	●
6	04.047 CLIP; CABLE (G)	8-97039-296-1	01	1	1512-	●	●
6	04.047 CLIP; CABLE (E)	8-97039-295-0	01	1	1512-	●	●
6	04.047 CLIP; CABLE (F)	8-97039-517-1	01	1	1512-	●	●
6	04.047 CLIP; CABLE (J)	8-97036-333-1	01	1	1512-	●	●	●	●
6	04.047 CLIP; CABLE (J)	8-97036-333-1	01	1	1512-			●	●
6	04.047 CLIP; CABLE (D)	8-97036-329-2	01	1	1512-			●	●
6	04.047 CLIP; CABLE (H)	8-98023-697-0	01	1	1512-			●	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	1512-	●	●	●	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	1512-			●	●
6	04.047 CLIP; CABLE 00.854 (A) ID=22.2	1-09701-209-1	01	1	1512-	●	●
6	04.047 CLIP; CABLE (C)	8-97011-448-0	02	1	1512-	●	●	●	●
6	04.047 CLIP; CABLE 04.785 (I)	8-98023-622-0	01	1	1512-	●	●	●	●
6	04.047 CLIP; CABLE EXC. MANUAL TILT CAB<RWZ> 04.008 (K)	8-97093-491-1	01	1	1512-	●	●	●	●
22	04.035 ROD; CONT,SHIFT	8-97134-286-1	01	1	1512-			●	●
51	04.010 BRACKET; GEAR CONT	8-98189-335-1	01	1	1512-			●	●
77	04.037 NUT; LK,BALL JOINT,CONT ROD	8-97358-973-0	01	1	1512-			●	●
112	04.046 BUSHING; RELAY LEVER (B)	8-97085-157-0	01	1	1512-			●	●
112	04.046 BUSHING; RELAY LEVER (A)	8-97174-057-0	02	1	1512-			●	●
113	04.046 WASHER; RELAY LEVER ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	1512-			●	●
114	04.037 NUT; RELAY LEVER 03.162 M10 FLANGE IDN	0-91180-110-0	01	1	1512-			●	●
178	04.040 JOINT; BALL,LINK ROD 04.037 L=45.5	1-09760-118-1	01	1	1512-			●	●
199	04.012 WASHER; PL,SELECT 03.417 ID=8.4 OD=16 IDN	0-91610-508-0	01	1	1512-	●	●	●	●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	02	1	1512-	●	●	●	●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	1512-	●	●	●	●
228	04.047 WASHER; PL,SHIFT CABLE ID=8.2 OD=40	8-97182-975-0	02	1	1512-	●	●	●	●
247	04.010 PIN; CONT ROD TO LEVER	8-97373-728-0	01	1	1512-			●	●
249	04.010 WASHER; RUBBER,CONT ROD TO LEVER 04.037 ID=8.5 T=1.5	9-09851-889-0	01	1	1512-			●	●
282	04.010 BRACKET; TRANS SIDE 04.047 (C)	8-97028-496-1	01	1	1512-	●	●
282	04.010 BRACKET; TRANS SIDE 04.047 (D)	8-97205-549-1	01	1	1512-	●	●
282	04.010 BRACKET; TRANS SIDE (A)	8-97311-441-1	01	1	1512-	●	●
282	04.010 BRACKET; TRANS SIDE (B)	8-97034-142-1	01	1	1512-			●	●
282	04.010 BRACKET; TRANS SIDE 04.785 (E)	8-98034-115-0	01	1	1512-	●	●	●	●
283	04.037 BOLT; RELAY LEVER 00.029 (A) M10X25 FLANGE	0-28651-025-0	01	1	1512-			●	●
283	04.037 BOLT; RELAY LEVER 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1512-			●	●
288	04.047 WASHER; CABLE TO RELAY LEVER	8-97373-819-0	01	1	1512-			●	●
357	04.010 BRACKET; RELAY LEVER	8-97182-166-0	01	1	1512-			●	●
407	04.030 LEVER; RELAY,SHIFT	8-97174-055-2	01	1	1512-			●	●
422	04.032 NUT; CONT ROD TO LEVER 04.047	8-97373-729-0	01	1	1512-			●	●
457	04.010 GASKET ID=13.8	9-09561-114-0	02	1	1512-			●	●
525	04.047 WASHER; SHIFT CABLE 00.854 (B) ID=8.4 OD=14	5-09550-002-0	01	1	1512-	●	●	●	●
525	04.047 WASHER; SHIFT CABLE 06.056 (A) ID=8.4 OD=16	0-91614-508-0	01	1	1512-	●	●	●	●
536	00.854 DAMPER; CABLE IDN	8-98097-681-0	01	1	1512-	●	●	●	●

6 273 6 275 282 6 275 275

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	04.047 CLIP; CABLE (G)	8-97039-296-1	01	1	1512-	●	●
6	04.047 CLIP; CABLE (E)	8-97039-295-0	01	1	1512-	●	●
6	04.047 CLIP; CABLE (F)	8-97039-517-1	01	1	1512-	●	●
6	04.047 CLIP; CABLE (J)	8-97036-333-1	01	1	1512-	●	●	●	●
6	04.047 CLIP; CABLE (J)	8-97036-333-1	01	1	1512-			●	●
6	04.047 CLIP; CABLE (D)	8-97036-329-2	01	1	1512-			●	●
6	04.047 CLIP; CABLE (H)	8-98023-697-0	01	1	1512-			●	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	1512-	●	●	●	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	1512-			●	●
6	04.047 CLIP; CABLE 00.854 (A) ID=22.2	1-09701-209-1	01	1	1512-	●	●
6	04.047 CLIP; CABLE (C)	8-97011-448-0	02	1	1512-	●	●	●	●
6	04.047 CLIP; CABLE 04.785 (I)	8-98023-622-0	01	1	1512-	●	●	●	●
6	04.047 CLIP; CABLE EXC. MANUAL TILT CAB<RWZ> 04.008 (K)	8-97093-491-1	01	1	1512-	●	●	●	●
273	04.047 NUT; CONT CABLE 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-	●	●	●	●
273	04.047 NUT; CONT CABLE 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-	●	●	●	●
273	04.047 NUT; CONT CABLE 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-	●	●	●	●
275	04.047 BOLT; CONT CABLE CLIP 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●	●
275	04.047 BOLT; CONT CABLE CLIP 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●	●	●	●
275	04.047 BOLT; CONT CABLE CLIP 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●	●	●	●
275	04.047 BOLT; CONT CABLE CLIP 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●	●	●	●
275	04.047 BOLT; CONT CABLE CLIP 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-			●	●
275	04.047 BOLT; CONT CABLE CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1512-	●	●	●	●
282	04.010 BRACKET; TRANS SIDE 04.047 (C)	8-97028-496-1	01	1	1512-	●	●
282	04.010 BRACKET; TRANS SIDE 04.047 (D)	8-97205-549-1	01	1	1512-	●	●
282	04.010 BRACKET; TRANS SIDE (A)	8-97311-441-1	01	1	1512-	●	●
282	04.010 BRACKET; TRANS SIDE (B)	8-97034-142-1	01	1	1512-			●	●
282	04.010 BRACKET; TRANS SIDE 04.785 (E)	8-98034-115-0	01	1	1512-	●	●	●	●
