◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51642 - NLR/NMR(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#171374) — 138 parça

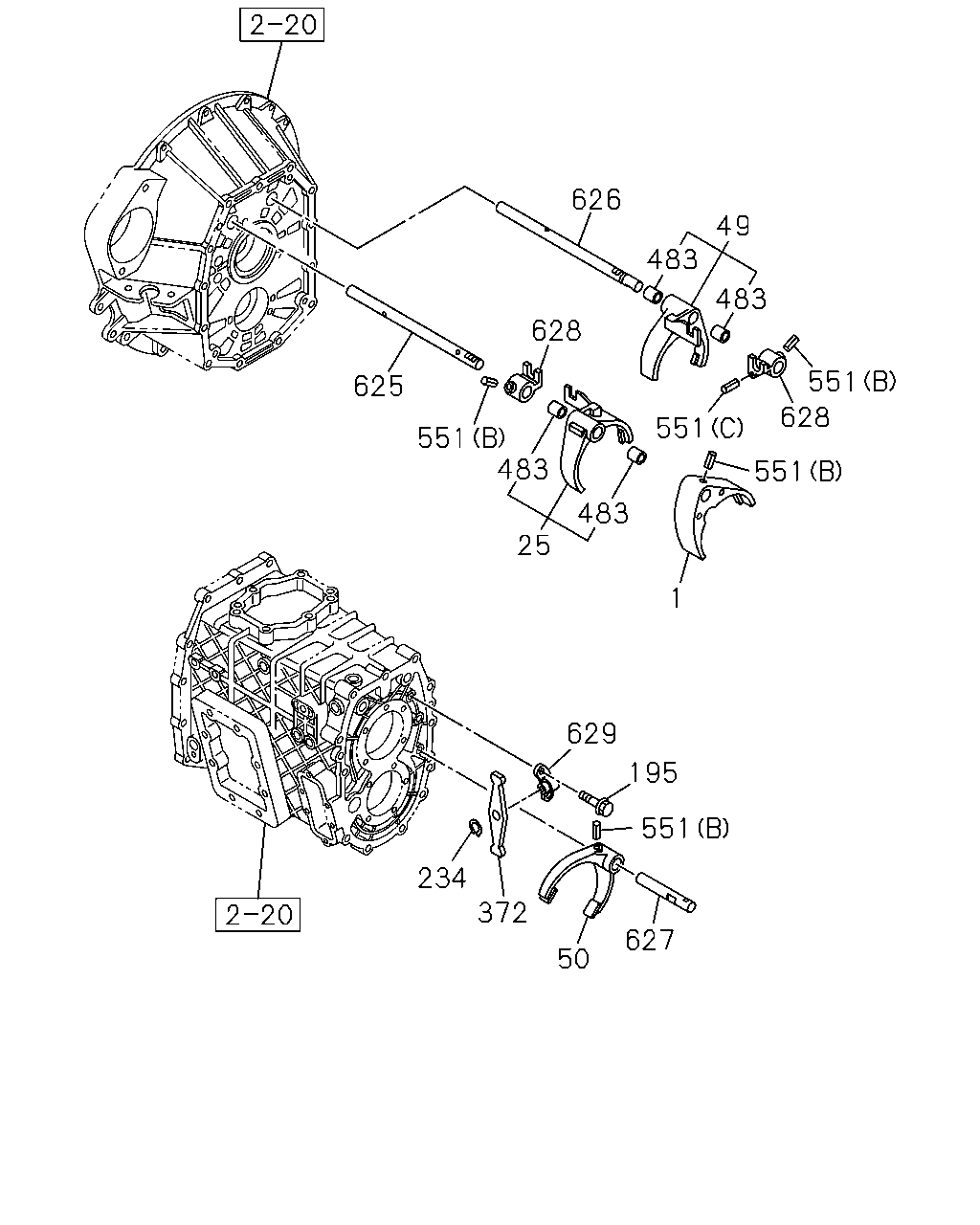

çizim 507190
627 50 372 234 629 195 551 1 483 25 483 551 625 628 626 49 483 483 551 628 551 551
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1512- ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1512- ● ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1512- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 1512- ●
50 04.302 ARM; SHIFT,6TH 8-97241-325-1 01 1 1512- ●
195 04.105 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1512- ● ●
234 04.311 RING; SNAP
04.307 ID=12 		8-94460-357-0 01 1 1512- ●
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1512- ●
372 04.302 LEVER; RELAY,6TH 8-97241-343-0 01 1 1512- ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1512- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1512- ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1512- ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1512- ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1512- ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 1512- ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 1512- ● ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97366-024-1 01 1 1512- ●
627 04.309 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 1512- ●
628 04.303 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 1512- ●
629 04.555 BRIDGE; LEVER 8-97237-107-1 01 1 1512- ●
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 1512- ●

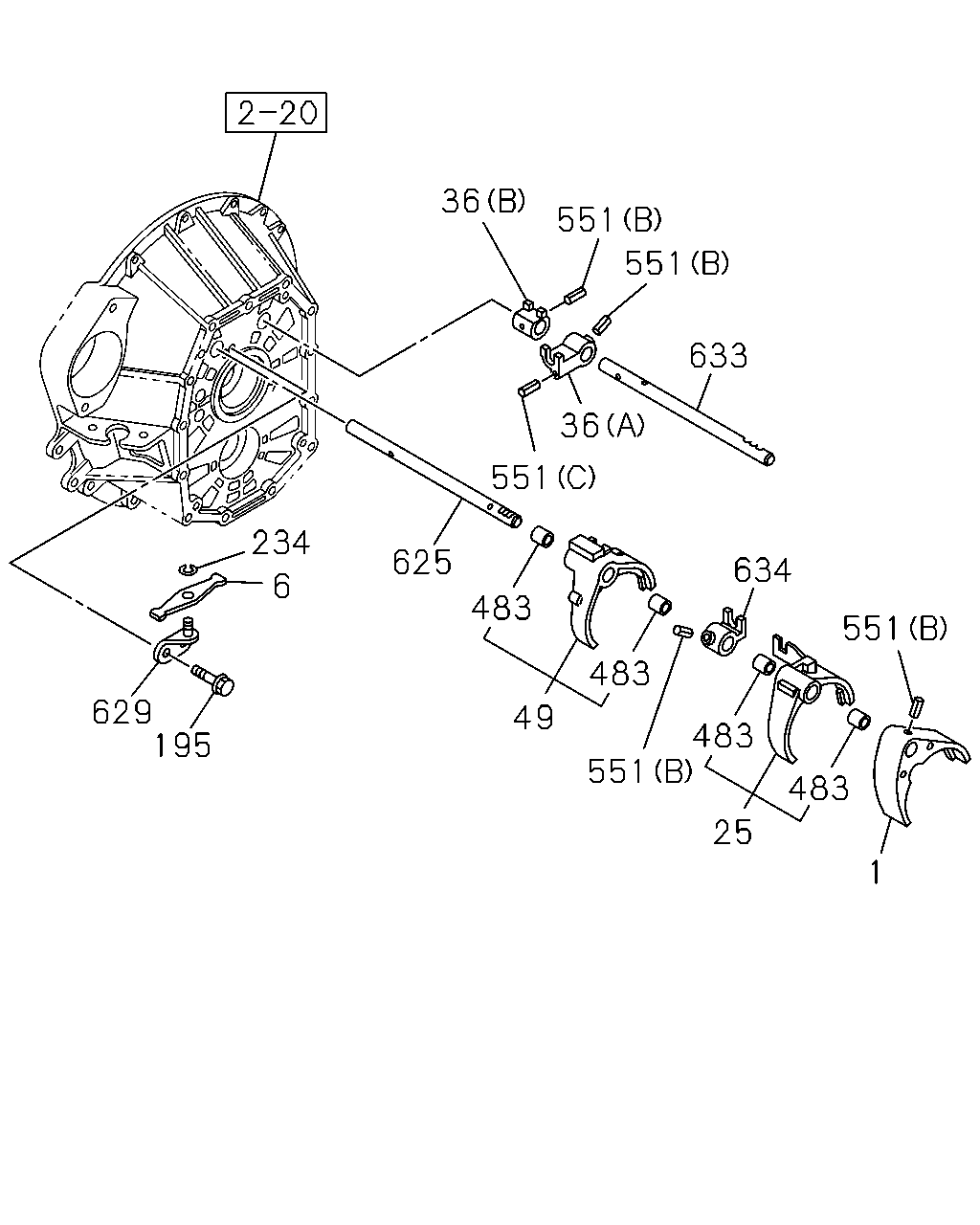

çizim 507203
36 551 633 551 36 551 625 483 49 551 25 1 483 483 551 634 483 6 195 629 234
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1512- ● ●
6 04.302 LEVER; RELAY 8-97241-344-0 01 1 1512- ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1512- ● ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(A) 		8-97241-329-1 01 1 1512- ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(B) 		8-97241-330-0 01 1 1512- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1512- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 1512- ●
195 04.105 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1512- ● ●
234 04.311 RING; SNAP
04.307 ID=12 		8-94460-357-0 01 1 1512- ●
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1512- ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1512- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1512- ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1512- ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1512- ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1512- ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 1512- ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 1512- ● ●
629 04.555 BRIDGE; LEVER 8-97237-107-1 01 1 1512- ●
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 1512- ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH 8-97362-743-0 01 1 1512- ●
634 04.303 BLOCK; SHIFT,LOW,REV 8-97241-327-1 01 1 1512- ●

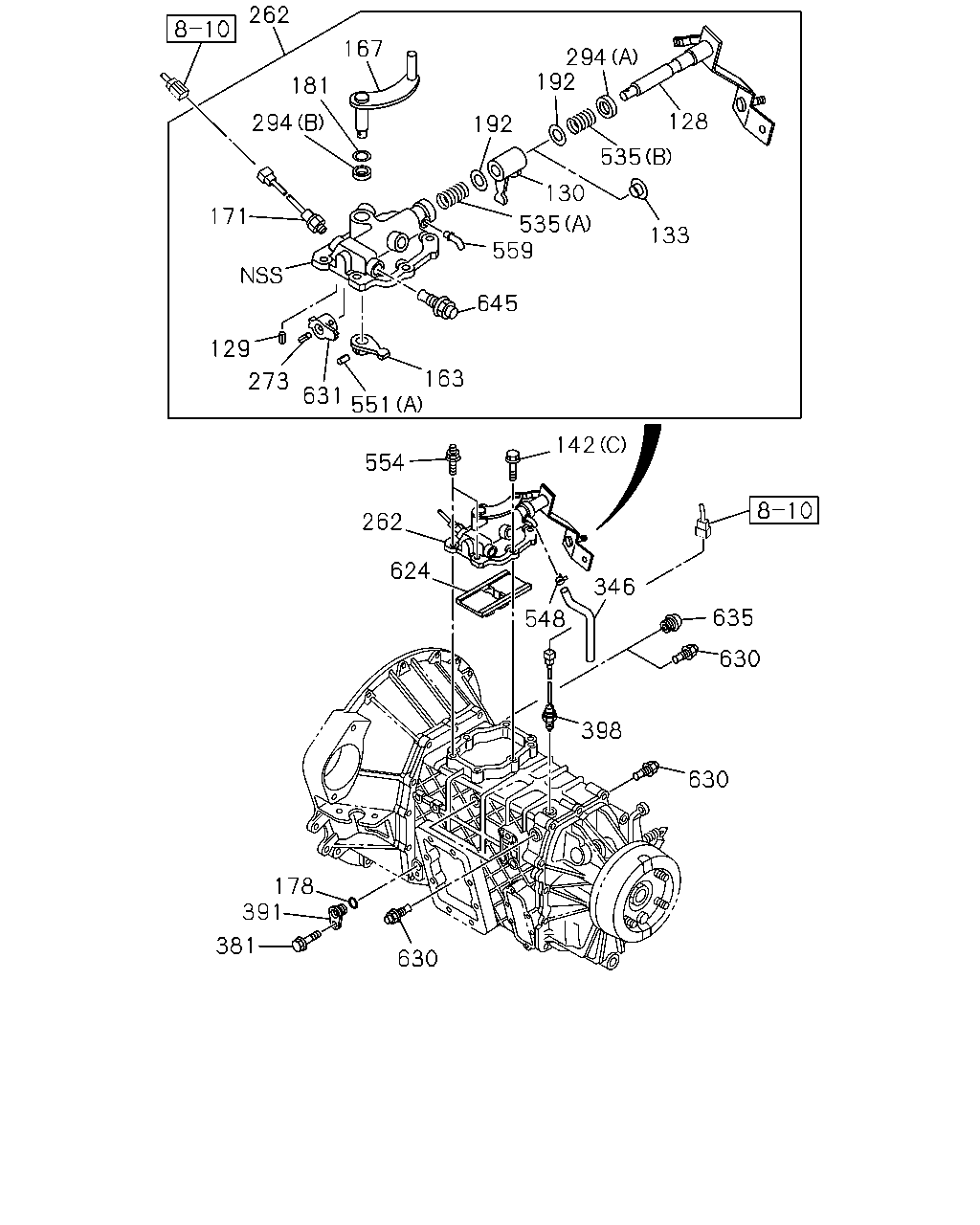

çizim 507507
630 178 391 381 630 398 630 635 346 548 624 262 554 142 163 551 631 273 129 171 294 181 167 262 192 192 294 128 133 645 559 535 130 535
BalonParca AdiParca NoAdetTipApplied Date A B C D
128 04.030 LEVER; SHIFT,EXTERNAL 8-97305-725-0 01 1 1512- ●
128 04.030 LEVER; SHIFT,EXTERNAL 8-97363-226-0 01 1 1512- ●
129 04.027 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 1512- ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1512- ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-98190-340-0 01 1 1512- ● ●
133 04.027 SEAT; SPR 8-97305-667-0 01 1 1512- ●
142 04.012 BOLT; QUAD BOX
04.356 (C) M8X22 FLANGE 		8-97365-376-0 04 1 1512- ● ●
142 04.012 BOLT; QUAD BOX
03.275 (A) M8X25 FLANGE 		0-28050-825-0 08 1 1512- ● ●
142 04.012 BOLT; QUAD BOX
00.206 (B) M8X30 FLANGE 		0-28050-830-0 02 1 1512- ● ●
163 04.302 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 1512- ● ●
163 04.302 LEVER; SELECT,INTERNAL 8-98190-302-0 01 1 1512- ● ●
167 04.302 LEVER; SELECT,EXTERNAL 8-98039-434-0 01 1 1512- ● ●
167 04.302 LEVER; SELECT,EXTERNAL 8-98190-276-0 01 1 1512- ● ●
171 04.054 SWITCH; NEUTRAL 8-98324-878-0 01 1 1512- ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> 		8-98190-415-0 01 1 1512- ●
171 04.054 SWITCH; NEUTRAL 8-98190-415-0 01 1 1512- ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 1512- ● ●
181 04.302 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 1512- ● ●
192 04.309 WASHER; PL 8-97305-661-0 01 1 1512- ●
192 04.309 WASHER; PL 8-97305-661-0 02 1 1512- ●
262 04.105 BOX ASM; SHIFT CONT 8-98240-999-2 01 1 1512- ●
262 04.105 BOX ASM; SHIFT CONT 8-98240-992-2 01 1 1512- ●
273 04.309 PIN; SPR,STOPPER
04.307 D=4.2 L=25 		8-97103-142-0 01 1 1512- ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 1512- ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 1512- ● ●
346 04.545 HOSE; AIR 8-97309-855-0 01 1 1512- ● ●
381 04.105 BOLT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1512- ● ●
391 04.104 PLUG; SW HOLE 8-97300-273-1 01 1 1512- ● ●
398 02.698 SWITCH; REV LAMP 8-98242-173-1 01 1 1512- ● ●
398 02.698 SWITCH; REV LAMP 8-98190-417-0 01 1 1512- ● ●
535 04.302 SPRING; LEVER
(A) 		8-97323-771-0 01 1 1512- ●
535 04.302 SPRING; LEVER
(B) 		8-97323-772-0 01 1 1512- ●
535 04.302 SPRING; LEVER
(A) 		8-97305-659-0 01 1 1512- ●
535 04.302 SPRING; LEVER
(B) 		8-97305-660-0 01 1 1512- ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 1512- ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1512- ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1512- ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1512- ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 1512- ●
554 04.302 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 1512- ● ●
559 04.302 PIPE; BREATHER
04.510 		8-97358-318-0 01 1 1512- ● ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 1512- ● ●
630 04.307 DETENT ASM 8-98019-536-0 03 1 1512- ●
630 04.307 DETENT ASM 8-98019-536-0 04 1 1512- ●
631 04.105 STOPPER; SPRING 8-97305-666-0 01 1 1512- ● ●
635 04.309 PLUG; DETENT
00.206 		8-97380-892-0 01 1 1512- ●
645 04.311 DETENT ASM
04.307 		8-98019-536-0 01 1 1512- ● ●

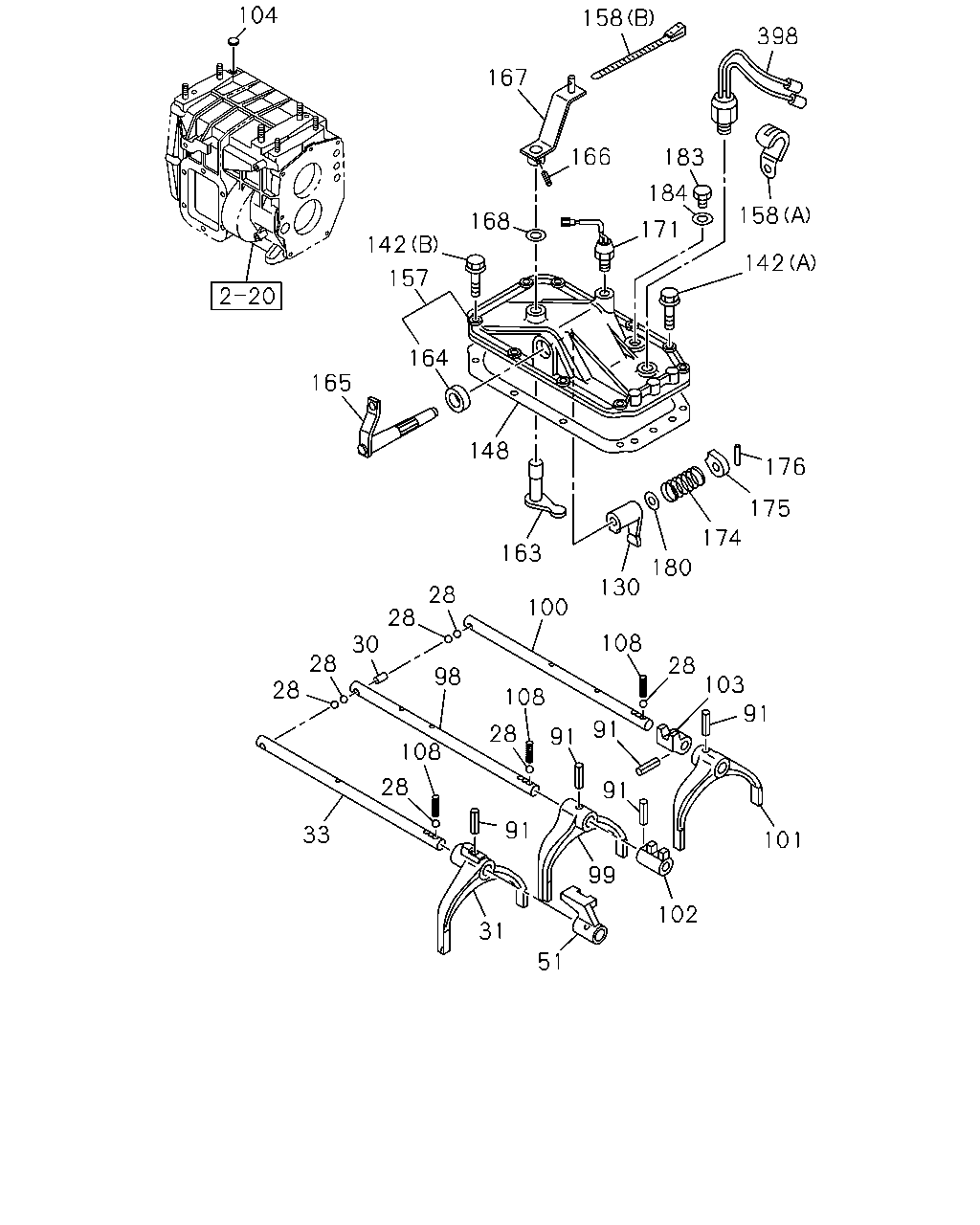

çizim 507704
104 142 168 167 158 166 183 157 165 164 148 171 184 398 158 142 176 175 174 180 130 163 100 108 28 103 91 101 102 51 31 33 28 28 91 91 91 91 108 98 108 28 28 30 28 28 99
BalonParca AdiParca NoAdetTipApplied Date A B C D
28 04.311 BALL; INTER LK 9-00097-010-0 07 1 1512- ● ●
30 04.307 PIN; INTER LK 8-98189-971-0 01 1 1512- ● ●
31 04.302 ARM; SHIFT,LOW & 2ND 8-98190-300-0 01 1 1512- ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-98188-591-0 01 1 1512- ● ●
51 04.303 BLOCK; SHIFT,1ST & 2ND 8-98188-589-0 01 1 1512- ● ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 L=25 OD=5 		1-09748-032-0 06 1 1512- ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-98188-590-0 01 1 1512- ● ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-98190-301-0 01 1 1512- ● ●
100 04.309 ROD; SHIFT,REV & 5TH 8-98188-592-0 01 1 1512- ● ●
101 04.302 ARM; SHIFT,REV & 5TH 8-98190-303-0 01 1 1512- ● ●
102 04.303 BLOCK; SHIFT,3RD & 4TH 8-98188-588-0 01 1 1512- ● ●
103 04.303 BLOCK; SHIFT,REV TO OD 8-98188-587-0 01 1 1512- ● ●
104 04.311 PLUG; PLATE
OD=16 		0-92001-416-0 01 1 1512- ● ●
108 04.311 SPRING; LOCK BALL
OD=6.8 L=31.6 		8-98188-917-0 03 1 1512- ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1512- ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-98190-340-0 01 1 1512- ● ●
142 04.012 BOLT; QUAD BOX
04.356 (C) M8X22 FLANGE 		8-97365-376-0 04 1 1512- ● ●
142 04.012 BOLT; QUAD BOX
03.275 (A) M8X25 FLANGE 		0-28050-825-0 08 1 1512- ● ●
142 04.012 BOLT; QUAD BOX
00.206 (B) M8X30 FLANGE 		0-28050-830-0 02 1 1512- ● ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-98189-273-0 01 1 1512- ● ●
157 04.105 BOX; QUAD,TRANS
EXHAUST BRAKE<NF8> 		8-98190-265-0 01 1 1512- ●
157 04.105 BOX; QUAD,TRANS 8-98190-265-0 01 1 1512- ●
157 04.105 BOX; QUAD,TRANS
EXC. EXHAUST BRAKE<NF8> 		8-98190-266-0 01 1 1512- ●
158 04.105 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 1512- ● ●
158 04.105 CLIP; HARNESS
03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1512- ● ●
163 04.302 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 1512- ● ●
163 04.302 LEVER; SELECT,INTERNAL 8-98190-302-0 01 1 1512- ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). OD=27 		8-97304-068-0 02 1 1512- ● ●
165 04.302 LEVER; SHIFT
EXHAUST BRAKE<NF8> 		8-98190-282-0 01 1 1512- ●
165 04.302 LEVER; SHIFT 8-98190-282-0 01 1 1512- ●
165 04.302 LEVER; SHIFT
EXC. EXHAUST BRAKE<NF8> 		8-98190-273-0 01 1 1512- ●
166 04.302 PIN; SPR,SELECT LEVER
04.303 L=25 OD=5 		1-09748-032-0 01 1 1512- ● ●
167 04.302 LEVER; SELECT,EXTERNAL 8-98039-434-0 01 1 1512- ● ●
167 04.302 LEVER; SELECT,EXTERNAL 8-98190-276-0 01 1 1512- ● ●
168 04.302 WASHER; LK,SELECT LEVER 8-98190-433-0 01 1 1512- ● ●
171 04.054 SWITCH; NEUTRAL 8-98324-878-0 01 1 1512- ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> 		8-98190-415-0 01 1 1512- ●
171 04.054 SWITCH; NEUTRAL 8-98190-415-0 01 1 1512- ●
174 04.307 SPRING; REV 8-98190-419-0 01 1 1512- ● ●
175 04.302 RING; STOPPER,SHIFT LEVER
EXHAUST BRAKE<NF8> 		8-98190-338-0 01 1 1512- ●
175 04.302 RING; STOPPER,SHIFT LEVER 8-98190-338-0 01 1 1512- ●
176 04.302 PIN; SPR,STOPPER
EXHAUST BRAKE<NF8> 04.027 L=30 OD=4 		1-09748-031-0 02 1 1512- ●
176 04.302 PIN; SPR,STOPPER
04.027 L=30 OD=4 		1-09748-031-0 02 1 1512- ●
176 04.302 PIN; SPR,STOPPER
EXC. EXHAUST BRAKE<NF8> 04.027 L=30 OD=4 		1-09748-031-0 01 1 1512- ●
180 04.302 WASHER; REV STOP SPRING 8-98190-423-0 01 1 1512- ● ●
183 04.105 PLUG; SCREW,OIL FILTER
M18 		8-98190-432-0 01 1 1512- ● ●
184 04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=15.5 		8-98189-969-0 01 1 1512- ● ●
398 02.698 SWITCH; REV LAMP 8-98242-173-1 01 1 1512- ● ●
398 02.698 SWITCH; REV LAMP 8-98190-417-0 01 1 1512- ● ●
