Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#171373) — 284 parça

268 408 510 108 507 325 93 507 511 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1512-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1512-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1512-	●	●
108	04.428 SHAFT; COUNTER Z=45-49-33-20	8-97380-630-1	01	1	1512-	●
108	04.428 SHAFT; COUNTER Z=47-39-33-20	8-97380-627-1	01	1	1512-		●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	1512-	●	●
132	04.433 SHAFT; REV	8-98189-378-0	01	1	1512-			●	●
135	04.430 GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1512-	●	●
135	04.430 GEAR; REV IDLER Z=29	8-97169-508-0	01	1	1512-			●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	1512-	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97252-684-1	01	1	1512-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1512-	●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-98189-749-0	01	1	1512-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1512-	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1512-	●	●
408	04.384 SPRING (C)	8-97366-040-1	02	1	1512-	●	●
408	04.384 SPRING (C)	8-97366-040-1	02	1	1512-		●
408	04.384 SPRING (A)	8-98189-347-0	01	1	1512-			●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1512-	●	●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	1512-	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1512-	●	●

118 115 506 508 528 423 527 408 529 300 408 408 268 93 507 511 135 314 132 108 507 325 480 510

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1512-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1512-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1512-	●	●
108	04.428 SHAFT; COUNTER Z=45-49-33-20	8-97380-630-1	01	1	1512-	●
108	04.428 SHAFT; COUNTER Z=47-39-33-20	8-97380-627-1	01	1	1512-		●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	1512-		●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1512-		●
118	04.421 GEAR; 6TH,COUNTER Z=50	8-97386-580-0	01	1	1512-		●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	1512-	●	●
132	04.433 SHAFT; REV	8-98189-378-0	01	1	1512-			●	●
135	04.430 GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1512-	●	●
135	04.430 GEAR; REV IDLER Z=29	8-97169-508-0	01	1	1512-			●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	1512-	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97252-684-1	01	1	1512-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.7	8-97254-727-0	01	1	1512-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 04.384 ID=30.7 T=1.8	8-97254-728-0	01	1	1512-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.9	8-97254-734-0	01	1	1512-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.6	8-97365-617-0	01	1	1512-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1512-	●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-98189-749-0	01	1	1512-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1512-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1512-	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1512-	●	●
408	04.384 SPRING (C)	8-97366-040-1	02	1	1512-	●	●
408	04.384 SPRING (C)	8-97366-040-1	02	1	1512-		●
408	04.384 SPRING (A)	8-98189-347-0	01	1	1512-			●	●
423	04.384 SLEEVE & HUB ASM; 6TH	8-97367-022-0	01	1	1512-		●
480	04.419 WASHER; THRUST,6TH	8-97253-123-1	01	1	1512-		●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-121-1	01	1	1512-		●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1512-	●	●
508	04.383 RING; BLOCK,6TH 04.395 Z=45	8-97309-532-0	01	1	1512-		●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	1512-	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1512-	●	●
527	04.384 INSERT; 6TH	8-94448-202-2	03	1	1512-		●
528	04.384 SLEEVE; 6TH 04.535 Z=45	8-94421-871-1	01	1	1512-		●
529	04.384 PLATE; STOPPER,6TH	8-97248-952-0	01	1	1512-		●

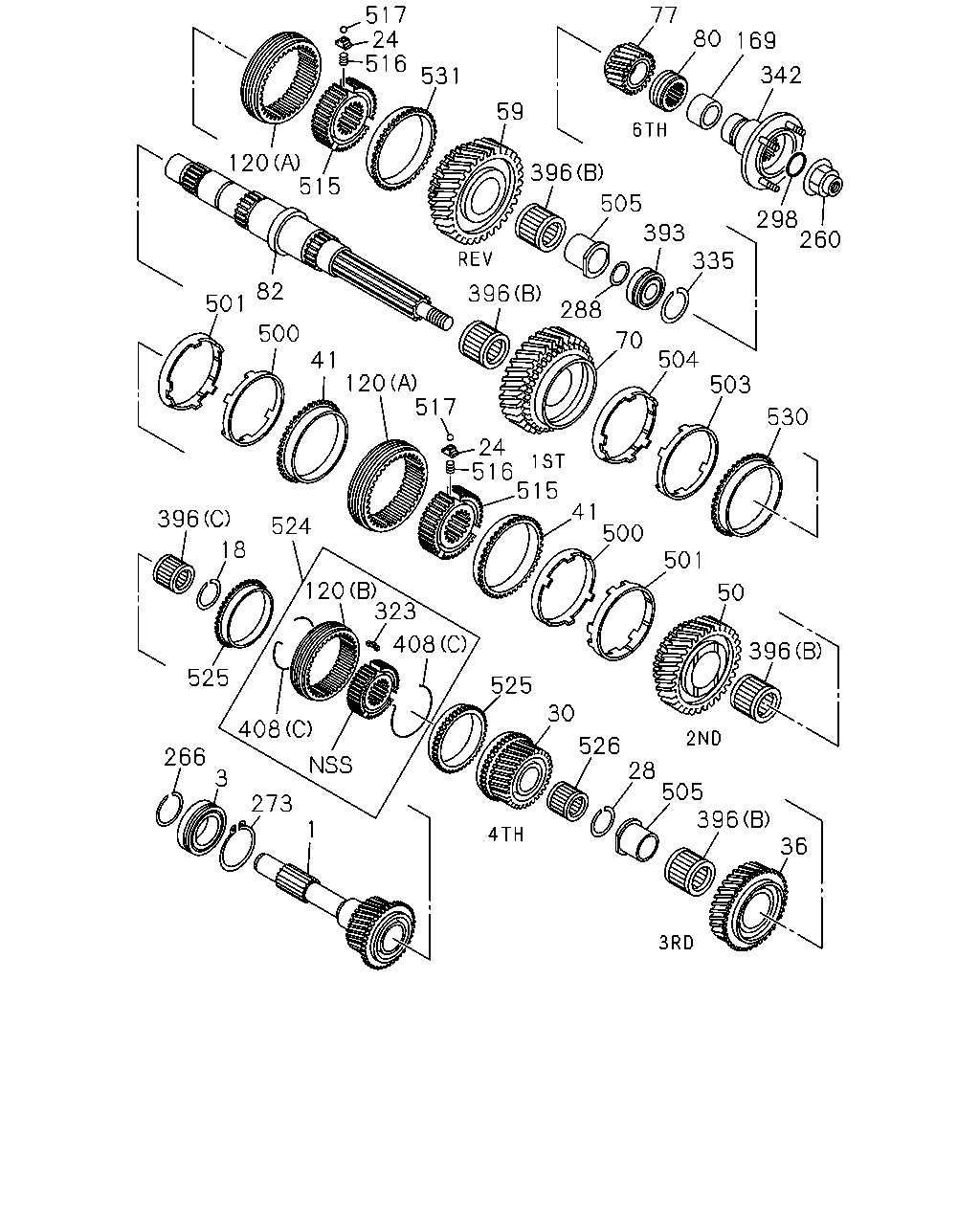

517 24 516 531 120 515 82 501 41 500 120 517 24 516 59 396 288 505 77 80 169 342 298 393 335 260 504 70 396 503 530 515 41 500 501 50 396 524 396 18 120 323 408 525 30 526 28 505 396 36 525 408 3 273 266 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS Z=28	8-98031-848-0	01	1	1512-	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=28	8-98179-968-1	01	1	1512-				●
1	04.351 SHAFT; TOP GEAR,TRANS Z=30	8-98179-969-1	01	1	1512-			●
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-98021-266-0	01	1	1512-		●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1512-	●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-98189-742-0	01	1	1512-			●	●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1512-	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	1512-	●	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1512-	●	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=28	8-97241-230-0	01	1	1512-		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1512-	●	●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1512-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1512-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97174-955-0	01	1	1512-				●
50	04.395 GEAR; 2ND,MAINSHAFT Z=36	8-97373-143-1	01	1	1512-			●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1512-	●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-98190-291-1	01	1	1512-			●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1512-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-98180-095-1	01	1	1512-			●	●
77	04.421 GEAR; 6TH,MAINSHAFT Z=21	8-97386-582-0	01	1	1512-		●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1512-	●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-98190-429-0	01	1	1512-			●	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	1512-	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-37-27	8-97368-837-0	01	1	1512-			●	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	1512-		●
120	04.383 SLEEVE 04.535 (B) Z=45	8-94421-871-1	01	1	1512-	●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	02	1	1512-	●	●
169	04.419 COLLAR; MAINSHAFT	8-97252-937-1	01	1	1512-		●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	1512-	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	1512-	●	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1512-	●	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1512-	●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1512-	●	●
323	04.384 INSERT	8-94448-202-2	03	1	1512-	●	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	1512-	●	●
342	05.545 FLANGE; OUTPUT	8-98031-640-0	01	1	1512-	●	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	1512-	●	●
393	04.352 BEARING; MAINSHAFT END	8-98189-743-0	01	1	1512-			●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97253-102-1	01	1	1512-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1512-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-98189-970-0	01	1	1512-			●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1512-	●	●
408	04.384 SPRING (C)	8-97366-040-1	02	1	1512-	●	●
408	04.384 SPRING (C)	8-97366-040-1	02	1	1512-		●
408	04.384 SPRING (A)	8-98189-347-0	01	1	1512-			●	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1512-	●	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1512-	●	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	1512-	●	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-312-1	01	1	1512-	●	●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	1512-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	1512-	●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	1512-	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	1512-	●	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1512-	●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1512-	●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1512-	●	●
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	1512-	●	●
531	04.383 RING; BLOCK,REV Z=45	8-97368-343-0	01	1	1512-	●	●

35 390 36 33 281 535 49 51 50 40 39 405 40 51 177 313 82 70 314 59 172 397 387 534 320 397 35 396 1 3 4 180 84 180 182 287 398 185 97 109 186 135 136 132 184 183 386 408 536 62 389 63 66 62 74 13 173 393 276 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS Z=28	8-98031-848-0	01	1	1512-	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=28	8-98179-968-1	01	1	1512-				●
1	04.351 SHAFT; TOP GEAR,TRANS Z=30	8-98179-969-1	01	1	1512-			●
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-98021-266-0	01	1	1512-		●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1512-	●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-98189-742-0	01	1	1512-			●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	1512-			●	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=24	8-97373-008-0	01	1	1512-				●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-97373-011-0	01	1	1512-			●
33	04.352 BEARING; NEEDLE,3RD GEAR	8-98189-746-0	01	1	1512-			●	●
35	04.383 RING; BLOCK,4TH & 3RD Z=36	8-98190-426-0	02	1	1512-			●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1512-	●	●
39	04.384 HUB; CLU,LOW & 2ND Z=42	8-97177-689-0	01	1	1512-			●	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-98189-960-0	02	1	1512-			●	●
49	04.352 BEARING; NEEDLE,2ND GEAR NSK	8-98189-747-0	01	1	1512-			●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1512-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97174-955-0	01	1	1512-				●
50	04.395 GEAR; 2ND,MAINSHAFT Z=36	8-97373-143-1	01	1	1512-			●
51	04.383 RING; BLOCK,LOW & 2ND Z=42	8-98190-428-0	02	1	1512-			●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1512-	●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-98190-291-1	01	1	1512-			●	●
62	04.384 SPRING; INSERT,REV & 5TH	8-98189-962-0	02	1	1512-			●	●
63	04.384 INSERT; SYN,REV & 5TH	8-98190-418-0	03	1	1512-			●	●
66	04.383 RING; BLOCK,SYN Z=36	8-98190-426-0	01	1	1512-			●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1512-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-98180-095-1	01	1	1512-			●	●
74	04.419 WASHER; THRUST,REV GEAR	8-98188-569-0	01	1	1512-			●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1512-	●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-98190-429-0	01	1	1512-			●	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	1512-	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-37-27	8-97368-837-0	01	1	1512-			●	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	1512-		●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	8-98189-745-0	01	1	1512-			●	●
97	04.415 GEAR; 5TH,COUNTER Z=55	8-97372-900-0	01	1	1512-				●
97	04.415 GEAR; 5TH,COUNTER Z=53	8-97169-511-0	01	1	1512-			●
109	04.422 BEARING; COUNTER SHAFT,RR	8-98189-744-0	01	1	1512-			●	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	1512-	●	●
132	04.433 SHAFT; REV	8-98189-378-0	01	1	1512-			●	●
135	04.430 GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1512-	●	●
135	04.430 GEAR; REV IDLER Z=29	8-97169-508-0	01	1	1512-			●	●
136	04.437 WASHER; THRUST,REV IDLE,RR	8-98188-533-0	01	1	1512-			●	●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.75	8-94402-405-0	01	1	1512-			●	●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.80	8-94402-406-0	01	1	1512-			●	●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.85	8-94402-407-0	01	1	1512-			●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.85	8-94151-522-0	01	1	1512-			●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.90	8-94151-523-0	01	1	1512-			●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.95	8-94151-524-0	01	1	1512-			●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=2.00	8-94157-747-0	01	1	1512-			●	●
177	04.384 RING; SNAP,CLU HUB ID=44.5	8-98189-990-0	01	1	1512-			●	●
180	04.422 RING; SNAP,CLUSTER GEAR (B) ID=38.5	8-98189-991-0	01	1	1512-			●	●
180	04.422 RING; SNAP,CLUSTER GEAR 08.934 (A) ID=32.2	9-09180-035-0	01	1	1512-			●	●
182	04.422 PLATE; CLUSTER GEAR	8-98188-586-0	01	1	1512-				●
182	04.422 PLATE; CLUSTER GEAR	8-98188-585-0	01	1	1512-			●
183	04.422 SPRING; PLATE,CLUSTER GEAR	8-98189-380-0	03	1	1512-			●	●
184	04.422 SPRING; CLUSTER GEAR	8-98189-350-0	01	1	1512-			●	●
185	04.422 RING; SNAP,CLUSTER GEAR ID=41.5	9-09180-045-0	01	1	1512-			●	●
186	04.422 RING; SNAP,CLUSTER GEAR ID=29.6	9-09180-032-0	01	1	1512-			●	●
276	04.419 SPACER; BRG TO DRIVE GEAR	8-98188-906-0	01	1	1512-			●	●
281	04.419 WASHER; THRUST,MAINSHAFT	8-98188-466-0	01	1	1512-			●	●
287	04.422 PIN; COUNTER GEAR	8-98190-445-0	03	1	1512-			●	●
313	04.419 BEARING; NEEDLE,LOW GEAR	8-98189-748-0	01	1	1512-			●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1512-	●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-98189-749-0	01	1	1512-			●	●
320	04.384 HUB; CLU,4TH & 3RD Z=36	8-97177-690-0	01	1	1512-			●	●
386	04.435 PIN; REV SHAFT	8-98190-093-0	01	1	1512-			●	●
387	04.384 INSERT; SYN,4TH & 3RD	8-98189-965-0	03	1	1512-			●	●
389	04.384 HUB; CLU,REV & 5TH Z=36	8-97373-144-0	01	1	1512-			●	●
390	04.383 RING; SNAP,CLU HUB 04.384 T=1.75	8-94151-520-0	01	1	1512-			●	●
390	04.383 RING; SNAP,CLU HUB 04.384 T=1.80	8-94151-521-0	01	1	1512-			●	●
390	04.383 RING; SNAP,CLU HUB 04.416 T=1.85	8-94151-522-0	01	1	1512-			●	●
390	04.383 RING; SNAP,CLU HUB 04.416 T=1.90	8-94151-523-0	01	1	1512-			●	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	1512-	●	●
393	04.352 BEARING; MAINSHAFT END	8-98189-743-0	01	1	1512-			●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97253-102-1	01	1	1512-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1512-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-98189-970-0	01	1	1512-			●	●
397	04.384 SPRING; INSERT,4TH & 3RD	8-98189-962-0	02	1	1512-			●	●
398	04.421 GEAR; COUNTER Z=51-34-22-14	8-97204-104-0	01	1	1512-				●
398	04.421 GEAR; COUNTER Z=49-34-22-14	8-97381-658-0	01	1	1512-			●
405	04.384 INSERT; SYN,LOW & 2ND	8-98189-965-0	03	1	1512-			●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1512-	●	●
408	04.384 SPRING (C)	8-97366-040-1	02	1	1512-	●	●
408	04.384 SPRING (C)	8-97366-040-1	02	1	1512-		●
408	04.384 SPRING (A)	8-98189-347-0	01	1	1512-			●	●
534	04.395 SLEEVE; HUB,4TH-3RD Z=36	8-97177-134-0	01	1	1512-			●	●
535	04.395 SLEEVE; HUB,LOW-2ND Z=42	8-97177-133-0	01	1	1512-			●	●
536	04.395 SLEEVE; HUB,REV-5TH Z=36	8-97177-135-0	01	1	1512-			●	●

517 24 516 120 82 501 500 515 396 531 41 120 517 24 516 515 500 501 50 70 504 503 530 396 524 18 120 323 408 525 266 273 3 408 525 523 526 28 41 396 505 396 36 396 505 288 393 335 260 298 342 80 519 59 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS Z=28	8-98031-848-0	01	1	1512-	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=28	8-98179-968-1	01	1	1512-				●
1	04.351 SHAFT; TOP GEAR,TRANS Z=30	8-98179-969-1	01	1	1512-			●
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-98021-266-0	01	1	1512-		●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1512-	●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-98189-742-0	01	1	1512-			●	●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1512-	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	1512-	●	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1512-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1512-	●	●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1512-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1512-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97174-955-0	01	1	1512-				●
50	04.395 GEAR; 2ND,MAINSHAFT Z=36	8-97373-143-1	01	1	1512-			●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1512-	●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-98190-291-1	01	1	1512-			●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1512-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-98180-095-1	01	1	1512-			●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1512-	●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-98190-429-0	01	1	1512-			●	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	1512-	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-37-27	8-97368-837-0	01	1	1512-			●	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	1512-		●
120	04.383 SLEEVE 04.535 (B) Z=45	8-94421-871-1	01	1	1512-	●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	02	1	1512-	●	●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	1512-	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	1512-	●	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1512-	●	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1512-	●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1512-	●	●
323	04.384 INSERT	8-94448-202-2	03	1	1512-	●	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	1512-	●	●
342	05.545 FLANGE; OUTPUT	8-98031-640-0	01	1	1512-	●	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	1512-	●	●
393	04.352 BEARING; MAINSHAFT END	8-98189-743-0	01	1	1512-			●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97253-102-1	01	1	1512-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1512-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-98189-970-0	01	1	1512-			●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1512-	●	●
408	04.384 SPRING (C)	8-97366-040-1	02	1	1512-	●	●
408	04.384 SPRING (C)	8-97366-040-1	02	1	1512-		●
408	04.384 SPRING (A)	8-98189-347-0	01	1	1512-			●	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1512-	●	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1512-	●	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	1512-	●	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-312-1	01	1	1512-	●	●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	1512-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	1512-	●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	1512-	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	1512-	●	●
519	04.419 COLLAR; MAINSHAFT END,5TH 04.415	8-97252-940-0	01	1	1512-	●
523	04.395 GEAR; OD,MAINSHAFT Z=22	8-97241-231-0	01	1	1512-	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1512-	●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1512-	●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1512-	●	●
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	1512-	●	●
531	04.383 RING; BLOCK,REV Z=45	8-97368-343-0	01	1	1512-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
