◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51642 - NLR/NMR(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#171372) — 61 parça
çizim 507192
2 28 27 22 1 3 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/8(RV9) Z=13 		8-98189-999-0 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41) Z=15 		8-98190-001-0 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/10(GT5) FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-2 5(CTH) Z=10 		8-97253-579-1 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R16 DISC 16X6.00J-25(CZB), FRT&RR 225/75R16 DISC 16X7.00JJ-15(CZL) Z=11 		8-97253-559-1 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/10(S7C) Z=11 		8-97253-559-1 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/9(HC6) Z=12 		8-97253-563-1 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/9(S2J) FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-2 5(CTH),FRT&RR 7.5-15-12 DISC 15X5.5F-25(CZN),FRT&RR 7.5-15-14 DISC 15X5.5F-25(CZP) Z=12 		8-97253-563-1 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-2 5(CTH),FRT&RR 7.5-15-12 DISC 15X5.5F-25(CZN),FRT&RR 7.5-15-14 DISC 15X5.5F-25(CZP) Z=13 		8-97253-562-1 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/9(S2J) FRT&RR 225/75R16 DISC 16X6.00J-25(CZB) Z=13 		8-97253-562-1 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/8(R40) Z=13 		8-97253-562-1 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) FRT&RR 225/75R16 DISC 16X6.00J-25(CZB) Z=14 		8-97253-561-1 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) Z=14 		8-97253-561-1 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41) FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) Z=15 		8-97253-560-1 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42) Z=15 		8-97253-560-1 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/6(R43) Z=16 		8-97253-558-1 01 1 1512- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/8(RV9) Z=13 MARK "3" 		8-98190-370-0 01 1 1512- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/7(R41) Z=15 MARK "5" 		8-98190-431-0 01 1 1512- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 39/6(R43),FINAL GEAR RATIO 43/10(S7C) MARK "10,11,16,17" 		8-97253-124-0 01 1 1512- ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40), FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATI O 43/7(R42),FINAL GEAR RATIO 43/9(S2J) MARK "12,13,14,15" 		8-97253-125-0 01 1 1512- ● ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). M/T MSB5M(RM5),M/T MSB5S(R45) 03.278 		9-09567-220-0 01 1 1512- ●
9 04.338 SEAL; OIL,DRIVEN GEAR
M/T MSB5M(RM5),M/T MSB5S(R45) NOK 		8-98189-455-0 01 1 1512- ●
9 04.338 SEAL; OIL,DRIVEN GEAR
M/T MYY5T(RSM),M/T MYY6S(RST) NOK 		8-97131-328-1 01 1 1512- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
M/T MYY5T(RSM),M/T MYY6S(RST) 09.171 M10X30 FLANGE 		0-28151-030-0 04 1 1512- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
M/T MYY5T(RSM),M/T MYY6S(RST) 03.670 M10X35 FLANGE 		0-28151-035-0 03 1 1512- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
M/T MYY5T(RSM),M/T MYY6S(RST) 00.683 M10X55 FLANGE 		8-97365-449-0 02 1 1512- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
M/T MSB5M(RM5),M/T MSB5S(R45) 04.510 M10X35 FLANGE 		0-28051-035-0 03 1 1512- ●
22 00.685 BOLT; TRANS CASE TO ENG
M/T MSB5M(RM5),M/T MSB5S(R45) M10X40 FLANGE 		0-28051-040-0 01 1 1512- ●
22 00.685 BOLT; TRANS CASE TO ENG
M/T MSB5M(RM5),M/T MSB5S(R45) M12X35 FLANGE 		0-28051-235-0 04 1 1512- ●
27 00.685 NUT; CLU HSG TO TRANS
4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN 		0-91180-110-0 02 1 1512-1512 ●
27 00.685 NUT; CLU HSG TO TRANS
M/T MSB5M(RM5),M/T MSB5S(R45) 03.162 M10 FLANGE IDN 		0-91180-110-0 02 1 1601- ●
28 00.685 BOLT; TRANS CASE TO HSG
M/T MSB5M(RM5),M/T MSB5S(R45) M12X35 FLANGE 		0-28161-235-0 06 1 1512- ●

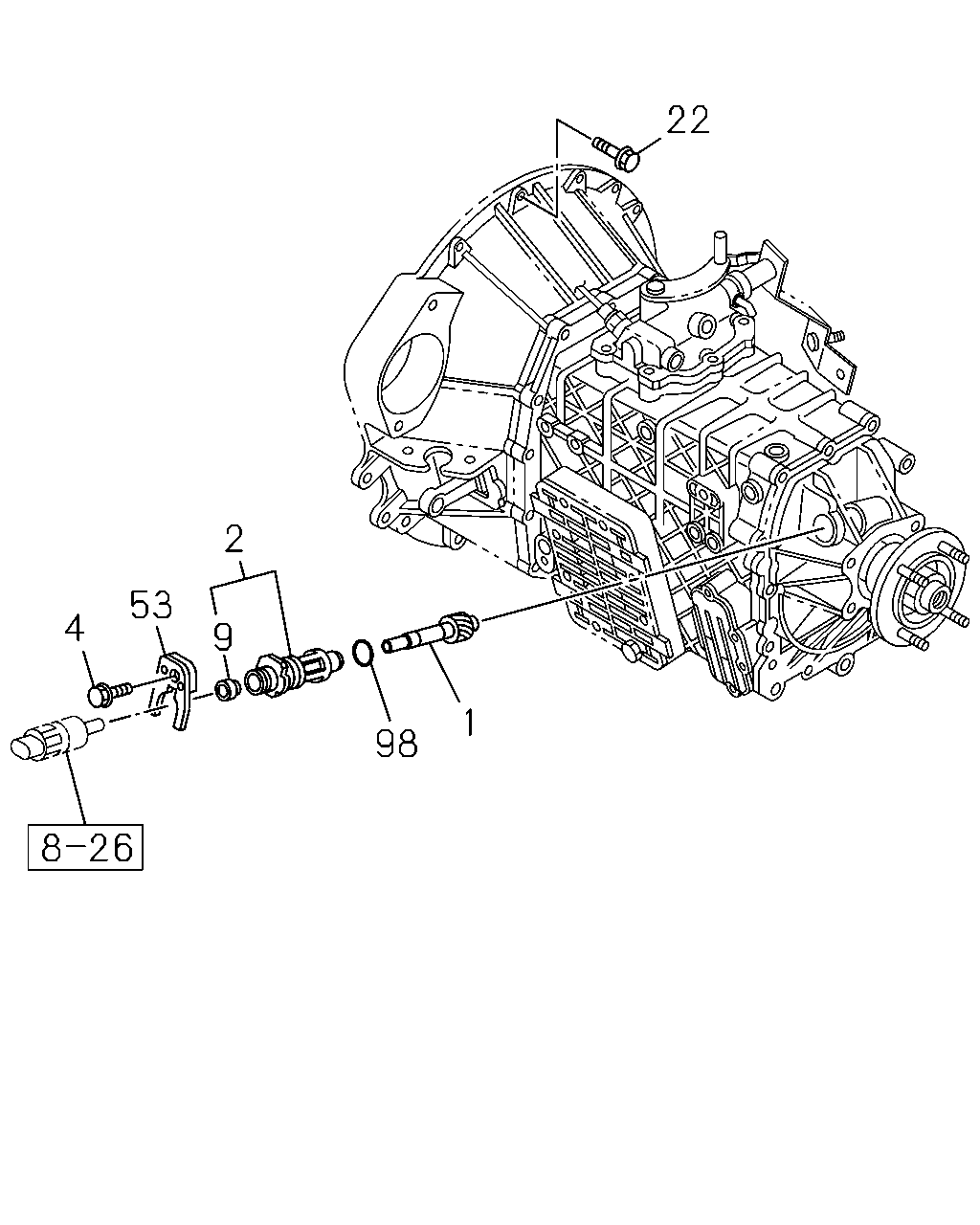

çizim 507544
22 2 9 53 4 98 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/8(RV9) Z=13 		8-98189-999-0 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41) Z=15 		8-98190-001-0 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/10(GT5) FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-2 5(CTH) Z=10 		8-97253-579-1 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R16 DISC 16X6.00J-25(CZB), FRT&RR 225/75R16 DISC 16X7.00JJ-15(CZL) Z=11 		8-97253-559-1 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/10(S7C) Z=11 		8-97253-559-1 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/9(HC6) Z=12 		8-97253-563-1 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/9(S2J) FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-2 5(CTH),FRT&RR 7.5-15-12 DISC 15X5.5F-25(CZN),FRT&RR 7.5-15-14 DISC 15X5.5F-25(CZP) Z=12 		8-97253-563-1 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-2 5(CTH),FRT&RR 7.5-15-12 DISC 15X5.5F-25(CZN),FRT&RR 7.5-15-14 DISC 15X5.5F-25(CZP) Z=13 		8-97253-562-1 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/9(S2J) FRT&RR 225/75R16 DISC 16X6.00J-25(CZB) Z=13 		8-97253-562-1 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/8(R40) Z=13 		8-97253-562-1 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) FRT&RR 225/75R16 DISC 16X6.00J-25(CZB) Z=14 		8-97253-561-1 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) Z=14 		8-97253-561-1 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41) FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) Z=15 		8-97253-560-1 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42) Z=15 		8-97253-560-1 01 1 1512- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/6(R43) Z=16 		8-97253-558-1 01 1 1512- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/8(RV9) Z=13 MARK "3" 		8-98190-370-0 01 1 1512- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/7(R41) Z=15 MARK "5" 		8-98190-431-0 01 1 1512- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 39/6(R43),FINAL GEAR RATIO 43/10(S7C) MARK "10,11,16,17" 		8-97253-124-0 01 1 1512- ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40), FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATI O 43/7(R42),FINAL GEAR RATIO 43/9(S2J) MARK "12,13,14,15" 		8-97253-125-0 01 1 1512- ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
M/T MYY5T(RSM),M/T MYY6S(RST) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1512- ● ●
9 04.338 SEAL; OIL,DRIVEN GEAR
M/T MSB5M(RM5),M/T MSB5S(R45) NOK 		8-98189-455-0 01 1 1512- ●
9 04.338 SEAL; OIL,DRIVEN GEAR
M/T MYY5T(RSM),M/T MYY6S(RST) NOK 		8-97131-328-1 01 1 1512- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
M/T MYY5T(RSM),M/T MYY6S(RST) 09.171 M10X30 FLANGE 		0-28151-030-0 04 1 1512- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
M/T MYY5T(RSM),M/T MYY6S(RST) 03.670 M10X35 FLANGE 		0-28151-035-0 03 1 1512- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
M/T MYY5T(RSM),M/T MYY6S(RST) 00.683 M10X55 FLANGE 		8-97365-449-0 02 1 1512- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
M/T MSB5M(RM5),M/T MSB5S(R45) 04.510 M10X35 FLANGE 		0-28051-035-0 03 1 1512- ●
22 00.685 BOLT; TRANS CASE TO ENG
M/T MSB5M(RM5),M/T MSB5S(R45) M10X40 FLANGE 		0-28051-040-0 01 1 1512- ●
22 00.685 BOLT; TRANS CASE TO ENG
M/T MSB5M(RM5),M/T MSB5S(R45) M12X35 FLANGE 		0-28051-235-0 04 1 1512- ●
53 04.338 PLATE; LOCK,DRIVEN GEAR
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-98046-217-0 01 1 1512- ● ●
98 04.338 SEAL; OIL,BUSH
M/T MYY5T(RSM),M/T MYY6S(RST) 04.439 		9-09561-324-0 01 1 1512- ● ●
