2-20 — MANUAL TRANSMISSION ASM AND CASE (#171371) — 87 parça

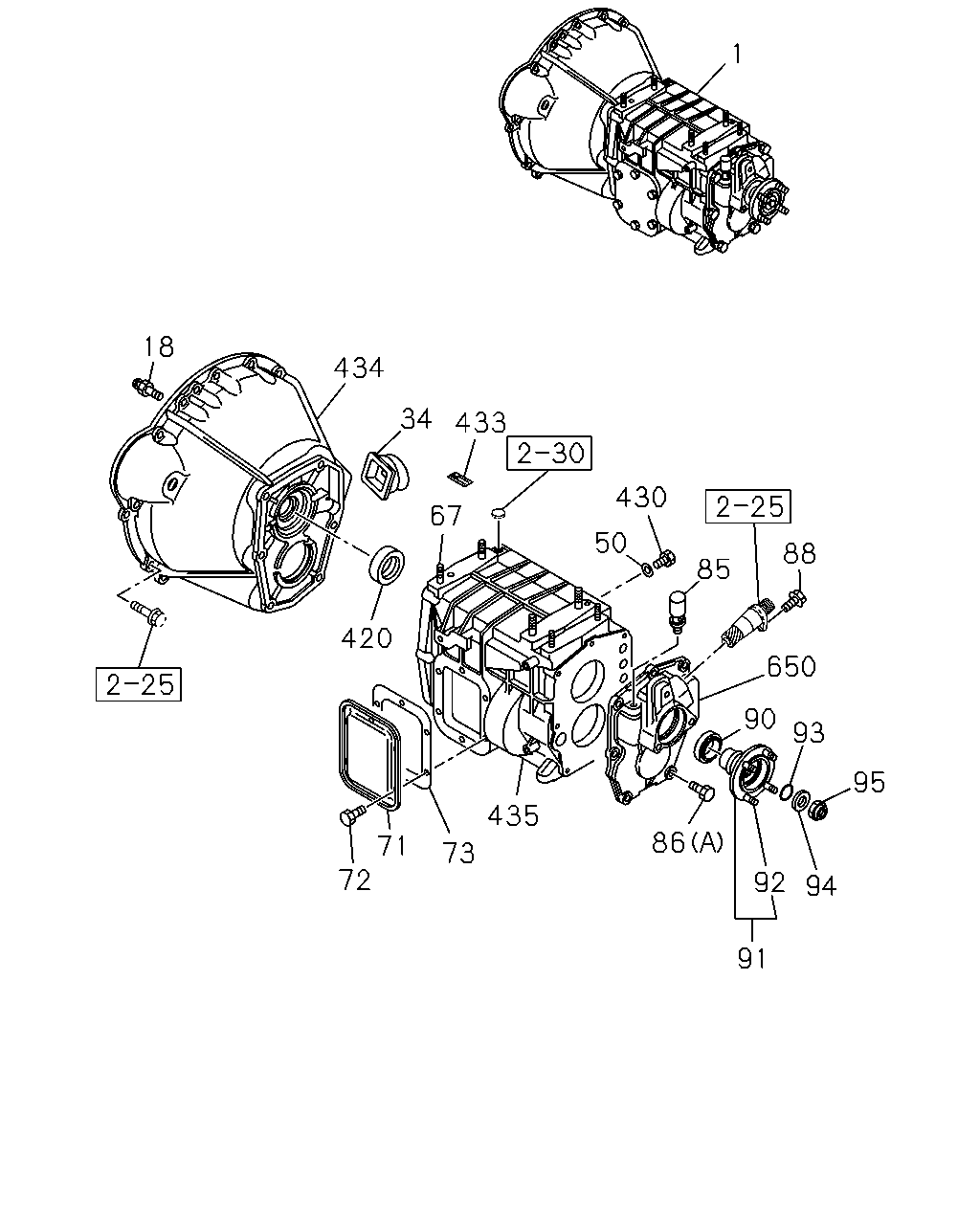

1 95 94 92 91 93 90 86 650 88 430 50 85 433 34 434 67 420 73 71 435 72 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.003 TRANSMISSION ASM; MANUAL	8-98187-415-0	01	1	1512-	●
1	04.003 TRANSMISSION ASM; MANUAL IDN	8-98203-866-0	01	1	1512-		●
1	04.003 TRANSMISSION ASM; MANUAL EXHAUST BRAKE<NF8>	8-98203-862-0	01	1	1512-			●
1	04.003 TRANSMISSION ASM; MANUAL EXC. EXHAUST BRAKE<NF8> IDN	8-98203-863-0	01	1	1512-			●
1	04.003 TRANSMISSION ASM; MANUAL	8-98299-756-0	01	1	1512-				●
18	00.683 SUPPORT; DRAW LEVER L=47.5	8-98189-389-0	01	1	1512-		●	●
34	00.686 COVER; DUST,SHIFT FORK	8-98190-416-0	01	1	1512-		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1512-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=15.5	8-98189-969-0	01	1	1512-		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1512-				●
67	04.105 STUD; CASE TRANS	8-98189-390-0	06	1	1512-		●	●
71	04.439 COVER; SIDE,TRANS CASE	8-97252-625-0	01	1	1512-	●			●
71	04.439 COVER; SIDE,TRANS CASE	8-98189-244-0	01	1	1512-		●	●
72	04.439 BOLT; SIDE COVER 00.206 M10X20 FLANGE	8-98014-142-0	06	1	1512-	●			●
72	04.439 BOLT; SIDE COVER 06.225 M10X12 FLANGE	0-28051-012-0	06	1	1512-		●	●
73	04.109 GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-98189-272-0	01	1	1512-		●	●
85	04.104 BREATHER; RR COVER	8-98189-454-0	01	1	1512-		●	●
86	04.317 BOLT; RR COVER 09.171 (C) M10X40 FLANGE	0-28151-040-0	10	1	1512-	●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	1512-	●			●
86	04.317 BOLT; RR COVER 03.275 (A) M8X25 FLANGE	0-28050-825-0	07	1	1512-		●	●
86	04.317 BOLT; RR COVER 09.171 (C) M10X40 FLANGE	0-28151-040-0	09	1	1512-				●
88	04.338 SCREW; SPEEDOMETER BUSHING 02.343 M8X12 FLANGE IMA	0-28050-812-0	01	1	1512-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	1512-	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-98189-443-0	01	1	1512-		●	●
91	05.605 DRIVER; COUPLING	8-98190-298-0	01	1	1512-		●	●
92	05.605 BOLT; COUPLING DRIVER M10X33	8-98189-989-0	04	1	1512-		●	●
93	05.595 GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T).	8-98189-967-0	01	1	1512-		●	●
94	05.595 WASHER; COUPLING DRIVER	8-98189-951-0	01	1	1512-		●	●
95	05.595 NUT; MAINSHAFT M24 FLANGE	8-98189-932-0	01	1	1512-		●	●
420	04.354 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-98189-424-0	01	1	1512-		●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1512-	●
430	04.105 PLUG; OIL DRAIN	8-98190-430-0	01	1	1512-		●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	02	1	1512-				●
433	04.105 LABEL; TRANS	8-98189-385-0	01	1	1512-		●
433	04.105 LABEL; TRANS	8-98189-384-0	01	1	1512-			●
434	00.683 HOUSING; CLU	8-97237-099-5	01	1	1512-	●			●
434	00.683 HOUSING; CLU	8-97204-108-0	01	1	1512-		●	●
435	04.103 CASE; TRANS	8-97379-375-0	01	1	1512-	●
435	04.103 CASE; TRANS	8-97373-564-0	01	1	1512-		●	●
435	04.103 CASE; TRANS	8-97379-374-0	01	1	1512-				●
650	04.317 COVER; RR	8-97174-087-0	01	1	1512-		●	●

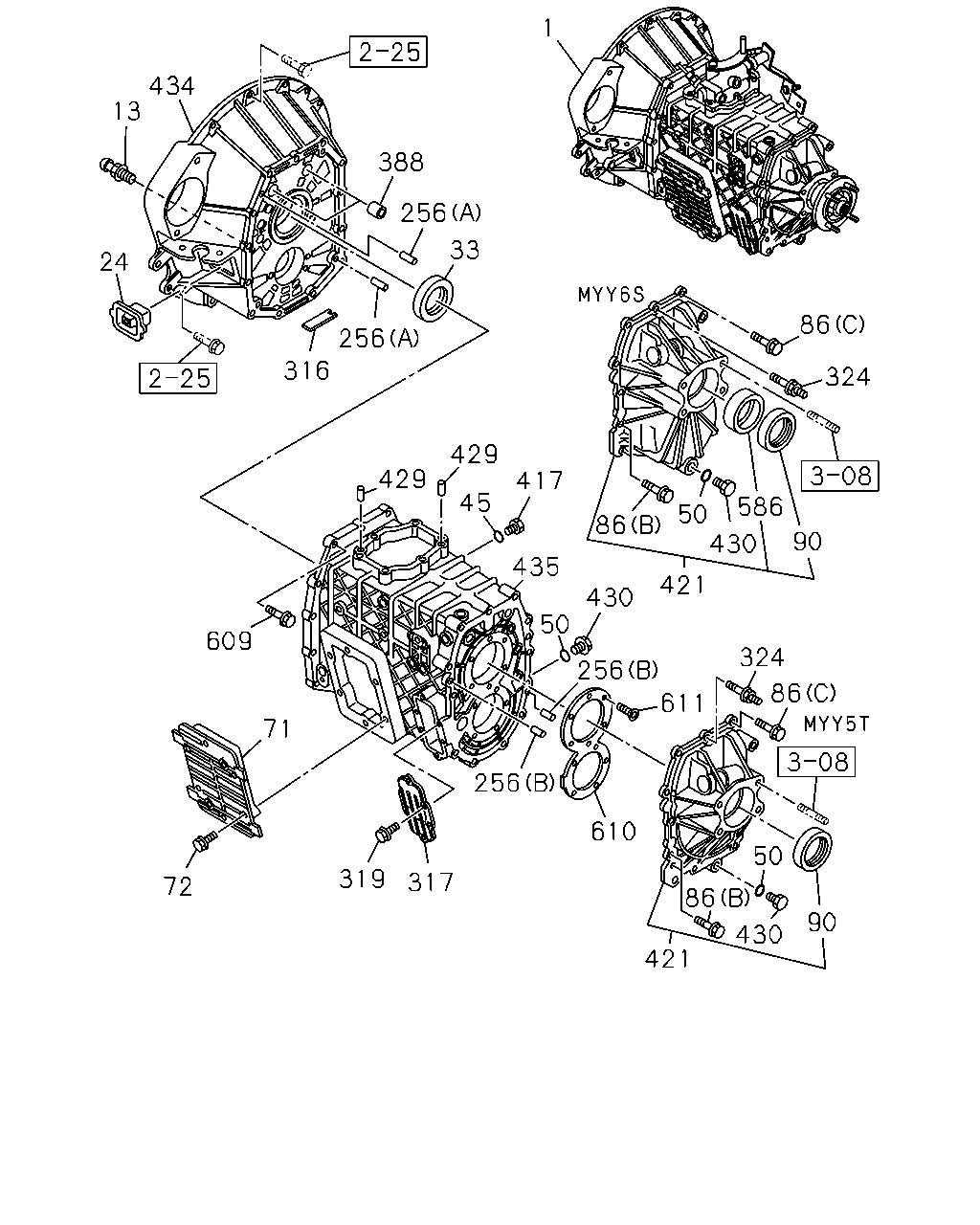

430 50 90 421 86 324 611 256 430 435 417 429 429 609 71 319 317 72 610 256 421 90 430 50 86 586 324 86 33 256 388 256 316 24 13 434 1 86 50 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.003 TRANSMISSION ASM; MANUAL	8-98187-415-0	01	1	1512-	●
1	04.003 TRANSMISSION ASM; MANUAL IDN	8-98203-866-0	01	1	1512-		●
1	04.003 TRANSMISSION ASM; MANUAL EXHAUST BRAKE<NF8>	8-98203-862-0	01	1	1512-			●
1	04.003 TRANSMISSION ASM; MANUAL EXC. EXHAUST BRAKE<NF8> IDN	8-98203-863-0	01	1	1512-			●
1	04.003 TRANSMISSION ASM; MANUAL	8-98299-756-0	01	1	1512-				●
13	04.302 SUPPORT; SHIFT FORK	8-97255-384-1	01	1	1512-	●			●
24	00.797 COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	1512-	●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1512-	●			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1512-	●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1512-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=15.5	8-98189-969-0	01	1	1512-		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1512-				●
71	04.439 COVER; SIDE,TRANS CASE	8-97252-625-0	01	1	1512-	●			●
71	04.439 COVER; SIDE,TRANS CASE	8-98189-244-0	01	1	1512-		●	●
72	04.439 BOLT; SIDE COVER 00.206 M10X20 FLANGE	8-98014-142-0	06	1	1512-	●			●
72	04.439 BOLT; SIDE COVER 06.225 M10X12 FLANGE	0-28051-012-0	06	1	1512-		●	●
86	04.317 BOLT; RR COVER 09.171 (C) M10X40 FLANGE	0-28151-040-0	10	1	1512-	●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	1512-	●			●
86	04.317 BOLT; RR COVER 03.275 (A) M8X25 FLANGE	0-28050-825-0	07	1	1512-		●	●
86	04.317 BOLT; RR COVER 09.171 (C) M10X40 FLANGE	0-28151-040-0	09	1	1512-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	1512-	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-98189-443-0	01	1	1512-		●	●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	1512-	●			●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	1512-	●			●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1512-	●			●
317	04.109 COVER; CASE	8-97252-626-0	01	1	1512-	●			●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	1512-	●			●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	1512-	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	02	1	1512-				●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	1512-	●			●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1512-	●			●
421	04.317 COVER; RR,TRANS	8-98020-029-0	01	1	1512-	●
421	04.317 COVER; RR,TRANS	8-98020-028-0	01	1	1512-				●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	1512-	●			●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1512-	●
430	04.105 PLUG; OIL DRAIN	8-98190-430-0	01	1	1512-		●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	02	1	1512-				●
434	00.683 HOUSING; CLU	8-97237-099-5	01	1	1512-	●			●
434	00.683 HOUSING; CLU	8-97204-108-0	01	1	1512-		●	●
435	04.103 CASE; TRANS	8-97379-375-0	01	1	1512-	●
435	04.103 CASE; TRANS	8-97373-564-0	01	1	1512-		●	●
435	04.103 CASE; TRANS	8-97379-374-0	01	1	1512-				●
586	00.683 BEARING; NEEDLE	8-97253-109-0	01	1	1512-				●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	1512-	●			●
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	1512-	●			●
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	11	1	1512-	●			●
