2-05 — CLUTCH PIPING (#171366) — 43 parça

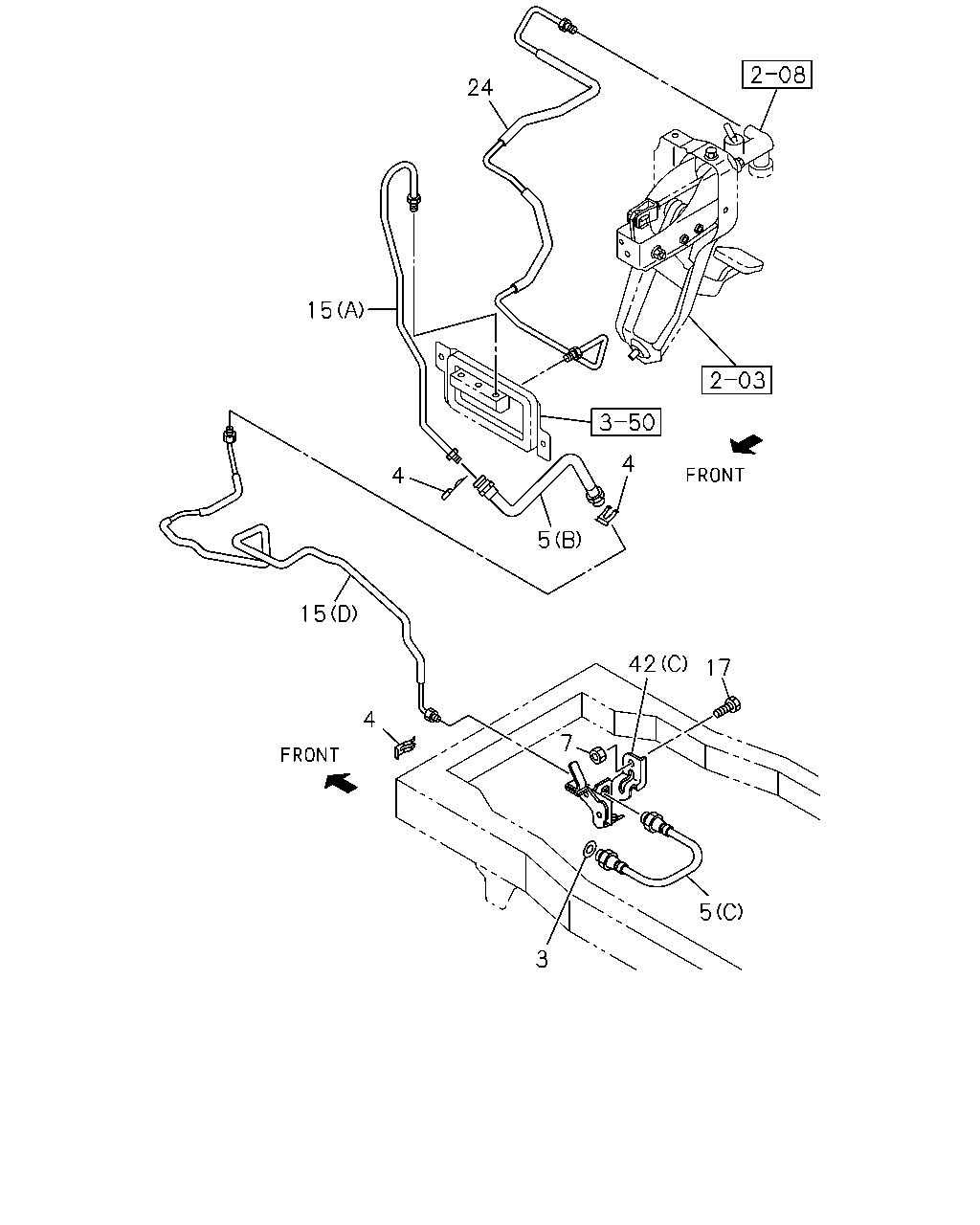

çizim 507161
24 15 4 5 15 4 42 17 7 3 5 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 1512- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 01 1 1512- ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 01 1 1512- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 1512- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(C) 		8-94482-265-1 01 1 1512- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-94374-552-1 01 1 1512- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 1512- ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 1512- ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(D) IDN 		8-97695-470-0 01 1 1512- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(C) 		8-97063-756-2 01 1 1512- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) IDN 		8-97695-469-0 01 1 1512- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) IDN 		8-97389-642-1 01 1 1512- ● ● ● ●
17 00.785 BOLT; BRKT
06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 1512- ● ●
17 00.785 BOLT; BRKT
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1512- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97389-356-1 01 1 1512- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
IDN 		8-98077-617-0 01 1 1512- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) IDN 		8-98077-617-0 01 1 1512- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-97063-755-0 01 1 1512- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-97090-299-0 01 1 1512- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
(A) 		8-97091-929-0 01 1 1512- ● ●

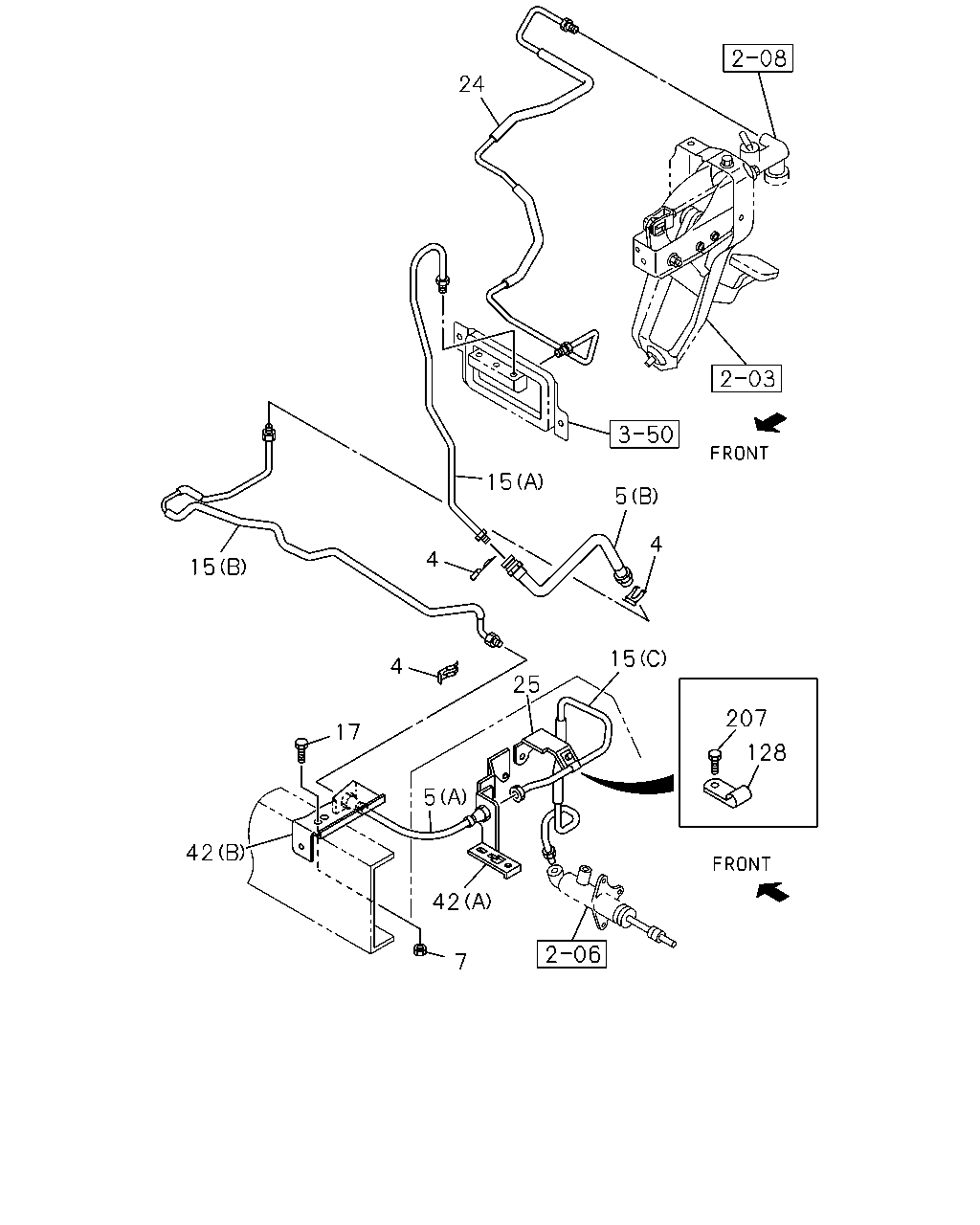

çizim 507165
24 15 5 15 4 4 4 25 17 5 42 42 7 128 207 15
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 01 1 1512- ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 01 1 1512- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 1512- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(C) 		8-94482-265-1 01 1 1512- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-94374-552-1 01 1 1512- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 1512- ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 1512- ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(D) IDN 		8-97695-470-0 01 1 1512- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(C) 		8-97063-756-2 01 1 1512- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) IDN 		8-97695-469-0 01 1 1512- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) IDN 		8-97389-642-1 01 1 1512- ● ● ● ●
17 00.785 BOLT; BRKT
06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 1512- ● ●
17 00.785 BOLT; BRKT
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1512- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97389-356-1 01 1 1512- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
IDN 		8-98077-617-0 01 1 1512- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) IDN 		8-98077-617-0 01 1 1512- ● ●
25 00.785 BRACKET; OIL PIPE 8-97013-211-1 01 1 1512- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-97063-755-0 01 1 1512- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-97090-299-0 01 1 1512- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
(A) 		8-97091-929-0 01 1 1512- ● ●
128 00.785 CLIP; AIR PIPE
ID=7 L=16 		0-95234-622-0 02 1 1512- ● ●
207 00.785 BOLT; CLIP
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 1512- ● ●
çizim 507687
183
BalonParca AdiParca NoAdetTipApplied Date A B C D
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-98121-942-0 01 1 1512- ● ●
