Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#171361) — 557 parça

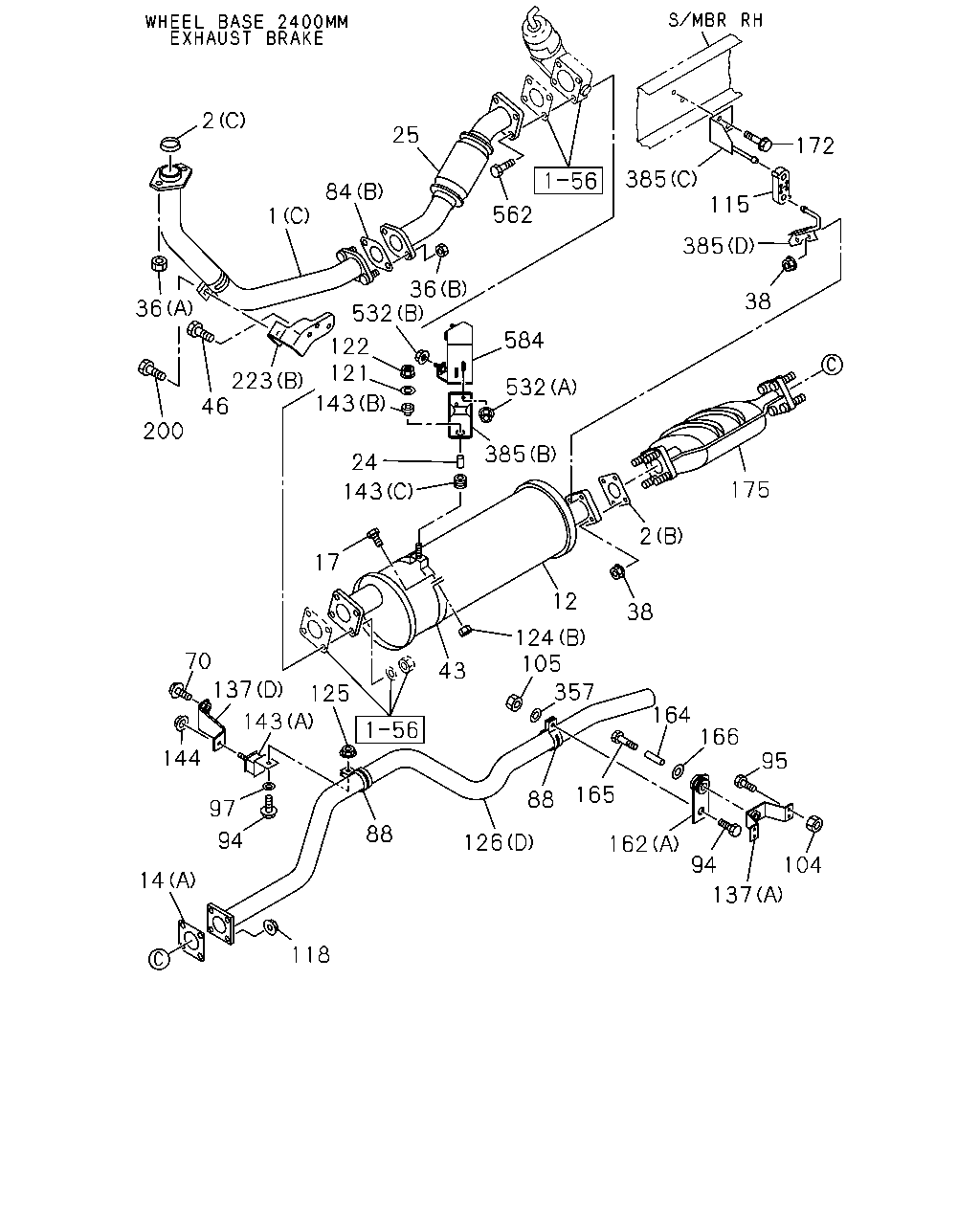

2 36 200 46 223 1 562

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4HG1-T ENG(RDP) (A) IDN	8-97187-139-1	01	1	1512-	●
1	03.609 PIPE; EXH (A) IDN	8-97187-139-1	01	1	1512-		●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (C)	8-97212-561-2	01	1	1512-	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8> (B) IDN	8-97212-759-3	01	1	1512-	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (D)	8-97206-026-1	01	1	1512-	●
2	03.611 GASKET; PIPE TO MANIF 4HG1-T ENG(RDP) (A)	8-97381-455-0	01	1	1512-	●
2	03.611 GASKET; PIPE TO MANIF (A)	8-97381-455-0	01	1	1512-		●
2	03.611 GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (B) ID=71	8-94324-194-1	01	1	1512-	●
2	03.611 GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (C)	8-97381-456-0	01	1	1512-	●
36	03.613 NUT; EXH PIPE 4HG1-T ENG(RDP) (B) M10 FLANGE	8-97096-192-1	03	1	1512-	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	03	1	1512-		●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) (B) M10 FLANGE	8-97096-192-1	02	1	1512-	●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.162 (A) M10 FLANGE IDN	0-91180-110-0	02	1	1512-	●
46	03.704 BOLT; BRKT,EXH PIPE 4HG1-T ENG(RDP) 03.613 M10X25 W/LK&PL WASHER	0-50651-025-0	02	1	1512-	●
46	03.704 BOLT; BRKT,EXH PIPE 03.613 M10X25 W/LK&PL WASHER	0-50651-025-0	02	1	1512-		●
46	03.704 BOLT; BRKT,EXH PIPE 4JB1-TC ENG(RDT) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1512-	●
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	01	1	1512-	●	●
223	03.706 BRACKET; EXH PIPE 4HG1-T ENG(RDP) 03.613 (A) IDN	8-97075-343-1	01	1	1512-	●
223	03.706 BRACKET; EXH PIPE 03.613 (A) IDN	8-97075-343-1	01	1	1512-		●
223	03.706 BRACKET; EXH PIPE 4JB1-TC ENG(RDT) 03.613 (B) IDN	8-97084-346-2	01	1	1512-	●
562	03.690 PLATE; STUD,BOLT EXHAUST BRAKE<NF8> 03.632 M8X70	0-10855-870-0	04	1	1512-	●
562	03.690 PLATE; STUD,BOLT 03.632 M8X70	0-10855-870-0	04	1	1512-		●

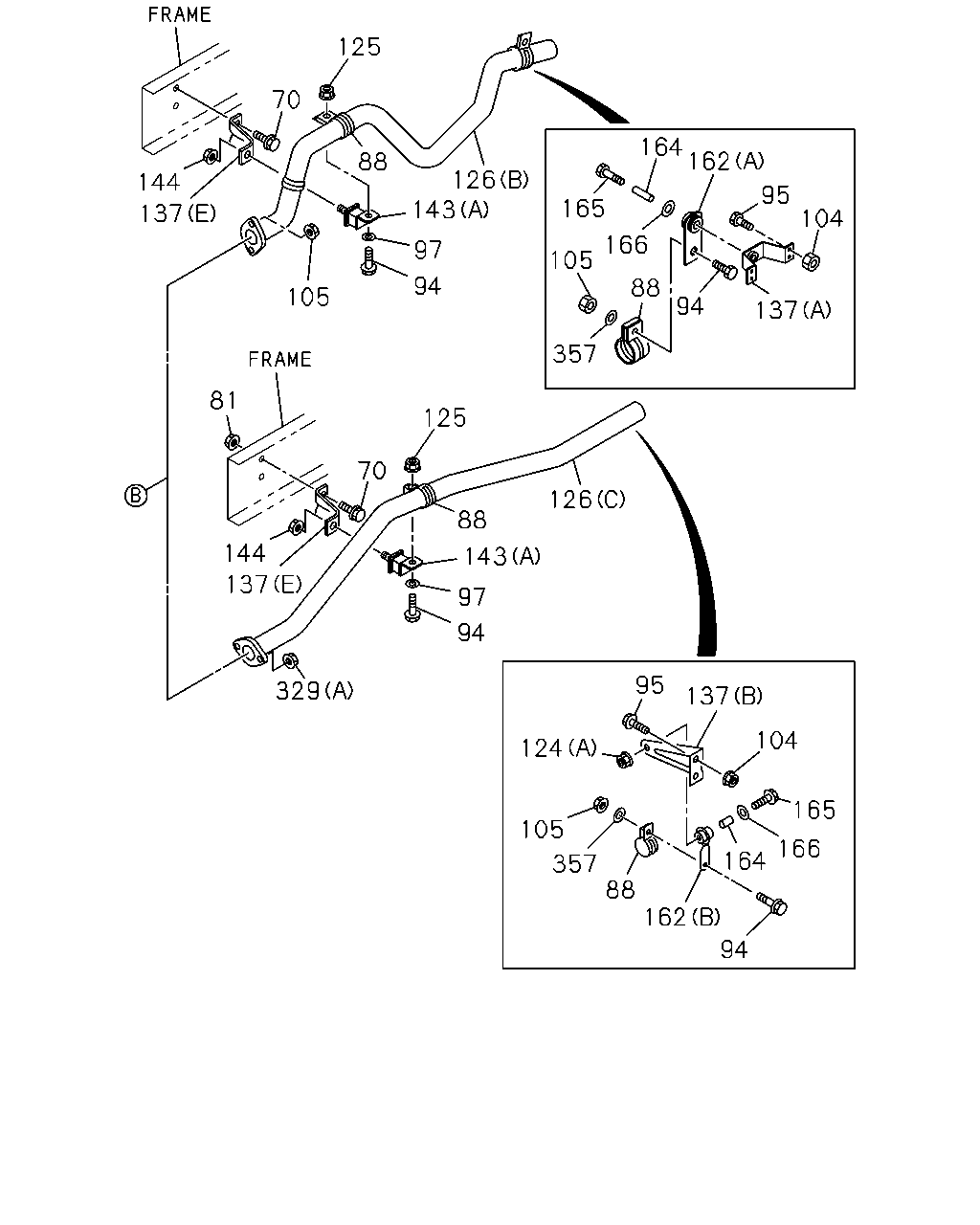

81 137 70 144 143 97 94 118 126 88 125 105 357 124 95 137 104 165 166 164 94 162 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
70	03.706 BOLT; BRKT WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1512-	●
70	03.706 BOLT; BRKT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
88	03.708 CLAMP; EXH PIPE 4HG1-T ENG(RDP) ID=61.6 IDN	8-97010-307-0	01	1	1512-	●	●
88	03.708 CLAMP; EXH PIPE 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=61.6 IDN	8-97010-307-0	01	1	1512-	●
88	03.708 CLAMP; EXH PIPE 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) ID=61.6 IDN	8-97010-307-0	01	1	1512-	●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) ID=51.5	8-97325-352-0	02	1	1512-	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	1512-	●	●
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.708 M8X45	0-20800-845-0	01	1	1512-	●
94	03.704 BOLT; CLAMP WHEEL BASE 2400MM(24W) 03.708 M8X45	0-20800-845-0	01	1	1512-	●
95	03.708 BOLT; BRKT WHEEL BASE 2400MM(24W) 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●
95	03.708 BOLT; BRKT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●
95	03.708 BOLT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-		●
97	03.708 WASHER; PL,CLAMP WHEEL BASE 2400MM(24W) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1512-	●
97	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1512-	●
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
104	03.704 NUT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
104	03.704 NUT; BRKT 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-		●
105	03.704 NUT; CLAMP 02.334 M8 IDN	0-91110-508-0	01	1	1512-	●	●
118	03.704 NUT; SILENCER MTG BRKT 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1512-	●
124	03.704 NUT; SUPPORT RUBBER 02.334 (B) M8 IDN	0-91110-508-0	01	1	1512-	●	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) 00.833 (A) M10	0-91110-510-0	01	1	1512-	●
124	03.704 NUT; SUPPORT RUBBER 00.833 (A) M10	0-91110-510-0	01	1	1512-		●
125	03.708 NUT; CLAMP WHEEL BASE 2400MM(24W) 02.334 M8 IDN	0-91110-508-0	01	1	1512-	●
125	03.708 NUT; CLAMP WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 02.334 M8 IDN	0-91110-508-0	01	1	1512-	●
126	03.705 PIPE; EXH,RR 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) (B) IDN	8-98172-396-0	01	1	1512-	●
126	03.705 PIPE; EXH,RR 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> (A) IDN	8-97240-342-1	01	1	1512-	●
126	03.705 PIPE; EXH,RR (A) IDN	8-97240-342-1	01	1	1512-		●
126	03.705 PIPE; EXH,RR 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) IDN	8-97034-100-1	01	1	1512-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) (D) IDN	8-97258-860-0	01	1	1512-	●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (E)	8-97144-949-0	01	1	1512-	●
137	03.706 BRACKET; TAIL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> (C) IDN	8-97360-459-0	01	1	1512-	●
137	03.706 BRACKET; TAIL PIPE (C) IDN	8-97360-459-0	01	1	1512-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) 03.613 (D) IDN	8-97210-476-0	01	1	1512-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) (A)	9-22121-146-1	01	1	1512-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.704 (E)	8-94468-174-1	01	1	1512-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-94468-175-0	01	1	1512-	●
143	03.704 RUBBER; SUPPORT (B) IDN	8-94457-277-1	01	1	1512-	●	●
143	03.704 RUBBER; SUPPORT (C) IDN	8-94457-278-1	01	1	1512-	●	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W) (A) IDN	8-97371-655-1	01	1	1512-	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) IDN	8-97371-655-1	01	1	1512-	●
144	03.613 NUT; MTG RUBBER WHEEL BASE 2400MM(24W) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-	●
144	03.613 NUT; MTG RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=180 IDN	8-97222-646-0	01	1	1512-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=115	8-94156-256-0	01	1	1512-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (B) L=115	8-94156-256-0	01	1	1512-		●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) 03.616 L=23	9-22151-175-0	01	1	1512-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) L=37.5	9-22151-217-0	01	1	1512-	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1512-		●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 09.173 M8X45 FLANGE	0-28050-845-0	01	1	1512-	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) M10X70 FLANGE	0-28051-070-0	01	1	1512-	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1512-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI WHEEL BASE 2400MM(24W) ID=8.4 OD=26 IDN	0-91614-808-0	01	1	1512-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1512-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1512-		●
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1512-	●	●

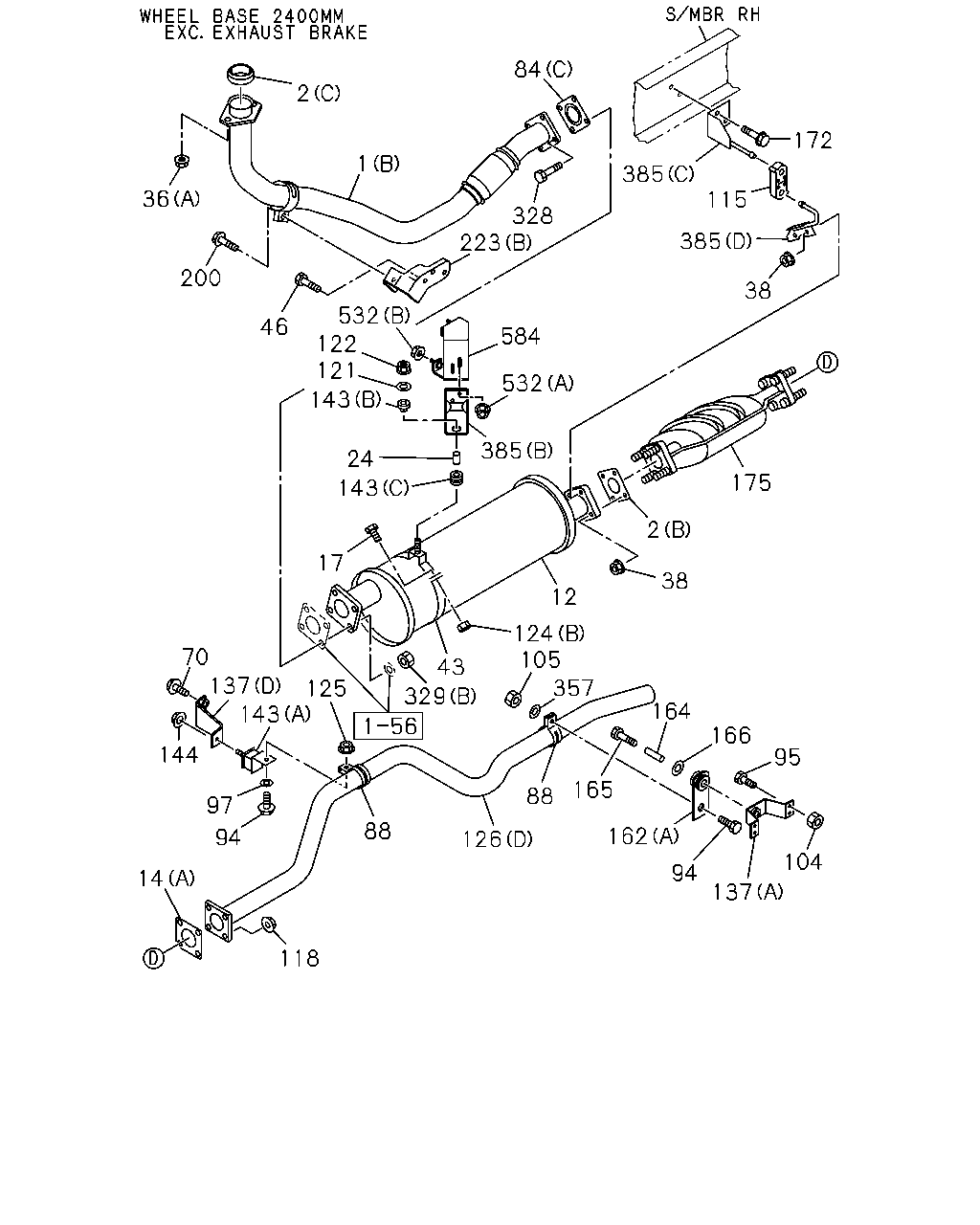

385 385 122 121 143 24 143 17 84 329 25 12 43 124 2 175 14 532 38 115 172 385 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.611 GASKET; PIPE TO MANIF 4HG1-T ENG(RDP) (A)	8-97381-455-0	01	1	1512-	●
2	03.611 GASKET; PIPE TO MANIF (A)	8-97381-455-0	01	1	1512-		●
2	03.611 GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (B) ID=71	8-94324-194-1	01	1	1512-	●
2	03.611 GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (C)	8-97381-456-0	01	1	1512-	●
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) IDN	8-98172-395-0	01	1	1512-	●
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) IDN	8-97114-564-1	01	1	1512-	●
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP) IDN	8-97114-564-1	01	1	1512-		●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) IDN	8-97221-923-0	01	1	1512-	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W)	8-97206-036-0	01	1	1512-	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HG1-T ENG(RDP) (B) ID=64.7 IDN	8-94328-352-0	01	1	1512-	●
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=64.7 IDN	8-94328-352-0	01	1	1512-		●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JB1-TC ENG(RDT) 03.611 (A) ID=71	8-94324-194-1	01	1	1512-	●
17	03.613 BOLT; EXH PIPE 03.704 M8X45 W/LK WASHER	0-50540-845-0	01	1	1512-	●	●
24	03.613 COLLAR; DIST,CLAMP 03.706 L=37.5	9-22151-217-0	01	1	1512-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG(RDP) IDN	8-98051-448-0	01	1	1512-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER IDN	8-98051-448-0	01	1	1512-		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8>	8-97206-030-1	01	1	1512-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8>	8-97206-031-0	01	1	1512-	●
38	00.002 NUT; SILENCER 4HG1-T ENG(RDP) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	1512-	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	1512-		●
38	00.002 NUT; SILENCER 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1512-	●
43	03.611 CLAMP; EXH PIPE 4HG1-T ENG(RDP) 03.706	8-97076-020-0	01	1	1512-	●
43	03.611 CLAMP; EXH PIPE 03.706	8-97076-020-0	01	1	1512-		●
43	03.611 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) 03.706	8-97076-018-0	01	1	1512-	●
43	03.611 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) 03.706	8-97081-457-0	01	1	1512-	●
84	03.611 GASKET; EXH PIPE 4HG1-T ENG(RDP) 03.704 (A) ID=64.7 IDN	8-94328-352-0	01	1	1512-	●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=64.7 IDN	8-94328-352-0	01	1	1512-		●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) 03.704 (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1512-	●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.704 (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1512-	●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8> 03.634 (C) ID=54	8-94328-354-0	01	1	1512-	●
115	03.704 RUBBER; MTG,SILENCER 4JB1-TC ENG(RDT) 03.613 IDN	8-97166-498-1	01	1	1512-	●
121	03.704 WASHER; PL,BRKT OD=55	9-09852-169-0	01	1	1512-	●	●
122	03.275 NUT; HANGER BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	1512-	●	●
124	03.704 NUT; SUPPORT RUBBER 02.334 (B) M8 IDN	0-91110-508-0	01	1	1512-	●	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) 00.833 (A) M10	0-91110-510-0	01	1	1512-	●
124	03.704 NUT; SUPPORT RUBBER 00.833 (A) M10	0-91110-510-0	01	1	1512-		●
143	03.704 RUBBER; SUPPORT (B) IDN	8-94457-277-1	01	1	1512-	●	●
143	03.704 RUBBER; SUPPORT (C) IDN	8-94457-278-1	01	1	1512-	●	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W) (A) IDN	8-97371-655-1	01	1	1512-	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) IDN	8-97371-655-1	01	1	1512-	●
172	03.708 BOLT 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●
175	03.685 CONVERTER; CATALYST 4JB1-TC ENG(RDT) INJ PUMP Q SET SPECIAL +5%Q<T1A> IDN	8-98118-541-0	01	1	1512-	●
175	03.685 CONVERTER; CATALYST 4JB1-TC ENG(RDT) EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97140-417-2	01	1	1512-	●
329	03.613 NUT; EXH PIPE TO PIPE 4HG1-T ENG(RDP) 03.162 (A) M10 FLANGE IDN	0-91180-110-0	02	1	1512-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE IDN	0-91180-110-0	02	1	1512-	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8> 01.062 (B) M8 FLANGE IDN	0-91180-108-0	04	1	1512-	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (A) IDN	8-94329-856-0	01	1	1512-	●
385	03.704 BRACKET; SILENCER MTG 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) (A) IDN	8-94329-856-0	01	1	1512-	●
385	03.704 BRACKET; SILENCER MTG (A) IDN	8-94329-856-0	01	1	1512-		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2400MM(24W) (B) IDN	8-97073-758-0	01	1	1512-	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2400MM(24W) 03.706 (C) IDN	8-97144-952-0	01	1	1512-	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2400MM(24W) 03.706 (D) IDN	8-97206-510-1	01	1	1512-	●
385	03.704 BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) 03.706 (E)	8-97144-953-0	01	1	1512-	●
385	03.704 BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) 03.706 (F)	8-97144-955-1	01	1	1512-	●
532	03.704 NUT 01.062 (A) M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●	●
532	03.704 NUT 4JB1-TC ENG(RDT) 01.062 (A) M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
532	03.704 NUT WHEEL BASE 2400MM(24W) 03.162 (B) M10 FLANGE IDN	0-91180-110-0	01	1	1512-	●

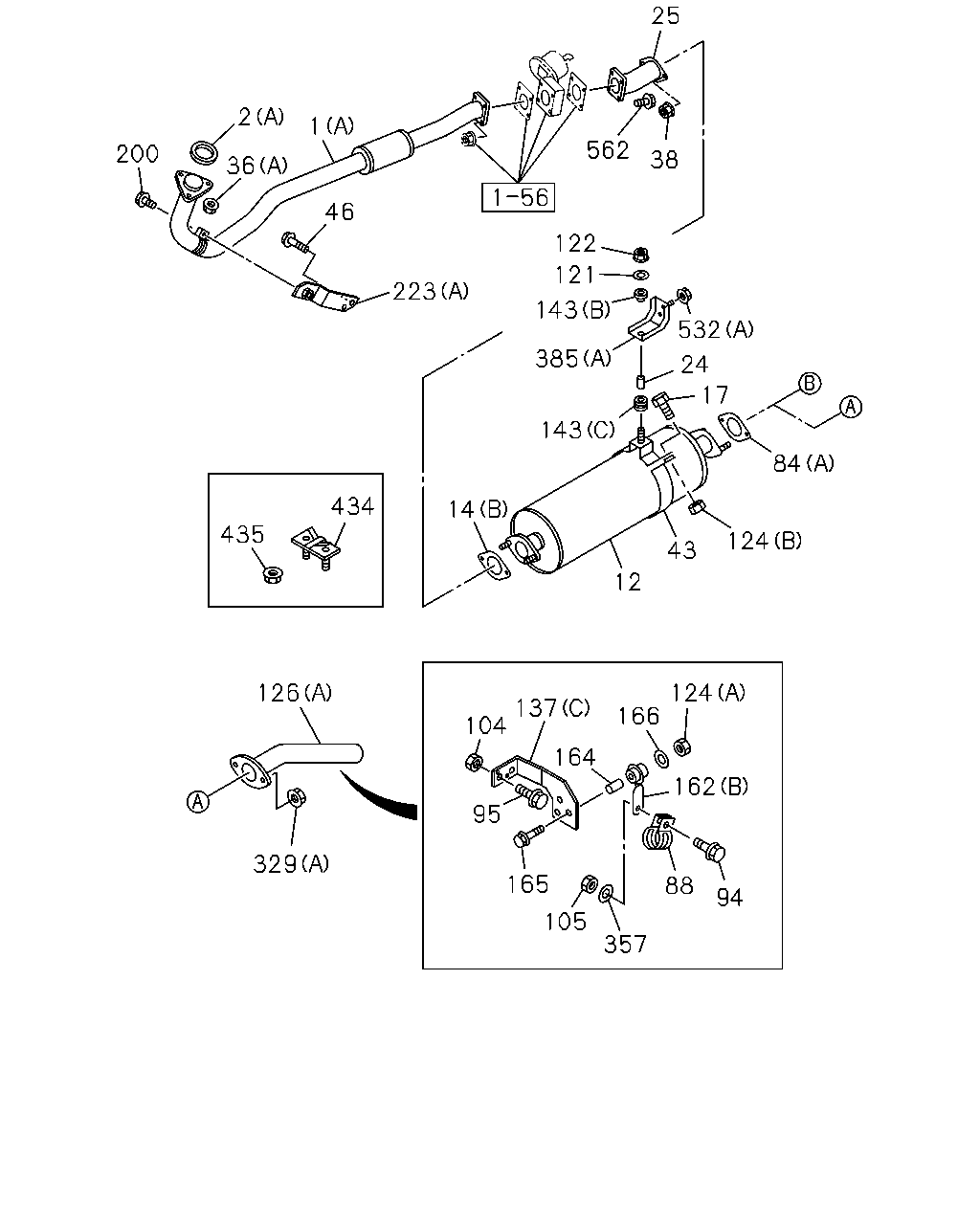

357 88 94 162 124 166 137 104 164 95 165 105 329 126 434 435 14 143 385 143 121 122 532 17 24 84 124 43 12 223 46 1 2 36 200 562 25 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4HG1-T ENG(RDP) (A) IDN	8-97187-139-1	01	1	1512-	●
1	03.609 PIPE; EXH (A) IDN	8-97187-139-1	01	1	1512-		●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (C)	8-97212-561-2	01	1	1512-	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8> (B) IDN	8-97212-759-3	01	1	1512-	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (D)	8-97206-026-1	01	1	1512-	●
2	03.611 GASKET; PIPE TO MANIF 4HG1-T ENG(RDP) (A)	8-97381-455-0	01	1	1512-	●
2	03.611 GASKET; PIPE TO MANIF (A)	8-97381-455-0	01	1	1512-		●
2	03.611 GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (B) ID=71	8-94324-194-1	01	1	1512-	●
2	03.611 GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (C)	8-97381-456-0	01	1	1512-	●
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) IDN	8-98172-395-0	01	1	1512-	●
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) IDN	8-97114-564-1	01	1	1512-	●
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP) IDN	8-97114-564-1	01	1	1512-		●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) IDN	8-97221-923-0	01	1	1512-	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W)	8-97206-036-0	01	1	1512-	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HG1-T ENG(RDP) (B) ID=64.7 IDN	8-94328-352-0	01	1	1512-	●
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=64.7 IDN	8-94328-352-0	01	1	1512-		●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JB1-TC ENG(RDT) 03.611 (A) ID=71	8-94324-194-1	01	1	1512-	●
17	03.613 BOLT; EXH PIPE 03.704 M8X45 W/LK WASHER	0-50540-845-0	01	1	1512-	●	●
24	03.613 COLLAR; DIST,CLAMP 03.706 L=37.5	9-22151-217-0	01	1	1512-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG(RDP) IDN	8-98051-448-0	01	1	1512-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER IDN	8-98051-448-0	01	1	1512-		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8>	8-97206-030-1	01	1	1512-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8>	8-97206-031-0	01	1	1512-	●
36	03.613 NUT; EXH PIPE 4HG1-T ENG(RDP) (B) M10 FLANGE	8-97096-192-1	03	1	1512-	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	03	1	1512-		●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) (B) M10 FLANGE	8-97096-192-1	02	1	1512-	●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.162 (A) M10 FLANGE IDN	0-91180-110-0	02	1	1512-	●
38	00.002 NUT; SILENCER 4HG1-T ENG(RDP) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	1512-	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	1512-		●
38	00.002 NUT; SILENCER 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1512-	●
43	03.611 CLAMP; EXH PIPE 4HG1-T ENG(RDP) 03.706	8-97076-020-0	01	1	1512-	●
43	03.611 CLAMP; EXH PIPE 03.706	8-97076-020-0	01	1	1512-		●
43	03.611 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) 03.706	8-97076-018-0	01	1	1512-	●
43	03.611 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) 03.706	8-97081-457-0	01	1	1512-	●
46	03.704 BOLT; BRKT,EXH PIPE 4HG1-T ENG(RDP) 03.613 M10X25 W/LK&PL WASHER	0-50651-025-0	02	1	1512-	●
46	03.704 BOLT; BRKT,EXH PIPE 03.613 M10X25 W/LK&PL WASHER	0-50651-025-0	02	1	1512-		●
46	03.704 BOLT; BRKT,EXH PIPE 4JB1-TC ENG(RDT) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1512-	●
84	03.611 GASKET; EXH PIPE 4HG1-T ENG(RDP) 03.704 (A) ID=64.7 IDN	8-94328-352-0	01	1	1512-	●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=64.7 IDN	8-94328-352-0	01	1	1512-		●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) 03.704 (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1512-	●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.704 (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1512-	●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8> 03.634 (C) ID=54	8-94328-354-0	01	1	1512-	●
88	03.708 CLAMP; EXH PIPE 4HG1-T ENG(RDP) ID=61.6 IDN	8-97010-307-0	01	1	1512-	●	●
88	03.708 CLAMP; EXH PIPE 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=61.6 IDN	8-97010-307-0	01	1	1512-	●
88	03.708 CLAMP; EXH PIPE 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) ID=61.6 IDN	8-97010-307-0	01	1	1512-	●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) ID=51.5	8-97325-352-0	02	1	1512-	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	1512-	●	●
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.708 M8X45	0-20800-845-0	01	1	1512-	●
94	03.704 BOLT; CLAMP WHEEL BASE 2400MM(24W) 03.708 M8X45	0-20800-845-0	01	1	1512-	●
95	03.708 BOLT; BRKT WHEEL BASE 2400MM(24W) 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●
95	03.708 BOLT; BRKT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●
95	03.708 BOLT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-		●
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
104	03.704 NUT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
104	03.704 NUT; BRKT 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-		●
105	03.704 NUT; CLAMP 02.334 M8 IDN	0-91110-508-0	01	1	1512-	●	●
121	03.704 WASHER; PL,BRKT OD=55	9-09852-169-0	01	1	1512-	●	●
122	03.275 NUT; HANGER BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	1512-	●	●
124	03.704 NUT; SUPPORT RUBBER 02.334 (B) M8 IDN	0-91110-508-0	01	1	1512-	●	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) 00.833 (A) M10	0-91110-510-0	01	1	1512-	●
124	03.704 NUT; SUPPORT RUBBER 00.833 (A) M10	0-91110-510-0	01	1	1512-		●
126	03.705 PIPE; EXH,RR 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) (B) IDN	8-98172-396-0	01	1	1512-	●
126	03.705 PIPE; EXH,RR 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> (A) IDN	8-97240-342-1	01	1	1512-	●
126	03.705 PIPE; EXH,RR (A) IDN	8-97240-342-1	01	1	1512-		●
126	03.705 PIPE; EXH,RR 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) IDN	8-97034-100-1	01	1	1512-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) (D) IDN	8-97258-860-0	01	1	1512-	●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (E)	8-97144-949-0	01	1	1512-	●
137	03.706 BRACKET; TAIL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> (C) IDN	8-97360-459-0	01	1	1512-	●
137	03.706 BRACKET; TAIL PIPE (C) IDN	8-97360-459-0	01	1	1512-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) 03.613 (D) IDN	8-97210-476-0	01	1	1512-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) (A)	9-22121-146-1	01	1	1512-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.704 (E)	8-94468-174-1	01	1	1512-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-94468-175-0	01	1	1512-	●
143	03.704 RUBBER; SUPPORT (B) IDN	8-94457-277-1	01	1	1512-	●	●
143	03.704 RUBBER; SUPPORT (C) IDN	8-94457-278-1	01	1	1512-	●	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W) (A) IDN	8-97371-655-1	01	1	1512-	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) IDN	8-97371-655-1	01	1	1512-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=180 IDN	8-97222-646-0	01	1	1512-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=115	8-94156-256-0	01	1	1512-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (B) L=115	8-94156-256-0	01	1	1512-		●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) 03.616 L=23	9-22151-175-0	01	1	1512-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) L=37.5	9-22151-217-0	01	1	1512-	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1512-		●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 09.173 M8X45 FLANGE	0-28050-845-0	01	1	1512-	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) M10X70 FLANGE	0-28051-070-0	01	1	1512-	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1512-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI WHEEL BASE 2400MM(24W) ID=8.4 OD=26 IDN	0-91614-808-0	01	1	1512-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1512-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1512-		●
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	01	1	1512-	●	●
223	03.706 BRACKET; EXH PIPE 4HG1-T ENG(RDP) 03.613 (A) IDN	8-97075-343-1	01	1	1512-	●
223	03.706 BRACKET; EXH PIPE 03.613 (A) IDN	8-97075-343-1	01	1	1512-		●
223	03.706 BRACKET; EXH PIPE 4JB1-TC ENG(RDT) 03.613 (B) IDN	8-97084-346-2	01	1	1512-	●
329	03.613 NUT; EXH PIPE TO PIPE 4HG1-T ENG(RDP) 03.162 (A) M10 FLANGE IDN	0-91180-110-0	02	1	1512-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE IDN	0-91180-110-0	02	1	1512-	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8> 01.062 (B) M8 FLANGE IDN	0-91180-108-0	04	1	1512-	●
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1512-	●	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (A) IDN	8-94329-856-0	01	1	1512-	●
385	03.704 BRACKET; SILENCER MTG 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) (A) IDN	8-94329-856-0	01	1	1512-	●
385	03.704 BRACKET; SILENCER MTG (A) IDN	8-94329-856-0	01	1	1512-		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2400MM(24W) (B) IDN	8-97073-758-0	01	1	1512-	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2400MM(24W) 03.706 (C) IDN	8-97144-952-0	01	1	1512-	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2400MM(24W) 03.706 (D) IDN	8-97206-510-1	01	1	1512-	●
385	03.704 BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) 03.706 (E)	8-97144-953-0	01	1	1512-	●
385	03.704 BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) 03.706 (F)	8-97144-955-1	01	1	1512-	●
434	03.613 BOLT; BRKT 4HG1-T ENG(RDP) 02.559	8-97028-451-3	01	1	1512-	●
434	03.613 BOLT; BRKT 02.559	8-97028-451-3	01	1	1512-		●
435	03.704 NUT; BRKT 4HG1-T ENG(RDP) 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	1512-	●
435	03.704 NUT; BRKT 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	1512-		●
532	03.704 NUT 01.062 (A) M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●	●
532	03.704 NUT 4JB1-TC ENG(RDT) 01.062 (A) M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
532	03.704 NUT WHEEL BASE 2400MM(24W) 03.162 (B) M10 FLANGE IDN	0-91180-110-0	01	1	1512-	●
562	03.690 PLATE; STUD,BOLT EXHAUST BRAKE<NF8> 03.632 M8X70	0-10855-870-0	04	1	1512-	●
562	03.690 PLATE; STUD,BOLT 03.632 M8X70	0-10855-870-0	04	1	1512-		●

36 200 46 1 2 84 385 328 223 532 122 121 143 24 143 17 70 137 143 144 97 94 14 118 88 125 329 43 126 88 165 162 94 137 104 95 166 164 357 105 124 12 38 2 175 385 532 584 385 115 38 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4HG1-T ENG(RDP) (A) IDN	8-97187-139-1	01	1	1512-	●
1	03.609 PIPE; EXH (A) IDN	8-97187-139-1	01	1	1512-		●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (C)	8-97212-561-2	01	1	1512-	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8> (B) IDN	8-97212-759-3	01	1	1512-	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (D)	8-97206-026-1	01	1	1512-	●
2	03.611 GASKET; PIPE TO MANIF 4HG1-T ENG(RDP) (A)	8-97381-455-0	01	1	1512-	●
2	03.611 GASKET; PIPE TO MANIF (A)	8-97381-455-0	01	1	1512-		●
2	03.611 GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (B) ID=71	8-94324-194-1	01	1	1512-	●
2	03.611 GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (C)	8-97381-456-0	01	1	1512-	●
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) IDN	8-98172-395-0	01	1	1512-	●
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) IDN	8-97114-564-1	01	1	1512-	●
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP) IDN	8-97114-564-1	01	1	1512-		●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) IDN	8-97221-923-0	01	1	1512-	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W)	8-97206-036-0	01	1	1512-	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HG1-T ENG(RDP) (B) ID=64.7 IDN	8-94328-352-0	01	1	1512-	●
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=64.7 IDN	8-94328-352-0	01	1	1512-		●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JB1-TC ENG(RDT) 03.611 (A) ID=71	8-94324-194-1	01	1	1512-	●
17	03.613 BOLT; EXH PIPE 03.704 M8X45 W/LK WASHER	0-50540-845-0	01	1	1512-	●	●
24	03.613 COLLAR; DIST,CLAMP 03.706 L=37.5	9-22151-217-0	01	1	1512-	●	●
36	03.613 NUT; EXH PIPE 4HG1-T ENG(RDP) (B) M10 FLANGE	8-97096-192-1	03	1	1512-	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	03	1	1512-		●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) (B) M10 FLANGE	8-97096-192-1	02	1	1512-	●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.162 (A) M10 FLANGE IDN	0-91180-110-0	02	1	1512-	●
38	00.002 NUT; SILENCER 4HG1-T ENG(RDP) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	1512-	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	1512-		●
38	00.002 NUT; SILENCER 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1512-	●
43	03.611 CLAMP; EXH PIPE 4HG1-T ENG(RDP) 03.706	8-97076-020-0	01	1	1512-	●
43	03.611 CLAMP; EXH PIPE 03.706	8-97076-020-0	01	1	1512-		●
43	03.611 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) 03.706	8-97076-018-0	01	1	1512-	●
43	03.611 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) 03.706	8-97081-457-0	01	1	1512-	●
46	03.704 BOLT; BRKT,EXH PIPE 4HG1-T ENG(RDP) 03.613 M10X25 W/LK&PL WASHER	0-50651-025-0	02	1	1512-	●
46	03.704 BOLT; BRKT,EXH PIPE 03.613 M10X25 W/LK&PL WASHER	0-50651-025-0	02	1	1512-		●
46	03.704 BOLT; BRKT,EXH PIPE 4JB1-TC ENG(RDT) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1512-	●
70	03.706 BOLT; BRKT WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1512-	●
70	03.706 BOLT; BRKT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●
84	03.611 GASKET; EXH PIPE 4HG1-T ENG(RDP) 03.704 (A) ID=64.7 IDN	8-94328-352-0	01	1	1512-	●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=64.7 IDN	8-94328-352-0	01	1	1512-		●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) 03.704 (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1512-	●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.704 (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1512-	●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8> 03.634 (C) ID=54	8-94328-354-0	01	1	1512-	●
88	03.708 CLAMP; EXH PIPE 4HG1-T ENG(RDP) ID=61.6 IDN	8-97010-307-0	01	1	1512-	●	●
88	03.708 CLAMP; EXH PIPE 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=61.6 IDN	8-97010-307-0	01	1	1512-	●
88	03.708 CLAMP; EXH PIPE 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) ID=61.6 IDN	8-97010-307-0	01	1	1512-	●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) ID=51.5	8-97325-352-0	02	1	1512-	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	1512-	●	●
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.708 M8X45	0-20800-845-0	01	1	1512-	●
94	03.704 BOLT; CLAMP WHEEL BASE 2400MM(24W) 03.708 M8X45	0-20800-845-0	01	1	1512-	●
95	03.708 BOLT; BRKT WHEEL BASE 2400MM(24W) 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●
95	03.708 BOLT; BRKT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●
95	03.708 BOLT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-		●
97	03.708 WASHER; PL,CLAMP WHEEL BASE 2400MM(24W) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1512-	●
97	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1512-	●
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
104	03.704 NUT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
104	03.704 NUT; BRKT 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-		●
105	03.704 NUT; CLAMP 02.334 M8 IDN	0-91110-508-0	01	1	1512-	●	●
115	03.704 RUBBER; MTG,SILENCER 4JB1-TC ENG(RDT) 03.613 IDN	8-97166-498-1	01	1	1512-	●
118	03.704 NUT; SILENCER MTG BRKT 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1512-	●
121	03.704 WASHER; PL,BRKT OD=55	9-09852-169-0	01	1	1512-	●	●
122	03.275 NUT; HANGER BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	1512-	●	●
124	03.704 NUT; SUPPORT RUBBER 02.334 (B) M8 IDN	0-91110-508-0	01	1	1512-	●	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) 00.833 (A) M10	0-91110-510-0	01	1	1512-	●
124	03.704 NUT; SUPPORT RUBBER 00.833 (A) M10	0-91110-510-0	01	1	1512-		●
125	03.708 NUT; CLAMP WHEEL BASE 2400MM(24W) 02.334 M8 IDN	0-91110-508-0	01	1	1512-	●
125	03.708 NUT; CLAMP WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 02.334 M8 IDN	0-91110-508-0	01	1	1512-	●
126	03.705 PIPE; EXH,RR 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) (B) IDN	8-98172-396-0	01	1	1512-	●
126	03.705 PIPE; EXH,RR 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> (A) IDN	8-97240-342-1	01	1	1512-	●
126	03.705 PIPE; EXH,RR (A) IDN	8-97240-342-1	01	1	1512-		●
126	03.705 PIPE; EXH,RR 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) IDN	8-97034-100-1	01	1	1512-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) (D) IDN	8-97258-860-0	01	1	1512-	●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (E)	8-97144-949-0	01	1	1512-	●
137	03.706 BRACKET; TAIL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> (C) IDN	8-97360-459-0	01	1	1512-	●
137	03.706 BRACKET; TAIL PIPE (C) IDN	8-97360-459-0	01	1	1512-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) 03.613 (D) IDN	8-97210-476-0	01	1	1512-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) (A)	9-22121-146-1	01	1	1512-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.704 (E)	8-94468-174-1	01	1	1512-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-94468-175-0	01	1	1512-	●
143	03.704 RUBBER; SUPPORT (B) IDN	8-94457-277-1	01	1	1512-	●	●
143	03.704 RUBBER; SUPPORT (C) IDN	8-94457-278-1	01	1	1512-	●	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W) (A) IDN	8-97371-655-1	01	1	1512-	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) IDN	8-97371-655-1	01	1	1512-	●
144	03.613 NUT; MTG RUBBER WHEEL BASE 2400MM(24W) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-	●
144	03.613 NUT; MTG RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=180 IDN	8-97222-646-0	01	1	1512-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=115	8-94156-256-0	01	1	1512-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (B) L=115	8-94156-256-0	01	1	1512-		●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) 03.616 L=23	9-22151-175-0	01	1	1512-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) L=37.5	9-22151-217-0	01	1	1512-	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1512-		●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 09.173 M8X45 FLANGE	0-28050-845-0	01	1	1512-	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) M10X70 FLANGE	0-28051-070-0	01	1	1512-	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1512-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI WHEEL BASE 2400MM(24W) ID=8.4 OD=26 IDN	0-91614-808-0	01	1	1512-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1512-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1512-		●
172	03.708 BOLT 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●
175	03.685 CONVERTER; CATALYST 4JB1-TC ENG(RDT) INJ PUMP Q SET SPECIAL +5%Q<T1A> IDN	8-98118-541-0	01	1	1512-	●
175	03.685 CONVERTER; CATALYST 4JB1-TC ENG(RDT) EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97140-417-2	01	1	1512-	●
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	01	1	1512-	●	●
223	03.706 BRACKET; EXH PIPE 4HG1-T ENG(RDP) 03.613 (A) IDN	8-97075-343-1	01	1	1512-	●
223	03.706 BRACKET; EXH PIPE 03.613 (A) IDN	8-97075-343-1	01	1	1512-		●
223	03.706 BRACKET; EXH PIPE 4JB1-TC ENG(RDT) 03.613 (B) IDN	8-97084-346-2	01	1	1512-	●
328	03.613 BOLT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8> 01.060 M8X35 FLANGE	0-28650-835-0	04	1	1512-	●
329	03.613 NUT; EXH PIPE TO PIPE 4HG1-T ENG(RDP) 03.162 (A) M10 FLANGE IDN	0-91180-110-0	02	1	1512-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE IDN	0-91180-110-0	02	1	1512-	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8> 01.062 (B) M8 FLANGE IDN	0-91180-108-0	04	1	1512-	●
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1512-	●	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (A) IDN	8-94329-856-0	01	1	1512-	●
385	03.704 BRACKET; SILENCER MTG 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) (A) IDN	8-94329-856-0	01	1	1512-	●
385	03.704 BRACKET; SILENCER MTG (A) IDN	8-94329-856-0	01	1	1512-		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2400MM(24W) (B) IDN	8-97073-758-0	01	1	1512-	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2400MM(24W) 03.706 (C) IDN	8-97144-952-0	01	1	1512-	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2400MM(24W) 03.706 (D) IDN	8-97206-510-1	01	1	1512-	●
385	03.704 BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) 03.706 (E)	8-97144-953-0	01	1	1512-	●
385	03.704 BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) 03.706 (F)	8-97144-955-1	01	1	1512-	●
532	03.704 NUT 01.062 (A) M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●	●
532	03.704 NUT 4JB1-TC ENG(RDT) 01.062 (A) M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
532	03.704 NUT WHEEL BASE 2400MM(24W) 03.162 (B) M10 FLANGE IDN	0-91180-110-0	01	1	1512-	●
584	03.706 SPACER; EXH SILENCER WHEEL BASE 2400MM(24W)	8-98254-996-0	01	1	1512-	●

2 25 84 1 36 200 46 223 532 122 121 143 24 143 17 70 137 144 143 97 94 14 118 88 125 43 126 88 165 162 94 137 95 166 164 357 105 124 12 385 532 584 36 562 385 385 115 172 38 175 2 38 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4HG1-T ENG(RDP) (A) IDN	8-97187-139-1	01	1	1512-	●
1	03.609 PIPE; EXH (A) IDN	8-97187-139-1	01	1	1512-		●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (C)	8-97212-561-2	01	1	1512-	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8> (B) IDN	8-97212-759-3	01	1	1512-	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (D)	8-97206-026-1	01	1	1512-	●
2	03.611 GASKET; PIPE TO MANIF 4HG1-T ENG(RDP) (A)	8-97381-455-0	01	1	1512-	●
2	03.611 GASKET; PIPE TO MANIF (A)	8-97381-455-0	01	1	1512-		●
2	03.611 GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (B) ID=71	8-94324-194-1	01	1	1512-	●
2	03.611 GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (C)	8-97381-456-0	01	1	1512-	●
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) IDN	8-98172-395-0	01	1	1512-	●
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) IDN	8-97114-564-1	01	1	1512-	●
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP) IDN	8-97114-564-1	01	1	1512-		●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) IDN	8-97221-923-0	01	1	1512-	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W)	8-97206-036-0	01	1	1512-	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HG1-T ENG(RDP) (B) ID=64.7 IDN	8-94328-352-0	01	1	1512-	●
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=64.7 IDN	8-94328-352-0	01	1	1512-		●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JB1-TC ENG(RDT) 03.611 (A) ID=71	8-94324-194-1	01	1	1512-	●
17	03.613 BOLT; EXH PIPE 03.704 M8X45 W/LK WASHER	0-50540-845-0	01	1	1512-	●	●
24	03.613 COLLAR; DIST,CLAMP 03.706 L=37.5	9-22151-217-0	01	1	1512-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG(RDP) IDN	8-98051-448-0	01	1	1512-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER IDN	8-98051-448-0	01	1	1512-		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8>	8-97206-030-1	01	1	1512-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8>	8-97206-031-0	01	1	1512-	●
36	03.613 NUT; EXH PIPE 4HG1-T ENG(RDP) (B) M10 FLANGE	8-97096-192-1	03	1	1512-	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-1	03	1	1512-		●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) (B) M10 FLANGE	8-97096-192-1	02	1	1512-	●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.162 (A) M10 FLANGE IDN	0-91180-110-0	02	1	1512-	●
38	00.002 NUT; SILENCER 4HG1-T ENG(RDP) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	1512-	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	1512-		●
38	00.002 NUT; SILENCER 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1512-	●
43	03.611 CLAMP; EXH PIPE 4HG1-T ENG(RDP) 03.706	8-97076-020-0	01	1	1512-	●
43	03.611 CLAMP; EXH PIPE 03.706	8-97076-020-0	01	1	1512-		●
43	03.611 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) 03.706	8-97076-018-0	01	1	1512-	●
43	03.611 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) 03.706	8-97081-457-0	01	1	1512-	●
46	03.704 BOLT; BRKT,EXH PIPE 4HG1-T ENG(RDP) 03.613 M10X25 W/LK&PL WASHER	0-50651-025-0	02	1	1512-	●
46	03.704 BOLT; BRKT,EXH PIPE 03.613 M10X25 W/LK&PL WASHER	0-50651-025-0	02	1	1512-		●
46	03.704 BOLT; BRKT,EXH PIPE 4JB1-TC ENG(RDT) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1512-	●
70	03.706 BOLT; BRKT WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1512-	●
70	03.706 BOLT; BRKT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●
84	03.611 GASKET; EXH PIPE 4HG1-T ENG(RDP) 03.704 (A) ID=64.7 IDN	8-94328-352-0	01	1	1512-	●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=64.7 IDN	8-94328-352-0	01	1	1512-		●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) 03.704 (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1512-	●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.704 (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	1512-	●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8> 03.634 (C) ID=54	8-94328-354-0	01	1	1512-	●
88	03.708 CLAMP; EXH PIPE 4HG1-T ENG(RDP) ID=61.6 IDN	8-97010-307-0	01	1	1512-	●	●
88	03.708 CLAMP; EXH PIPE 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=61.6 IDN	8-97010-307-0	01	1	1512-	●
88	03.708 CLAMP; EXH PIPE 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) ID=61.6 IDN	8-97010-307-0	01	1	1512-	●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) ID=51.5	8-97325-352-0	02	1	1512-	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	1512-	●	●
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.708 M8X45	0-20800-845-0	01	1	1512-	●
94	03.704 BOLT; CLAMP WHEEL BASE 2400MM(24W) 03.708 M8X45	0-20800-845-0	01	1	1512-	●
95	03.708 BOLT; BRKT WHEEL BASE 2400MM(24W) 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●
95	03.708 BOLT; BRKT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●
95	03.708 BOLT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-		●
97	03.708 WASHER; PL,CLAMP WHEEL BASE 2400MM(24W) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1512-	●
97	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1512-	●
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
104	03.704 NUT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
104	03.704 NUT; BRKT 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-		●
105	03.704 NUT; CLAMP 02.334 M8 IDN	0-91110-508-0	01	1	1512-	●	●
115	03.704 RUBBER; MTG,SILENCER 4JB1-TC ENG(RDT) 03.613 IDN	8-97166-498-1	01	1	1512-	●
118	03.704 NUT; SILENCER MTG BRKT 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1512-	●
121	03.704 WASHER; PL,BRKT OD=55	9-09852-169-0	01	1	1512-	●	●
122	03.275 NUT; HANGER BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	1512-	●	●
124	03.704 NUT; SUPPORT RUBBER 02.334 (B) M8 IDN	0-91110-508-0	01	1	1512-	●	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) 00.833 (A) M10	0-91110-510-0	01	1	1512-	●
124	03.704 NUT; SUPPORT RUBBER 00.833 (A) M10	0-91110-510-0	01	1	1512-		●
125	03.708 NUT; CLAMP WHEEL BASE 2400MM(24W) 02.334 M8 IDN	0-91110-508-0	01	1	1512-	●
125	03.708 NUT; CLAMP WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 02.334 M8 IDN	0-91110-508-0	01	1	1512-	●
126	03.705 PIPE; EXH,RR 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) (B) IDN	8-98172-396-0	01	1	1512-	●
126	03.705 PIPE; EXH,RR 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> (A) IDN	8-97240-342-1	01	1	1512-	●
126	03.705 PIPE; EXH,RR (A) IDN	8-97240-342-1	01	1	1512-		●
126	03.705 PIPE; EXH,RR 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) IDN	8-97034-100-1	01	1	1512-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) (D) IDN	8-97258-860-0	01	1	1512-	●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (E)	8-97144-949-0	01	1	1512-	●
137	03.706 BRACKET; TAIL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> (C) IDN	8-97360-459-0	01	1	1512-	●
137	03.706 BRACKET; TAIL PIPE (C) IDN	8-97360-459-0	01	1	1512-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) 03.613 (D) IDN	8-97210-476-0	01	1	1512-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) (A)	9-22121-146-1	01	1	1512-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.704 (E)	8-94468-174-1	01	1	1512-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-94468-175-0	01	1	1512-	●
143	03.704 RUBBER; SUPPORT (B) IDN	8-94457-277-1	01	1	1512-	●	●
143	03.704 RUBBER; SUPPORT (C) IDN	8-94457-278-1	01	1	1512-	●	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W) (A) IDN	8-97371-655-1	01	1	1512-	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) IDN	8-97371-655-1	01	1	1512-	●
144	03.613 NUT; MTG RUBBER WHEEL BASE 2400MM(24W) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-	●
144	03.613 NUT; MTG RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=180 IDN	8-97222-646-0	01	1	1512-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=115	8-94156-256-0	01	1	1512-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (B) L=115	8-94156-256-0	01	1	1512-		●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) 03.616 L=23	9-22151-175-0	01	1	1512-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) L=37.5	9-22151-217-0	01	1	1512-	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1512-		●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 09.173 M8X45 FLANGE	0-28050-845-0	01	1	1512-	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) M10X70 FLANGE	0-28051-070-0	01	1	1512-	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1512-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI WHEEL BASE 2400MM(24W) ID=8.4 OD=26 IDN	0-91614-808-0	01	1	1512-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1512-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1512-		●
172	03.708 BOLT 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●
175	03.685 CONVERTER; CATALYST 4JB1-TC ENG(RDT) INJ PUMP Q SET SPECIAL +5%Q<T1A> IDN	8-98118-541-0	01	1	1512-	●
175	03.685 CONVERTER; CATALYST 4JB1-TC ENG(RDT) EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-97140-417-2	01	1	1512-	●
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	01	1	1512-	●	●
223	03.706 BRACKET; EXH PIPE 4HG1-T ENG(RDP) 03.613 (A) IDN	8-97075-343-1	01	1	1512-	●
223	03.706 BRACKET; EXH PIPE 03.613 (A) IDN	8-97075-343-1	01	1	1512-		●
223	03.706 BRACKET; EXH PIPE 4JB1-TC ENG(RDT) 03.613 (B) IDN	8-97084-346-2	01	1	1512-	●
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1512-	●	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (A) IDN	8-94329-856-0	01	1	1512-	●
385	03.704 BRACKET; SILENCER MTG 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) (A) IDN	8-94329-856-0	01	1	1512-	●
385	03.704 BRACKET; SILENCER MTG (A) IDN	8-94329-856-0	01	1	1512-		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2400MM(24W) (B) IDN	8-97073-758-0	01	1	1512-	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2400MM(24W) 03.706 (C) IDN	8-97144-952-0	01	1	1512-	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2400MM(24W) 03.706 (D) IDN	8-97206-510-1	01	1	1512-	●
385	03.704 BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) 03.706 (E)	8-97144-953-0	01	1	1512-	●
385	03.704 BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) 03.706 (F)	8-97144-955-1	01	1	1512-	●
532	03.704 NUT 01.062 (A) M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●	●
532	03.704 NUT 4JB1-TC ENG(RDT) 01.062 (A) M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
532	03.704 NUT WHEEL BASE 2400MM(24W) 03.162 (B) M10 FLANGE IDN	0-91180-110-0	01	1	1512-	●
562	03.690 PLATE; STUD,BOLT EXHAUST BRAKE<NF8> 03.632 M8X70	0-10855-870-0	04	1	1512-	●
562	03.690 PLATE; STUD,BOLT 03.632 M8X70	0-10855-870-0	04	1	1512-		●
584	03.706 SPACER; EXH SILENCER WHEEL BASE 2400MM(24W)	8-98254-996-0	01	1	1512-	●

94 164 165 104 137 95 124 105 357 88 166 162 94 143 97 126 88 125 70 144 137 81 105 94 97 143 126 88 125 70 144 137 105 165 88 166 357 94 95 162 164 104 137 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
70	03.706 BOLT; BRKT WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1512-	●
70	03.706 BOLT; BRKT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
88	03.708 CLAMP; EXH PIPE 4HG1-T ENG(RDP) ID=61.6 IDN	8-97010-307-0	01	1	1512-	●	●
88	03.708 CLAMP; EXH PIPE 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=61.6 IDN	8-97010-307-0	01	1	1512-	●
88	03.708 CLAMP; EXH PIPE 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) ID=61.6 IDN	8-97010-307-0	01	1	1512-	●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) ID=51.5	8-97325-352-0	02	1	1512-	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	1512-	●	●
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.708 M8X45	0-20800-845-0	01	1	1512-	●
94	03.704 BOLT; CLAMP WHEEL BASE 2400MM(24W) 03.708 M8X45	0-20800-845-0	01	1	1512-	●
95	03.708 BOLT; BRKT WHEEL BASE 2400MM(24W) 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●
95	03.708 BOLT; BRKT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●
95	03.708 BOLT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-		●
97	03.708 WASHER; PL,CLAMP WHEEL BASE 2400MM(24W) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1512-	●
97	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1512-	●
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
104	03.704 NUT; BRKT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
104	03.704 NUT; BRKT 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-		●
105	03.704 NUT; CLAMP 02.334 M8 IDN	0-91110-508-0	01	1	1512-	●	●
124	03.704 NUT; SUPPORT RUBBER 02.334 (B) M8 IDN	0-91110-508-0	01	1	1512-	●	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) 00.833 (A) M10	0-91110-510-0	01	1	1512-	●
124	03.704 NUT; SUPPORT RUBBER 00.833 (A) M10	0-91110-510-0	01	1	1512-		●
125	03.708 NUT; CLAMP WHEEL BASE 2400MM(24W) 02.334 M8 IDN	0-91110-508-0	01	1	1512-	●
125	03.708 NUT; CLAMP WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 02.334 M8 IDN	0-91110-508-0	01	1	1512-	●
126	03.705 PIPE; EXH,RR 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) (B) IDN	8-98172-396-0	01	1	1512-	●
126	03.705 PIPE; EXH,RR 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> (A) IDN	8-97240-342-1	01	1	1512-	●
126	03.705 PIPE; EXH,RR (A) IDN	8-97240-342-1	01	1	1512-		●
126	03.705 PIPE; EXH,RR 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) IDN	8-97034-100-1	01	1	1512-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) (D) IDN	8-97258-860-0	01	1	1512-	●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (E)	8-97144-949-0	01	1	1512-	●
137	03.706 BRACKET; TAIL PIPE 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) TAILPIPE SINGLE SHORT TYPE<8JJ> (C) IDN	8-97360-459-0	01	1	1512-	●
137	03.706 BRACKET; TAIL PIPE (C) IDN	8-97360-459-0	01	1	1512-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) 03.613 (D) IDN	8-97210-476-0	01	1	1512-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) (A)	9-22121-146-1	01	1	1512-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.704 (E)	8-94468-174-1	01	1	1512-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-94468-175-0	01	1	1512-	●
143	03.704 RUBBER; SUPPORT (B) IDN	8-94457-277-1	01	1	1512-	●	●
143	03.704 RUBBER; SUPPORT (C) IDN	8-94457-278-1	01	1	1512-	●	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W) (A) IDN	8-97371-655-1	01	1	1512-	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) IDN	8-97371-655-1	01	1	1512-	●
144	03.613 NUT; MTG RUBBER WHEEL BASE 2400MM(24W) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-	●
144	03.613 NUT; MTG RUBBER WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=180 IDN	8-97222-646-0	01	1	1512-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=115	8-94156-256-0	01	1	1512-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (B) L=115	8-94156-256-0	01	1	1512-		●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) 03.616 L=23	9-22151-175-0	01	1	1512-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) L=37.5	9-22151-217-0	01	1	1512-	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1512-		●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 09.173 M8X45 FLANGE	0-28050-845-0	01	1	1512-	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) M10X70 FLANGE	0-28051-070-0	01	1	1512-	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1512-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI WHEEL BASE 2400MM(24W) ID=8.4 OD=26 IDN	0-91614-808-0	01	1	1512-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1512-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1512-		●
329	03.613 NUT; EXH PIPE TO PIPE 4HG1-T ENG(RDP) 03.162 (A) M10 FLANGE IDN	0-91180-110-0	02	1	1512-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE IDN	0-91180-110-0	02	1	1512-	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. EXHAUST BRAKE<NF8> 01.062 (B) M8 FLANGE IDN	0-91180-108-0	04	1	1512-	●
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	1512-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
