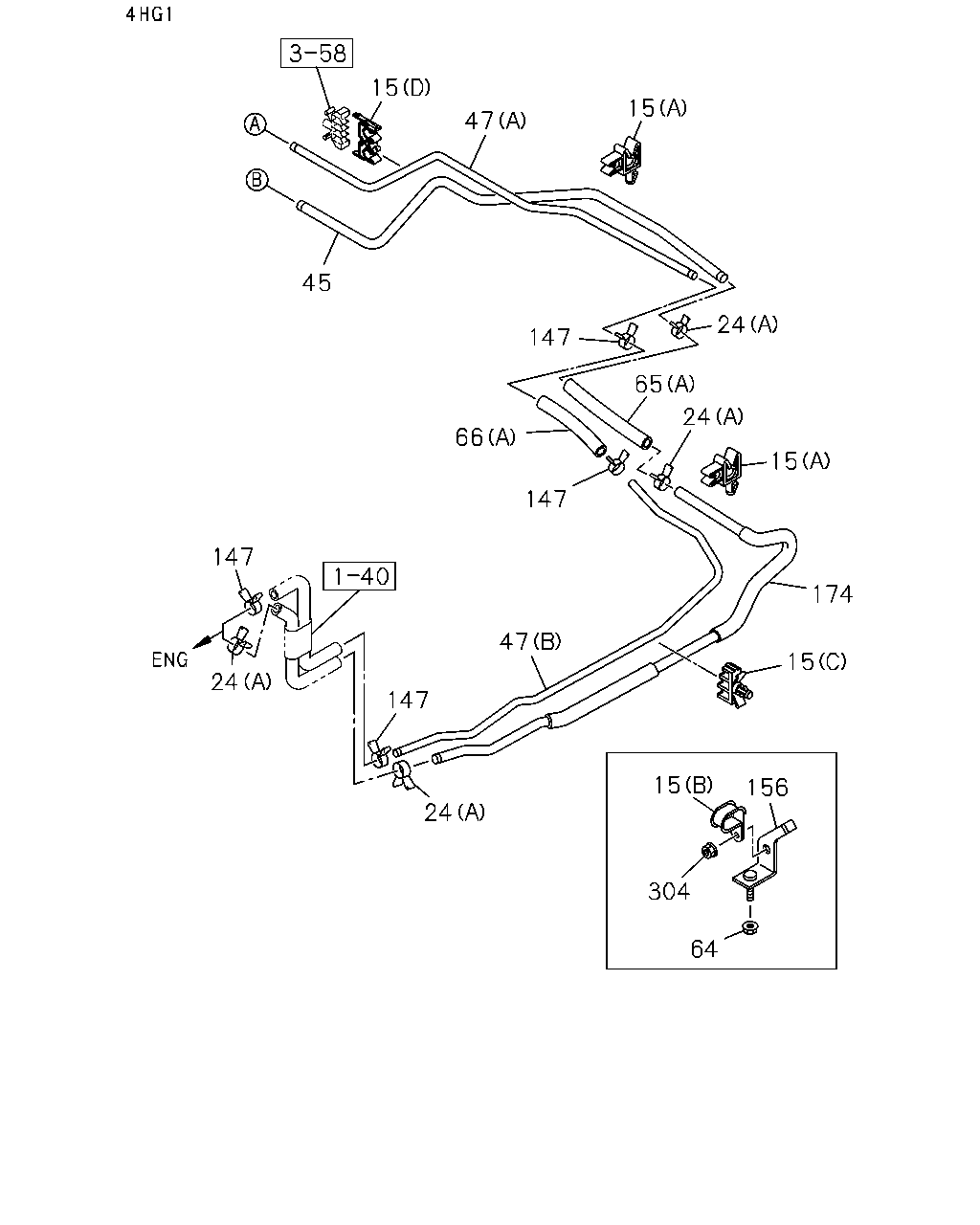

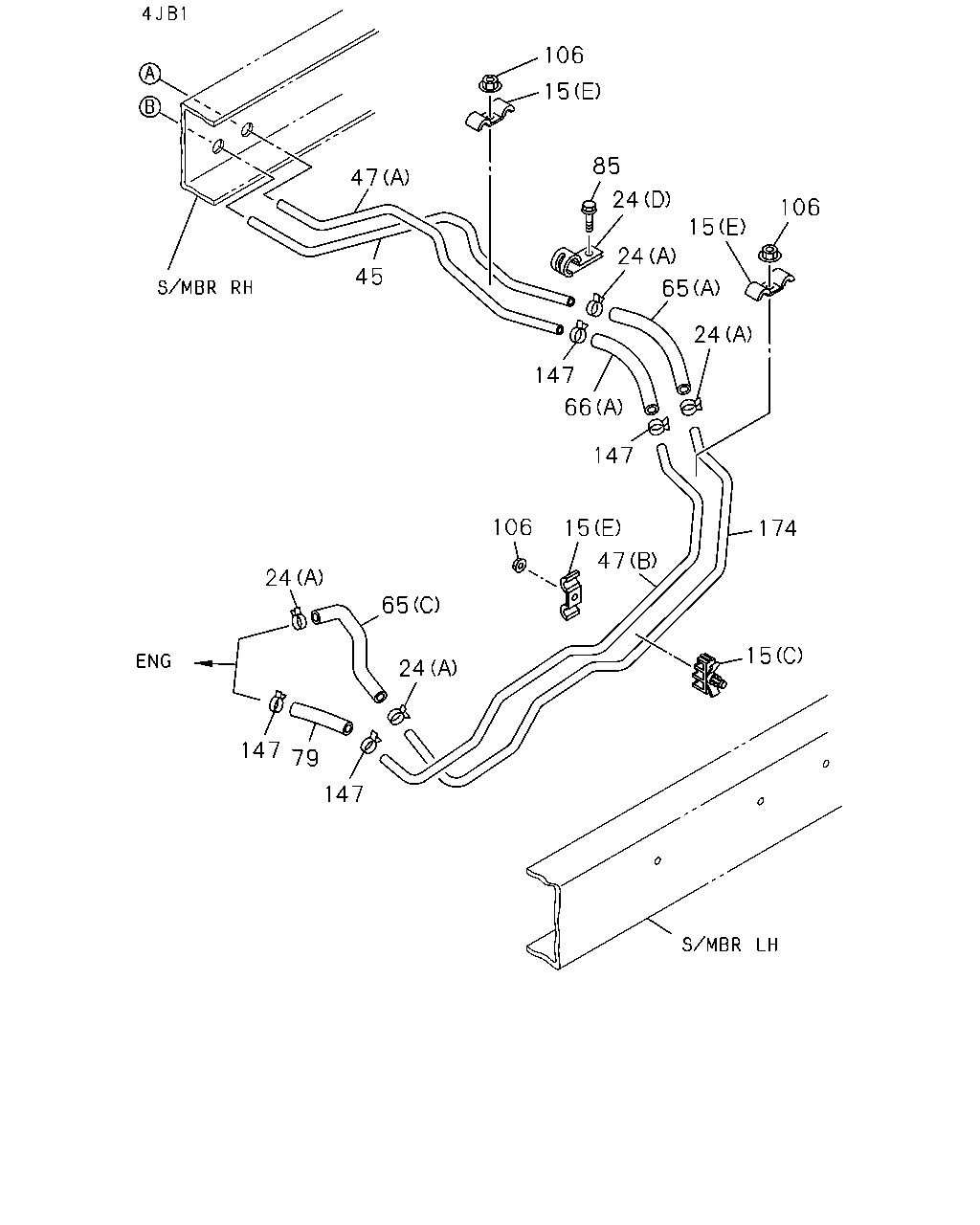

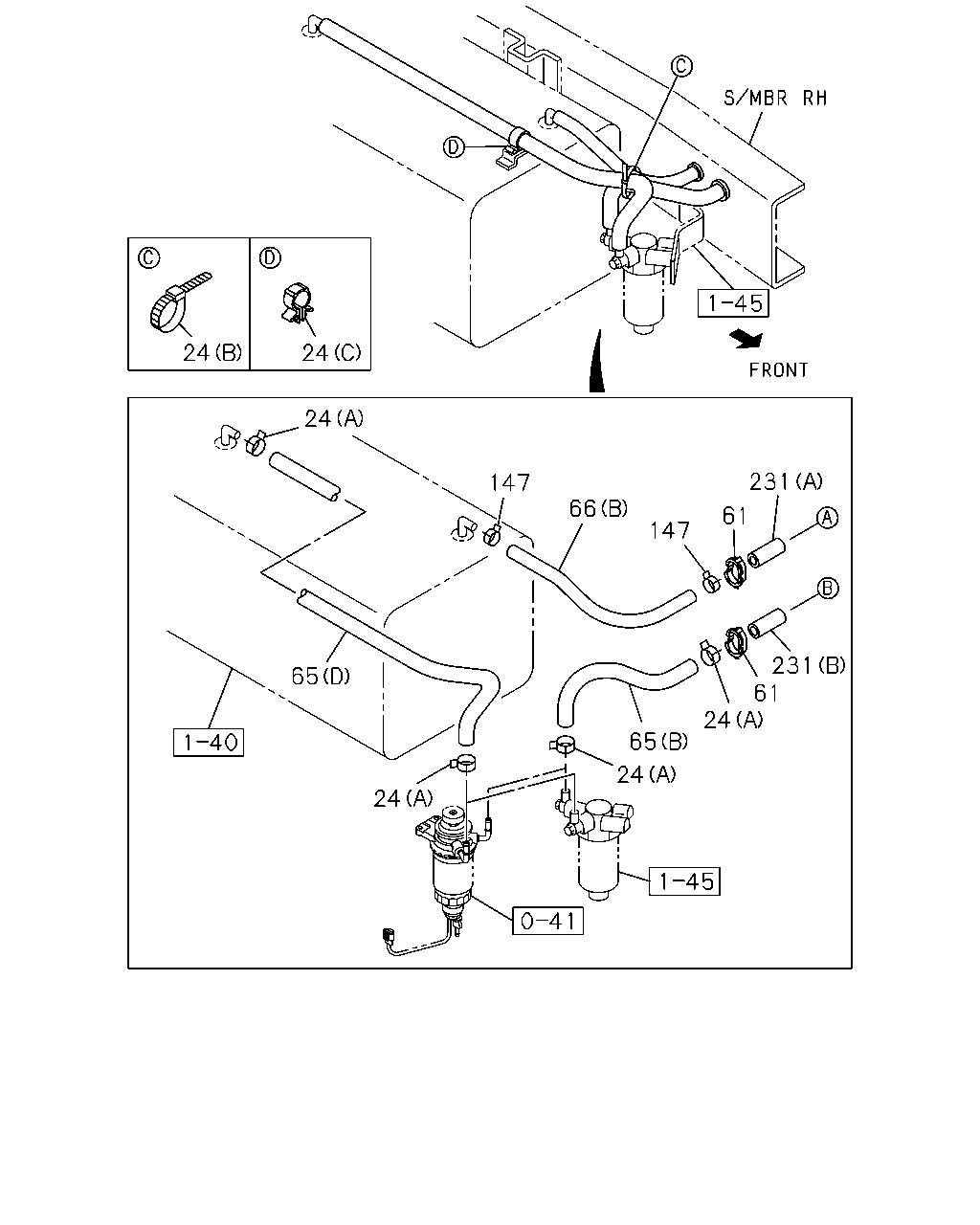

1-41 — FUEL PIPING; CHASSIS (#171359) — 129 parça

147 24 65 24 147 79 47 15 106 174 15 24 65 24 24 85 15 106 147 147 66 45 47 106 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE 4HG1-T ENG(RDP) (C) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1512-	●
15	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1512-		●
15	03.162 CLIP; FUEL PIPE 4HG1-T ENG(RDP) (A) ID=12 & 6.35	8-97215-437-0	03	1	1512-	●
15	03.162 CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	03	1	1512-		●
15	03.162 CLIP; FUEL PIPE 4HG1-T ENG(RDP) (B)	9-09916-239-1	01	1	1512-	●
15	03.162 CLIP; FUEL PIPE (B)	9-09916-239-1	01	1	1512-		●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W) 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1512-	●
15	03.162 CLIP; FUEL PIPE 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1512-		●
15	03.162 CLIP; FUEL PIPE 4JB1-TC ENG(RDT) (C) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	1512-	●
15	03.162 CLIP; FUEL PIPE 4JB1-TC ENG(RDT) (E) ID=11 & 7 L=15 & 15	8-98289-347-0	03	1	1512-	●
24	03.162 CLIP; FUEL HOSE (A) ID=16	8-98008-098-0	04	1	1512-	●	●
24	03.162 CLIP; FUEL HOSE (A) ID=16	8-98008-098-0	04	1	1512-	●	●
24	03.162 CLIP; FUEL HOSE 02.559 (B) L=250	5-09707-030-1	01	1	1512-	●	●
24	03.162 CLIP; FUEL HOSE (C)	8-97089-536-0	01	1	1512-	●	●
24	03.162 CLIP; FUEL HOSE 4JB1-TC ENG(RDT) 09.242 (D) ID=22 L=22	5-83574-045-0	01	1	1512-	●
45	03.163 PIPE; FUEL,DELIVERY 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W)	8-97326-007-0	01	1	1512-	●
45	03.163 PIPE; FUEL,DELIVERY WHEEL BASE 3300MM(33W) IDN	8-97363-968-0	01	1	1512-	●
45	03.163 PIPE; FUEL,DELIVERY IDN	8-97363-968-0	01	1	1512-		●
45	03.163 PIPE; FUEL,DELIVERY WHEEL BASE 2400MM(24W) IDN	8-97075-972-3	01	1	1512-	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W)	8-98270-101-0	01	1	1512-	●
47	03.163 PIPE; FUEL,RETURN 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) (A)	8-97326-012-0	01	1	1512-	●
47	03.163 PIPE; FUEL,RETURN 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) (B)	8-98163-357-0	01	1	1512-	●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 3300MM(33W) (B) IDN	8-97326-023-0	01	1	1512-	●
47	03.163 PIPE; FUEL,RETURN (B) IDN	8-97326-023-0	01	1	1512-		●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 3300MM(33W) (A) IDN	8-97363-971-1	01	1	1512-	●
47	03.163 PIPE; FUEL,RETURN (A) IDN	8-97363-971-1	01	1	1512-		●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 2400MM(24W) (B) IDN	8-97080-712-5	01	1	1512-	●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 2400MM(24W) (A) IDN	8-97090-339-3	01	1	1512-	●
47	03.163 PIPE; FUEL,RETURN 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (B)	8-97354-091-0	01	1	1512-	●
47	03.163 PIPE; FUEL,RETURN 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (A)	8-98270-102-0	01	1	1512-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A) L=140 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (B) L=520 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (D) L=600 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (B) L=410 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (B) L=410 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (D) L=640 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D) L=640 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C) IDN	8-98289-250-0	01	1	1512-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	1512-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (B) L=380 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	1512-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (B) L=420 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	1512-	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	1512-		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1-TC ENG(RDT) L=150 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	1512-	●
85	03.162 BOLT; CLIP,FUEL HOSE 4JB1-TC ENG(RDT) M6X12 FLANGE	0-28050-612-0	01	1	1512-	●
106	03.162 NUT; FUEL PIPE 4JB1-TC ENG(RDT) 01.062 M6 FLANGE IDN	0-91180-106-0	03	1	1512-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 ID=12	8-98150-358-0	04	1	1512-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 ID=12	8-98150-358-0	02	1	1512-	●	●
174	03.163 PIPE; FUEL,FEED,FRT 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W)	8-98163-356-0	01	1	1512-	●
174	03.163 PIPE; FUEL,FEED,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) IDN	8-97326-017-0	01	1	1512-	●
174	03.163 PIPE; FUEL,FEED,FRT 4HG1-T ENG(RDP) IDN	8-97326-017-0	01	1	1512-		●
174	03.163 PIPE; FUEL,FEED,FRT 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) IDN	8-97260-217-0	01	1	1512-	●
174	03.163 PIPE; FUEL,FEED,FRT 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W)	8-97225-253-0	01	1	1512-	●

24 24 147 231 61 147 61 66 24 65 24 24 24 65 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	03.162 CLIP; FUEL HOSE (A) ID=16	8-98008-098-0	04	1	1512-	●	●
24	03.162 CLIP; FUEL HOSE (A) ID=16	8-98008-098-0	04	1	1512-	●	●
24	03.162 CLIP; FUEL HOSE 02.559 (B) L=250	5-09707-030-1	01	1	1512-	●	●
24	03.162 CLIP; FUEL HOSE (C)	8-97089-536-0	01	1	1512-	●	●
24	03.162 CLIP; FUEL HOSE 4JB1-TC ENG(RDT) 09.242 (D) ID=22 L=22	5-83574-045-0	01	1	1512-	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17 IDN	8-94128-319-2	02	1	1512-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A) L=140 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (B) L=520 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (D) L=600 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (B) L=410 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (B) L=410 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (D) L=640 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D) L=640 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C) IDN	8-98289-250-0	01	1	1512-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	1512-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (B) L=380 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	1512-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (B) L=420 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	1512-	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	1512-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 ID=12	8-98150-358-0	04	1	1512-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 ID=12	8-98150-358-0	02	1	1512-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50 IDN	8-97077-629-0	01	1	1512-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50 IDN	8-94157-054-1	01	1	1512-	●	●

47 15 45 147 66 147 47 147 147 24 24 15 174 24 15 65 24 15 156 15 304 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE 4HG1-T ENG(RDP) (C) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1512-	●
15	03.162 CLIP; FUEL PIPE (C) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1512-		●
15	03.162 CLIP; FUEL PIPE 4HG1-T ENG(RDP) (A) ID=12 & 6.35	8-97215-437-0	03	1	1512-	●
15	03.162 CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	03	1	1512-		●
15	03.162 CLIP; FUEL PIPE 4HG1-T ENG(RDP) (B)	9-09916-239-1	01	1	1512-	●
15	03.162 CLIP; FUEL PIPE (B)	9-09916-239-1	01	1	1512-		●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W) 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1512-	●
15	03.162 CLIP; FUEL PIPE 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1512-		●
15	03.162 CLIP; FUEL PIPE 4JB1-TC ENG(RDT) (C) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	1512-	●
15	03.162 CLIP; FUEL PIPE 4JB1-TC ENG(RDT) (E) ID=11 & 7 L=15 & 15	8-98289-347-0	03	1	1512-	●
24	03.162 CLIP; FUEL HOSE (A) ID=16	8-98008-098-0	04	1	1512-	●	●
24	03.162 CLIP; FUEL HOSE (A) ID=16	8-98008-098-0	04	1	1512-	●	●
24	03.162 CLIP; FUEL HOSE 02.559 (B) L=250	5-09707-030-1	01	1	1512-	●	●
24	03.162 CLIP; FUEL HOSE (C)	8-97089-536-0	01	1	1512-	●	●
24	03.162 CLIP; FUEL HOSE 4JB1-TC ENG(RDT) 09.242 (D) ID=22 L=22	5-83574-045-0	01	1	1512-	●
45	03.163 PIPE; FUEL,DELIVERY 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W)	8-97326-007-0	01	1	1512-	●
45	03.163 PIPE; FUEL,DELIVERY WHEEL BASE 3300MM(33W) IDN	8-97363-968-0	01	1	1512-	●
45	03.163 PIPE; FUEL,DELIVERY IDN	8-97363-968-0	01	1	1512-		●
45	03.163 PIPE; FUEL,DELIVERY WHEEL BASE 2400MM(24W) IDN	8-97075-972-3	01	1	1512-	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W)	8-98270-101-0	01	1	1512-	●
47	03.163 PIPE; FUEL,RETURN 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) (A)	8-97326-012-0	01	1	1512-	●
47	03.163 PIPE; FUEL,RETURN 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) (B)	8-98163-357-0	01	1	1512-	●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 3300MM(33W) (B) IDN	8-97326-023-0	01	1	1512-	●
47	03.163 PIPE; FUEL,RETURN (B) IDN	8-97326-023-0	01	1	1512-		●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 3300MM(33W) (A) IDN	8-97363-971-1	01	1	1512-	●
47	03.163 PIPE; FUEL,RETURN (A) IDN	8-97363-971-1	01	1	1512-		●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 2400MM(24W) (B) IDN	8-97080-712-5	01	1	1512-	●
47	03.163 PIPE; FUEL,RETURN WHEEL BASE 2400MM(24W) (A) IDN	8-97090-339-3	01	1	1512-	●
47	03.163 PIPE; FUEL,RETURN 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (B)	8-97354-091-0	01	1	1512-	●
47	03.163 PIPE; FUEL,RETURN 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (A)	8-98270-102-0	01	1	1512-	●
64	03.162 NUT; CLIP 4HG1-T ENG(RDP) 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	1512-	●
64	03.162 NUT; CLIP 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	1512-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A) L=140 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (B) L=520 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (D) L=600 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (B) L=410 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (B) L=410 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (D) L=640 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D) L=640 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C) IDN	8-98289-250-0	01	1	1512-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	1512-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (B) L=380 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	1512-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (B) L=420 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	1512-	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	1512-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 ID=12	8-98150-358-0	04	1	1512-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 ID=12	8-98150-358-0	02	1	1512-	●	●
156	03.162 BRACKET; FUEL HOSE 4HG1-T ENG(RDP)	8-97087-834-4	01	1	1512-	●
156	03.162 BRACKET; FUEL HOSE	8-97087-834-4	01	1	1512-		●
174	03.163 PIPE; FUEL,FEED,FRT 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W)	8-98163-356-0	01	1	1512-	●
174	03.163 PIPE; FUEL,FEED,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) IDN	8-97326-017-0	01	1	1512-	●
174	03.163 PIPE; FUEL,FEED,FRT 4HG1-T ENG(RDP) IDN	8-97326-017-0	01	1	1512-		●
174	03.163 PIPE; FUEL,FEED,FRT 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) IDN	8-97260-217-0	01	1	1512-	●
174	03.163 PIPE; FUEL,FEED,FRT 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W)	8-97225-253-0	01	1	1512-	●
304	03.130 NUT; BRKT 4HG1-T ENG(RDP) 04.085 M10 FLANGE	0-91180-210-0	01	1	1512-	●
304	03.130 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	1512-		●
