1-40 — FUEL TANK (#171358) — 60 parça

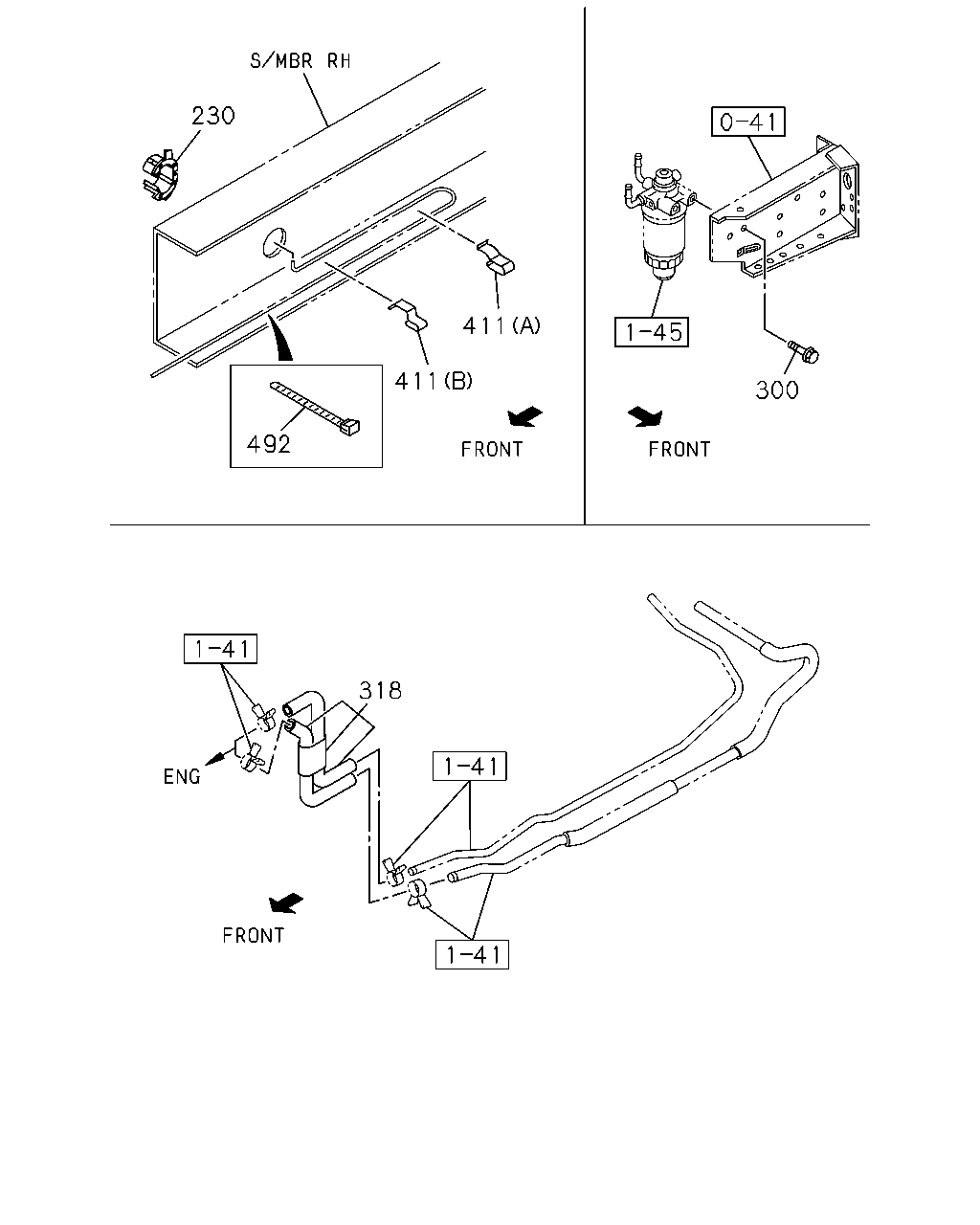

çizim 507146
230 411 492 411 300 318
BalonParca AdiParca NoAdetTipApplied Date A B
230 03.115 GROMMET; HARNESS,FUEL TANK UNIT
02.343 ID=17 IDN 		8-94128-319-2 02 1 1512- ● ●
300 03.162 BOLT; BRKT TO BODY
4HG1-T ENG(RDP) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1601- ●
300 03.162 BOLT; BRKT TO BODY
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1601- ●
318 03.163 HOSE ASM; FUEL,DELIVERY,RETURN
4HG1-T ENG(RDP) 		8-98289-251-0 01 1 1512- ●
318 03.163 HOSE ASM; FUEL,DELIVERY,RETURN 8-98289-251-0 01 1 1512- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (A) T=5.5 		8-97371-951-0 04 1 1601- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) M/T MYY5T(RSM) (A) T=5.5 		8-97371-951-0 04 1 1601- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXHAUST BRAKE<NF8> (A) T=4.5 		5-09709-011-0 01 1 1512- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) T=4.5 & 9 		8-97371-947-0 02 1 1512- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2400MM(24W) (B) T=4.5 & 9 		8-97371-947-0 01 1 1512- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (A) T=6.0 		5-09709-012-0 01 1 1512- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. HEAVY DUTY FRAME<6WB> (A) T=6.0 		5-09709-012-0 01 1 1512- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) 02.525 (B) T=9.2 & 9 		5-09709-025-0 01 1 1512- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 02 1 1512- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) T=9 & 10.5 		8-97371-949-0 01 1 1512- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
HEAVY DUTY FRAME<6WB> (A) T=9.2 		5-09709-013-0 01 1 1512- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
HEAVY DUTY FRAME<6WB> 02.525 (B) T=9.2 & 9 		5-09709-025-0 02 1 1512- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. HEAVY DUTY FRAME<6WB> (B) T=6.0 		8-97371-948-0 02 1 1512- ●
492 03.028 CLIP; HARNESS TO VAC HOSE
EXHAUST BRAKE<NF8> 02.559 L=250 		5-09707-030-1 02 1 1512- ●
492 03.028 CLIP; HARNESS TO VAC HOSE
02.559 L=250 		5-09707-030-1 02 1 1512- ●

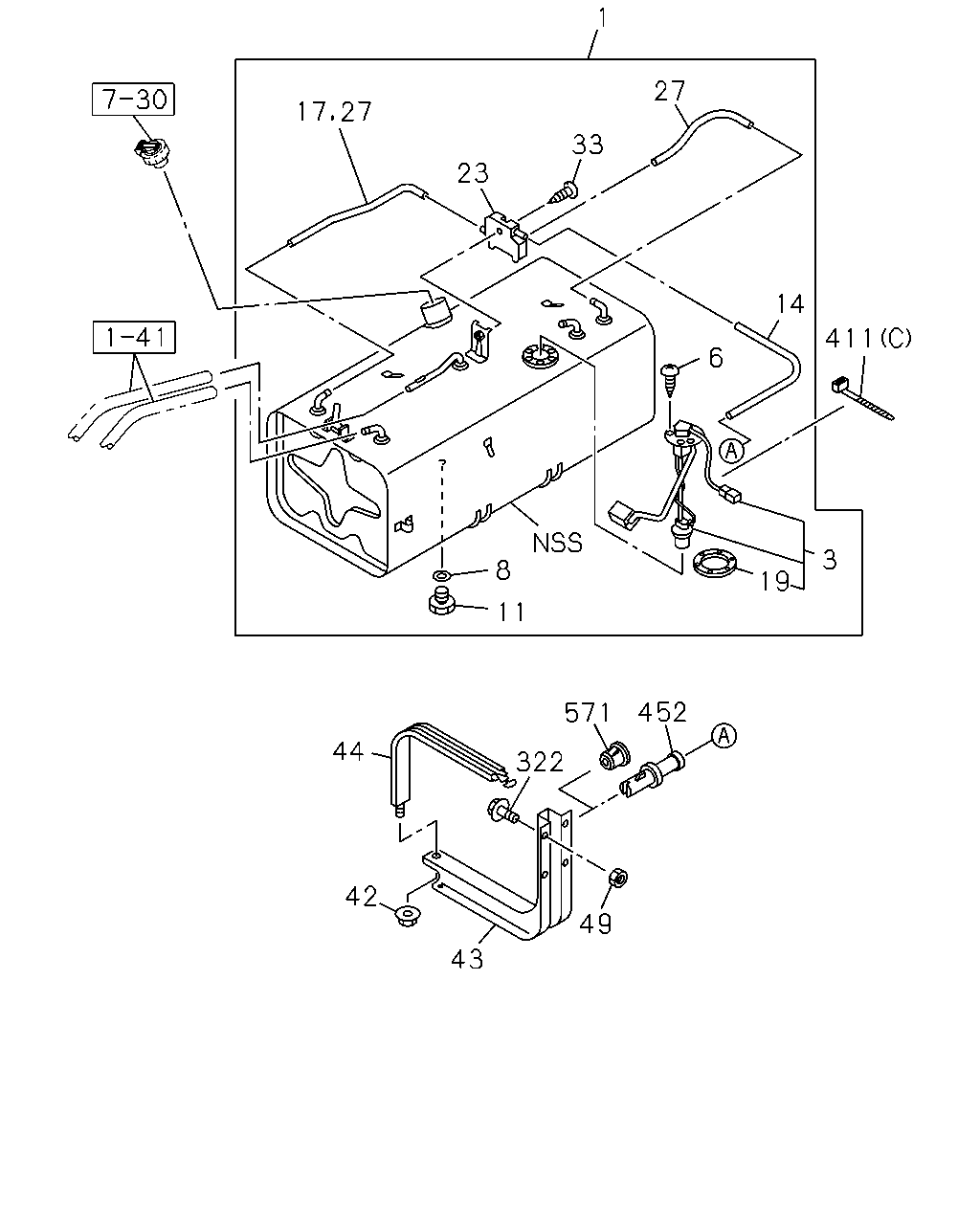

çizim 507180
1 33 27 23 17 27 14 6 411 3 19 11 8 452 571 322 49 43 42 44
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.001 TANK; FUEL
FUEL TANK 75 LITTER<7GX> 753X340X327 75L 		8-97695-682-0 01 1 1512- ●
1 03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02> 1000X340X327 100L 		8-97695-683-0 01 1 1512- ●
1 03.001 TANK; FUEL
1000X340X327 100L 		8-97695-683-0 01 1 1512- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98302-536-0 01 1 1512- ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 1512- ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 1512- ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.453 M14X14 IDN 		9-09862-156-0 01 1 1512- ● ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> 00.034 L=430 SERVICED BY L=10000 IDN 		9-09914-701-0 01 1 1512- ●
14 03.163 HOSE; BREATHER,OUTLET
00.034 L=430 SERVICED BY L=10000 IDN 		9-09914-701-0 01 1 1512- ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 75 LITTER<7GX> 00.034 L=320 SERVICED BY L=10000 IDN 		9-09914-701-0 01 1 1512- ●
17 03.163 HOSE; BREATHER
FUEL TANK 75 LITTER<7GX> L=430 SERVICED BY L=3000 IDN 		8-94128-826-0 01 1 1512- ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 IDN 		5-83148-001-0 01 1 1512- ● ●
23 03.162 JOINT; BREATHER HOSE
IDN 		8-97077-713-1 01 1 1512- ● ●
27 03.163 HOSE; BREATHER
FUEL TANK 100 LITTER<N02> L=470 SERVICED BY L=3000 IDN 		8-94128-826-0 02 1 1512- ●
27 03.163 HOSE; BREATHER
L=470 SERVICED BY L=3000 IDN 		8-94128-826-0 02 1 1512- ●
27 03.163 HOSE; BREATHER
FUEL TANK 75 LITTER<7GX> L=340 SERVICED BY L=3000 IDN 		8-94128-826-0 01 1 1512- ●
33 03.162 SCREW; JOINT TO FUEL TANK
M6X20 W/LK&PL WASHER IDN 		0-36230-620-0 01 1 1512- ● ●
42 03.023 NUT; SUPPORT BELT
M8 FLANGE IDN 		9-09130-408-0 02 1 1512- ● ●
43 03.015 BRACKET; FUEL TANK
IDN 		8-97035-517-0 02 1 1512- ● ●
44 03.023 BAND; FUEL TANK
03.022 IDN 		8-94438-385-4 02 1 1512- ● ●
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 1512- ● ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W) 07.068 M10X30 FLANGE 		0-28661-030-0 08 1 1512- ●
322 03.895 BOLT; BRKT FIX
4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) 07.068 M10X30 FLANGE 		0-28661-030-0 08 1 1512- ●
322 03.895 BOLT; BRKT FIX
07.068 M10X30 FLANGE 		0-28661-030-0 08 1 1512- ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 2400MM(24W) 07.068 M10X30 FLANGE 		0-28661-030-0 06 1 1512- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (A) T=5.5 		8-97371-951-0 04 1 1601- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) M/T MYY5T(RSM) (A) T=5.5 		8-97371-951-0 04 1 1601- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXHAUST BRAKE<NF8> (A) T=4.5 		5-09709-011-0 01 1 1512- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) T=4.5 & 9 		8-97371-947-0 02 1 1512- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2400MM(24W) (B) T=4.5 & 9 		8-97371-947-0 01 1 1512- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (A) T=6.0 		5-09709-012-0 01 1 1512- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. HEAVY DUTY FRAME<6WB> (A) T=6.0 		5-09709-012-0 01 1 1512- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) 02.525 (B) T=9.2 & 9 		5-09709-025-0 01 1 1512- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 02 1 1512- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) T=9 & 10.5 		8-97371-949-0 01 1 1512- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
HEAVY DUTY FRAME<6WB> (A) T=9.2 		5-09709-013-0 01 1 1512- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
HEAVY DUTY FRAME<6WB> 02.525 (B) T=9.2 & 9 		5-09709-025-0 02 1 1512- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. HEAVY DUTY FRAME<6WB> (B) T=6.0 		8-97371-948-0 02 1 1512- ●
452 03.028 BREATHER; FUEL TANK
IDN 		8-97062-954-1 01 1 1512- ● ●
571 03.001 GROMMET
03.028 IDN 		8-97096-990-0 01 1 1512- ● ●
