◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51642 - NLR/NMR(INDONESIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#171356) — 62 parça

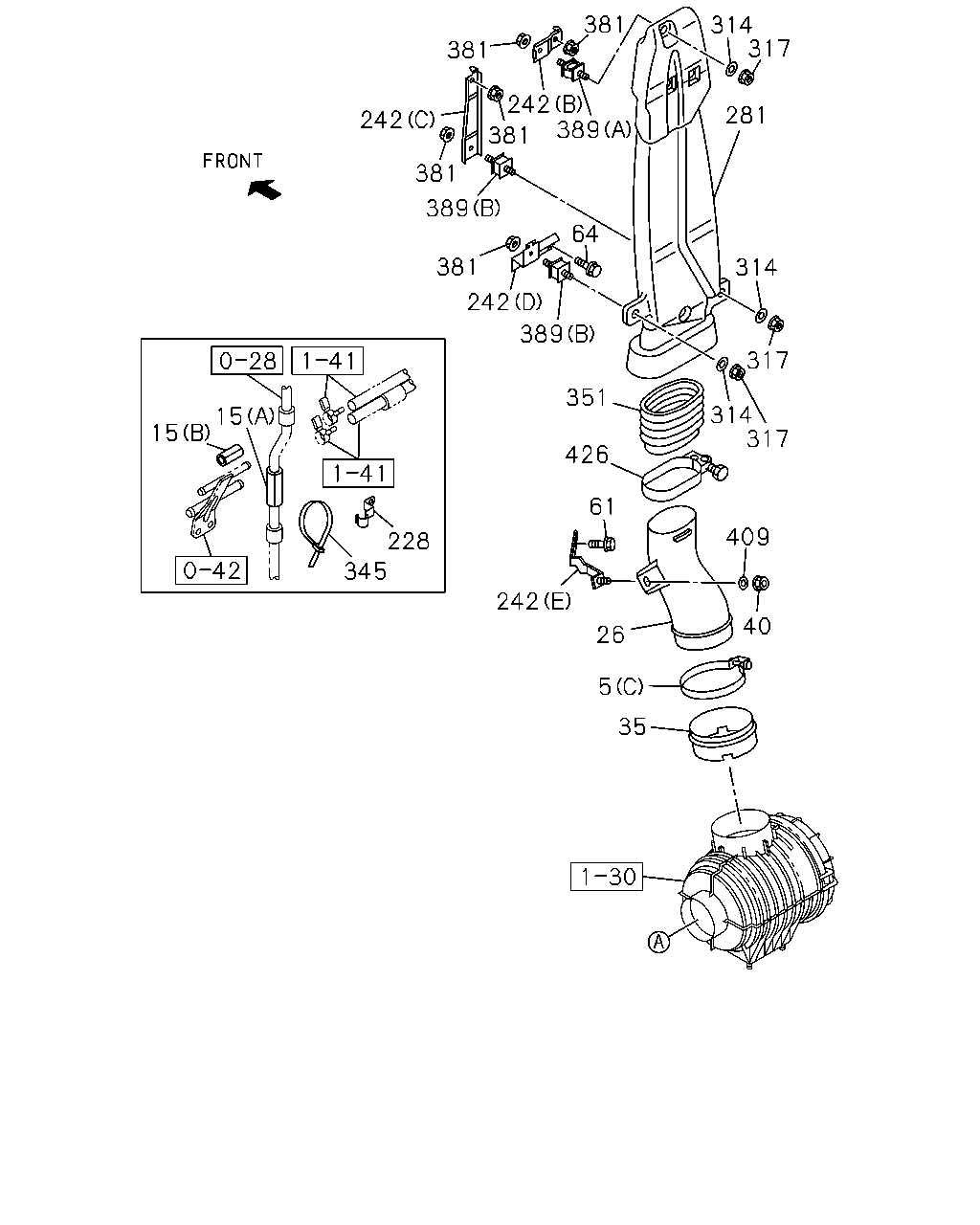

çizim 507013
15 15 228 345 381 381 314 317 281 389 242 381 242 381 389 381 64 242 389 314 317 314 351 426 317 61 242 26 5 35 40 409
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(C) ID=127 		1-14239-263-0 01 1 1512- ● ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) 03.417 (B) ID=40-50 		8-98133-347-0 02 1 1512- ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) (A) ID=55-75 		8-98133-349-0 02 1 1512- ●
15 03.417 INSULATOR
4HG1-T ENG(RDP) (A) ID=23 OD=27 L=80 		8-97608-976-0 01 1 1601- ●
15 03.417 INSULATOR
(A) ID=23 OD=27 L=80 		8-97608-976-0 01 1 1601- ●
15 03.417 INSULATOR
4HG1-T ENG(RDP) 02.530 (B) ID=12.5 OD=15.5 L=30 		9-09714-002-0 01 1 1601- ●
15 03.417 INSULATOR
02.530 (B) ID=12.5 OD=15.5 L=30 		9-09714-002-0 01 1 1601- ●
26 03.417 DUCT; AIR INT
IDN 		8-98331-167-0 01 1 1512- ● ●
35 03.406 SEAL; DUCT,INT 8-98336-039-0 01 1 1601- ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE IDN 		0-91180-110-0 01 1 1512- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 1512- ● ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1512- ● ●
228 03.278 CLIP; PCV HOSE
4HG1-T ENG(RDP) 03.417 		8-97369-959-0 01 1 1601- ●
228 03.278 CLIP; PCV HOSE
03.417 		8-97369-959-0 01 1 1601- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 1512- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 1512- ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 1512- ● ●
242 03.417 BRACKET; AIR DUCT
(E) IDN 		8-98067-767-4 01 1 1512- ● ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (A) 		8-97226-059-0 01 1 1512- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-97369-706-0 01 1 1512- ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1512- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1512- ● ●
345 03.417 CLIP; PCV HOSE
4HG1-T ENG(RDP) 		8-97369-959-0 01 1 1512-1512 ●
345 03.417 CLIP; PCV HOSE 8-97369-959-0 01 1 1512-1512 ●
345 03.417 CLIP; PCV HOSE
4HG1-T ENG(RDP) 02.559 L=250 		5-09707-030-1 01 1 1601- ●
345 03.417 CLIP; PCV HOSE
02.559 L=250 		5-09707-030-1 01 1 1601- ●
351 03.407 DUCT; AIR 8-98115-594-0 01 1 1512- ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 05 1 1512- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1512- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1512- ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1512- ● ●
426 03.417 CLIP; DUCT
03.407 D=101.6 		9-09915-502-1 01 1 1512- ● ●

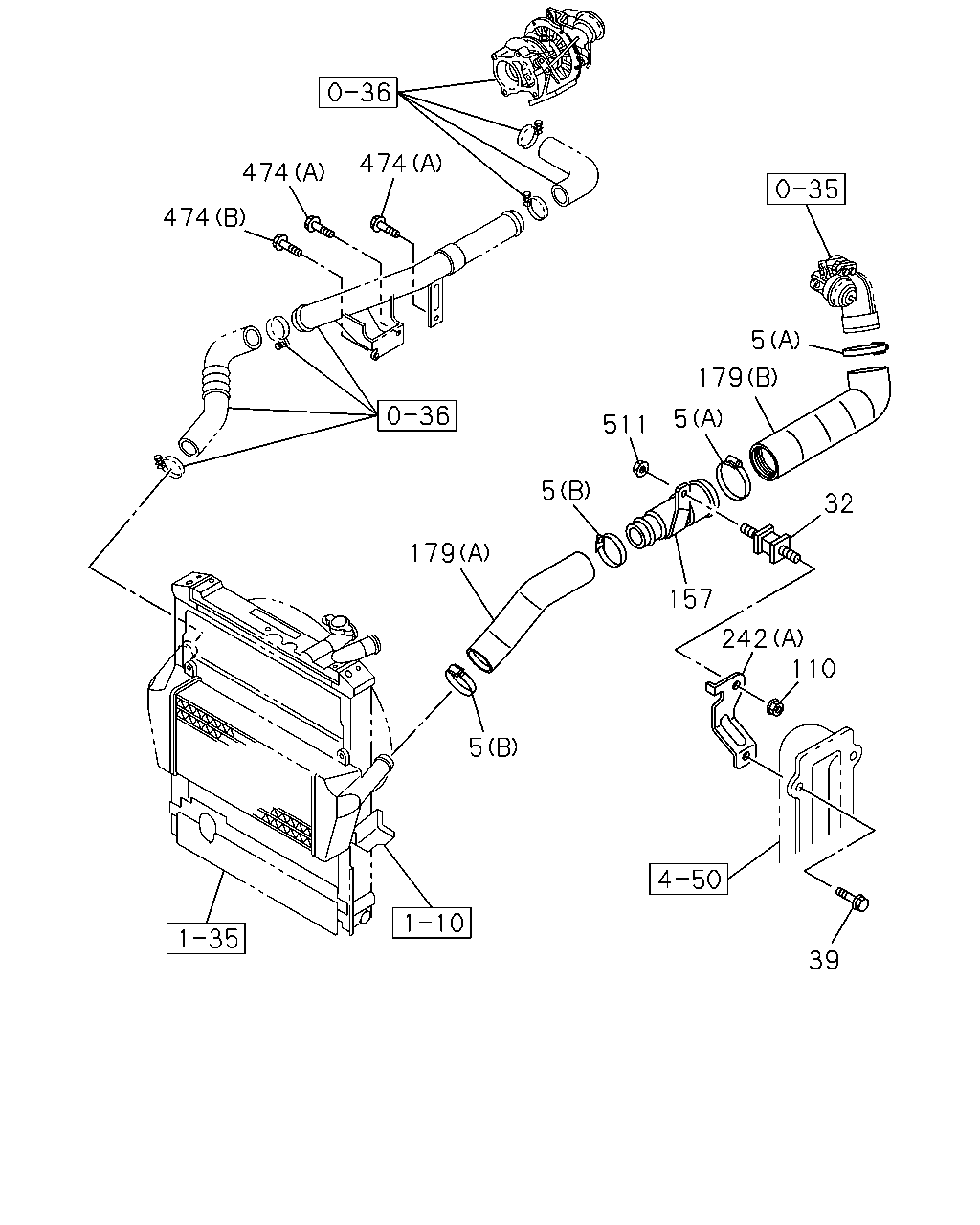

çizim 507172
474 474 474 5 179 511 5 5 179 5 157 32 242 110 39
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(C) ID=127 		1-14239-263-0 01 1 1512- ● ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) 03.417 (B) ID=40-50 		8-98133-347-0 02 1 1512- ●
5 03.407 CLIP; AIR DUCT
4JB1-TC ENG(RDT) (A) ID=55-75 		8-98133-349-0 02 1 1512- ●
32 03.417 RUBBER; AIR DUCT MTG
4JB1-TC ENG(RDT) 03.405 		8-94158-155-1 01 1 1512- ●
39 03.417 BOLT; BRKT
4JB1-TC ENG(RDT) 02.343 M8X12 FLANGE IMA 		0-28050-812-0 01 1 1512- ●
110 03.403 NUT; RUBBER MTG
4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 1512- ●
157 03.417 PIPE; AIR
4JB1-TC ENG(RDT) 		8-97228-660-0 01 1 1512- ●
179 03.417 HOSE; AIR INT
4JB1-TC ENG(RDT) (B) 		8-97228-658-2 01 1 1512- ●
179 03.417 HOSE; AIR INT
4JB1-TC ENG(RDT) (A) 		8-98219-491-0 01 1 1512- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 1512- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 1512- ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 1512- ● ●
242 03.417 BRACKET; AIR DUCT
(E) IDN 		8-98067-767-4 01 1 1512- ● ●
242 03.417 BRACKET; AIR DUCT
4JB1-TC ENG(RDT) (A) 		8-97226-059-0 01 1 1512- ●
474 03.417 BOLT; PIPE
4JB1-TC ENG(RDT) 02.343 (A) M8X12 FLANGE IMA 		0-28050-812-0 02 1 1512- ●
474 03.417 BOLT; PIPE
4JB1-TC ENG(RDT) 06.225 (B) M10X12 FLANGE 		0-28051-012-0 01 1 1512- ●
511 03.417 NUT; PIPE
4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 1512- ●
çizim 507178
287 232 287 232 450 417 248 379 287 248 287 232
BalonParca AdiParca NoAdetTipApplied Date A B
232 03.417 HOSE; CONN
4HG1-T ENG(RDP) (B) IDN 		8-98317-832-0 01 1 1512- ●
232 03.417 HOSE; CONN
(B) IDN 		8-98317-832-0 01 1 1512- ●
232 03.417 HOSE; CONN
4JB1-TC ENG(RDT) (A) IDN 		8-98317-831-0 01 1 1512- ●
248 03.417 CLIP; RUBBER HOSE
4JB1-TC ENG(RDT) 03.265 ID=20.4 		8-94121-113-0 02 1 1512-1512 ●
248 03.417 CLIP; RUBBER HOSE
03.265 ID=20.4 		8-94121-113-0 02 1 1601- ● ●
287 03.417 CLIP; AIR DUCT
4HG1-T ENG(RDP) 03.407 (C) ID=55-75 		8-98133-349-0 01 1 1512- ●
287 03.417 CLIP; AIR DUCT
03.407 (C) ID=55-75 		8-98133-349-0 01 1 1512- ●
287 03.417 CLIP; AIR DUCT
03.407 (B) ID=117 		9-09915-075-1 01 1 1512- ● ●
287 03.417 CLIP; AIR DUCT
4JB1-TC ENG(RDT) (A) ID=40-50 		8-98133-347-0 01 1 1512- ●
287 03.417 CLIP; AIR DUCT
4JB1-TC ENG(RDT) 03.407 (B) ID=112 		9-09915-074-1 01 1 1512- ●
379 03.675 HOSE; RUBBER
4JB1-TC ENG(RDT) 03.265 		8-97212-347-1 01 1 1512- ●
417 03.278 CLIP; WATER HOSE
4JB1-TC ENG(RDT) 08.846 ID=23 		8-94382-402-0 01 1 1512- ●
450 03.417 CLAMP; HOSE
4JB1-TC ENG(RDT) 03.407 ID=65-85 		8-98133-350-0 01 1 1512- ●
