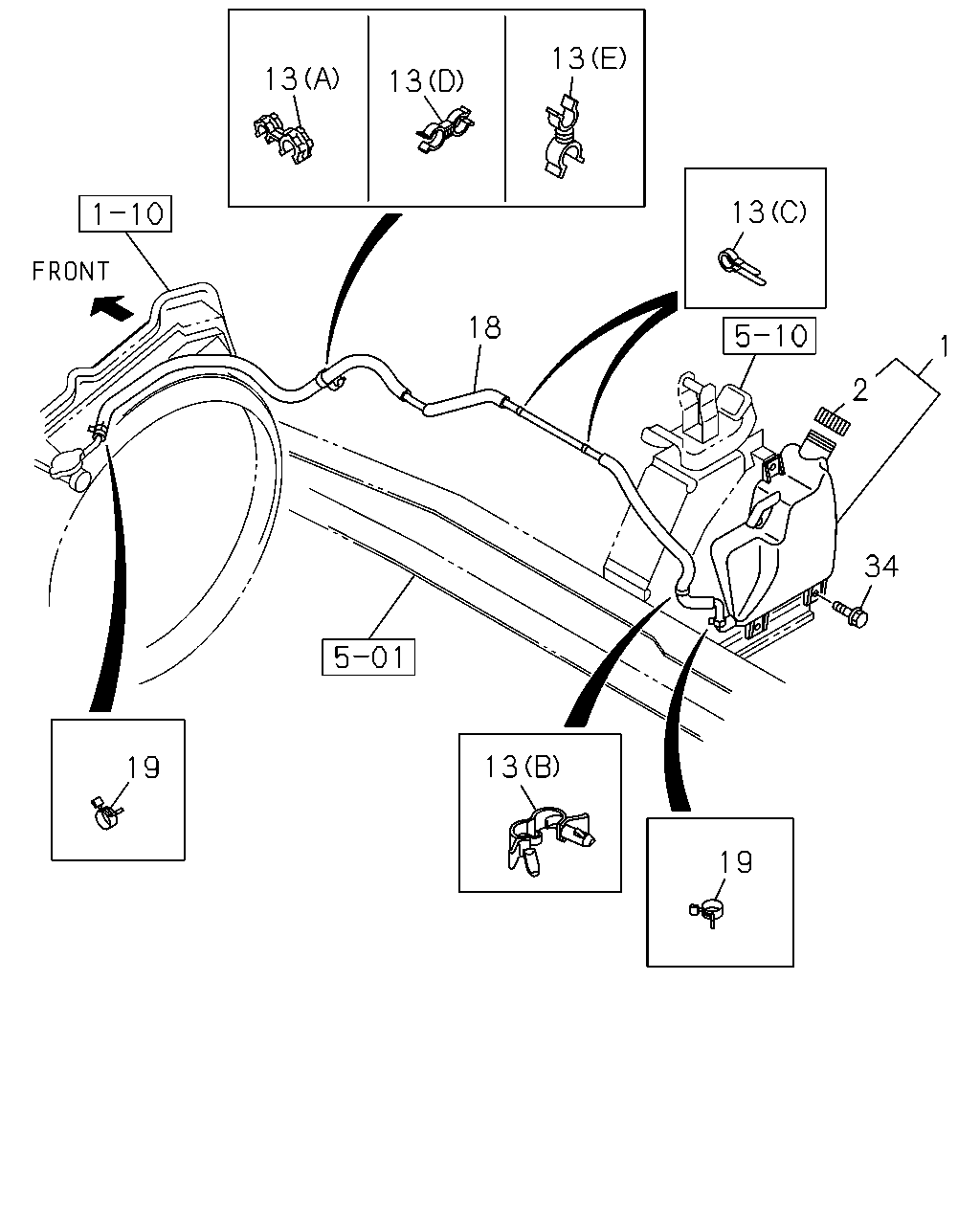

1-11 — RADIATOR HOSE AND SUB TANK (#171354) — 29 parça

13 13 13 13 1 2 34 18 13 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 TANK; SURGE,RAD	8-98178-179-0	01	1	1512-	●	●
2	01.203 CAP; SURGE TANK	8-98178-074-0	01	1	1512-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP) (C) ID=14 L=47	5-09700-319-0	01	1	1512-	●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	01	1	1512-		●
13	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP) (A) ID=10 & 12	8-94416-613-0	01	1	1512-	●
13	01.240 CLIP; HOSE,SURGE TANK (A) ID=10 & 12	8-94416-613-0	01	1	1512-		●
13	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP) 02.559 (D) ID=10 & 11	8-94438-996-0	01	1	1512-	●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (D) ID=10 & 11	8-94438-996-0	01	1	1512-		●
13	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) (C) ID=14 L=47	5-09700-319-0	02	1	1512-	●
13	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT) 04.104 (E) ID=12 & 16.5	8-94400-865-0	01	1	1512-	●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	1512-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1-T ENG(RDP) IDN	8-97695-460-0	01	1	1512-	●
18	01.240 HOSE; RAD TO SURGE TANK IDN	8-97695-460-0	01	1	1512-		●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT) IDN	8-97695-593-0	01	1	1512-	●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1512-	●	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1512-	●	●

56 56 128 56 55 56 128 56 55 56 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
55	01.173 HOSE; WATER,RAD OUTLET 4HG1-T ENG(RDP) IDN	8-97124-740-0	01	1	1512-	●
55	01.173 HOSE; WATER,RAD OUTLET IDN	8-97124-740-0	01	1	1512-		●
55	01.173 HOSE; WATER,RAD OUTLET 4JB1-TC ENG(RDT) IDN	8-97089-916-1	01	1	1512-	●
56	01.166 CLIP; WATER HOSE,RAD 4JB1-TC ENG(RDT) (C) ID=48	8-98133-956-0	01	1	1512-	●
56	01.166 CLIP; WATER HOSE,RAD (C) ID=48	8-98133-956-0	02	1	1512-	●	●
56	01.166 CLIP; WATER HOSE,RAD 4HG1-T ENG(RDP) (A) ID=40	8-97245-216-0	03	1	1512-	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=40	8-97245-216-0	03	1	1512-		●
56	01.166 CLIP; WATER HOSE,RAD 4HG1-T ENG(RDP) (B) ID=50	8-97245-217-0	01	1	1512-	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=50	8-97245-217-0	01	1	1512-		●
56	01.166 CLIP; WATER HOSE,RAD 4JB1-TC ENG(RDT) (D) ID=42	8-98133-958-0	01	1	1512-	●
128	01.159 HOSE; WATER,RAD INL 4HG1-T ENG(RDP) IDN	8-97162-163-0	01	1	1512-	●
128	01.159 HOSE; WATER,RAD INL IDN	8-97162-163-0	01	1	1512-		●
128	01.159 HOSE; WATER,RAD INL 4JB1-TC ENG(RDT) IDN	8-98227-944-0	01	1	1512-	●
