Isuzu WW
▶
TRUCKS
▶
NLR
▶
51642 - NLR/NMR(INDONESIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#171353) — 53 parça
Tümü
A - NMR5SE
B - NMR5SN
◀

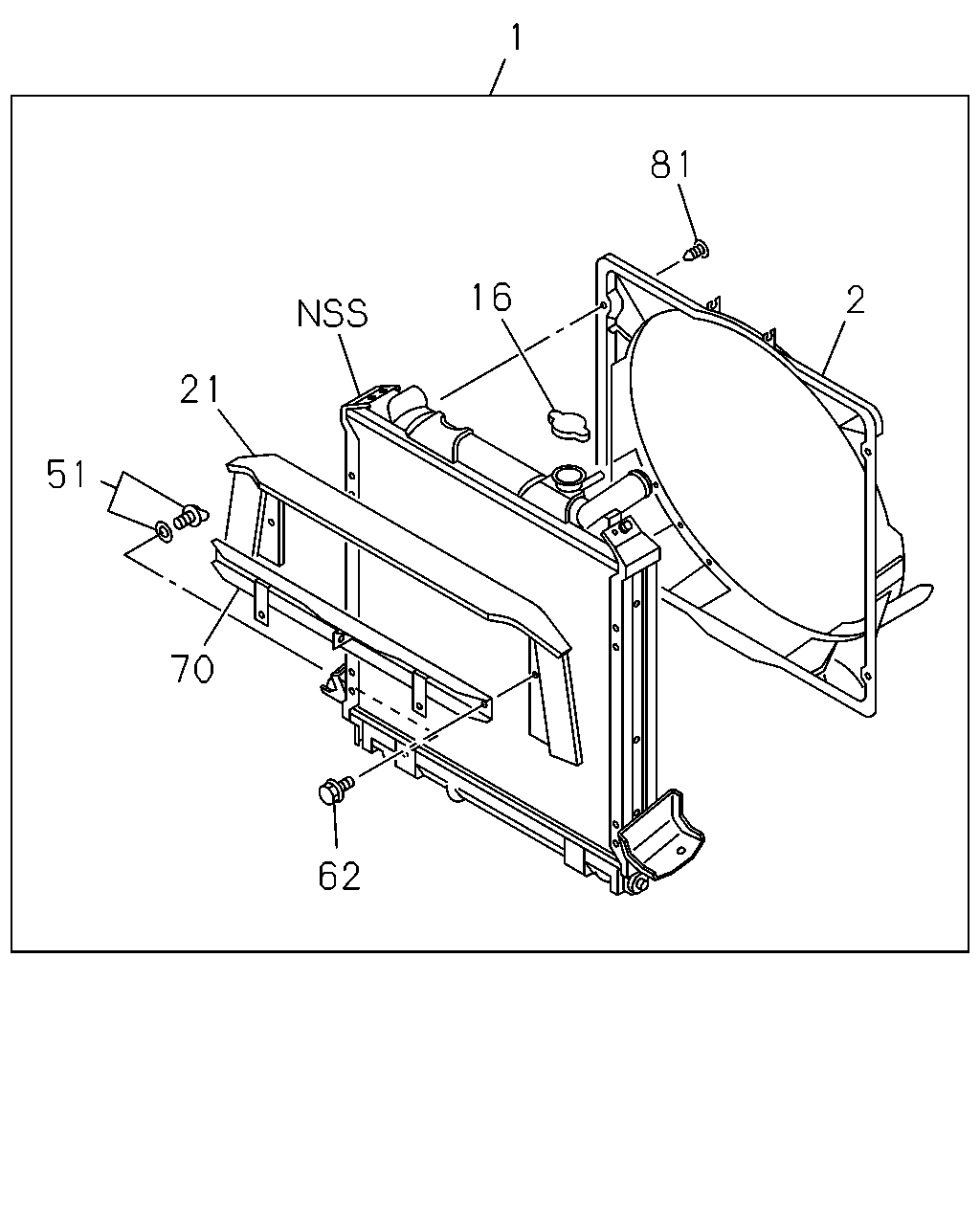

[110A] COMPONENT; 4HG1 (18 parça)

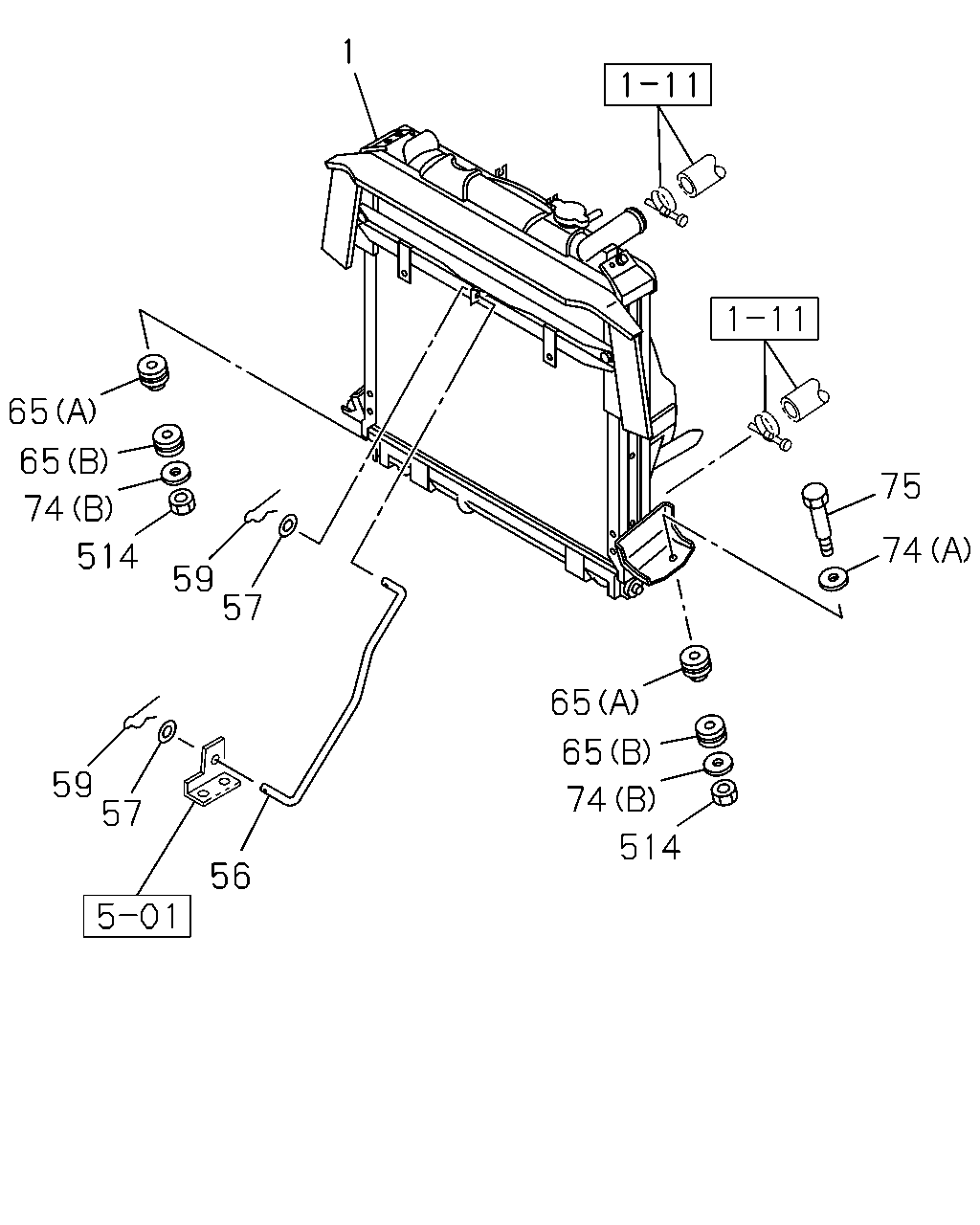

[110A] FIXING (14 parça)

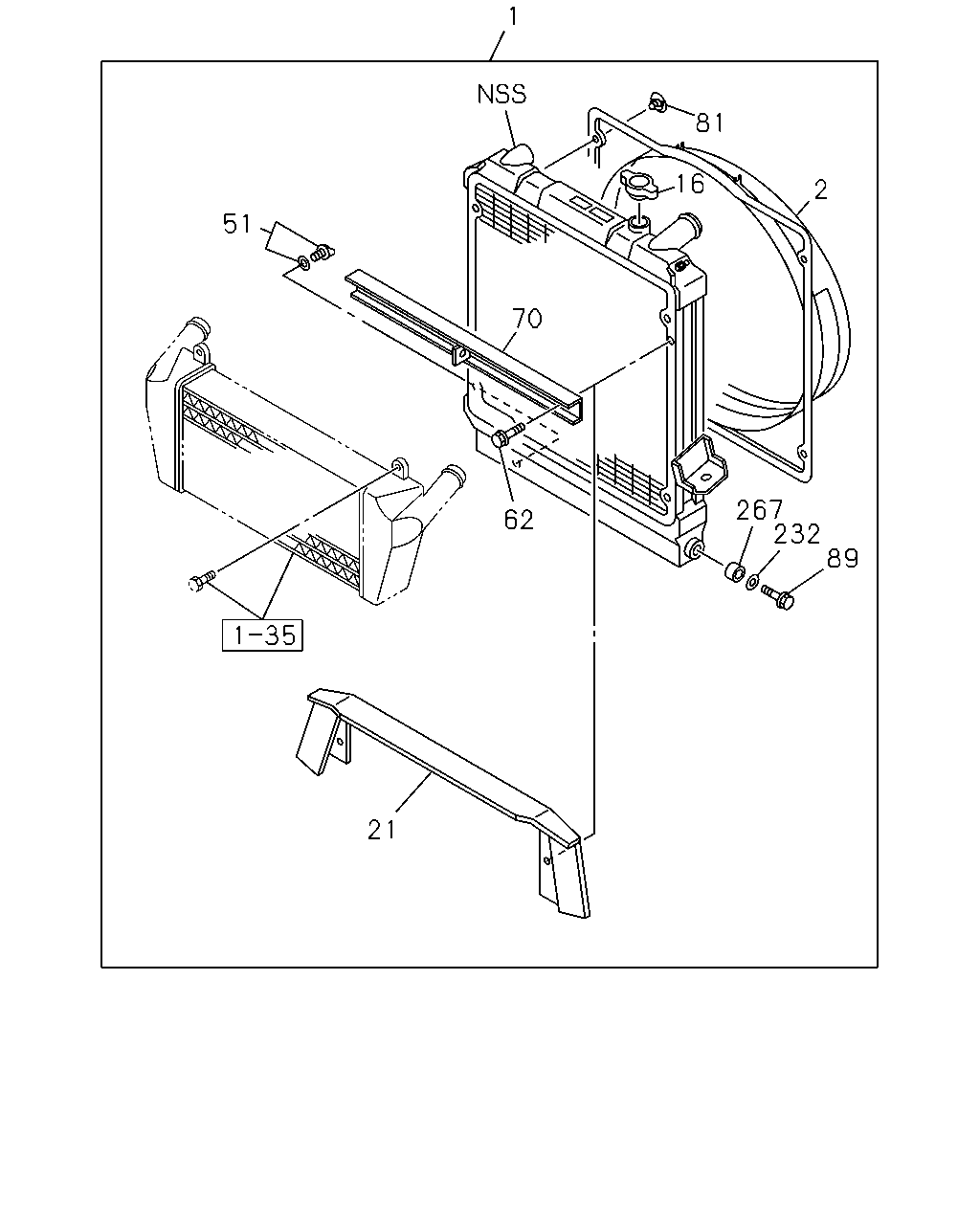

[110A] COMPONENT; 4JB1 (21 parça)
▶
81
1
16
2
21
51
70
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
01.219 RADIATOR ASM
4HG1-T ENG(RDP) IDN
8-98236-886-0
01
1
1512-
●
1
01.219 RADIATOR ASM
IDN
8-98236-886-0
01
1
1512-
●
1
01.219 RADIATOR ASM
4JB1-TC ENG(RDT) IDN
8-98202-300-0
01
1
1512-
●
2
01.277 GUIDE; FAN
4HG1-T ENG(RDP) IDN
8-97202-552-0
01
1
1512-
●
2
01.277 GUIDE; FAN
IDN
8-97202-552-0
01
1
1512-
●
2
01.277 GUIDE; FAN
4JB1-TC ENG(RDT) IDN
8-97066-011-0
01
1
1512-
●
16
01.203 CAP; RAD
IDN
8-98096-226-0
01
1
1512-
●
●
21
01.276 SEAL; RAD
4HG1-T ENG(RDP) IDN
8-97221-419-1
01
1
1512-
●
21
01.276 SEAL; RAD
IDN
8-97221-419-1
01
1
1512-
●
21
01.276 SEAL; RAD
4JB1-TC ENG(RDT) IDN
8-97219-806-3
01
1
1512-
●
51
08.951 PLUG; DRAIN
W/GASKET IDN
8-97171-437-0
01
1
1512-
●
●
62
01.271 BOLT; STAY
4HG1-T ENG(RDP) 02.343 M8X12 FLANGE IMA
0-28050-812-0
02
1
1512-
●
62
01.271 BOLT; STAY
02.343 M8X12 FLANGE IMA
0-28050-812-0
02
1
1512-
●
62
01.271 BOLT; STAY
4JB1-TC ENG(RDT) 08.900 M8X12 FLANGE IDN
0-28080-812-0
02
1
1512-
●
70
01.271 STAY; RAD
4HG1-T ENG(RDP) IDN
8-97047-899-0
01
1
1512-
●
70
01.271 STAY; RAD
IDN
8-97047-899-0
01
1
1512-
●
70
01.271 STAY; RAD
4JB1-TC ENG(RDT) IDN
8-97061-314-0
01
1
1512-
●
81
01.277 SCREW; FAN GUIDE,RAD
IDN
8-97088-810-0
04
1
1512-
●
●
1
75
74
65
65
74
514
65
74
65
514
59
57
59
57
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
01.219 RADIATOR ASM
4HG1-T ENG(RDP) IDN
8-98236-886-0
01
1
1512-
●
1
01.219 RADIATOR ASM
IDN
8-98236-886-0
01
1
1512-
●
1
01.219 RADIATOR ASM
4JB1-TC ENG(RDT) IDN
8-98202-300-0
01
1
1512-
●
56
01.270 STAY; RAD
4HG1-T ENG(RDP)
8-98324-268-0
01
1
1512-
●
56
01.270 STAY; RAD
8-98324-268-0
01
1
1512-
●
56
01.270 STAY; RAD
4JB1-TC ENG(RDT)
8-97383-947-1
01
1
1512-
●
57
01.271 WASHER; PL,STAY
17.198 ID=10.5
0-91610-510-0
02
1
1512-
●
●
59
01.271 PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
1512-
●
●
65
01.271 INSULATOR; RAD
01.270 (A) IDN
8-94249-346-0
02
1
1512-
●
●
65
01.271 INSULATOR; RAD
01.270 (B) IDN
8-94249-347-0
02
1
1512-
●
●
74
01.270 WASHER; PL,CUSHION RUBBER
(A) ID=10.5
0-91610-710-0
01
1
1512-
●
●
74
01.270 WASHER; PL,CUSHION RUBBER
(B) ID=8.5 OD=36
8-97359-049-1
02
1
1512-
●
●
75
01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63
8-94249-446-0
01
1
1512-
●
●
514
01.276 NUT; RAD
01.062 M8 FLANGE IDN
0-91180-108-0
02
1
1512-
●
●
1
81
2
16
51
70
62
267
232
89
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
01.219 RADIATOR ASM
4HG1-T ENG(RDP) IDN
8-98236-886-0
01
1
1512-
●
1
01.219 RADIATOR ASM
IDN
8-98236-886-0
01
1
1512-
●
1
01.219 RADIATOR ASM
4JB1-TC ENG(RDT) IDN
8-98202-300-0
01
1
1512-
●
2
01.277 GUIDE; FAN
4HG1-T ENG(RDP) IDN
8-97202-552-0
01
1
1512-
●
2
01.277 GUIDE; FAN
IDN
8-97202-552-0
01
1
1512-
●
2
01.277 GUIDE; FAN
4JB1-TC ENG(RDT) IDN
8-97066-011-0
01
1
1512-
●
16
01.203 CAP; RAD
IDN
8-98096-226-0
01
1
1512-
●
●
21
01.276 SEAL; RAD
4HG1-T ENG(RDP) IDN
8-97221-419-1
01
1
1512-
●
21
01.276 SEAL; RAD
IDN
8-97221-419-1
01
1
1512-
●
21
01.276 SEAL; RAD
4JB1-TC ENG(RDT) IDN
8-97219-806-3
01
1
1512-
●
51
08.951 PLUG; DRAIN
W/GASKET IDN
8-97171-437-0
01
1
1512-
●
●
62
01.271 BOLT; STAY
4HG1-T ENG(RDP) 02.343 M8X12 FLANGE IMA
0-28050-812-0
02
1
1512-
●
62
01.271 BOLT; STAY
02.343 M8X12 FLANGE IMA
0-28050-812-0
02
1
1512-
●
62
01.271 BOLT; STAY
4JB1-TC ENG(RDT) 08.900 M8X12 FLANGE IDN
0-28080-812-0
02
1
1512-
●
70
01.271 STAY; RAD
4HG1-T ENG(RDP) IDN
8-97047-899-0
01
1
1512-
●
70
01.271 STAY; RAD
IDN
8-97047-899-0
01
1
1512-
●
70
01.271 STAY; RAD
4JB1-TC ENG(RDT) IDN
8-97061-314-0
01
1
1512-
●
81
01.277 SCREW; FAN GUIDE,RAD
IDN
8-97088-810-0
04
1
1512-
●
●
89
01.277 BOLT
4JB1-TC ENG(RDT) 01.271 M8X25 W/PL WASHER IDN
1-21469-153-0
02
1
1512-
●
232
01.540 COLLAR; DIST,CUSHION RUBBER
4JB1-TC ENG(RDT) IDN
8-98141-232-0
02
1
1512-
●
267
01.277 RUBBER; CUSHION
4JB1-TC ENG(RDT) IDN
1-21467-023-0
02
1
1512-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
