1-01 — ACCELERATOR PEDAL AND CONTROL (#171352) — 93 parça

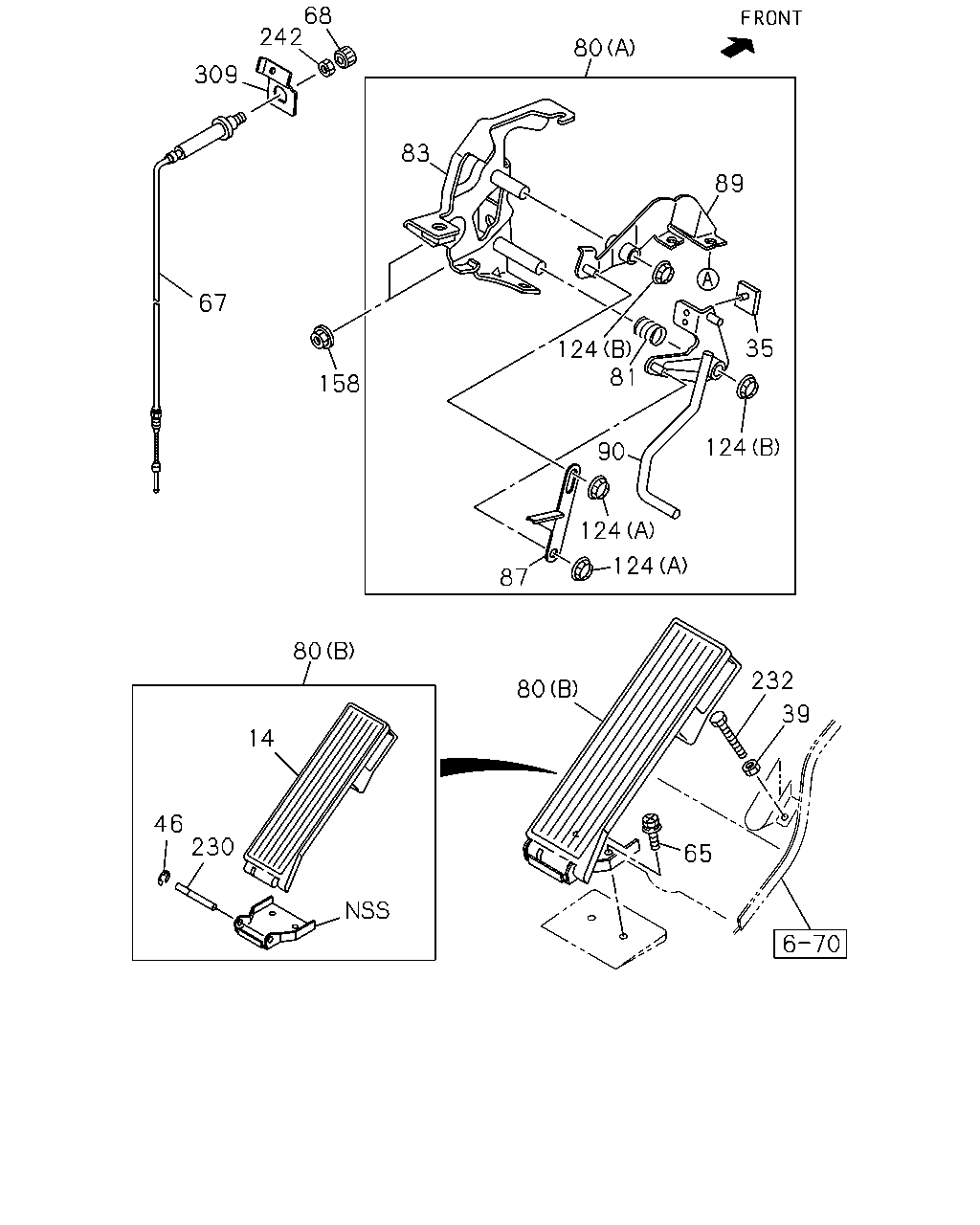

80 68 242 309 83 89 124 35 124 90 67 158 87 124 124 232 39 80 80 14 230 46 65 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	03.451 PAD; PEDAL,ACCEL IDN	8-97853-062-2	01	1	1512-	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97302-305-0	01	1	1512-	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8 IDN	0-91110-508-0	01	1	1512-	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4 IDN	0-91805-504-0	01	1	1512-	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	1512-	●	●
67	03.480 CABLE ASM; IDLE CONT IDN	8-98124-108-3	01	1	1512-	●	●
68	03.480 KNOB; IDLE CONT IDN	8-97853-765-1	01	1	1512-	●	●
80	03.452 LINK ASM; ENG CONT (B) IDN	8-97853-061-2	01	1	1512-	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-98038-416-1	01	1	1512-	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-98031-665-0	01	1	1512-	●	●
83	03.452 BRACKET; CONT LINK	8-98093-900-0	01	1	1512-	●	●
87	03.454 LINK; ENG CONT	8-97853-204-1	01	1	1512-	●	●
89	03.454 LEVER; RELAY	8-97868-042-0	01	1	1512-	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-98059-513-0	01	1	1512-	●	●
124	03.463 NUT; LEVER (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	1512-	●	●
124	03.463 NUT; LEVER 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	1512-	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	1512-	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT IDN	8-97853-064-0	01	1	1512-	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	1512-	●	●
242	03.483 NUT; ACCEL PEDAL M18 IDN	8-97853-233-0	01	1	1512-	●	●
309	03.483 BRACKET; IDLE CONT CABLE IDN	8-98124-981-1	01	1	1512-	●	●

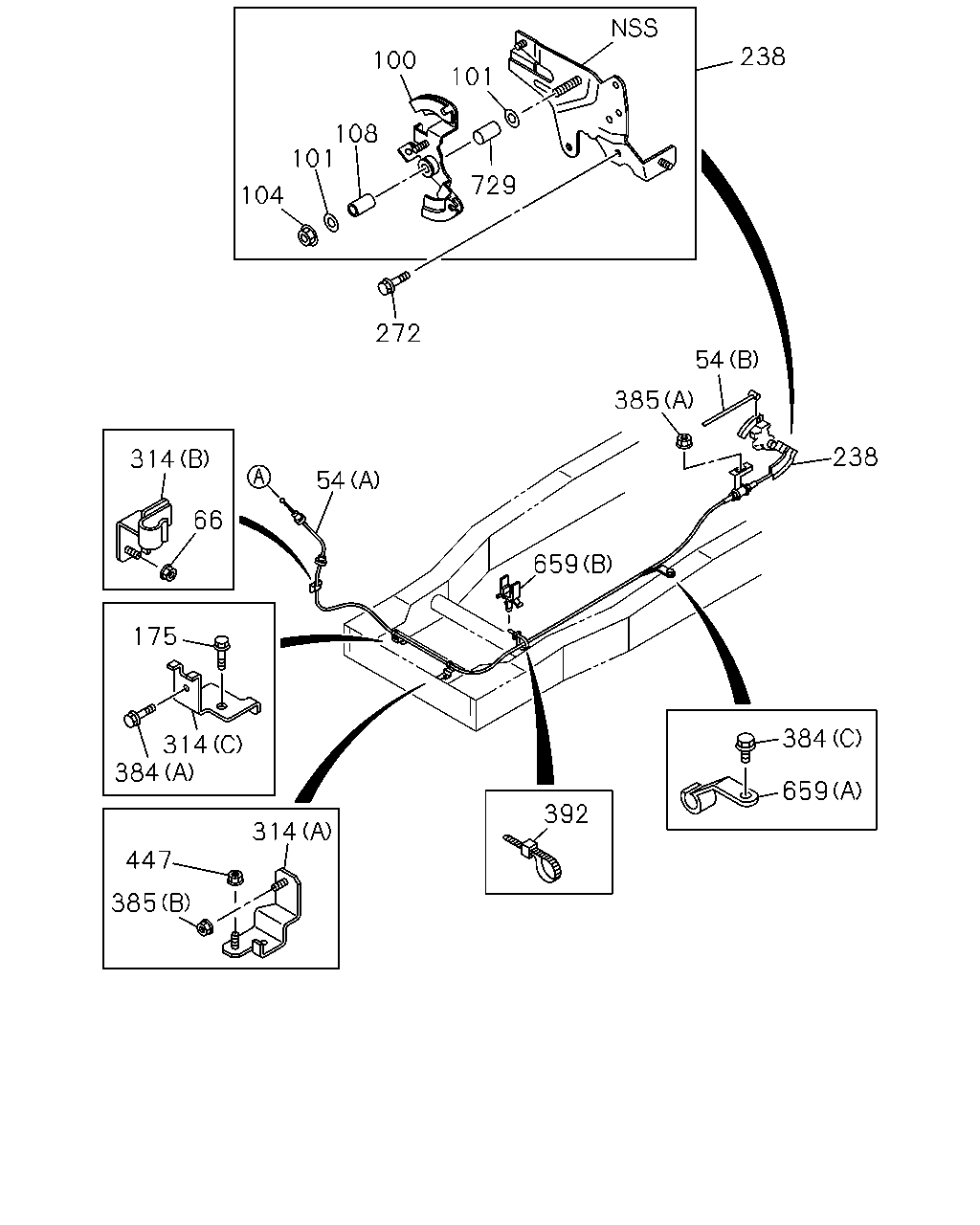

100 238 101 729 108 101 104 272 54 385 54 238 314 66 175 314 384 314 447 385 392 384 659 659

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP) (B) L=293 IDN	8-97115-730-0	01	1	1512-	●
54	03.430 CABLE; ENG CONT (B) L=293 IDN	8-97115-730-0	01	1	1512-		●
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP) (A) IDN	8-97695-479-0	01	1	1512-	●
54	03.430 CABLE; ENG CONT (A) IDN	8-97695-479-0	01	1	1512-		●
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT) (A) IDN	8-97695-478-0	01	1	1512-	●
66	03.452 NUT; BRKT 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-	●	●
100	03.463 SHAFT ASM; ENG CONT 4HG1-T ENG(RDP)	8-97118-737-0	01	1	1512-	●
100	03.463 SHAFT ASM; ENG CONT	8-97118-737-0	01	1	1512-		●
101	03.463 WASHER; ENG CONT 4HG1-T ENG(RDP) 01.276	8-94142-117-0	02	1	1512-	●
101	03.463 WASHER; ENG CONT 01.276	8-94142-117-0	02	1	1512-		●
104	03.463 NUT; ENG CONT 4HG1-T ENG(RDP) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-	●
104	03.463 NUT; ENG CONT 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-		●
108	03.463 BUSHING; ENG CONT 4HG1-T ENG(RDP)	8-97120-004-0	01	1	1512-	●
108	03.463 BUSHING; ENG CONT	8-97120-004-0	01	1	1512-		●
175	03.483 BOLT; BRKT,ACCEL CABLE 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●	●
238	03.463 LEVER; ACCEL CONT 4HG1-T ENG(RDP)	8-97118-729-0	01	1	1512-	●
238	03.463 LEVER; ACCEL CONT	8-97118-729-0	01	1	1512-		●
272	03.454 BOLT; LEVER 4HG1-T ENG(RDP) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1512-	●
272	03.454 BOLT; LEVER 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1512-		●
314	03.481 BRACKET; ACCEL CABLE 4HG1-T ENG(RDP) (A)	8-98124-144-0	01	1	1512-	●
314	03.481 BRACKET; ACCEL CABLE (A)	8-98124-144-0	01	1	1512-		●
314	03.481 BRACKET; ACCEL CABLE (B)	8-98094-801-1	01	1	1512-	●	●
314	03.481 BRACKET; ACCEL CABLE (C)	8-98131-406-0	01	1	1512-	●	●
314	03.481 BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT) (D)	8-98072-003-2	01	1	1512-	●
384	03.483 BOLT; CLIP,CONT CABLE 4HG1-T ENG(RDP) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1512-	●
384	03.483 BOLT; CLIP,CONT CABLE 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1512-		●
384	03.483 BOLT; CLIP,CONT CABLE 4HG1-T ENG(RDP) 06.216 (A) M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●
384	03.483 BOLT; CLIP,CONT CABLE 06.216 (A) M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-		●
384	03.483 BOLT; CLIP,CONT CABLE 4JB1-TC ENG(RDT) 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1512-	●
384	03.483 BOLT; CLIP,CONT CABLE 4JB1-TC ENG(RDT) 06.216 (A) M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●
385	03.481 NUT; CLIP 4HG1-T ENG(RDP) 01.062 (A) M6 FLANGE IDN	0-91180-106-0	01	1	1512-	●
385	03.481 NUT; CLIP 01.062 (A) M6 FLANGE IDN	0-91180-106-0	01	1	1512-		●
385	03.481 NUT; CLIP 4HG1-T ENG(RDP) 01.062 (B) M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
385	03.481 NUT; CLIP 01.062 (B) M8 FLANGE IDN	0-91180-108-0	02	1	1512-		●
392	03.483 CLIP; ACCEL CONT CABLE 02.559 L=250	5-09707-030-1	01	1	1512-	●	●
447	03.452 NUT; BRKT,CONT WIRE 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●	●
659	03.483 CLIP; ACCEL CONT CABLE 4HG1-T ENG(RDP) 06.672 (A)	8-94178-110-0	01	1	1512-	●
659	03.483 CLIP; ACCEL CONT CABLE 06.672 (A)	8-94178-110-0	01	1	1512-		●
659	03.483 CLIP; ACCEL CONT CABLE 4HG1-T ENG(RDP) 04.930 (B) ID=10 H=40	8-94462-219-0	01	1	1512-	●
659	03.483 CLIP; ACCEL CONT CABLE 04.930 (B) ID=10 H=40	8-94462-219-0	01	1	1512-		●
659	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 04.785 (C) ID=16 L=28	0-95235-552-0	01	1	1512-	●
729	03.451 COLLAR; JOINT 4HG1-T ENG(RDP)	8-97118-760-0	01	1	1512-	●
729	03.451 COLLAR; JOINT	8-97118-760-0	01	1	1512-		●

384 314 447 175 384 314 392 66 314 385 659 384 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP) (B) L=293 IDN	8-97115-730-0	01	1	1512-	●
54	03.430 CABLE; ENG CONT (B) L=293 IDN	8-97115-730-0	01	1	1512-		●
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP) (A) IDN	8-97695-479-0	01	1	1512-	●
54	03.430 CABLE; ENG CONT (A) IDN	8-97695-479-0	01	1	1512-		●
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT) (A) IDN	8-97695-478-0	01	1	1512-	●
66	03.452 NUT; BRKT 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-	●	●
175	03.483 BOLT; BRKT,ACCEL CABLE 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●	●
314	03.481 BRACKET; ACCEL CABLE 4HG1-T ENG(RDP) (A)	8-98124-144-0	01	1	1512-	●
314	03.481 BRACKET; ACCEL CABLE (A)	8-98124-144-0	01	1	1512-		●
314	03.481 BRACKET; ACCEL CABLE (B)	8-98094-801-1	01	1	1512-	●	●
314	03.481 BRACKET; ACCEL CABLE (C)	8-98131-406-0	01	1	1512-	●	●
314	03.481 BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT) (D)	8-98072-003-2	01	1	1512-	●
384	03.483 BOLT; CLIP,CONT CABLE 4HG1-T ENG(RDP) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1512-	●
384	03.483 BOLT; CLIP,CONT CABLE 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1512-		●
384	03.483 BOLT; CLIP,CONT CABLE 4HG1-T ENG(RDP) 06.216 (A) M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●
384	03.483 BOLT; CLIP,CONT CABLE 06.216 (A) M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-		●
384	03.483 BOLT; CLIP,CONT CABLE 4JB1-TC ENG(RDT) 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1512-	●
384	03.483 BOLT; CLIP,CONT CABLE 4JB1-TC ENG(RDT) 06.216 (A) M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●
385	03.481 NUT; CLIP 4HG1-T ENG(RDP) 01.062 (A) M6 FLANGE IDN	0-91180-106-0	01	1	1512-	●
385	03.481 NUT; CLIP 01.062 (A) M6 FLANGE IDN	0-91180-106-0	01	1	1512-		●
385	03.481 NUT; CLIP 4HG1-T ENG(RDP) 01.062 (B) M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
385	03.481 NUT; CLIP 01.062 (B) M8 FLANGE IDN	0-91180-108-0	02	1	1512-		●
392	03.483 CLIP; ACCEL CONT CABLE 02.559 L=250	5-09707-030-1	01	1	1512-	●	●
447	03.452 NUT; BRKT,CONT WIRE 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●	●
659	03.483 CLIP; ACCEL CONT CABLE 4HG1-T ENG(RDP) 06.672 (A)	8-94178-110-0	01	1	1512-	●
659	03.483 CLIP; ACCEL CONT CABLE 06.672 (A)	8-94178-110-0	01	1	1512-		●
659	03.483 CLIP; ACCEL CONT CABLE 4HG1-T ENG(RDP) 04.930 (B) ID=10 H=40	8-94462-219-0	01	1	1512-	●
659	03.483 CLIP; ACCEL CONT CABLE 04.930 (B) ID=10 H=40	8-94462-219-0	01	1	1512-		●
659	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT) 04.785 (C) ID=16 L=28	0-95235-552-0	01	1	1512-	●
