Sayfa 0-80 - Isuzu EPC

0-80 — INJECTION PUMP (#171346) — 259 parça

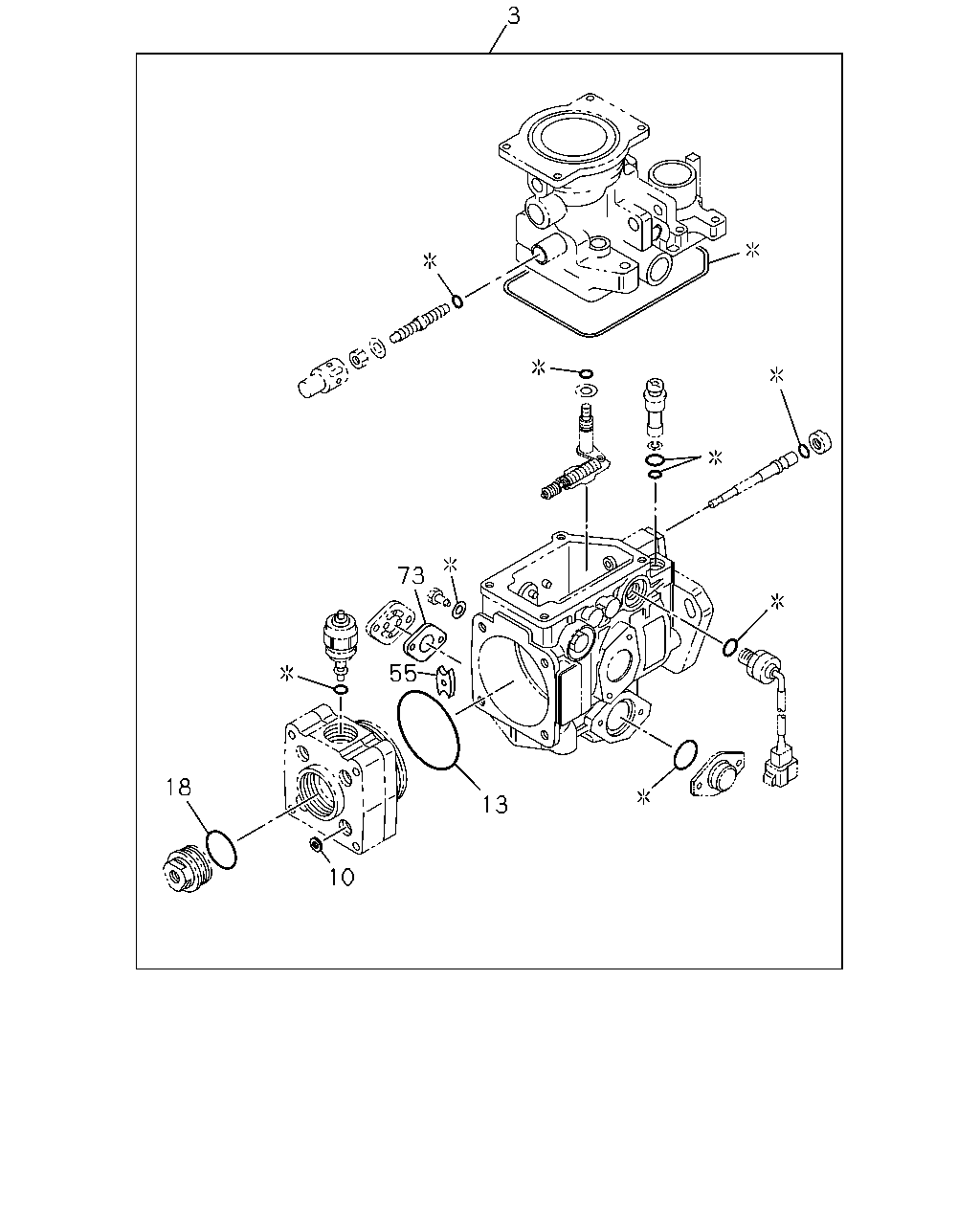

3 73 55 13 10 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.304 REPAIR KIT; FUEL INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-97383-766-0	01	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-94247-716-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	9-81245-018-0	04	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-94227-527-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-94227-637-0	01	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-94169-528-0	02	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: B = 8-98268-832-0, 98268832	8-94386-596-0	01	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: A = 8-98253-290-0, 98253290	8-97383-765-0	01	1	-

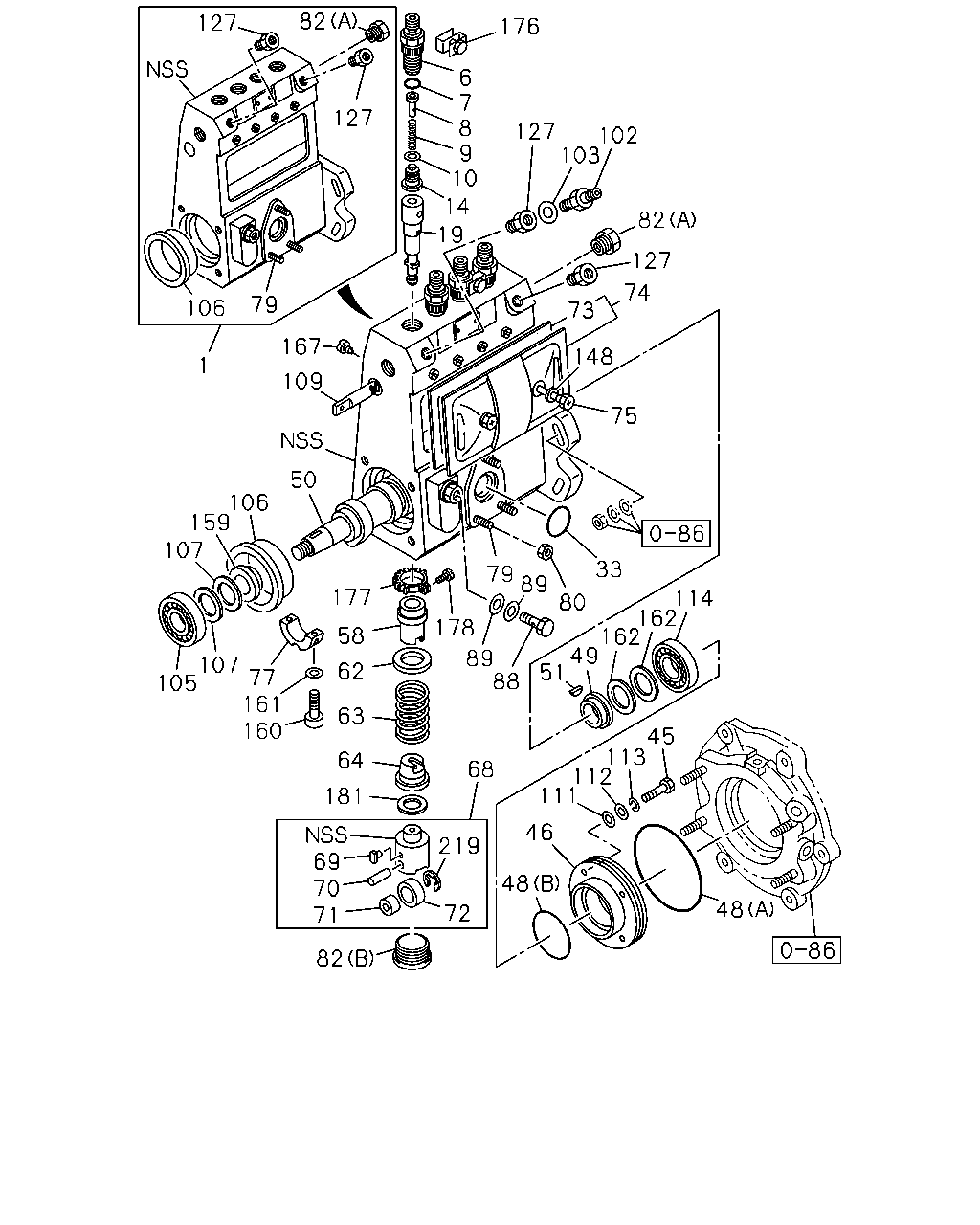

82 127 127 79 106 1 167 10 19 14 9 8 7 6 176 127 102 103 82 127 74 73 148 75 114 162 162 33 80 89 79 178 89 88 113 112 111 45 49 51 46 48 48 219 68 72 71 82 70 69 181 63 62 177 106 50 159 107 107 77 105 161 160 58 64 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.330 HOUSING; PUMP,FUEL INJ ASM PART: B = 8-98268-832-0, 98268832	8-98283-504-0	01	1	-
6	03.306 HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	8-97354-038-0	04	1	-
7	03.306 GASKET; HOLDER,DELIVERY VLV ASM PART: B = 8-98268-832-0, 98268832	8-97354-039-0	04	1	-
8	03.302 STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	8-97084-987-0	04	1	-
9	03.302 SPRING; DELIVERY VLV ASM PART: B = 8-98268-832-0, 98268832	1-15643-012-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-94247-716-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	9-81245-018-0	04	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	1-15619-406-0	04	1	-
19	03.330 PLUNGER ASM; INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	8-97214-453-0	04	1	-
33	03.904 GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	1-15629-058-0	01	1	-
45	03.302 BOLT; FRT COVER TO HSG ASM PART: B = 8-98268-832-0, 98268832	8-97085-000-0	04	1	-
46	03.300 COVER; FRT,PUMP HSG ASM PART: B = 8-98268-832-0, 98268832	8-97084-999-0	01	1	-
48	03.306 GASKET; FRT COVER TO HSG (B) ASM PART: B = 8-98268-832-0, 98268832	1-15629-076-0	01	1	-
48	03.306 GASKET; FRT COVER TO HSG (A) ASM PART: B = 8-98268-832-0, 98268832	8-97085-113-0	01	1	-
49	03.306 RING; FRT BRG,CM/SHF ASM PART: B = 8-98268-832-0, 98268832	8-97084-990-0	01	1	-
50	03.306 CAMSHAFT; INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	8-97214-454-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	1-15629-161-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-94239-370-0	01	1	-
58	03.330 SLEEVE; CONT,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	9-81231-523-0	04	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	1-15639-022-0	04	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-94227-516-1	01	1	-
63	03.302 SPRING; PLUNGER,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	1-15634-007-0	04	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: B = 8-98268-832-0, 98268832	1-15629-125-0	04	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: A = 8-98253-290-0, 98253290	8-94227-517-0	02	1	-
68	03.300 TAPPET; CM/SHF,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	1-15612-080-0	04	1	-
69	03.300 GUIDE; TAPPET,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	1-15629-018-0	04	1	-
70	03.300 PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	1-15629-123-0	04	1	-
71	03.300 BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	1-15629-122-0	04	1	-
72	03.300 ROLLER; TAPPET,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	1-15629-121-0	04	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: B = 8-98268-832-0, 98268832	8-94386-596-0	01	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: A = 8-98253-290-0, 98253290	8-97383-765-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	8-94171-109-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-97231-934-0	01	1	-
75	03.330 SCREW; COVER TO HSG 00.015 ASM PART: B = 8-98268-832-0, 98268832	1-15619-003-0	02	1	-
75	03.330 SCREW; COVER TO HSG ASM PART: A = 8-98253-290-0, 98253290	8-97231-933-0	02	1	-
77	03.306 BEARING; CM/SHF CENTER,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	1-15619-264-0	02	1	-
79	03.302 STUD; FUEL FEED PUMP TO HSG 03.901 ASM PART: B = 8-98268-832-0, 98268832	9-81215-115-0	03	1	-
80	03.901 NUT; FUEL FEED PUMP FIX ASM PART: B = 8-98268-832-0, 98268832	8-94171-110-0	03	1	-
82	03.306 PLUG; HSG,INJ PUMP 03.302, (A) ASM PART: B = 8-98268-832-0, 98268832	1-15619-073-0	01	1	-
82	03.306 PLUG; HSG,INJ PUMP 03.901, (B) ASM PART: B = 8-98268-832-0, 98268832	1-15619-160-0	04	1	-
88	01.531 BOLT; EYE,OIL FEED,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	1-15619-092-0	01	1	-
89	01.531 GASKET; OIL FEED BOLT,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	1-15719-093-0	02	1	-
102	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	1-15619-290-0	01	1	-
103	03.332 GASKET; OVERFLOW VLV,INJ PUMP 03.163, ID=14.2 OD=19.2 ASM PART: B = 8-98268-832-0, 98268832	1-09630-085-0	01	1	-
105	03.306 BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: B = 8-98268-832-0, 98268832	1-15629-002-0	01	1	-
105	03.306 BEARING; CM/SHF RR,INJ PUMP TOYO ASM PART: B = 8-98268-832-0, 98268832	1-15629-003-0	01	1	-
106	03.306 RING; HSG,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	1-15619-159-0	01	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: B = 8-98268-832-0, 98268832	5-15629-025-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: B = 8-98268-832-0, 98268832	5-15629-026-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: B = 8-98268-832-0, 98268832	5-15629-027-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: B = 8-98268-832-0, 98268832	5-15629-028-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: B = 8-98268-832-0, 98268832	5-15629-029-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: B = 8-98268-832-0, 98268832	5-15629-030-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: B = 8-98268-832-0, 98268832	5-15629-031-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: B = 8-98268-832-0, 98268832	5-15629-032-0	AR	1	-
109	03.300 RACK; CONT,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	8-97214-451-0	01	1	-
111	03.306 GASKET; FRT COVER FIX ASM PART: B = 8-98268-832-0, 98268832	1-15629-024-0	04	1	-
112	03.302 SHIM; FRT COVER FIX ASM PART: B = 8-98268-832-0, 98268832	9-81315-216-0	04	1	-
113	03.302 WASHER; LK,FRT COVER TO HSG ASM PART: B = 8-98268-832-0, 98268832	8-94128-928-0	04	1	-
114	03.306 BEARING; CM/SHF FRT,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	8-97084-989-0	01	1	-
127	03.330 ADAPTER; FUEL PIPE 03.302 ASM PART: B = 8-98268-832-0, 98268832	1-15619-190-0	02	1	-
148	03.306 GASKET; COVER FIX BOLT ASM PART: B = 8-98268-832-0, 98268832	9-81215-144-0	02	1	-
159	03.306 RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	5-15629-024-1	01	1	-
160	03.330 SCREW; CENTER BRG,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	1-15629-017-0	04	1	-
161	03.306 GASKET; SCREW,CENTER BRG ASM PART: B = 8-98268-832-0, 98268832	9-81225-043-0	04	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: B = 8-98268-832-0, 98268832	8-97084-991-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: B = 8-98268-832-0, 98268832	8-97084-992-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: B = 8-98268-832-0, 98268832	8-97084-993-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: B = 8-98268-832-0, 98268832	8-97084-994-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: B = 8-98268-832-0, 98268832	8-97084-995-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: B = 8-98268-832-0, 98268832	8-97084-996-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: B = 8-98268-832-0, 98268832	8-97084-997-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: B = 8-98268-832-0, 98268832	8-97084-998-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.70 ASM PART: B = 8-98268-832-0, 98268832	8-97121-620-0	AR	1	-
167	03.330 BOLT; CONT RACK,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	1-15639-003-0	01	1	-
176	03.302 PLATE; LK,DELIVERY VLV HOLDER ASM PART: B = 8-98268-832-0, 98268832	1-15649-034-0	02	1	-
177	03.330 PINION; CONT SLEEVE,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	9-81225-057-0	04	1	-
178	03.320 SCREW; PINION,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	9-81235-003-0	04	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.60 ASM PART: B = 8-98268-832-0, 98268832	5-15619-001-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.70 ASM PART: B = 8-98268-832-0, 98268832	5-15619-002-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.80 ASM PART: B = 8-98268-832-0, 98268832	5-15619-003-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.90 ASM PART: B = 8-98268-832-0, 98268832	5-15619-004-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.00 ASM PART: B = 8-98268-832-0, 98268832	5-15619-005-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.10 ASM PART: B = 8-98268-832-0, 98268832	5-15619-007-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.20 ASM PART: B = 8-98268-832-0, 98268832	5-15619-008-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.30 ASM PART: B = 8-98268-832-0, 98268832	5-15619-009-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.40 ASM PART: B = 8-98268-832-0, 98268832	5-15619-010-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.55 ASM PART: B = 8-98268-832-0, 98268832	5-15619-011-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.65 ASM PART: B = 8-98268-832-0, 98268832	5-15619-012-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.75 ASM PART: B = 8-98268-832-0, 98268832	5-15619-013-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.85 ASM PART: B = 8-98268-832-0, 98268832	5-15619-015-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.20 ASM PART: B = 8-98268-832-0, 98268832	5-15619-025-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.25 ASM PART: B = 8-98268-832-0, 98268832	5-15619-026-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.35 ASM PART: B = 8-98268-832-0, 98268832	5-15619-027-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.30 ASM PART: B = 8-98268-832-0, 98268832	5-15619-034-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.40 ASM PART: B = 8-98268-832-0, 98268832	5-15619-035-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.50 ASM PART: B = 8-98268-832-0, 98268832	5-15619-036-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.45 ASM PART: B = 8-98268-832-0, 98268832	5-15619-037-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.50 ASM PART: B = 8-98268-832-0, 98268832	5-15619-106-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.60 ASM PART: B = 8-98268-832-0, 98268832	5-15619-107-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.35 ASM PART: B = 8-98268-832-0, 98268832	5-15619-108-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.45 ASM PART: B = 8-98268-832-0, 98268832	5-15619-109-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.55 ASM PART: B = 8-98268-832-0, 98268832	5-15619-110-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.95 ASM PART: B = 8-98268-832-0, 98268832	9-81235-042-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.05 ASM PART: B = 8-98268-832-0, 98268832	9-81235-043-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.15 ASM PART: B = 8-98268-832-0, 98268832	9-81235-044-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.25 ASM PART: B = 8-98268-832-0, 98268832	9-81235-045-0	AR	1	-
219	03.320 RING; SNAP,ROLLER ASM PART: B = 8-98268-832-0, 98268832	1-15629-124-0	04	1	-

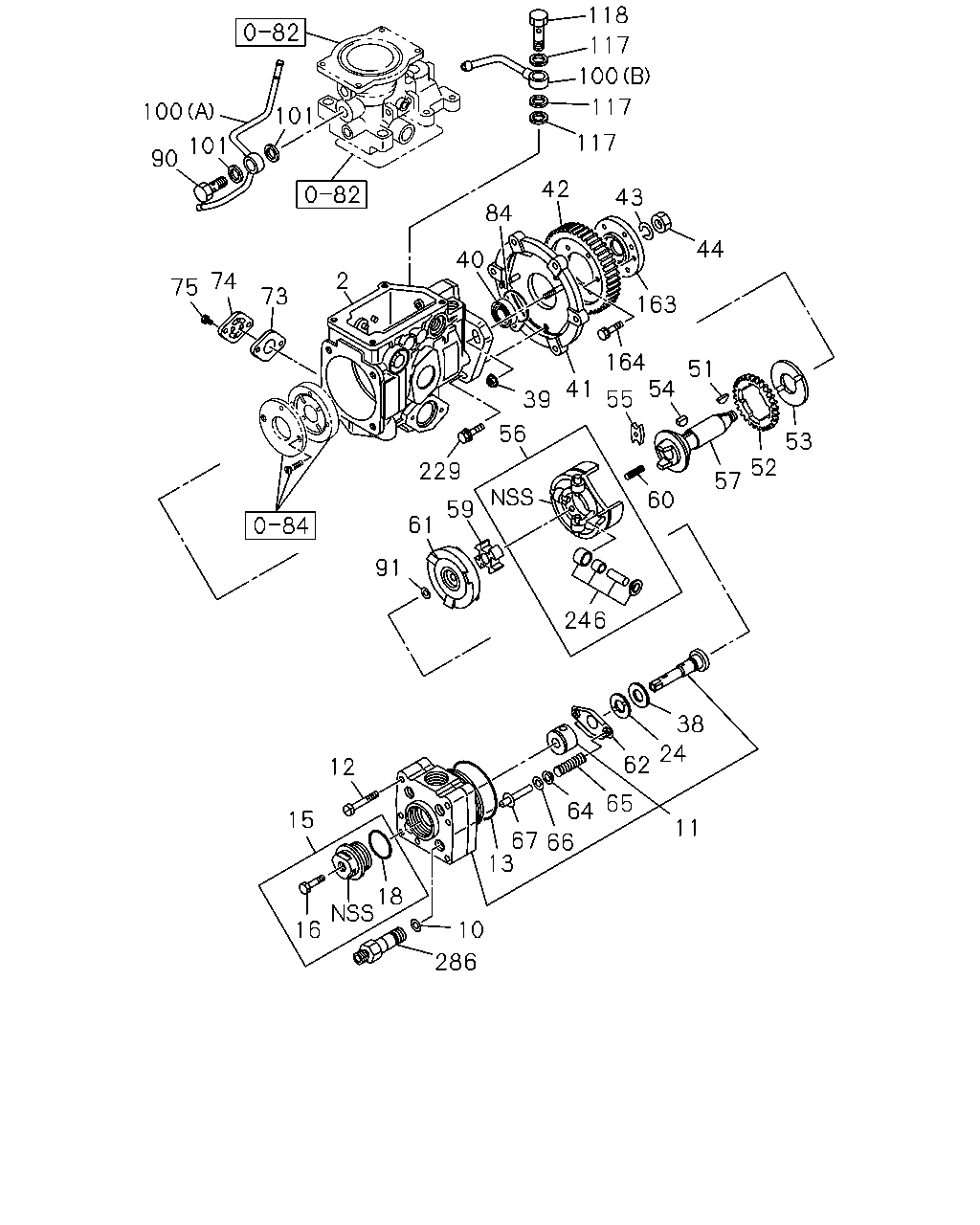

118 100 117 117 117 43 44 42 84 40 163 164 51 53 52 57 60 54 55 41 39 56 229 61 59 91 246 38 24 62 65 64 66 67 13 11 286 18 10 16 15 12 2 73 74 75 101 101 100 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: A = 8-98253-290-0, 98253290	8-98259-840-0	01	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-94247-716-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	9-81245-018-0	04	1	-
11	03.330 HEAD ASM; DISTR,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-97214-499-0	01	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-94257-670-0	03	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-94227-527-0	01	1	-
15	03.330 PLUG ASM; DISTR,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-97231-942-0	01	1	-
16	03.330 BOLT; DISTR PLUG,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-97224-536-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-94227-637-0	01	1	-
24	03.318 WASHER; PLUNGER,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-94227-515-0	01	1	-
38	03.318 SHIM; PLUNGER BARREL,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-94227-514-0	01	1	-
39	03.340 NUT; MTG BRKT FIX ASM PART: A = 8-98253-290-0, 98253290	8-97119-344-0	02	1	-
40	03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-97147-034-0	01	1	-
41	03.306 BRACKET; INJ PUMP HSG ASM PART: A = 8-98253-290-0, 98253290	8-97214-512-1	01	1	-
42	03.330 GEAR; DRIVE,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-97229-619-0	01	1	-
43	03.340 WASHER; LK,DRIVE GEAR,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-94226-554-0	01	1	-
44	03.330 NUT; DRIVE GEAR FIX,INJ PUMP 03.340, M14 ASM PART: A = 8-98253-290-0, 98253290	8-94226-565-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	1-15629-161-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-94239-370-0	01	1	-
52	03.340 GEAR; GOV DRIVE,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-94227-483-0	01	1	-
53	03.330 WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-94317-488-0	01	1	-
54	03.340 KEY; FEED PUMP,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-94227-481-0	01	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-94169-528-0	02	1	-
56	03.340 ROLLER ASM; TIMER,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-97218-960-0	01	1	-
57	03.340 SHAFT; DRIVE,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-97217-211-0	01	1	-
59	03.340 DISC; DRIVE,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-97144-349-1	01	1	-
60	03.320 SPRING; DRIVE DISC,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-97214-524-0	01	1	-
61	03.300 CAM; DISC,PLUNGER,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-97214-495-0	01	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	1-15639-022-0	04	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-94227-516-1	01	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: B = 8-98268-832-0, 98268832	1-15629-125-0	04	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: A = 8-98253-290-0, 98253290	8-94227-517-0	02	1	-
65	03.308 SPRING KIT; PLUNGER,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-97214-522-0	01	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.50 ASM PART: A = 8-98253-290-0, 98253290	8-94227-518-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.80 ASM PART: A = 8-98253-290-0, 98253290	8-94227-519-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.00 ASM PART: A = 8-98253-290-0, 98253290	8-94227-520-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.20 ASM PART: A = 8-98253-290-0, 98253290	8-94227-521-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.50 ASM PART: A = 8-98253-290-0, 98253290	8-94227-522-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.80 ASM PART: A = 8-98253-290-0, 98253290	8-94227-523-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=2.00 ASM PART: A = 8-98253-290-0, 98253290	8-94227-524-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.90 ASM PART: A = 8-98253-290-0, 98253290	8-94433-204-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.10 ASM PART: A = 8-98253-290-0, 98253290	8-94433-205-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.30 ASM PART: A = 8-98253-290-0, 98253290	8-94433-206-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.40 ASM PART: A = 8-98253-290-0, 98253290	8-94433-207-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.60 ASM PART: A = 8-98253-290-0, 98253290	8-94433-208-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.70 ASM PART: A = 8-98253-290-0, 98253290	8-94433-209-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: A = 8-98253-290-0, 98253290	8-97146-139-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: A = 8-98253-290-0, 98253290	8-97146-140-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: A = 8-98253-290-0, 98253290	8-97146-141-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.90 ASM PART: A = 8-98253-290-0, 98253290	8-97146-142-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.10 ASM PART: A = 8-98253-290-0, 98253290	8-97189-360-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.20 ASM PART: A = 8-98253-290-0, 98253290	8-97189-361-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.30 ASM PART: A = 8-98253-290-0, 98253290	8-97189-362-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.40 ASM PART: A = 8-98253-290-0, 98253290	8-97189-363-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.50 ASM PART: A = 8-98253-290-0, 98253290	8-97189-364-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.60 ASM PART: A = 8-98253-290-0, 98253290	8-97189-365-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.70 ASM PART: A = 8-98253-290-0, 98253290	8-97189-366-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.80 ASM PART: A = 8-98253-290-0, 98253290	8-97189-367-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.90 ASM PART: A = 8-98253-290-0, 98253290	8-97189-368-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.00 ASM PART: A = 8-98253-290-0, 98253290	8-97189-369-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.10 ASM PART: A = 8-98253-290-0, 98253290	8-97189-370-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.20 ASM PART: A = 8-98253-290-0, 98253290	8-97189-371-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.30 ASM PART: A = 8-98253-290-0, 98253290	8-97189-372-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.40 ASM PART: A = 8-98253-290-0, 98253290	8-97189-373-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: A = 8-98253-290-0, 98253290	8-97189-374-0	AR	1	-
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: A = 8-98253-290-0, 98253290	8-97328-703-0	02	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: B = 8-98268-832-0, 98268832	8-94386-596-0	01	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: A = 8-98253-290-0, 98253290	8-97383-765-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: B = 8-98268-832-0, 98268832	8-94171-109-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-97231-934-0	01	1	-
75	03.330 SCREW; COVER TO HSG 00.015 ASM PART: B = 8-98268-832-0, 98268832	1-15619-003-0	02	1	-
75	03.330 SCREW; COVER TO HSG ASM PART: A = 8-98253-290-0, 98253290	8-97231-933-0	02	1	-
84	03.306 GASKET; BRKT TO HSG 06.061, ID=52.6 ASM PART: A = 8-98253-290-0, 98253290	9-09561-353-0	01	1	-
90	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-97214-509-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.74 ASM PART: A = 8-98253-290-0, 98253290	8-94111-658-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.76 ASM PART: A = 8-98253-290-0, 98253290	8-94111-659-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.78 ASM PART: A = 8-98253-290-0, 98253290	8-94111-660-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.80 ASM PART: A = 8-98253-290-0, 98253290	8-94111-661-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.82 ASM PART: A = 8-98253-290-0, 98253290	8-94111-662-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.84 ASM PART: A = 8-98253-290-0, 98253290	8-94111-663-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.86 ASM PART: A = 8-98253-290-0, 98253290	8-94111-664-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.88 ASM PART: A = 8-98253-290-0, 98253290	8-94111-665-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.90 ASM PART: A = 8-98253-290-0, 98253290	8-94227-528-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.92 ASM PART: A = 8-98253-290-0, 98253290	8-94227-529-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.94 ASM PART: A = 8-98253-290-0, 98253290	8-94227-530-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.96 ASM PART: A = 8-98253-290-0, 98253290	8-94227-531-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.98 ASM PART: A = 8-98253-290-0, 98253290	8-94227-532-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.00 ASM PART: A = 8-98253-290-0, 98253290	8-94227-533-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.02 ASM PART: A = 8-98253-290-0, 98253290	8-94227-534-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.04 ASM PART: A = 8-98253-290-0, 98253290	8-94227-535-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.06 ASM PART: A = 8-98253-290-0, 98253290	8-94227-536-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.08 ASM PART: A = 8-98253-290-0, 98253290	8-94227-537-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.10 ASM PART: A = 8-98253-290-0, 98253290	8-94227-538-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.12 ASM PART: A = 8-98253-290-0, 98253290	8-94227-539-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.14 ASM PART: A = 8-98253-290-0, 98253290	8-94227-540-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.16 ASM PART: A = 8-98253-290-0, 98253290	8-94227-541-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.18 ASM PART: A = 8-98253-290-0, 98253290	8-94227-542-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.20 ASM PART: A = 8-98253-290-0, 98253290	8-94227-543-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.22 ASM PART: A = 8-98253-290-0, 98253290	8-94227-544-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.24 ASM PART: A = 8-98253-290-0, 98253290	8-94227-545-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.26 ASM PART: A = 8-98253-290-0, 98253290	8-94227-546-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.28 ASM PART: A = 8-98253-290-0, 98253290	8-94227-547-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.30 ASM PART: A = 8-98253-290-0, 98253290	8-94227-548-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.32 ASM PART: A = 8-98253-290-0, 98253290	8-94227-549-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.34 ASM PART: A = 8-98253-290-0, 98253290	8-94227-550-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.36 ASM PART: A = 8-98253-290-0, 98253290	8-94227-551-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.38 ASM PART: A = 8-98253-290-0, 98253290	8-94227-552-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.40 ASM PART: A = 8-98253-290-0, 98253290	8-94227-553-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.42 ASM PART: A = 8-98253-290-0, 98253290	8-94227-554-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.44 ASM PART: A = 8-98253-290-0, 98253290	8-94227-555-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.46 ASM PART: A = 8-98253-290-0, 98253290	8-94227-556-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.48 ASM PART: A = 8-98253-290-0, 98253290	8-94227-557-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.50 ASM PART: A = 8-98253-290-0, 98253290	8-94227-558-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.52 ASM PART: A = 8-98253-290-0, 98253290	8-94227-559-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.54 ASM PART: A = 8-98253-290-0, 98253290	8-94227-560-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.56 ASM PART: A = 8-98253-290-0, 98253290	8-94227-561-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.58 ASM PART: A = 8-98253-290-0, 98253290	8-94227-562-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.60 ASM PART: A = 8-98253-290-0, 98253290	8-94227-563-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.62 ASM PART: A = 8-98253-290-0, 98253290	8-94227-564-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.64 ASM PART: A = 8-98253-290-0, 98253290	8-94227-565-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.66 ASM PART: A = 8-98253-290-0, 98253290	8-94227-566-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.68 ASM PART: A = 8-98253-290-0, 98253290	8-94227-567-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.70 ASM PART: A = 8-98253-290-0, 98253290	8-94227-568-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.72 ASM PART: A = 8-98253-290-0, 98253290	8-94227-569-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.74 ASM PART: A = 8-98253-290-0, 98253290	8-94227-570-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.76 ASM PART: A = 8-98253-290-0, 98253290	8-94227-571-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.78 ASM PART: A = 8-98253-290-0, 98253290	8-94227-572-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.80 ASM PART: A = 8-98253-290-0, 98253290	8-94227-573-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.82 ASM PART: A = 8-98253-290-0, 98253290	8-94227-574-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.84 ASM PART: A = 8-98253-290-0, 98253290	8-94227-575-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.86 ASM PART: A = 8-98253-290-0, 98253290	8-94227-576-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.88 ASM PART: A = 8-98253-290-0, 98253290	8-94227-577-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.90 ASM PART: A = 8-98253-290-0, 98253290	8-94227-578-0	AR	1	-
100	03.330 PIPE; FUEL INJ PUMP (A) ASM PART: A = 8-98253-290-0, 98253290	8-97214-510-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (B) ASM PART: A = 8-98253-290-0, 98253290	8-97385-181-0	01	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-97249-545-0	02	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-97249-545-0	02	1	-
118	03.162 BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-94379-688-0	01	1	-
163	03.330 COUPLING; INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-94227-337-1	01	1	-
164	03.306 BOLT; GEAR TO COUPLING 01.531, M6X18 ASM PART: A = 8-98253-290-0, 98253290	9-01910-618-0	06	1	-
229	03.330 BOLT; BRKT ASM PART: A = 8-98253-290-0, 98253290	8-97049-904-0	01	1	-
246	03.300 ROLLER KIT; INJ PUMP ASM PART: A = 8-98253-290-0, 98253290	8-97218-980-0	01	1	-
286	03.306 VALVE; PRESSURE,CONT ASM PART: A = 8-98253-290-0, 98253290	8-97227-581-1	04	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
