Sayfa 0-66 - Isuzu EPC

0-66 — GENERATOR (#171345) — 197 parça

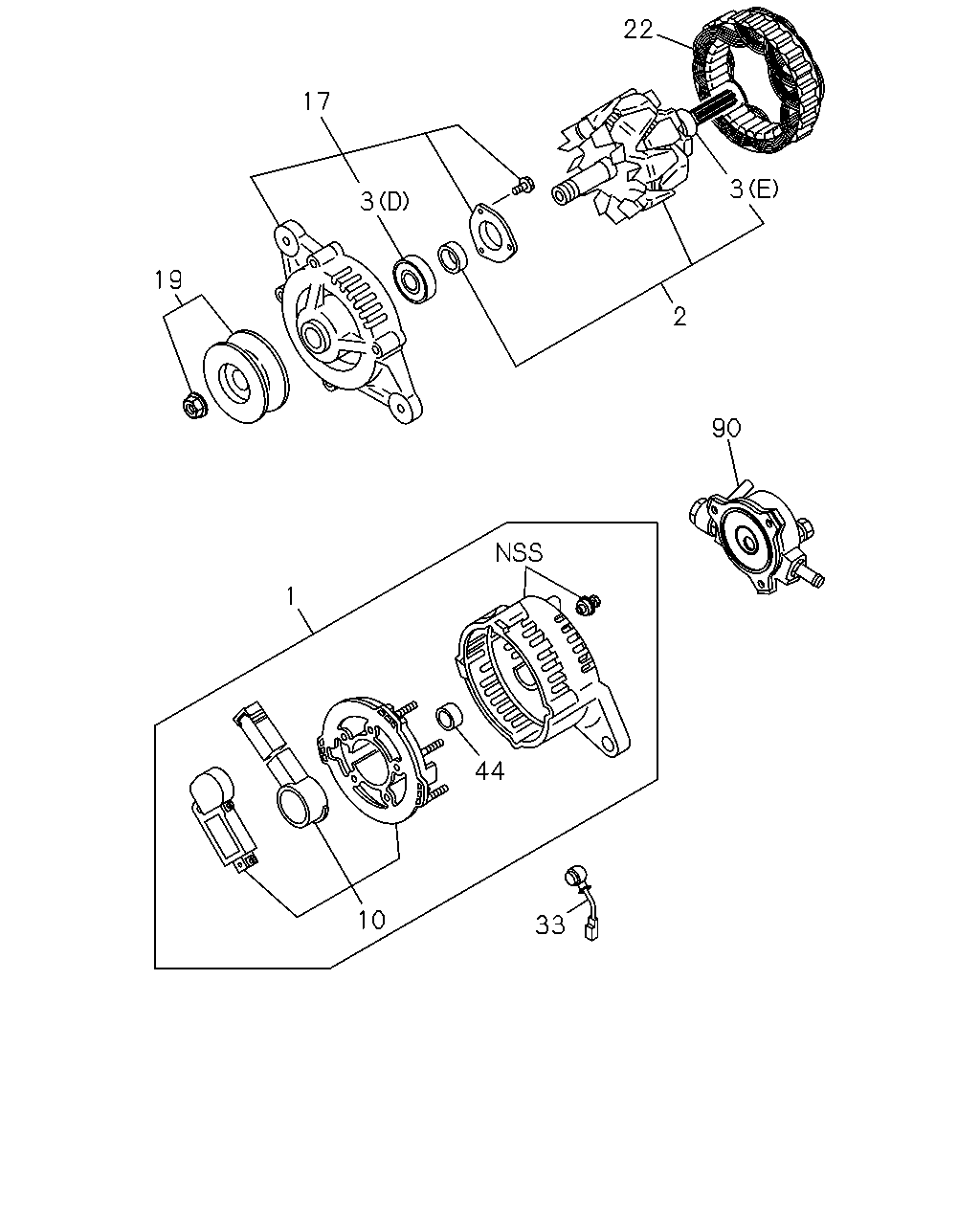

33 44 10 1 19 17 3 22 3 2 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97183-178-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97351-573-0, 97351573	8-98230-321-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97351-574-1, 97351574	8-98230-322-0	01	1	-
1	02.297 COVER ASM; RR,GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-98284-594-0	01	1	-
2	02.279 ROTOR; GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97161-470-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97351-574-1, 97351574	8-97249-330-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97351-573-0, 97351573	8-97302-700-0	01	1	-
2	02.279 ROTOR; GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-98284-593-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (E), IDN ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574, D = 8-97695-602-0, 97695602	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A), IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B), IDN ASM PART: A = 8-97075-882-3, 97075882	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-98146-442-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D), IDN ASM PART: D = 8-97695-602-0, 97695602	8-98159-457-0	01	1	-
10	02.319 RECTIFIER; GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-285-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-98230-331-0	01	1	-
10	02.319 RECTIFIER; GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-98284-596-0	01	1	-
17	02.305 COVER ASM; FRT,GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97351-574-1, 97351574	8-97249-334-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97351-573-0, 97351573	8-97302-703-0	01	1	-
17	02.305 COVER ASM; FRT,GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-97695-720-0	01	1	-
19	02.274 PULLEY; GEN IDN ASM PART: A = 8-97075-882-3, 97075882, B = 8-97351-573-0, 97351573	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97351-574-1, 97351574	8-97249-335-0	01	1	-
19	02.274 PULLEY; GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-98284-599-0	01	1	-
22	02.310 STATOR; GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-275-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97351-574-1, 97351574	8-97249-331-1	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97351-573-0, 97351573	8-97302-701-0	01	1	-
22	02.310 STATOR; GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-97313-437-0	01	1	-
33	02.500 WIRE; LEAD,GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-98284-597-0	01	1	-
44	02.298 SEAL; RR COVER,GEN IDN ASM PART: A = 8-97075-882-3, 97075882, B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574, D = 8-97695-602-0, 97695602	8-94156-589-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97183-173-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-97351-341-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97351-707-0	01	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-294-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97351-573-0, 97351573	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-97161-697-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: C = 8-97351-574-1, 97351574	8-97249-336-0	01	1	-

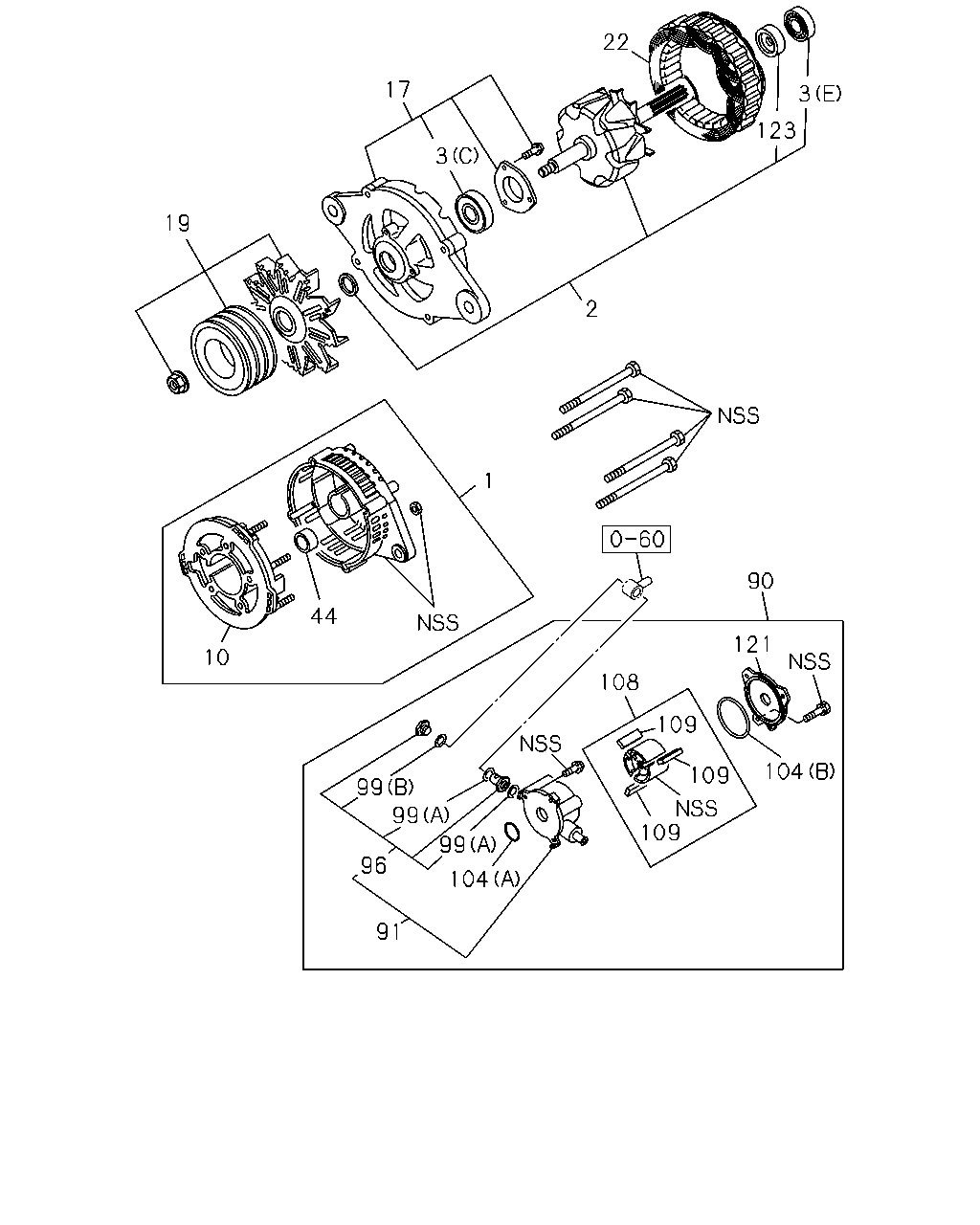

3 123 22 17 3 19 2 1 44 10 121 90 108 109 109 104 109 104 99 99 99 96 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97183-178-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97351-573-0, 97351573	8-98230-321-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97351-574-1, 97351574	8-98230-322-0	01	1	-
1	02.297 COVER ASM; RR,GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-98284-594-0	01	1	-
2	02.279 ROTOR; GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97161-470-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97351-574-1, 97351574	8-97249-330-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97351-573-0, 97351573	8-97302-700-0	01	1	-
2	02.279 ROTOR; GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-98284-593-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (E), IDN ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574, D = 8-97695-602-0, 97695602	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A), IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B), IDN ASM PART: A = 8-97075-882-3, 97075882	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-98146-442-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D), IDN ASM PART: D = 8-97695-602-0, 97695602	8-98159-457-0	01	1	-
10	02.319 RECTIFIER; GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-285-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-98230-331-0	01	1	-
10	02.319 RECTIFIER; GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-98284-596-0	01	1	-
17	02.305 COVER ASM; FRT,GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97351-574-1, 97351574	8-97249-334-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97351-573-0, 97351573	8-97302-703-0	01	1	-
17	02.305 COVER ASM; FRT,GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-97695-720-0	01	1	-
19	02.274 PULLEY; GEN IDN ASM PART: A = 8-97075-882-3, 97075882, B = 8-97351-573-0, 97351573	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97351-574-1, 97351574	8-97249-335-0	01	1	-
19	02.274 PULLEY; GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-98284-599-0	01	1	-
22	02.310 STATOR; GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-275-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97351-574-1, 97351574	8-97249-331-1	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97351-573-0, 97351573	8-97302-701-0	01	1	-
22	02.310 STATOR; GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-97313-437-0	01	1	-
44	02.298 SEAL; RR COVER,GEN IDN ASM PART: A = 8-97075-882-3, 97075882, B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574, D = 8-97695-602-0, 97695602	8-94156-589-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97183-173-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-97351-341-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97351-707-0	01	1	-
91	03.280 BODY; VAC PUMP IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-300-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97148-117-0	01	1	-
91	03.280 BODY; VAC PUMP IDN ASM PART: D = 8-97695-602-0, 97695602	8-97236-694-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP IDN ASM PART: D = 8-97695-602-0, 97695602	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-301-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97075-882-3, 97075882	5-19679-002-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97075-882-3, 97075882, B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (D), ID=18 OD=24 ASM PART: D = 8-97695-602-0, 97695602	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (E), ID=12 OD=24 ASM PART: D = 8-97695-602-0, 97695602	8-94223-993-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=22 OD=27 ASM PART: A = 8-97075-882-3, 97075882	8-97083-302-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97075-882-3, 97075882, B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574, D = 8-97695-602-0, 97695602	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (C), IDN ASM PART: D = 8-97695-602-0, 97695602	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B), IDN ASM PART: A = 8-97075-882-3, 97075882, B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97083-304-0	01	1	-
108	03.280 ROTOR; VAC PUMP IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-297-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP IDN ASM PART: D = 8-97695-602-0, 97695602	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP IDN ASM PART: D = 8-97695-602-0, 97695602	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-298-0	04	1	-
109	03.280 VANE; VAC PUMP IDN ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97083-298-0	03	1	-
121	02.297 COVER; RR,VAC PUMP ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97148-116-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97062-644-0	01	1	-
123	02.291 GUIDE; BRUSH IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-274-0	01	1	-

91 106 99 99 99 96 90 100 109 109 109 108 104 102 104 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-294-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97351-573-0, 97351573	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-97161-697-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: C = 8-97351-574-1, 97351574	8-97249-336-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97183-173-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-97351-341-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97351-707-0	01	1	-
91	03.280 BODY; VAC PUMP IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-300-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97148-117-0	01	1	-
91	03.280 BODY; VAC PUMP IDN ASM PART: D = 8-97695-602-0, 97695602	8-97236-694-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP IDN ASM PART: D = 8-97695-602-0, 97695602	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-301-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97075-882-3, 97075882	5-19679-002-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97075-882-3, 97075882, B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (D), ID=18 OD=24 ASM PART: D = 8-97695-602-0, 97695602	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (E), ID=12 OD=24 ASM PART: D = 8-97695-602-0, 97695602	8-94223-993-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=22 OD=27 ASM PART: A = 8-97075-882-3, 97075882	8-97083-302-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP IDN ASM PART: A = 8-97075-882-3, 97075882	8-94407-283-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP IDN ASM PART: D = 8-97695-602-0, 97695602	8-97209-180-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP IDN ASM PART: D = 8-97695-602-0, 97695602	8-97137-334-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP IDN ASM PART: A = 8-97075-882-3, 97075882	8-97183-175-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97075-882-3, 97075882, B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574, D = 8-97695-602-0, 97695602	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (C), IDN ASM PART: D = 8-97695-602-0, 97695602	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B), IDN ASM PART: A = 8-97075-882-3, 97075882, B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97083-304-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP IDN ASM PART: D = 8-97695-602-0, 97695602	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-297-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP IDN ASM PART: D = 8-97695-602-0, 97695602	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP IDN ASM PART: D = 8-97695-602-0, 97695602	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-298-0	04	1	-
109	03.280 VANE; VAC PUMP IDN ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97083-298-0	03	1	-

24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-294-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97351-573-0, 97351573	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-97161-697-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: C = 8-97351-574-1, 97351574	8-97249-336-0	01	1	-

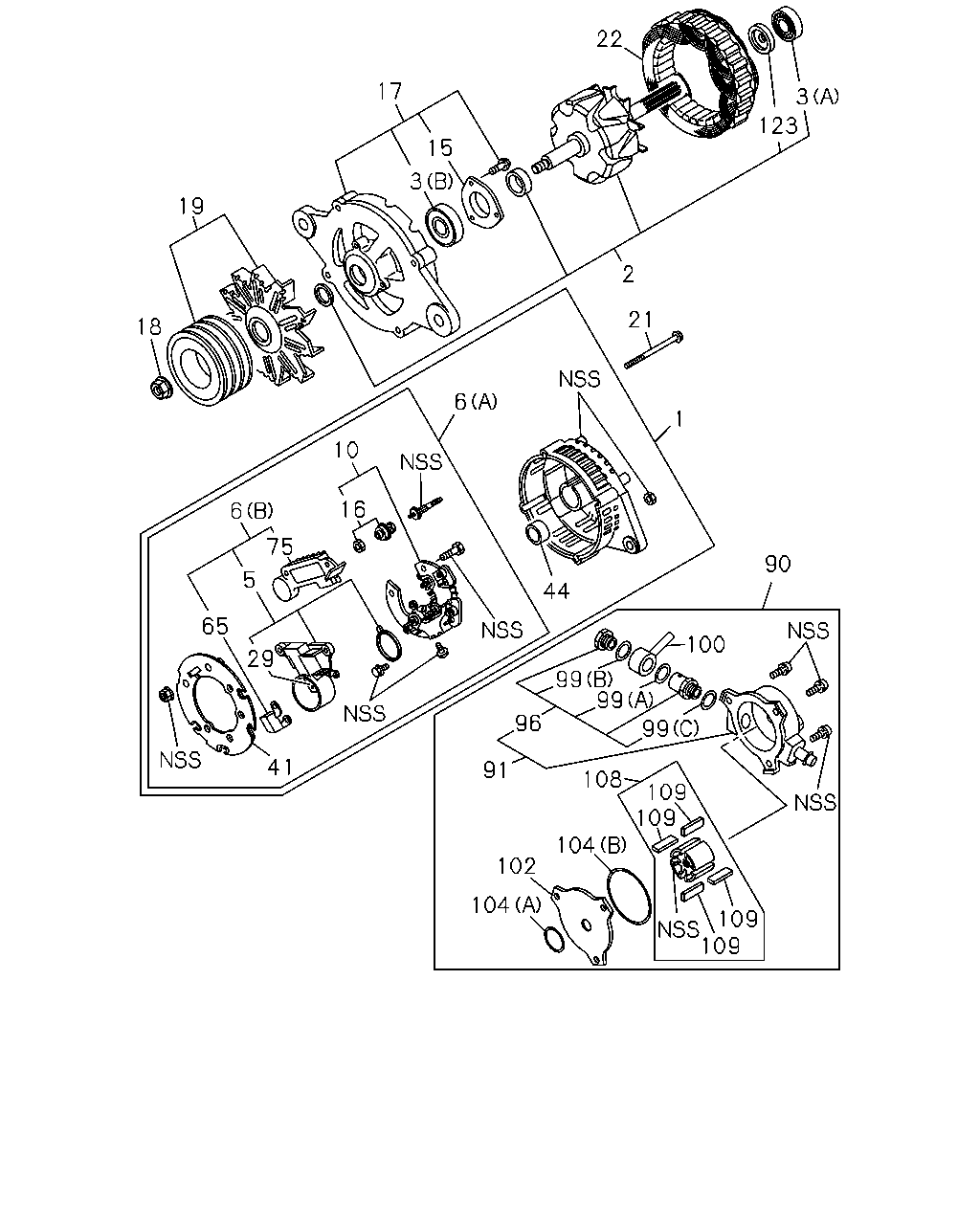

17 15 22 123 3 3 19 18 10 16 6 6 5 65 75 29 41 91 96 99 99 99 100 90 1 44 104 108 109 109 109 109 102 104 21 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97183-178-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97351-573-0, 97351573	8-98230-321-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97351-574-1, 97351574	8-98230-322-0	01	1	-
1	02.297 COVER ASM; RR,GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-98284-594-0	01	1	-
2	02.279 ROTOR; GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97161-470-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97351-574-1, 97351574	8-97249-330-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97351-573-0, 97351573	8-97302-700-0	01	1	-
2	02.279 ROTOR; GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-98284-593-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (E), IDN ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574, D = 8-97695-602-0, 97695602	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A), IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B), IDN ASM PART: A = 8-97075-882-3, 97075882	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-98146-442-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D), IDN ASM PART: D = 8-97695-602-0, 97695602	8-98159-457-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-283-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A), IDN ASM PART: A = 8-97075-882-3, 97075882	8-97111-262-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (B), IDN ASM PART: A = 8-97075-882-3, 97075882	8-97111-264-0	01	1	-
10	02.319 RECTIFIER; GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-285-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-98230-331-0	01	1	-
10	02.319 RECTIFIER; GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-98284-596-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-291-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-287-0	01	1	-
17	02.305 COVER ASM; FRT,GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97351-574-1, 97351574	8-97249-334-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97351-573-0, 97351573	8-97302-703-0	01	1	-
17	02.305 COVER ASM; FRT,GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-97695-720-0	01	1	-
18	02.274 NUT; PULLEY,GEN IDN ASM PART: A = 8-97075-882-3, 97075882, B = 8-97351-573-0, 97351573	8-97083-293-0	01	1	-
19	02.274 PULLEY; GEN IDN ASM PART: A = 8-97075-882-3, 97075882, B = 8-97351-573-0, 97351573	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97351-574-1, 97351574	8-97249-335-0	01	1	-
19	02.274 PULLEY; GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-98284-599-0	01	1	-
21	02.316 BOLT; THROUGH,GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-94116-435-0	04	1	-
22	02.310 STATOR; GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-275-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97351-574-1, 97351574	8-97249-331-1	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97351-573-0, 97351573	8-97302-701-0	01	1	-
22	02.310 STATOR; GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-97313-437-0	01	1	-
29	02.285 BRUSH; GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97084-356-0	02	1	-
41	02.274 GUIDE; FAN,GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-288-0	01	1	-
44	02.298 SEAL; RR COVER,GEN IDN ASM PART: A = 8-97075-882-3, 97075882, B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574, D = 8-97695-602-0, 97695602	8-94156-589-0	01	1	-
65	02.319 CONDENSER; GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97084-357-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97111-267-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN IDN ASM PART: A = 8-97075-882-3, 97075882	8-97183-173-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN IDN ASM PART: D = 8-97695-602-0, 97695602	8-97351-341-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97351-707-0	01	1	-
91	03.280 BODY; VAC PUMP IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-300-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97148-117-0	01	1	-
91	03.280 BODY; VAC PUMP IDN ASM PART: D = 8-97695-602-0, 97695602	8-97236-694-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP IDN ASM PART: D = 8-97695-602-0, 97695602	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-301-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97075-882-3, 97075882	5-19679-002-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97075-882-3, 97075882, B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (D), ID=18 OD=24 ASM PART: D = 8-97695-602-0, 97695602	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (E), ID=12 OD=24 ASM PART: D = 8-97695-602-0, 97695602	8-94223-993-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=22 OD=27 ASM PART: A = 8-97075-882-3, 97075882	8-97083-302-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP IDN ASM PART: A = 8-97075-882-3, 97075882	8-94407-283-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP IDN ASM PART: D = 8-97695-602-0, 97695602	8-97209-180-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP IDN ASM PART: D = 8-97695-602-0, 97695602	8-97137-334-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP IDN ASM PART: A = 8-97075-882-3, 97075882	8-97183-175-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97075-882-3, 97075882, B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574, D = 8-97695-602-0, 97695602	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (C), IDN ASM PART: D = 8-97695-602-0, 97695602	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B), IDN ASM PART: A = 8-97075-882-3, 97075882, B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97083-304-0	01	1	-
108	03.280 ROTOR; VAC PUMP IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-297-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP IDN ASM PART: D = 8-97695-602-0, 97695602	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP IDN ASM PART: D = 8-97695-602-0, 97695602	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-298-0	04	1	-
109	03.280 VANE; VAC PUMP IDN ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97083-298-0	03	1	-
123	02.291 GUIDE; BRUSH ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97062-644-0	01	1	-
123	02.291 GUIDE; BRUSH IDN ASM PART: A = 8-97075-882-3, 97075882	8-97083-274-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
