0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#171343) — 36 parça

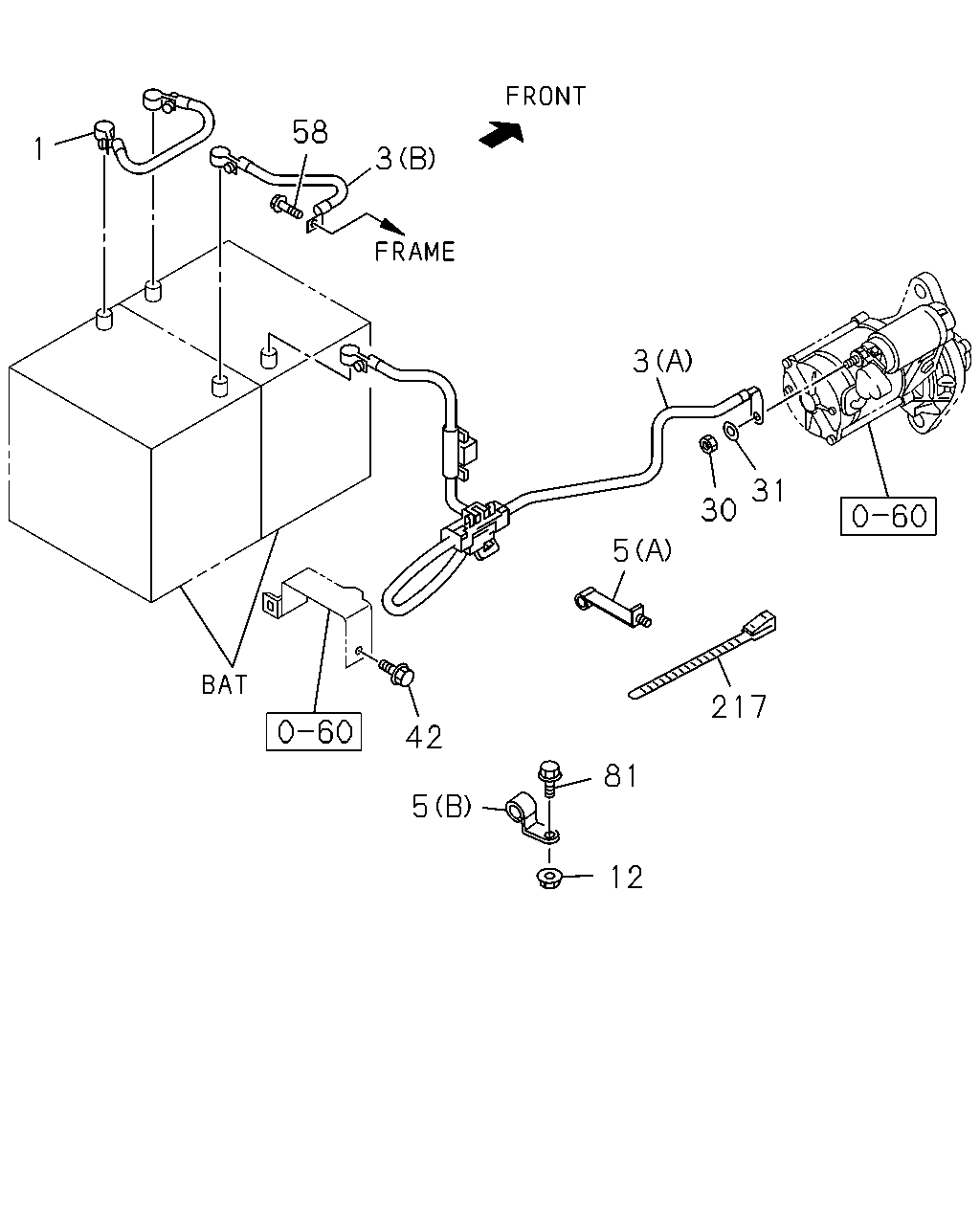

3 58 1 42 12 81 217 30 31 5 3 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.341 CABLE; BATTERY L=280 IDN	8-97230-719-2	01	1	1512-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 2400MM(24W) 02.342 (B) L=300 IDN	8-97230-536-1	01	1	1512-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 2400MM(24W) (A) IDN	8-97377-774-0	01	1	1512-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 3300MM(33W) 02.342 (B) L=200 IDN	8-97231-243-1	01	1	1512-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 3300MM(33W) (A) IDN	8-97695-750-0	01	1	1512-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 2400MM(24W) 02.342 (C) L=300 IDN	8-97231-242-1	01	1	1512-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 2400MM(24W) (D) L=900 IDN	8-97351-862-0	01	1	1512-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 3300MM(33W) 02.342 (C) L=400	8-97230-533-1	01	1	1512-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 3300MM(33W) (D) L=800	8-98003-122-0	01	1	1512-		●
5	02.559 CLIP; BATTERY CABLE TO BODY WHEEL BASE 2400MM(24W) (A) ID=13 L=90	8-97015-782-1	01	1	1512-	●	●
5	02.559 CLIP; BATTERY CABLE TO BODY WHEEL BASE 3300MM(33W) 03.483 (B) ID=13 H=18 L=20	1-09700-813-0	01	1	1512-	●
12	02.343 NUT; BATTERY CABLE CLIP 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-	●	●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8 IDN	0-91110-508-0	01	1	1512-	●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 02.559 ID=8.2	0-91510-808-0	01	1	1601-	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 04.439 ID=8.2	0-91510-508-0	01	1	1512-	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE WHEEL BASE 2400MM(24W) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	1512-	●
58	02.343 BOLT; CABLE,BATTERY M8X24 W/PL WASHER	8-98141-256-1	01	1	1512-	●	●
81	02.559 BOLT; BATTERY CABLE WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●
217	02.343 CLIP; BAND,CABLE 03.162 L=140	5-09707-031-1	02	1	1512-	●

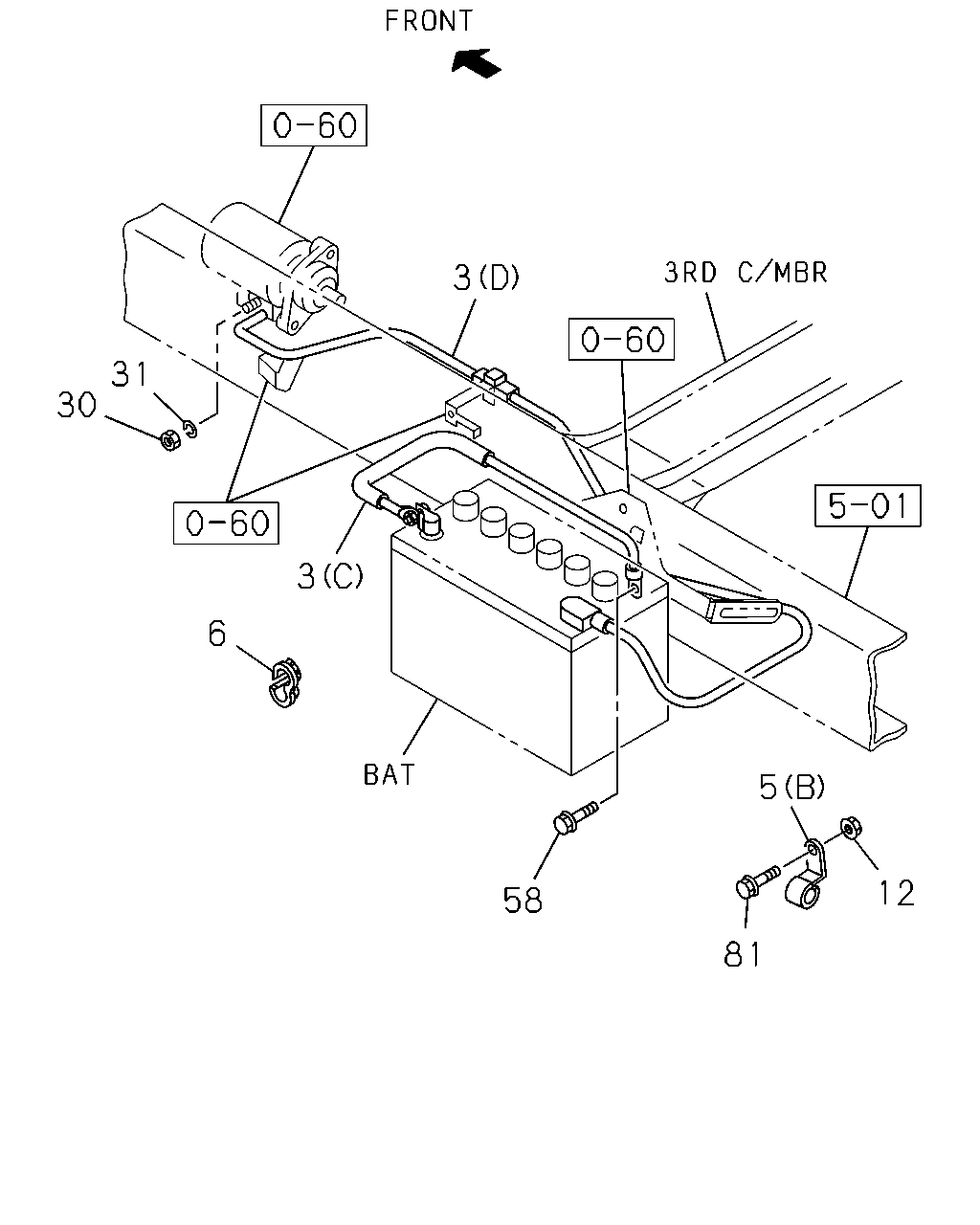

3 12 5 81 58 3 6 30 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 2400MM(24W) 02.342 (B) L=300 IDN	8-97230-536-1	01	1	1512-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 2400MM(24W) (A) IDN	8-97377-774-0	01	1	1512-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 3300MM(33W) 02.342 (B) L=200 IDN	8-97231-243-1	01	1	1512-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 3300MM(33W) (A) IDN	8-97695-750-0	01	1	1512-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 2400MM(24W) 02.342 (C) L=300 IDN	8-97231-242-1	01	1	1512-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 2400MM(24W) (D) L=900 IDN	8-97351-862-0	01	1	1512-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 3300MM(33W) 02.342 (C) L=400	8-97230-533-1	01	1	1512-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE WHEEL BASE 3300MM(33W) (D) L=800	8-98003-122-0	01	1	1512-		●
5	02.559 CLIP; BATTERY CABLE TO BODY WHEEL BASE 2400MM(24W) (A) ID=13 L=90	8-97015-782-1	01	1	1512-	●	●
5	02.559 CLIP; BATTERY CABLE TO BODY WHEEL BASE 3300MM(33W) 03.483 (B) ID=13 H=18 L=20	1-09700-813-0	01	1	1512-	●
6	02.343 GROMMET; BATTERY CABLE ID=17 IDN	8-94128-319-2	01	1	1512-		●
12	02.343 NUT; BATTERY CABLE CLIP 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-	●	●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8 IDN	0-91110-508-0	01	1	1512-	●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 02.559 ID=8.2	0-91510-808-0	01	1	1601-	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 04.439 ID=8.2	0-91510-508-0	01	1	1512-	●	●
58	02.343 BOLT; CABLE,BATTERY M8X24 W/PL WASHER	8-98141-256-1	01	1	1512-	●	●
81	02.559 BOLT; BATTERY CABLE WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
