Sayfa 0-52 - Isuzu EPC

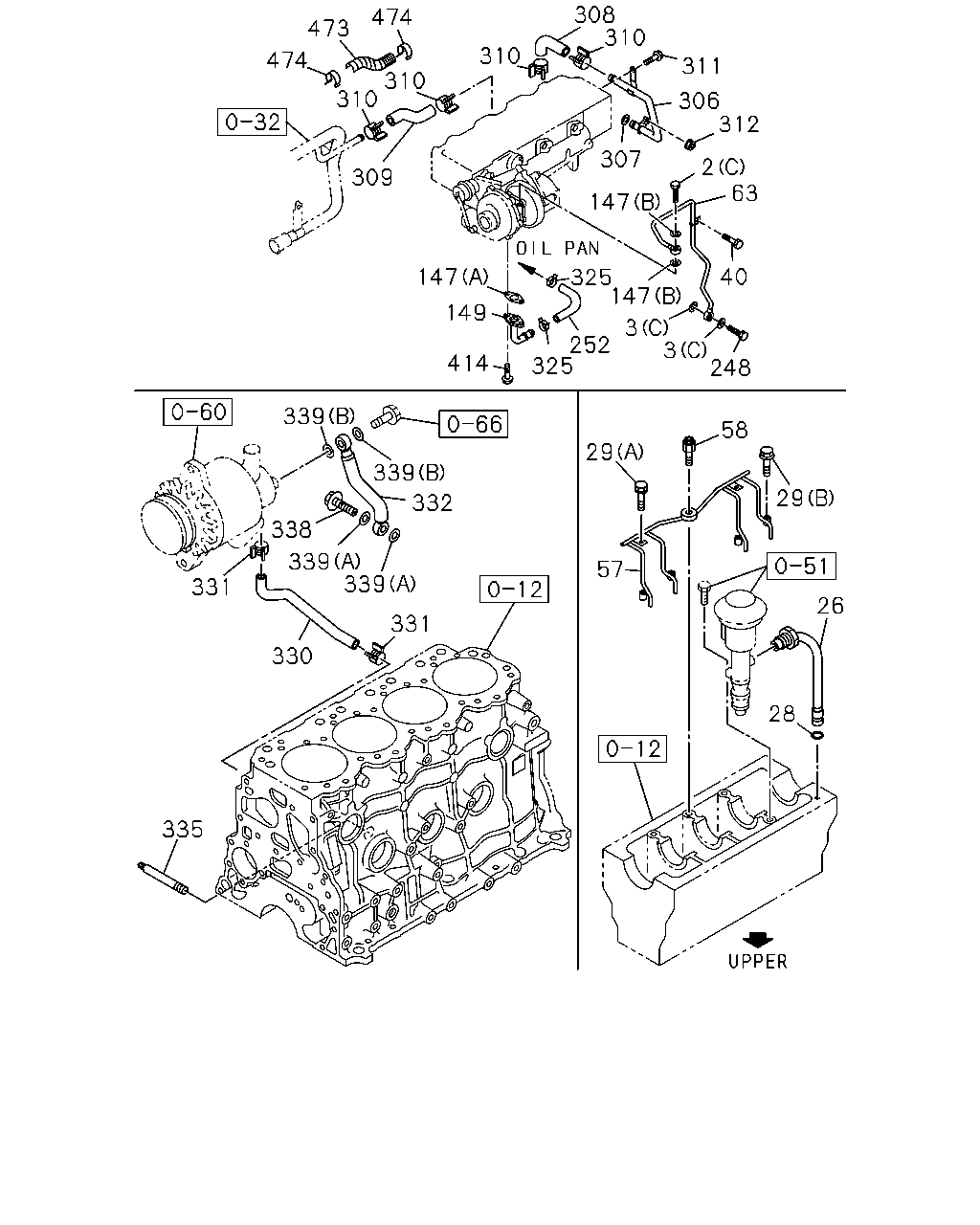

0-52 — OIL AND VACUUM PIPING; ENGINE (#171339) — 78 parça

2 3 312 120 157 63 146 40 68 3 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	01.531 BOLT; EYE,OIL PIPE (A) M10X40 FLANGE	8-97182-847-0	01	1	1512-	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (B) M10X24	9-09906-205-1	01	1	1512-	●
2	01.531 BOLT; EYE,OIL PIPE 03.358 (C) M10X23 FLANGE	8-94332-831-1	01	1	1512-		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	03	1	1512-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2	8-98158-135-0	02	1	1512-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	02	1	1512-		●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE IMA	0-28050-812-0	01	1	1512-	●
40	01.531 BOLT; OIL PIPE 03.671 M6X10 FLANGE	0-28050-610-0	01	1	1512-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98261-644-0	01	1	1512-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97224-297-0	01	1	1512-		●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M10X26	8-98037-825-0	01	1	1512-	●
120	01.531 WASHER; PL,PIPE FIX 03.706 ID=8.4 OD=26 IDN	0-91614-808-0	02	1	1601-	●
146	01.531 BOLT; BRKT 02.343 M8X12 FLANGE IMA	0-28050-812-0	01	1	1512-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=16	8-98029-475-0	01	1	1512-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (A)	8-94362-672-1	01	1	1512-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1512-		●
157	01.519 BRACKET; OIL PIPE	8-98209-676-0	01	1	1512-	●
312	01.531 NUT; PIPE FIX 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1601-	●
312	01.531 NUT; PIPE FIX 04.634 M8 FLANGE	8-97581-233-0	01	1	1512-		●

3 3 3 1 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97200-615-4	01	1	1512-	●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X40 FLANGE	8-97182-847-0	01	1	1512-	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (B) M10X24	9-09906-205-1	01	1	1512-	●
2	01.531 BOLT; EYE,OIL PIPE 03.358 (C) M10X23 FLANGE	8-94332-831-1	01	1	1512-		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	03	1	1512-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2	8-98158-135-0	02	1	1512-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	02	1	1512-		●

86 89 89 340 202 202 46 27 83 202 202 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
27	01.531 BOLT; OIL PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1512-	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	1512-	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU (A) M10X21 FLANGE	8-97372-239-0	01	1	1512-	●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	1512-	●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	1512-	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	1512-1512	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	1601-	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	1601-	●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1512-	●
202	01.531 GASKET; OIL PIPE (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1512-	●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	1512-	●

474 473 474 310 310 310 308 310 311 306 312 2 307 147 63 40 248 3 3 147 325 252 325 414 149 147 309 339 339 332 338 339 339 331 331 330 335 57 29 58 29 26 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	01.531 BOLT; EYE,OIL PIPE (A) M10X40 FLANGE	8-97182-847-0	01	1	1512-	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (B) M10X24	9-09906-205-1	01	1	1512-	●
2	01.531 BOLT; EYE,OIL PIPE 03.358 (C) M10X23 FLANGE	8-94332-831-1	01	1	1512-		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	03	1	1512-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2	8-98158-135-0	02	1	1512-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	02	1	1512-		●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97923-928-0	01	1	1512-		●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	02	1	1512-		●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1512-		●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	1512-		●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE IMA	0-28050-812-0	01	1	1512-	●
40	01.531 BOLT; OIL PIPE 03.671 M6X10 FLANGE	0-28050-610-0	01	1	1512-		●
57	01.519 PIPE; OIL,OIL JET	8-94469-709-3	01	1	1512-		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO 01.639	8-97311-976-1	01	1	1512-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98261-644-0	01	1	1512-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97224-297-0	01	1	1512-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=16	8-98029-475-0	01	1	1512-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (A)	8-94362-672-1	01	1	1512-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1512-		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97192-313-0	01	1	1512-		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 03.162 M14X27 FLANGE	1-09675-086-0	01	1	1512-		●
252	01.855 HOSE; RUBBER,TURBOCHARGER RETURN IDN	8-98269-695-0	01	1	1512-		●
306	01.519 PIPE ASM; CYL HD TO OIL COOLER	8-97225-604-1	01	1	1512-		●
307	01.531 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97264-168-0	01	1	1512-		●
308	01.540 HOSE; OIL COOLER FEED	8-94174-464-1	01	1	1512-		●
309	01.540 HOSE; OIL COOLER RETURN	8-97224-318-1	01	1	1512-		●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-1	04	1	1512-		●
311	01.531 BOLT; PIPE FIX 00.662 M8X14 FLANGE	0-28080-814-0	01	1	1512-		●
312	01.531 NUT; PIPE FIX 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1601-	●
312	01.531 NUT; PIPE FIX 04.634 M8 FLANGE	8-97581-233-0	01	1	1512-		●
325	01.519 CLIP; RUBBER HOSE,OIL RETURN 01.166 ID=20.8	8-94125-862-1	02	1	1512-		●
330	03.278 HOSE; VAC PUMP,RETURN IDN	8-98269-691-0	01	1	1512-		●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	1512-		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-94443-644-1	01	1	1512-		●
335	01.531 STOPPER; OIL PIPE	8-97203-568-0	01	1	1512-		●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	1512-		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1512-		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1512-		●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1512-		●
473	01.540 INSULATOR; HOSE	8-97101-331-0	02	1	1512-		●
474	01.540 CLIP; INSULATOR	8-97101-337-0	04	1	1512-		●
