Isuzu WW
▶
TRUCKS
▶
NLR
▶
51642 - NLR/NMR(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶

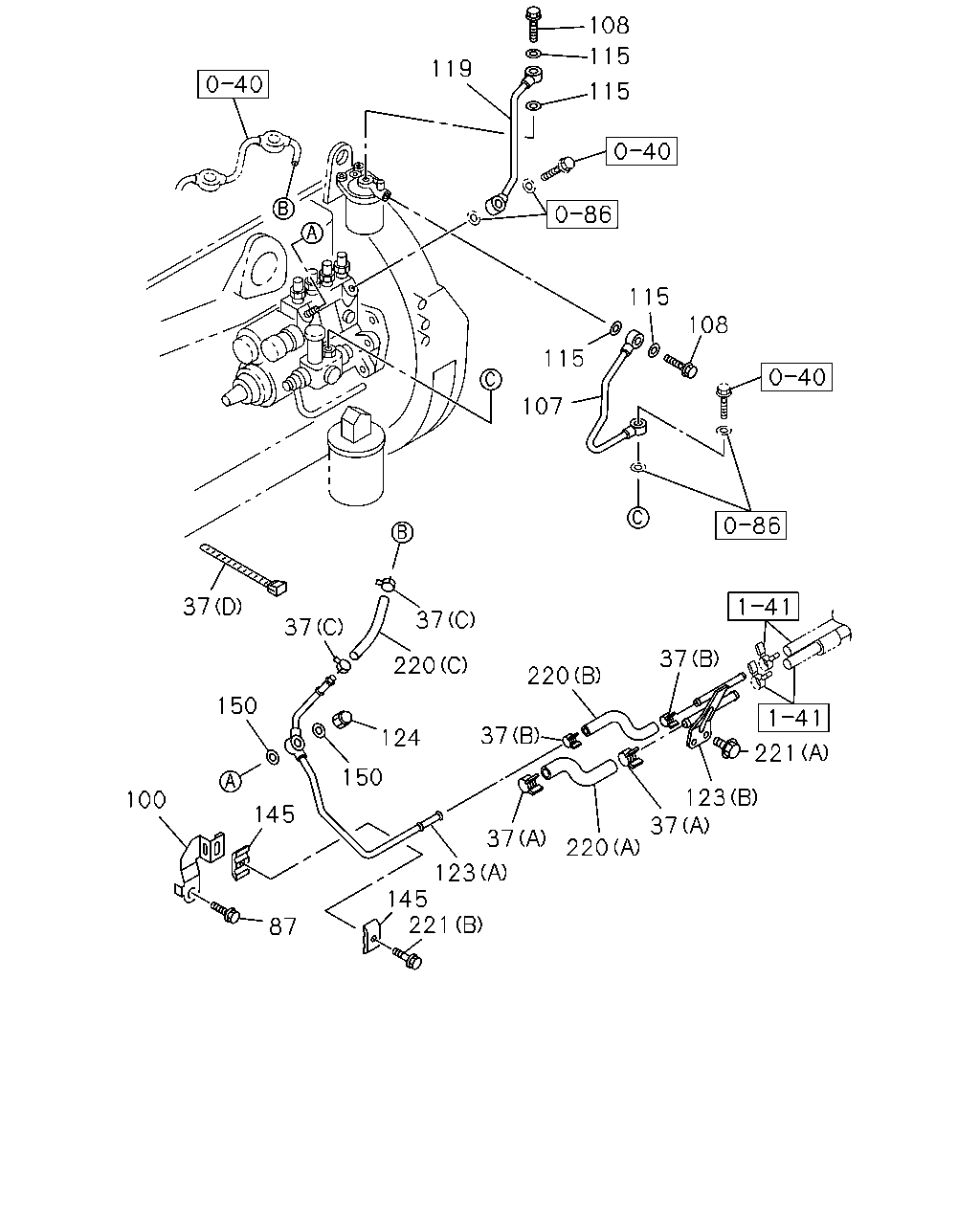

0-42 — FUEL PUMP AND PIPE
(#171336) — 20 parça
221
145
87
145
150
37
100
37
37
220
124
150
123
37
37
220
220
123
221
37
108
115
115
107
115
115
108
119
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
03.162 CLIP; FUEL HOSE
(D) L=140
5-09707-031-1
01
1
1512-
37
03.162 CLIP; FUEL HOSE
04.930 (A) ID=16
8-94238-568-0
02
1
1512-
37
03.162 CLIP; FUEL HOSE
01.219 (B) ID=13
8-94238-571-0
02
1
1512-
37
03.162 CLIP; FUEL HOSE
01.219 (C) ID=12
8-94238-610-0
02
1
1512-
87
03.162 BOLT; STAY,FUEL PIPE
02.343 M8X12 FLANGE IMA
0-28050-812-0
01
1
1512-
100
03.162 CLIP; "B",FUEL PIPE
8-97108-315-0
01
1
1512-
107
03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL
8-98209-893-0
01
1
1512-
108
03.162 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
02
1
1512-
115
03.162 GASKET; JOINT BOLT,FUEL PIPE
03.107 ID=14.2 OD=23.0
9-09572-014-0
04
1
1512-
119
03.163 PIPE; FUEL,FUEL FILTER TO INJ PU
8-98209-782-0
01
1
1512-
123
03.163 PIPE; FUEL,FUEL FILTER LEAK OFF
(A)
8-98209-875-0
01
1
1512-
123
03.163 PIPE; FUEL,FUEL FILTER LEAK OFF
(B) IDN
8-98210-681-0
01
1
1512-
124
03.162 NUT; CAP,FUEL PIPE
M14
1-09468-002-1
01
1
1512-
145
03.162 CLIP; FUEL PIPE
03.330 ID=6.1 & 9.6
8-97016-323-1
02
1
1512-
150
03.162 GASKET; FUEL PIPE
03.107 ID=14.2 OD=23.0
9-09572-014-0
02
1
1512-
220
03.163 HOSE; FUEL
(B) IDN
8-98209-761-0
01
1
1512-
220
03.163 HOSE; FUEL
(A) IDN
8-98210-837-0
01
1
1512-
220
03.163 HOSE; FUEL
(C)
8-98293-110-0
01
1
1512-
221
03.163 BOLT; FUEL PIPE
02.343 (A) M8X16 FLANGE
0-28050-816-0
02
1
1512-
221
03.163 BOLT; FUEL PIPE
00.685 (B) M6X40 FLANGE
0-28650-640-0
01
1
1512-
