0-40 — FUEL INJECTION SYSTEM (#171334) — 245 parça
çizim 507101
43 140 138 45 32 31 34 58 140 43 44 47 43 138 140 272 35 45 47 43 44 140 34 32 31 272 35
BalonParca AdiParca NoAdetTipApplied Date A B
31 03.332 NOZZLE ASM; INJ
(B) 		8-97200-570-3 04 1 1512- ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97382-945-0 04 1 1512- ●
32 03.332 HOLDER ASM; NOZZLE 8-97078-783-1 04 1 1512- ●
32 03.332 HOLDER ASM; NOZZLE 8-97203-471-1 04 1 1512- ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.162 M8X18 EYE-BOLT 		1-09675-037-1 04 1 1512- ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.306 		8-94320-307-0 04 1 1512- ●
35 03.330 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-041-0 04 1 1512- ● ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) 		8-97223-339-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) 		8-97349-452-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.00 		8-97223-343-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.02 		8-97223-344-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.04 		8-97223-345-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.06 		8-97223-346-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.08 		8-97223-347-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.10 		8-97223-348-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.12 		8-97223-349-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.14 		8-97223-350-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.16 		8-97223-351-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.18 		8-97223-352-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.20 		8-97223-353-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.22 		8-97223-354-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.24 		8-97223-355-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.26 		8-97223-356-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.28 		8-97223-357-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.30 		8-97223-358-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.32 		8-97223-359-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.34 		8-97223-360-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.36 		8-97223-361-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.38 		8-97223-362-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.40 		8-97223-363-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.42 		8-97223-364-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.44 		8-97223-365-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.46 		8-97223-366-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.48 		8-97223-367-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.50 		8-97223-368-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.52 		8-97223-369-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.54 		8-97223-370-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.56 		8-97223-371-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.58 		8-97223-372-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.60 		8-97223-373-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.62 		8-97223-374-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.64 		8-97223-375-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.66 		8-97223-376-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.68 		8-97223-377-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.70 		8-97223-378-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.72 		8-97223-379-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.74 		8-97223-380-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.76 		8-97223-381-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.78 		8-97223-382-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.80 		8-97223-383-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.82 		8-97223-384-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.84 		8-97223-385-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.86 		8-97223-386-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.88 		8-97223-387-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.90 		8-97223-388-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.92 		8-97223-389-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.94 		8-97223-390-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.96 		8-97223-391-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=2.98 		8-97223-392-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) T=3.00 		8-97223-393-0 04 1 1512- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) 		8-97361-697-0 04 1 1512- ●
44 03.330 SPRING; NOZZLE,NOZZLE HOLDER 1-15343-003-0 04 1 1512- ● ●
45 03.330 ROD; PUSH,NOZZLE HOLDER 1-15341-008-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.25 		8-97355-112-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.26 		8-97355-113-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.27 		8-97355-114-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.28 		8-97355-115-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.29 		8-97355-116-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.30 		8-97355-117-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.31 		8-97355-118-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.32 		8-97355-119-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.33 		8-97355-120-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.34 		8-97355-121-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.35 		8-97355-122-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.36 		8-97355-123-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.37 		8-97355-124-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.38 		8-97355-125-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.39 		8-97355-126-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.40 		8-97355-127-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.41 		8-97355-128-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.42 		8-97355-129-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.43 		8-97355-130-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.44 		8-97355-131-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.45 		8-97355-132-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.46 		8-97355-133-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.47 		8-97355-134-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.48 		8-97355-135-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.49 		8-97355-136-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.50 		8-97355-137-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.51 		8-97355-138-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.52 		8-97355-139-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.53 		8-97355-140-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.54 		8-97355-141-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.55 		8-97355-142-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.56 		8-97355-143-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.57 		8-97355-144-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.58 		8-97355-145-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.59 		8-97355-146-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.60 		8-97355-147-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.61 		8-97355-148-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.62 		8-97355-149-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.63 		8-97355-150-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.64 		8-97355-151-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.65 		8-97355-152-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.66 		8-97355-153-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.67 		8-97355-154-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.68 		8-97355-155-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.69 		8-97355-156-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.70 		8-97355-157-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.71 		8-97355-158-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.72 		8-97355-159-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.73 		8-97355-160-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.74 		8-97355-161-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.75 		8-97355-162-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.76 		8-97355-163-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.77 		8-97355-164-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.78 		8-97355-165-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.79 		8-97355-166-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.80 		8-97355-167-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.81 		8-97355-168-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.82 		8-97355-169-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.83 		8-97355-170-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.84 		8-97355-171-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.85 		8-97355-172-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.86 		8-97355-173-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.87 		8-97355-174-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.88 		8-97355-175-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.89 		8-97355-176-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.90 		8-97355-177-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.91 		8-97355-178-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.92 		8-97355-179-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.93 		8-97355-180-0 04 1 1512- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.94 		8-97355-182-0 04 1 1512- ●
47 03.332 SPACER; NOZZLE SPRING,NOZZLE HOL 8-97223-340-0 04 1 1512- ● ●
58 03.332 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 04 1 1512- ●
138 03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-004-0 04 1 1512- ●
138 03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER 8-94174-141-0 04 1 1512- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=1.20 		1-15349-004-0 04 1 1512- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.40 		1-15349-042-0 AR 1 1512- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.50 		1-15349-043-0 AR 1 1512- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.52 		1-15349-044-0 AR 1 1512- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.54 		1-15349-045-0 AR 1 1512- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.56 		1-15349-046-0 AR 1 1512- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.58 		1-15349-047-0 AR 1 1512- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.60 		1-15349-048-0 AR 1 1512- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.70 		1-15349-049-0 AR 1 1512- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.10 		8-97116-029-0 AR 1 1512- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.20 		8-97116-032-0 AR 1 1512- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.30 		8-97116-033-0 AR 1 1512- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.40 		8-97116-034-0 AR 1 1512- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.50 		8-97116-035-0 AR 1 1512- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.51 		8-97116-036-0 AR 1 1512- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.52 		8-97116-037-0 AR 1 1512- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.53 		8-97116-038-0 AR 1 1512- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.54 		8-97116-039-0 AR 1 1512- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.55 		8-97116-040-0 AR 1 1512- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.56 		8-97116-041-0 AR 1 1512- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.57 		8-97116-042-0 AR 1 1512- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.58 		8-97116-043-0 AR 1 1512- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.59 		8-97116-044-0 AR 1 1512- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=1.20 		1-15349-004-0 AR 1 1512- ●
272 03.332 NOZZLE KIT; INJ 8-97352-267-0 04 1 1512- ●
272 03.332 NOZZLE KIT; INJ 8-97329-208-0 04 1 1512- ●

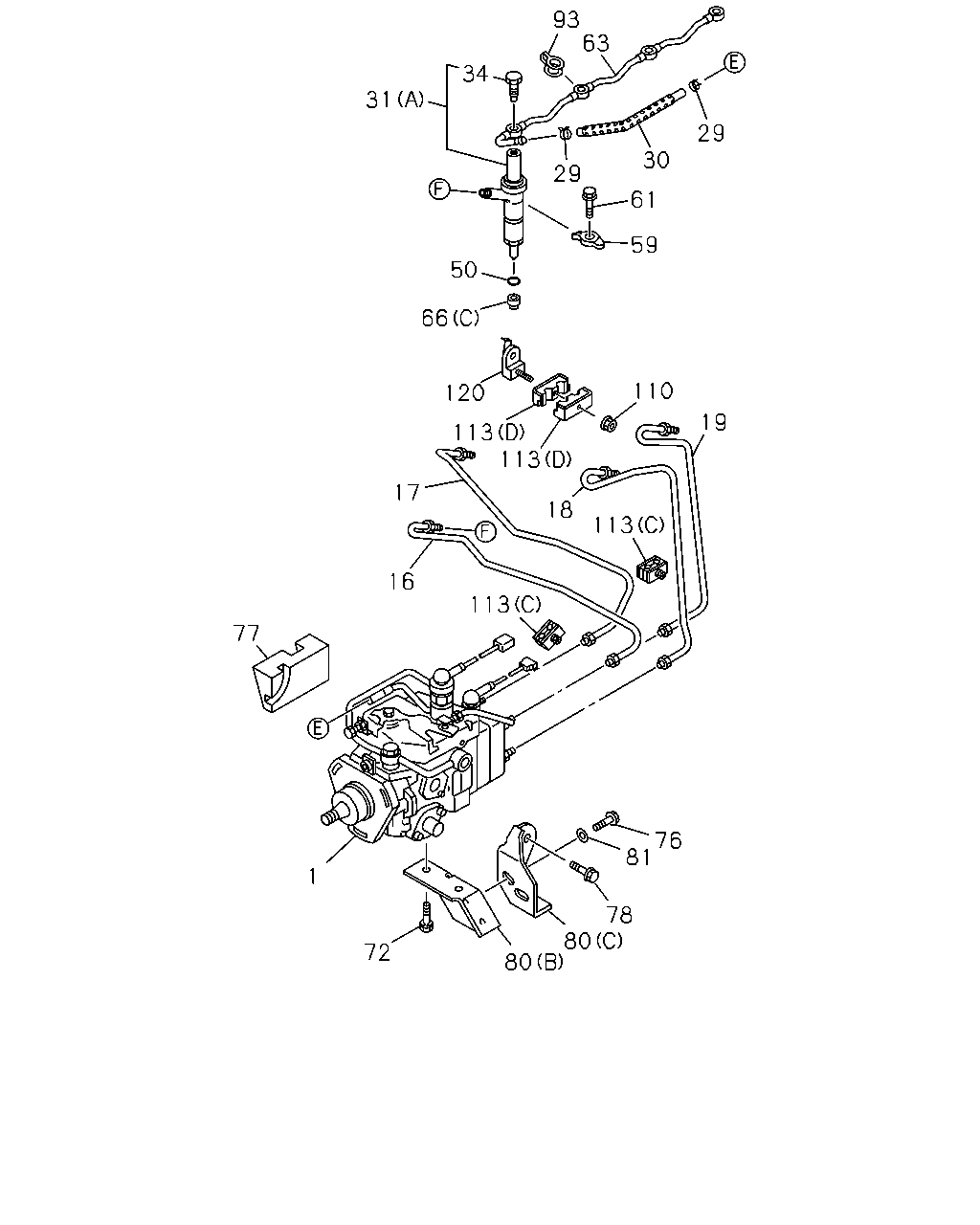

çizim 507103
29 30 63 93 34 31 50 61 29 59 110 113 120 66 113 17 16 77 1 72 80 81 78 76 80 113 113 18 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98268-832-0 01 1 1512- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98253-290-0 01 1 1512- ●
16 03.330 PIPE; INJ NO.1 8-97209-493-1 01 1 1512- ●
16 03.330 PIPE; INJ NO.1 8-97223-923-1 01 1 1512- ●
17 03.330 PIPE; INJ NO.2 8-97209-494-1 01 1 1512- ●
17 03.330 PIPE; INJ NO.2 8-97223-924-1 01 1 1512- ●
18 03.330 PIPE; INJ NO.3 8-97209-495-1 01 1 1512- ●
18 03.330 PIPE; INJ NO.3 8-97223-925-1 01 1 1512- ●
19 03.330 PIPE; INJ NO.4 8-97209-496-1 01 1 1512- ●
19 03.330 PIPE; INJ NO.4 8-97223-926-1 01 1 1512- ●
29 03.162 CLIP; HOSE
03.163 ID=11 		8-97173-219-0 02 1 1512- ●
30 03.163 HOSE; RUBBER,FUEL LEAK 8-98269-810-0 01 1 1512- ●
31 03.332 NOZZLE ASM; INJ
(B) 		8-97200-570-3 04 1 1512- ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97382-945-0 04 1 1512- ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.162 M8X18 EYE-BOLT 		1-09675-037-1 04 1 1512- ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.306 		8-94320-307-0 04 1 1512- ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97287-402-2 04 1 1512- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 1512- ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 1512- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-98209-783-0 01 1 1512- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97288-702-0 01 1 1512- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-94326-439-0 04 1 1512- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 07.003 (A) 		8-97171-332-0 04 1 1512- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1512- ●
72 03.330 BOLT; BRKT TO INJ PUMP
M10X20 W/LK WASHER 		0-50551-020-0 02 1 1512- ●
76 03.330 BOLT; BRKT TO BRKT
09.008 M8X25 W/LK WASHER IMA 		0-50540-825-0 02 1 1512- ●
77 03.340 RUBBER; SPACE,INJ PUMP
IDN 		8-97520-590-0 01 1 1512- ●
78 03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE 		0-28751-020-0 01 1 1512- ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1512- ●
80 03.306 BRACKET; PUMP
(A) 		8-98209-944-0 01 1 1512- ●
80 03.306 BRACKET; PUMP
(C) 		8-97368-670-0 01 1 1512- ●
80 03.306 BRACKET; PUMP
(B) 		8-97368-671-0 01 1 1512- ●
81 03.330 WASHER; PL,BRKT TO PUMP
02.277 ID=8.4 OD=22 IDN 		0-91614-708-0 02 1 1512- ●
93 03.162 GASKET; LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). IMA 		8-97375-236-0 04 1 1512- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE IDN 		0-91180-106-0 01 1 1512- ● ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 04 1 1512- ●
113 03.162 CLIP; INJ PIPE
(B) 		8-97213-481-0 01 1 1512- ●
113 03.162 CLIP; INJ PIPE
03.634 (D) 		1-09701-240-0 02 1 1512- ●
113 03.162 CLIP; INJ PIPE
(C) 		8-98227-926-0 02 1 1512- ●
120 03.330 BRACKET; INJ PIPE 8-98015-024-1 01 1 1512- ●

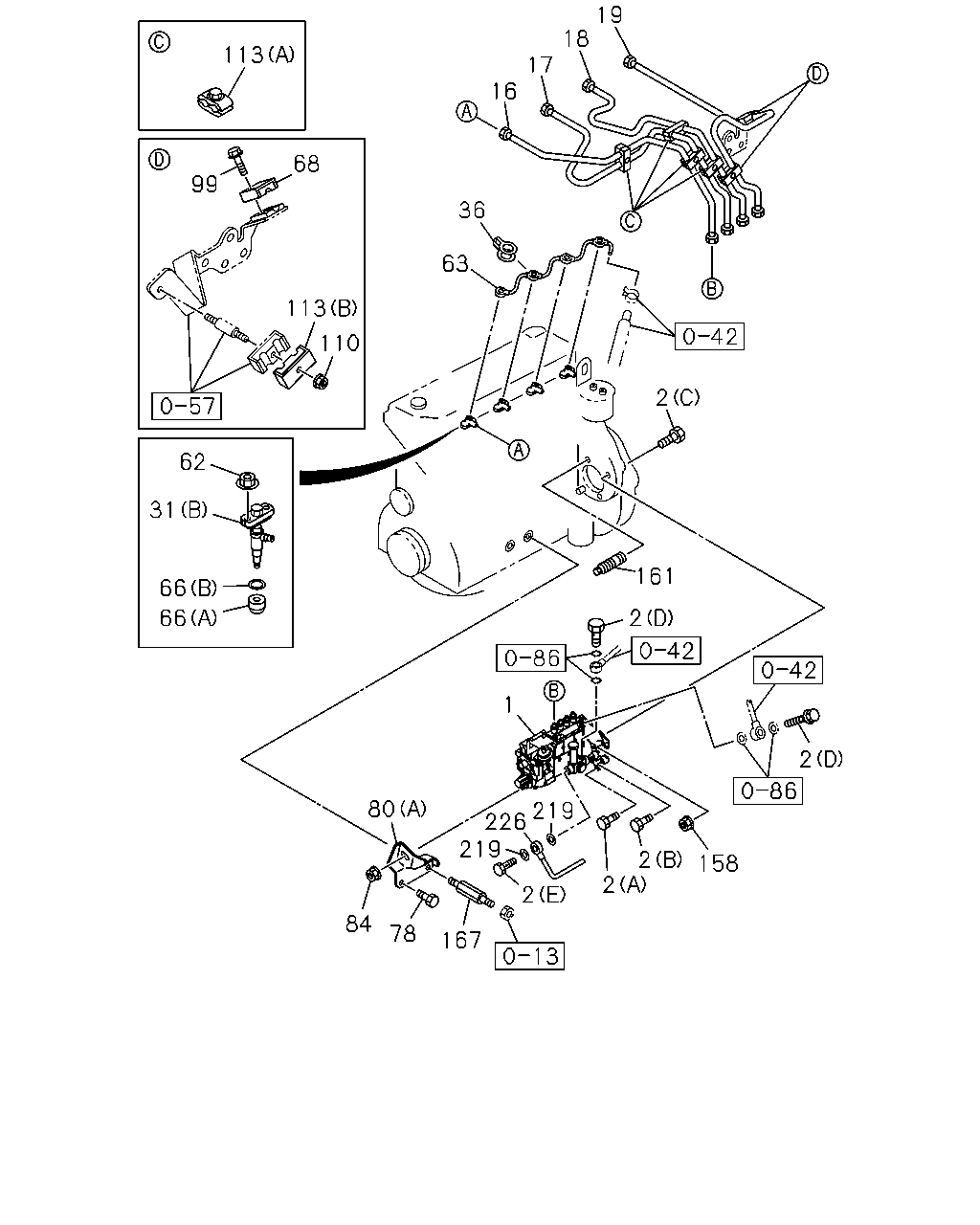

çizim 507110
19 18 17 16 113 99 68 113 110 63 36 2 161 2 2 2 158 2 2 219 226 80 219 167 78 84 1 62 31 66 66
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98268-832-0 01 1 1512- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98253-290-0 01 1 1512- ●
2 03.330 BOLT; INJ PUMP
02.277 (A) M10X70 FLANGE 		0-28151-070-0 01 1 1512- ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 1512- ●
2 03.330 BOLT; INJ PUMP
(C) M12X90 FLANGE 		0-28151-290-0 01 1 1512- ●
2 03.330 BOLT; INJ PUMP
03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 1512- ●
2 03.330 BOLT; INJ PUMP
03.162 (E) M14X30 		8-97203-957-0 01 1 1512- ●
16 03.330 PIPE; INJ NO.1 8-97209-493-1 01 1 1512- ●
16 03.330 PIPE; INJ NO.1 8-97223-923-1 01 1 1512- ●
17 03.330 PIPE; INJ NO.2 8-97209-494-1 01 1 1512- ●
17 03.330 PIPE; INJ NO.2 8-97223-924-1 01 1 1512- ●
18 03.330 PIPE; INJ NO.3 8-97209-495-1 01 1 1512- ●
18 03.330 PIPE; INJ NO.3 8-97223-925-1 01 1 1512- ●
19 03.330 PIPE; INJ NO.4 8-97209-496-1 01 1 1512- ●
19 03.330 PIPE; INJ NO.4 8-97223-926-1 01 1 1512- ●
31 03.332 NOZZLE ASM; INJ
(B) 		8-97200-570-3 04 1 1512- ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-97382-945-0 04 1 1512- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ID=8.6 		8-98246-930-0 04 1 1512- ●
62 03.332 NUT; NOZZLE HOLDER
01.062 M8 FLANGE IDN 		0-91180-108-0 08 1 1512- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-98209-783-0 01 1 1512- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97288-702-0 01 1 1512- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-94326-439-0 04 1 1512- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 07.003 (A) 		8-97171-332-0 04 1 1512- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1512- ●
68 03.162 CLIP; INJ PIPE 1-09701-091-0 01 1 1512- ●
78 03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE 		0-28751-020-0 01 1 1512- ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1512- ●
80 03.306 BRACKET; PUMP
(A) 		8-98209-944-0 01 1 1512- ●
80 03.306 BRACKET; PUMP
(C) 		8-97368-670-0 01 1 1512- ●
80 03.306 BRACKET; PUMP
(B) 		8-97368-671-0 01 1 1512- ●
84 03.330 NUT; BRKT TO BRKT
04.085 M10 FLANGE 		0-91180-210-0 01 1 1512- ●
99 03.330 BOLT; CLIP,INJ,PIPE
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 1512- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE IDN 		0-91180-106-0 01 1 1512- ● ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 04 1 1512- ●
113 03.162 CLIP; INJ PIPE
(B) 		8-97213-481-0 01 1 1512- ●
113 03.162 CLIP; INJ PIPE
03.634 (D) 		1-09701-240-0 02 1 1512- ●
113 03.162 CLIP; INJ PIPE
(C) 		8-98227-926-0 02 1 1512- ●
158 03.330 NUT; INJ PUMP
03.162 M10 FLANGE IDN 		0-91180-110-0 02 1 1512- ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 1512- ●
167 03.330 SPACER; GUIDE TUBE 8-97065-515-2 01 1 1512- ●
219 03.162 GASKET
01.531 ID=14.2 OD=19.2 		8-98251-345-0 02 1 1512- ●
226 03.163 PIPE; FUEL 8-97203-567-0 01 1 1512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
