Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#171332) — 62 parça

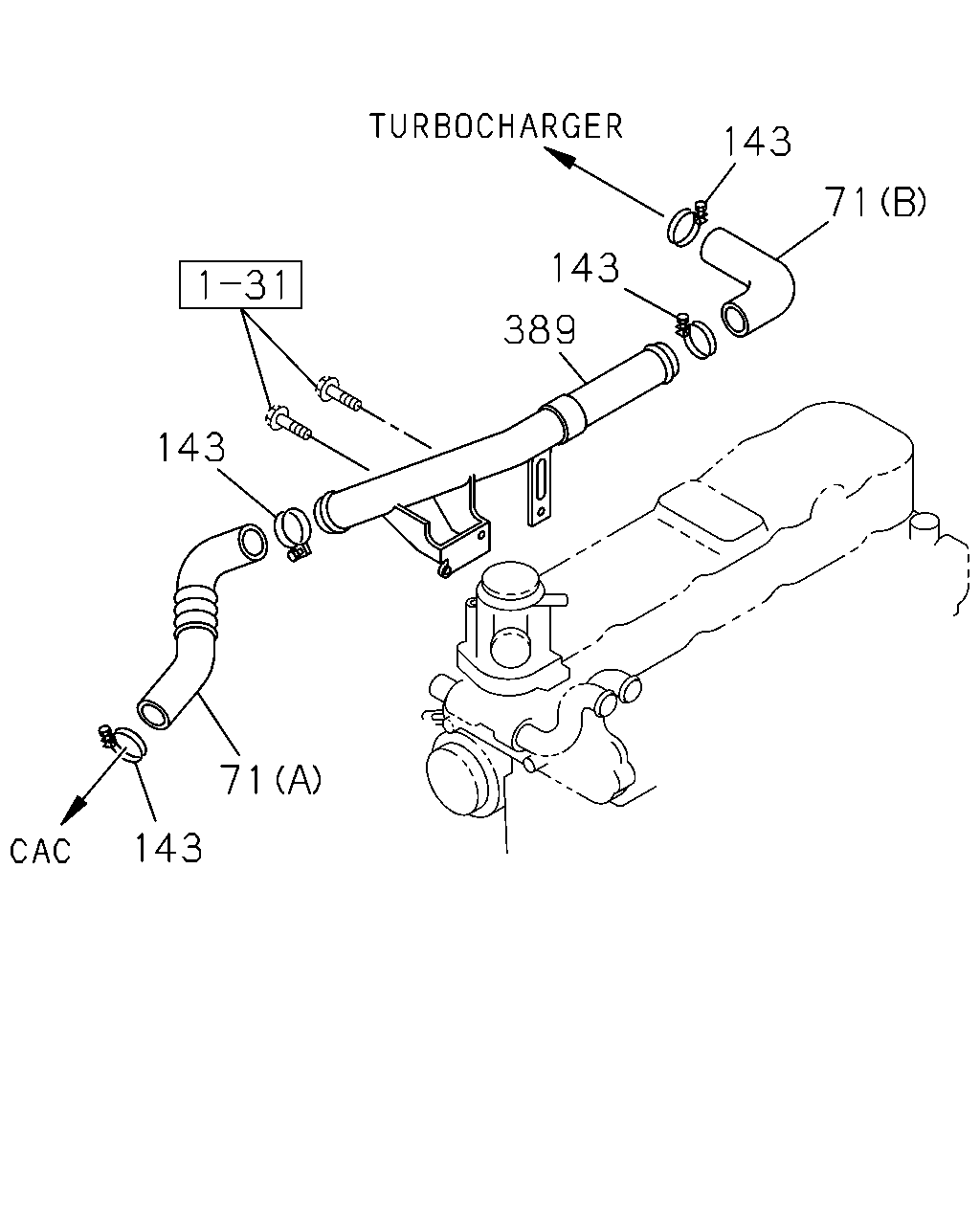

143 143 71 389 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-97217-911-3	01	1	1512-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-97221-914-3	01	1	1512-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=45-65	8-98133-348-0	02	1	1512-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 03.417 ID=40-50	8-98133-347-0	04	1	1512-	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC 03.417	8-97216-223-0	01	1	1512-	●

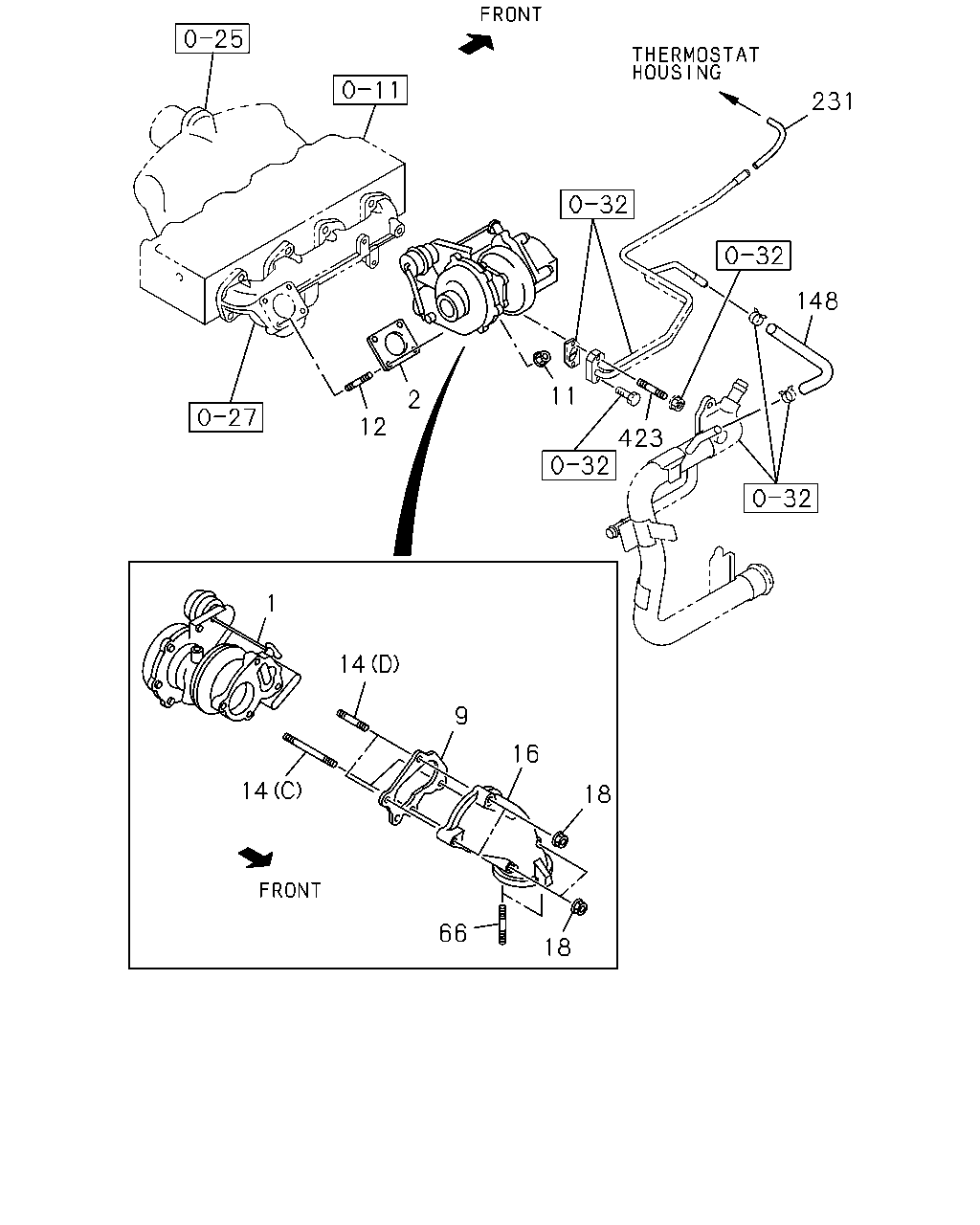

148 423 11 2 12 1 14 9 16 18 18 66 14 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98254-714-0	01	1	1512-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97192-331-4	01	1	1512-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97315-266-0	01	1	1512-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97039-777-1	01	1	1512-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97139-726-0	01	1	1512-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1512-	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	1512-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	1512-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1512-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X43 L=54	8-97378-067-0	02	1	1512-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X126 L=137	8-97378-069-0	02	1	1512-	●
16	03.609 ADAPTER; EXH PIPE	8-98209-505-0	01	1	1512-		●
16	03.609 ADAPTER; EXH PIPE	8-97192-332-0	01	1	1512-	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	1512-	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1512-		●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	1512-	●
148	03.417 HOSE; TURBOCHARGER,INL 01.097 L=180 SERVICED BY L=3000	0-03559-300-0	01	1	1512-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98215-875-0	01	1	1512-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97212-155-0	01	1	1512-	●
423	03.373 STUD; WATER PIPE 01.652 M6X20 L=28	0-41010-620-0	01	1	1512-	●

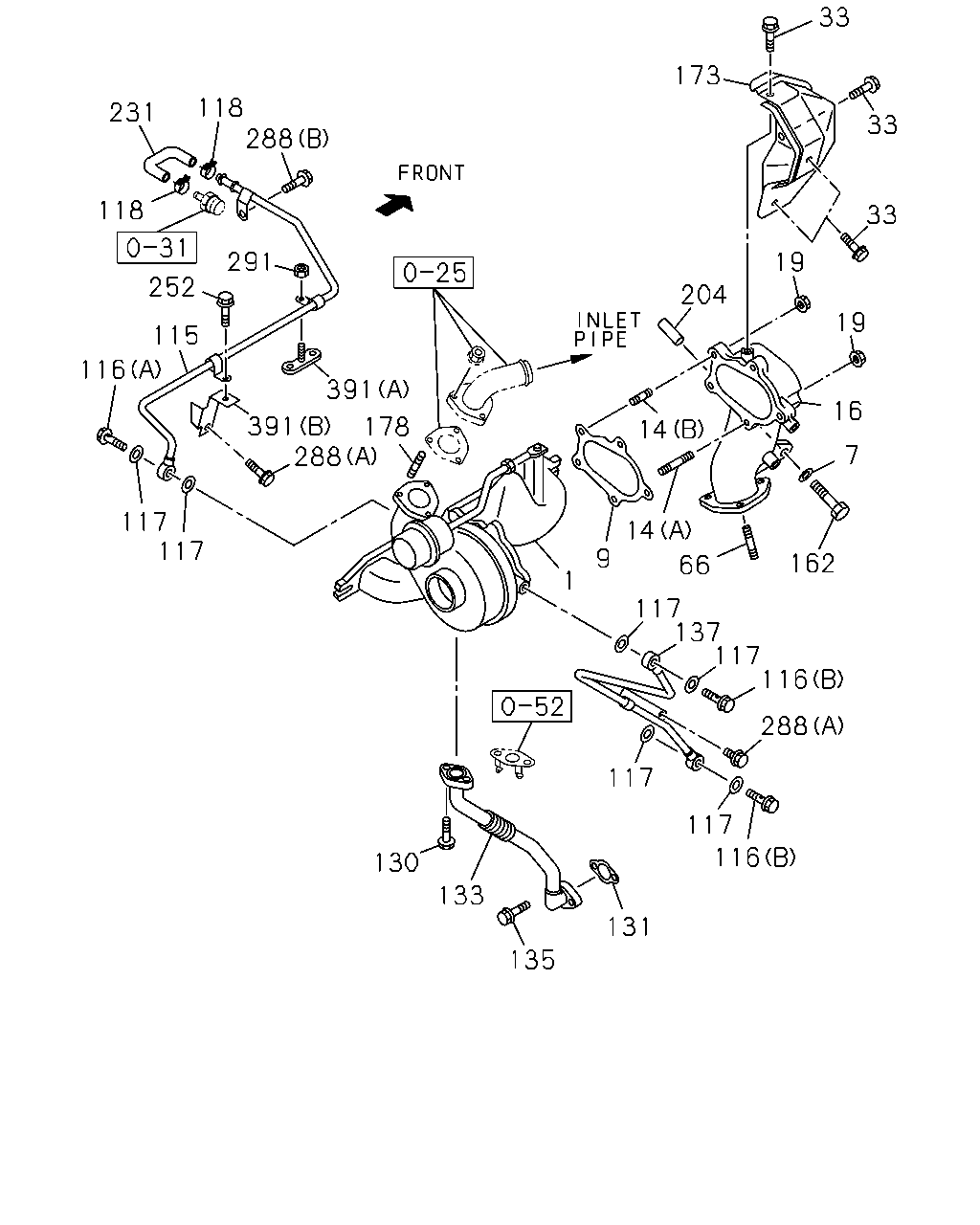

33 33 33 173 19 19 16 162 116 117 288 117 116 117 131 135 133 130 1 117 137 66 14 9 14 7 204 288 118 231 118 115 291 252 116 117 117 391 391 288 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98254-714-0	01	1	1512-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97192-331-4	01	1	1512-	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1512-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97039-777-1	01	1	1512-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97139-726-0	01	1	1512-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	1512-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1512-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X43 L=54	8-97378-067-0	02	1	1512-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X126 L=137	8-97378-069-0	02	1	1512-	●
16	03.609 ADAPTER; EXH PIPE	8-98209-505-0	01	1	1512-		●
16	03.609 ADAPTER; EXH PIPE	8-97192-332-0	01	1	1512-	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	1512-		●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	04	1	1512-		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1512-		●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	1512-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98261-645-0	01	1	1512-		●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1512-		●
116	03.342 BOLT; WATER PIPE (B) M14X31 EYE-BOLT	8-98037-067-0	02	1	1512-		●
117	03.342 GASKET; WATER PIPE 08.955 ID=14.2 OD=20.0	9-09571-414-0	06	1	1512-		●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	02	1	1512-		●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 00.662 M6X16 W/LK WASHER	0-50540-616-0	02	1	1512-		●
131	01.531 GASKET; OIL PIPE,C/BL ID=30	8-94394-671-0	01	1	1512-		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98261-657-0	01	1	1512-		●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1512-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98213-680-0	01	1	1512-		●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1512-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97178-497-2	01	1	1512-		●
178	03.407 STUD; DUCT 03.275 M6X25 L=34	0-41010-625-0	04	1	1512-		●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1512-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98215-875-0	01	1	1512-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97212-155-0	01	1	1512-	●
252	03.417 BOLT; BRKT 02.343 M8X12 FLANGE IMA	0-28050-812-0	01	1	1512-		●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE IMA	0-28050-812-0	02	1	1512-		●
288	03.342 BOLT; WATER PIPE CLIP 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	1512-		●
291	03.374 NUT; PIPE TO BRKT 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-		●
391	03.342 BRACKET; WATER PIPE (B)	8-97221-061-0	01	1	1512-		●
391	03.342 BRACKET; WATER PIPE (A)	8-98209-661-0	01	1	1512-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
