Isuzu WW
▶
TRUCKS
▶
NLR
▶
51642 - NLR/NMR(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#171329) — 25 parça
Tümü
A - 4HG1-T ENG
B - 4JB1-TC ENG
◀

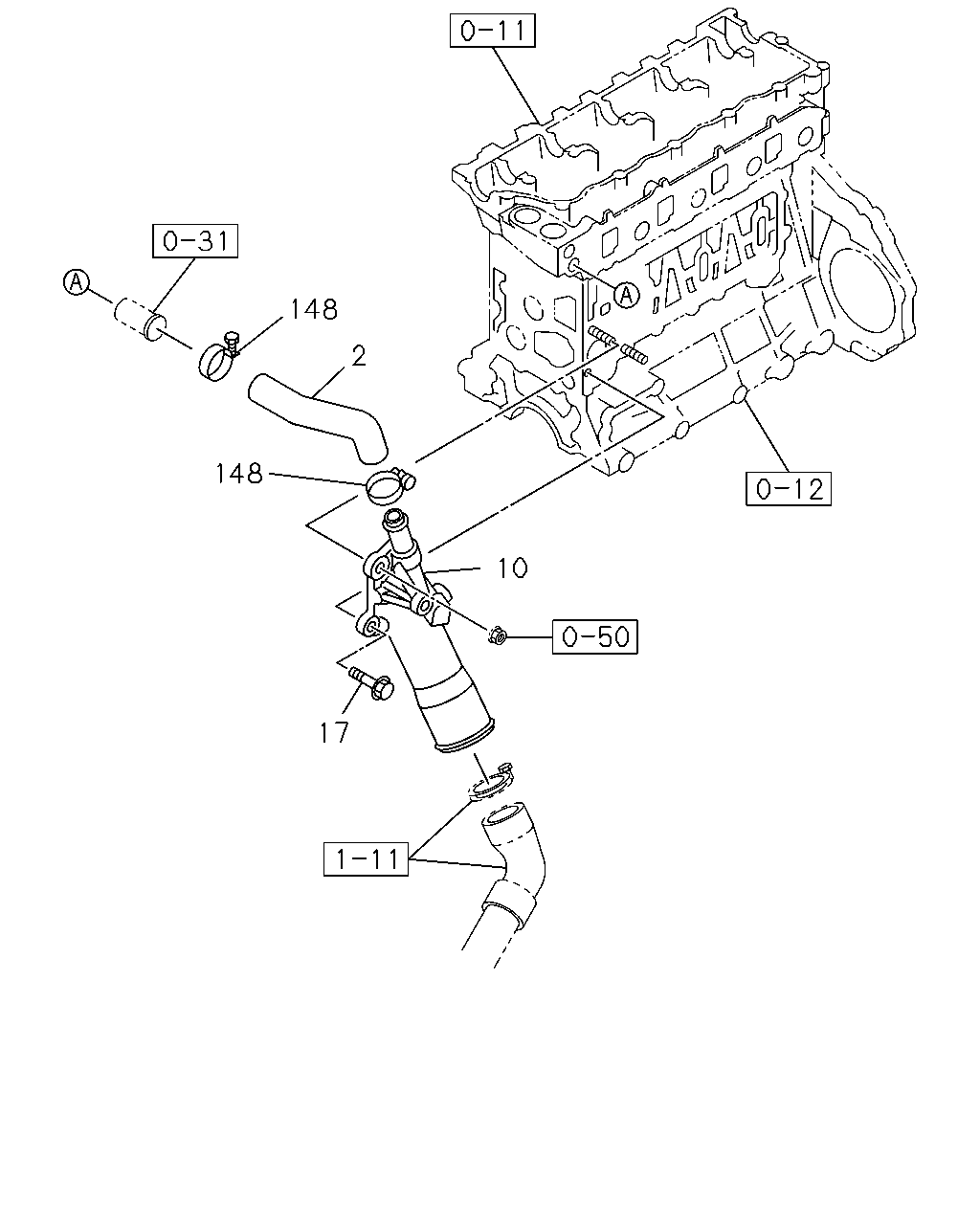

[032A] 4HG1 (5 parça)

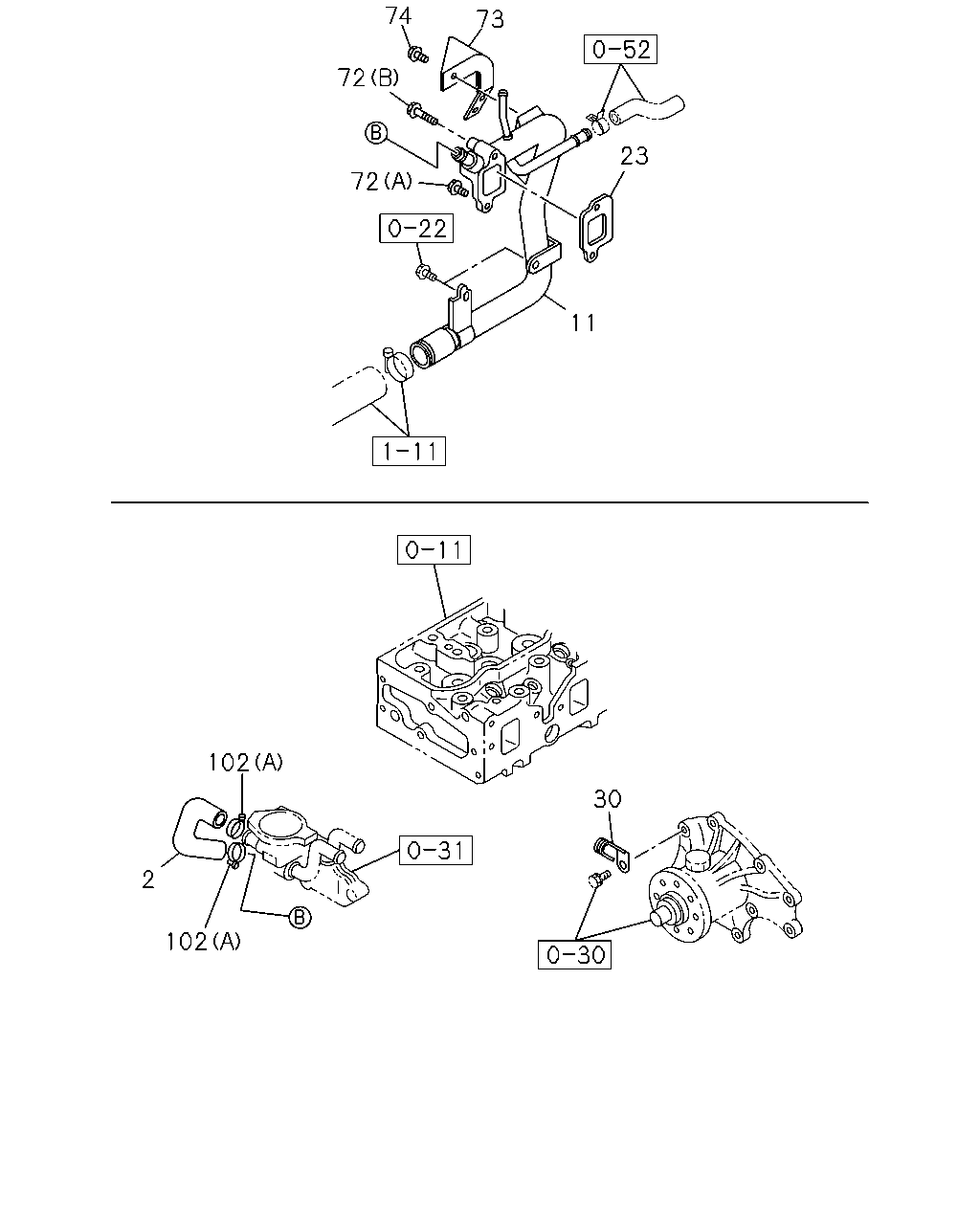

[032A] 4JB1 NO.1 (11 parça)

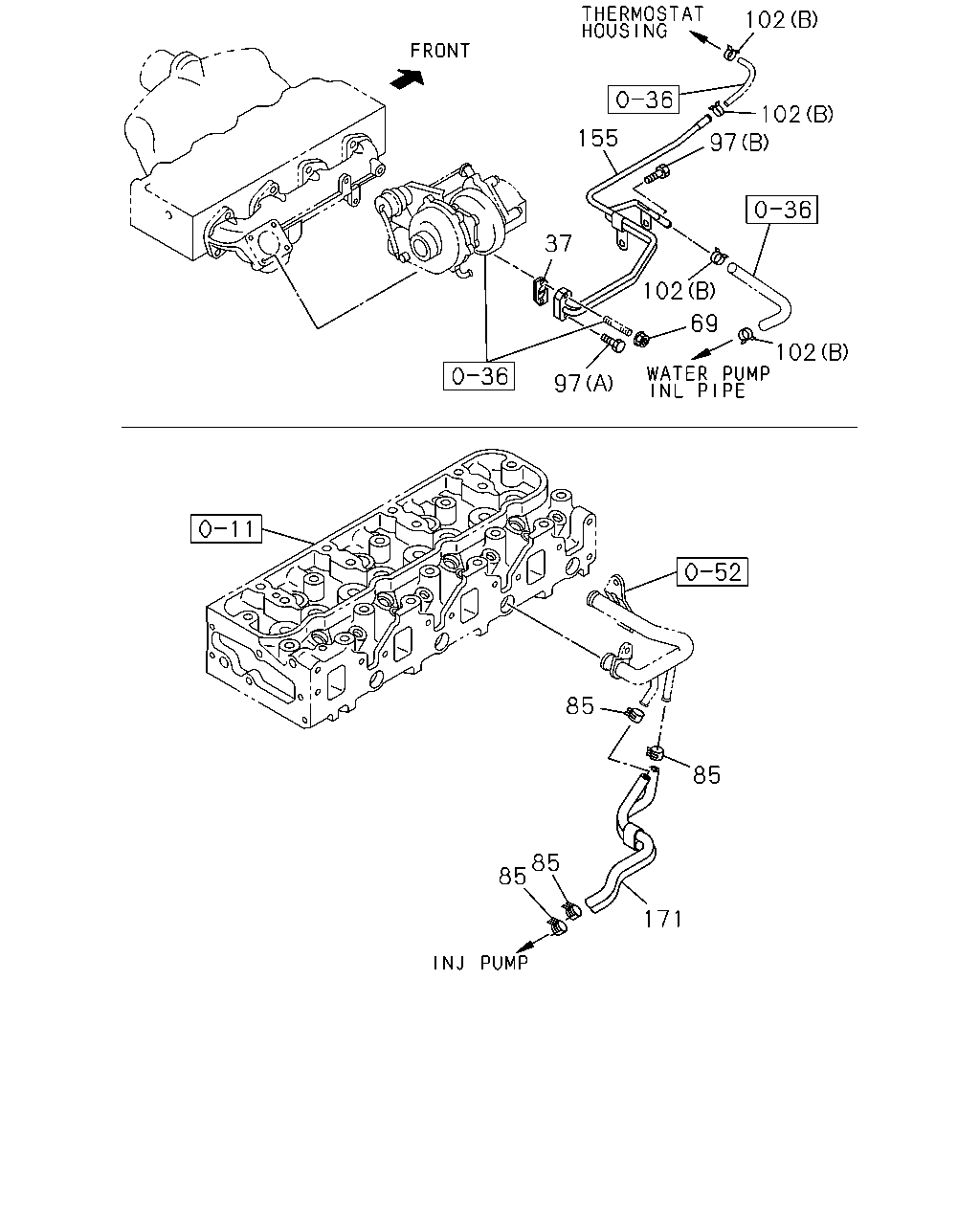

[032A] 4JB1 NO.2 (9 parça)
▶
148
148
17
10
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
01.097 HOSE; WATER,BY-PASS
8-98209-851-0
01
1
1512-
●
2
01.097 HOSE; WATER,BY-PASS
8-97037-464-0
01
1
1512-
●
10
01.153 PIPE; SUCTION
8-98212-009-0
01
1
1512-
●
17
01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE
8-94458-473-1
01
1
1512-
●
148
01.097 CLIP; BYPASS HOSE
03.417 ID=30
9-09915-315-1
02
1
1512-
●
74
72
72
73
23
11
102
102
2
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
01.097 HOSE; WATER,BY-PASS
8-98209-851-0
01
1
1512-
●
2
01.097 HOSE; WATER,BY-PASS
8-97037-464-0
01
1
1512-
●
11
01.097 PIPE; INL,WATER PUMP
8-97213-400-2
01
1
1512-
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94365-676-3
01
1
1512-
●
30
01.150 CLIP; HARNESS
ID=12 IMA
8-97367-983-1
01
1
1512-
●
72
00.206 BOLT; WATER PIPE
04.338 (A) M8X20 FLANGE
0-28050-820-0
01
1
1512-
●
72
00.206 BOLT; WATER PIPE
03.704 (B) M8X45 W/LK WASHER
0-50540-845-0
01
1
1512-
●
73
01.097 PROTECTOR; HEAT,WATER PIPE
IDN
8-97695-989-0
01
1
1512-
●
74
01.097 BOLT; HEAT PROTECTOR FIX
M8X16 W/LK&PL WASHER
0-50640-816-0
03
1
1512-
●
102
01.252 CLIP; WATER HOSE
01.166 (A) ID=20.8
8-94125-862-1
02
1
1512-
●
102
01.252 CLIP; WATER HOSE
01.153 (B) ID=12.8
8-94367-943-0
04
1
1512-
●
155
97
102
102
102
37
97
102
69
85
85
85
85
171
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
37
01.242 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.374
8-94321-135-1
01
1
1512-
●
69
01.153 NUT; WATER PIPE
01.062 M6 FLANGE IDN
0-91180-106-0
01
1
1512-
●
85
01.240 CLIP; RUBBER,WAX CSD
01.153 ID=12.8
8-94367-943-0
04
1
1512-
●
97
04.866 BOLT; WATER PIPE
03.162 (B) M6X12 FLANGE
0-28050-612-0
01
1
1512-
●
97
04.866 BOLT; WATER PIPE
09.242 (A) M6X16 FLANGE
0-28050-616-0
01
1
1512-
●
102
01.252 CLIP; WATER HOSE
01.166 (A) ID=20.8
8-94125-862-1
02
1
1512-
●
102
01.252 CLIP; WATER HOSE
01.153 (B) ID=12.8
8-94367-943-0
04
1
1512-
●
155
01.153 PIPE ASM; WATER
8-98169-766-0
01
1
1512-
●
171
01.240 HOSE; RUBBER,WAX CSD
IDN
8-98269-690-0
01
1
1512-
●
