0-31 — THERMOSTAT AND HOUSING (#171328) — 30 parça
çizim 507071
50 50 49 30 216 15 14 14 66 1 50 207 58
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97300-789-3 01 1 1512- ●
1 01.246 THERMOSTAT
(B) 82 CELSIUS 		8-97254-816-1 01 1 1512- ●
14 01.252 PLUG; SW
01.073 (A) PT3/8 		5-09605-005-0 01 1 1512- ●
14 01.252 PLUG; SW
04.520 (B) M16X8 PLUG 		9-09661-005-0 01 1 1512- ●
15 01.251 PIPE; BYPASS
01.153 		8-94342-574-0 01 1 1512- ●
30 01.153 SPACER
01.246 		8-97373-039-1 01 1 1512- ●
49 01.153 PIPE; WATER OUTLET 8-98210-658-0 01 1 1512- ●
49 01.153 PIPE; WATER OUTLET 8-97204-199-0 01 1 1512- ●
50 01.252 BOLT; OUTLET PIPE
06.216 (B) M8X25 FLANGE IDN 		0-28650-825-0 02 1 1512- ●
50 01.252 BOLT; OUTLET PIPE
01.097 (A) M8X65 FLANGE 		1-09044-072-1 02 1 1512- ●
50 01.252 BOLT; OUTLET PIPE
(C) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1512- ●
58 00.073 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 1512- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1512- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97212-537-1 01 1 1512- ●
207 08.845 GASKET
03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 1512- ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET 8-97358-699-0 01 1 1512- ●

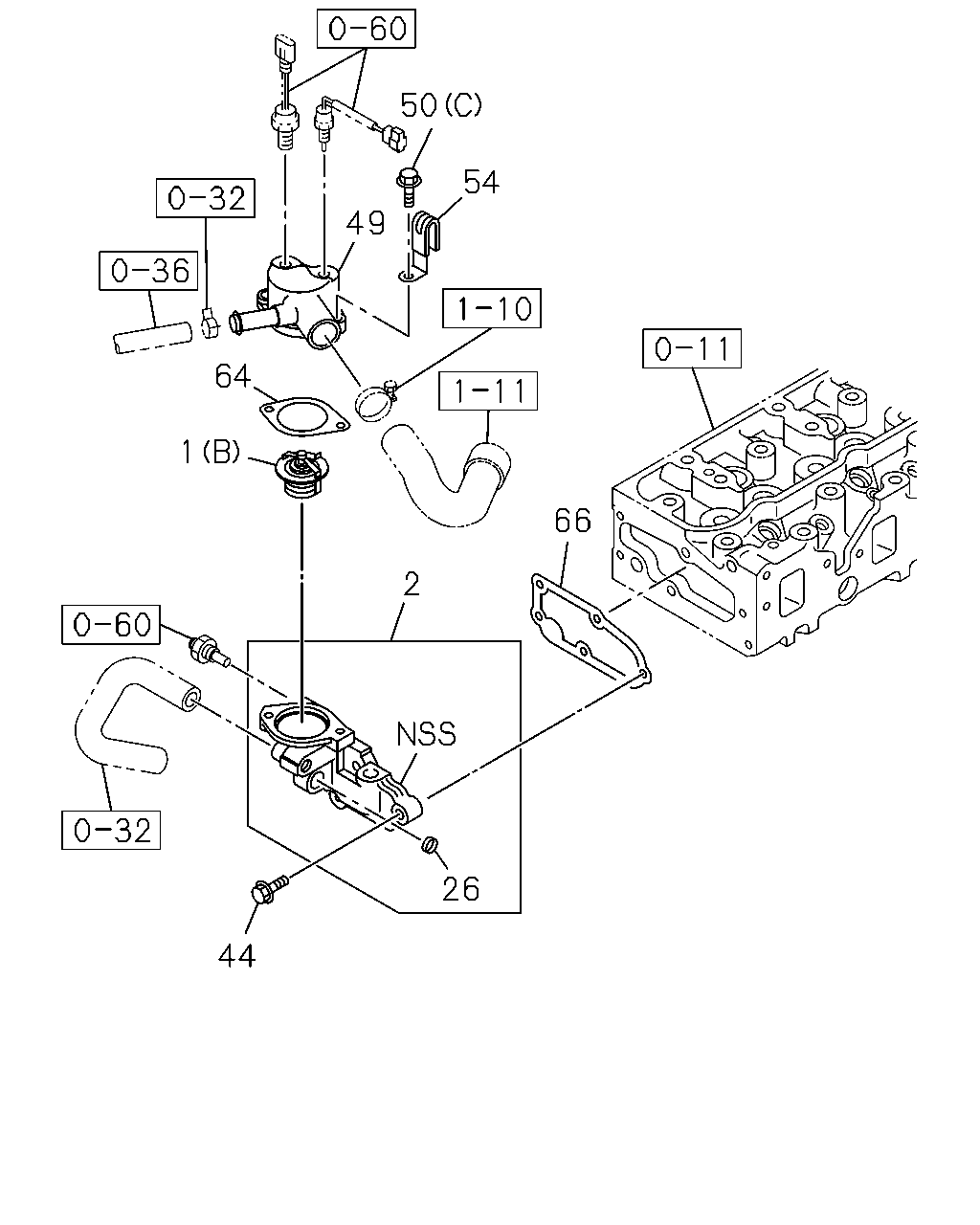

çizim 507775
50 49 64 1 44 2 26 66 54
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97300-789-3 01 1 1512- ●
1 01.246 THERMOSTAT
(B) 82 CELSIUS 		8-97254-816-1 01 1 1512- ●
2 01.251 HOUSING; THERMOSTAT 8-97139-604-3 01 1 1512- ●
26 01.251 CUP; SEALING,VLV,VENTILATION
00.253 OD=18 		5-11219-008-0 01 1 1512- ●
44 01.252 BOLT; HSG TO HD
09.171 M8X30 W/LK WASHER 		0-50540-830-0 05 1 1512- ●
49 01.153 PIPE; WATER OUTLET 8-98210-658-0 01 1 1512- ●
49 01.153 PIPE; WATER OUTLET 8-97204-199-0 01 1 1512- ●
50 01.252 BOLT; OUTLET PIPE
06.216 (B) M8X25 FLANGE IDN 		0-28650-825-0 02 1 1512- ●
50 01.252 BOLT; OUTLET PIPE
01.097 (A) M8X65 FLANGE 		1-09044-072-1 02 1 1512- ●
50 01.252 BOLT; OUTLET PIPE
(C) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1512- ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=13 H=50 L=27 		8-94130-076-0 01 1 1512- ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252 		8-94365-674-2 01 1 1512- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1512- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97212-537-1 01 1 1512- ●
