0-27 — EXHAUST MANIFOLD (#171325) — 19 parça

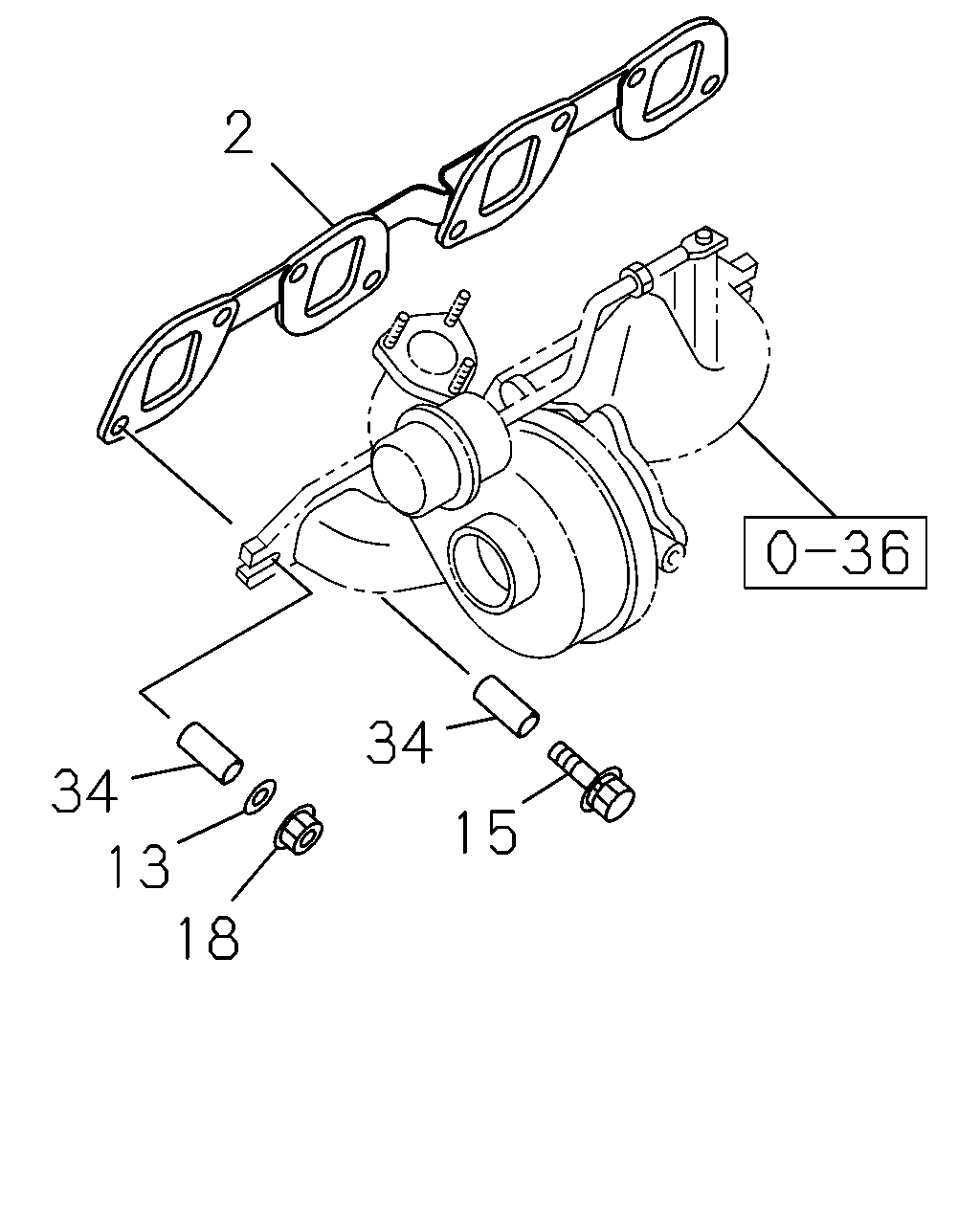

çizim 507037
2 34 18 15 13 34
BalonParca AdiParca NoAdetTipApplied Date A B
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98210-152-0 01 1 1512- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97350-317-2 01 1 1512- ●
13 03.613 WASHER; LK,EXH MANIF
03.604 T=2.2 		1-09556-015-0 02 1 1512- ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 1512- ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 1512- ●
18 03.604 NUT; EXH MANIF
00.833 M10 		0-91110-510-0 02 1 1512- ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 1512- ●
34 03.603 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 08 1 1512- ●

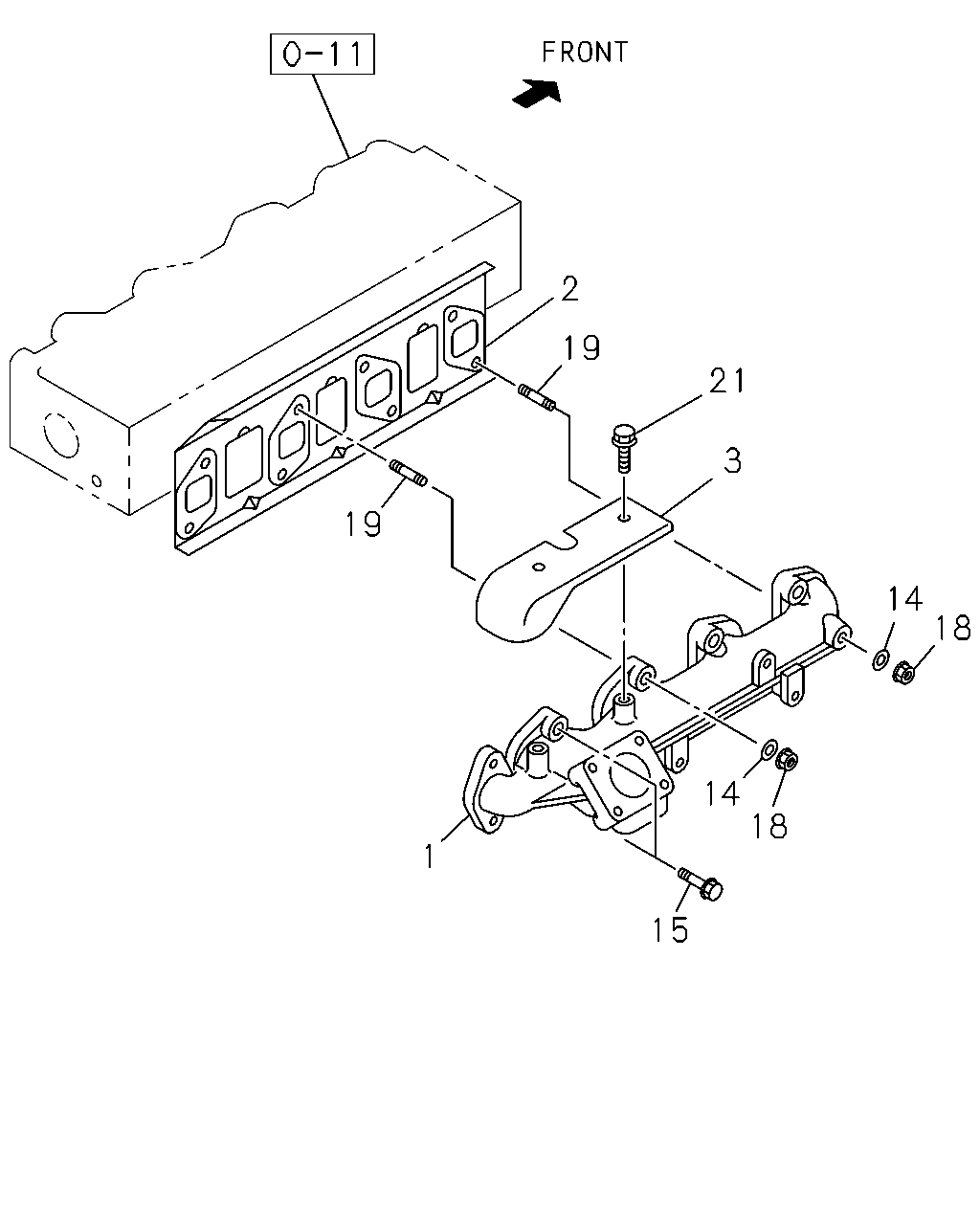

çizim 507040
2 19 19 3 21 14 18 18 14 15 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.601 MANIFOLD; EXHAUST 8-97217-908-0 01 1 1512- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98210-152-0 01 1 1512- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97350-317-2 01 1 1512- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF 8-97214-580-0 01 1 1512- ●
14 03.604 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 1512- ●
15 03.604 BOLT; EXH MANIF
M10X60 		8-97061-543-0 06 1 1512- ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 1512- ●
18 03.604 NUT; EXH MANIF
00.833 M10 		0-91110-510-0 02 1 1512- ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91180-208-0 02 1 1512- ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97378-065-0 02 1 1512- ●
21 03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE IMA 		0-28050-812-0 02 1 1512- ●
