◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51642 - NLR/NMR(INDONESIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#171323) — 64 parça

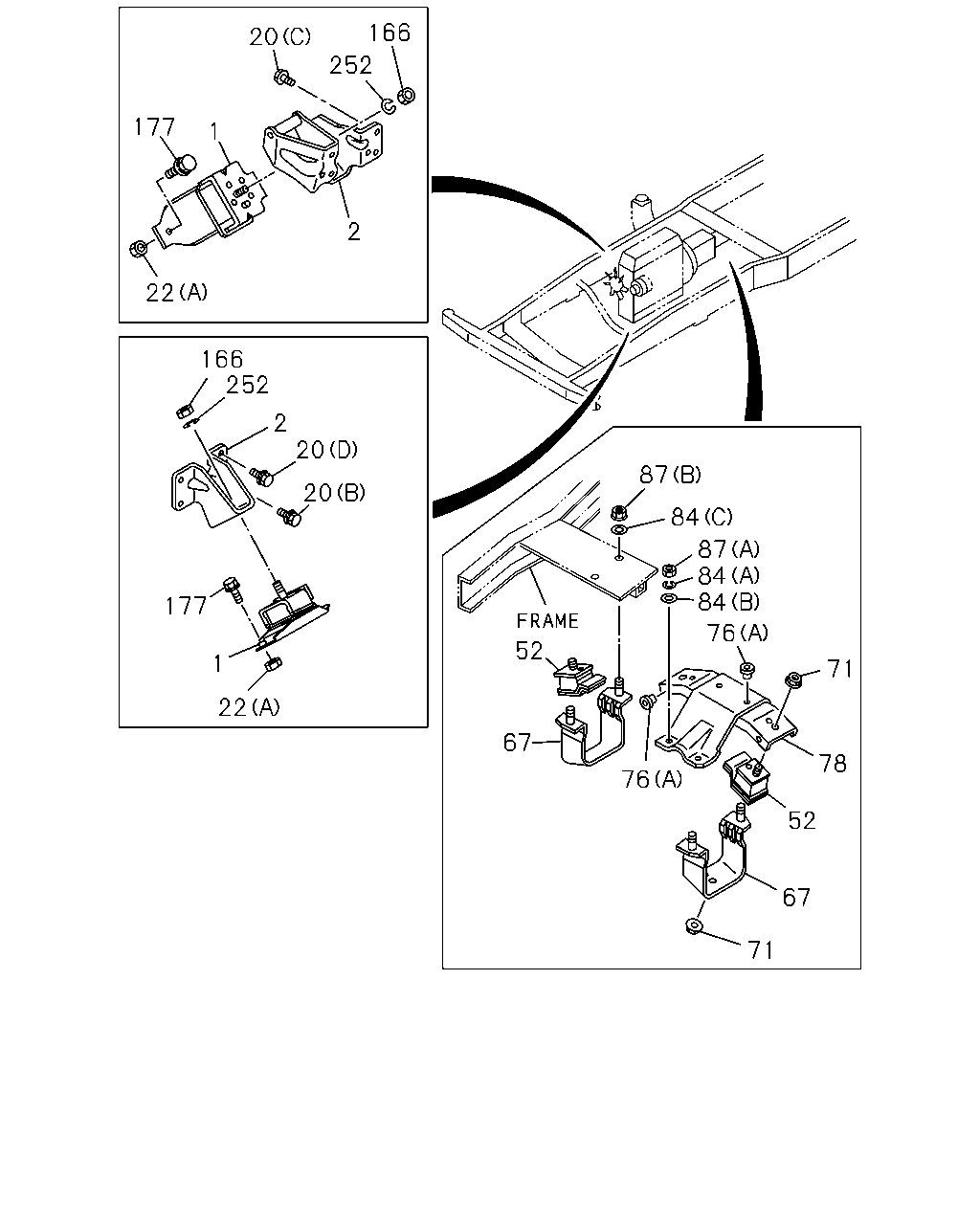

çizim 507060
166 252 2 22 177 1 20 166 252 2 20 20 177 1 22 87 84 87 84 84 76 71 78 52 67 71 76 67 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-893-1 01 1 1512- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-895-1 01 1 1512- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97520-598-0 01 1 1512- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97520-599-0 01 1 1512- ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 1512- ●
2 00.029 FOOT; ENG 8-97287-639-2 01 1 1512- ●
2 00.029 FOOT; ENG 8-97300-156-0 01 1 1512- ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28161-020-0 08 1 1512- ●
20 00.029 BOLT; ENG FOOT
(D) M10X22 W/LK WASHER 		0-50541-022-0 05 1 1512- ●
20 00.029 BOLT; ENG FOOT
(B) M14X25 W/LK WASHER 		0-50541-425-0 01 1 1512- ●
20 00.029 BOLT; ENG FOOT
00.034 (C) M10X28 		8-94329-952-1 02 1 1512- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (B) M12 FLANGE 		0-91180-112-0 02 1 1512- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (A) M10 FLANGE 		0-91180-210-0 04 1 1512- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 1512- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97325-567-1 01 1 1512- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97371-918-1 01 1 1512- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-908-2 01 1 1512- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-909-2 01 1 1512- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE IDN 		0-91180-110-0 04 1 1512- ● ●
76 00.002 STOPPER; ENG MTG RUBBER
(B) 		8-97039-947-1 04 1 1512- ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (A) 		8-94111-904-0 02 1 1512- ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-560-1 01 1 1512- ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-561-1 01 1 1512- ●
78 00.029 BRACKET; ENG MTG,RR 8-94133-393-2 01 1 1512- ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
(A) ID=10.5 OD=32 		0-91614-810-0 04 1 1512- ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
(B) ID=10.2 		0-91510-610-0 04 1 1512- ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
(C) ID=10.5 OD=22 		0-91614-610-0 02 1 1512- ●
87 00.029 NUT; ENG MTG RR
03.162 (A) M10 FLANGE IDN 		0-91180-110-0 04 1 1512- ● ●
87 00.029 NUT; ENG MTG RR
00.833 (B) M10 		0-91110-510-0 04 1 1512- ●
166 00.002 NUT; SUPPORT RUBBER
05.002 M12 		0-91110-512-0 02 1 1512- ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 1512- ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 1512- ●

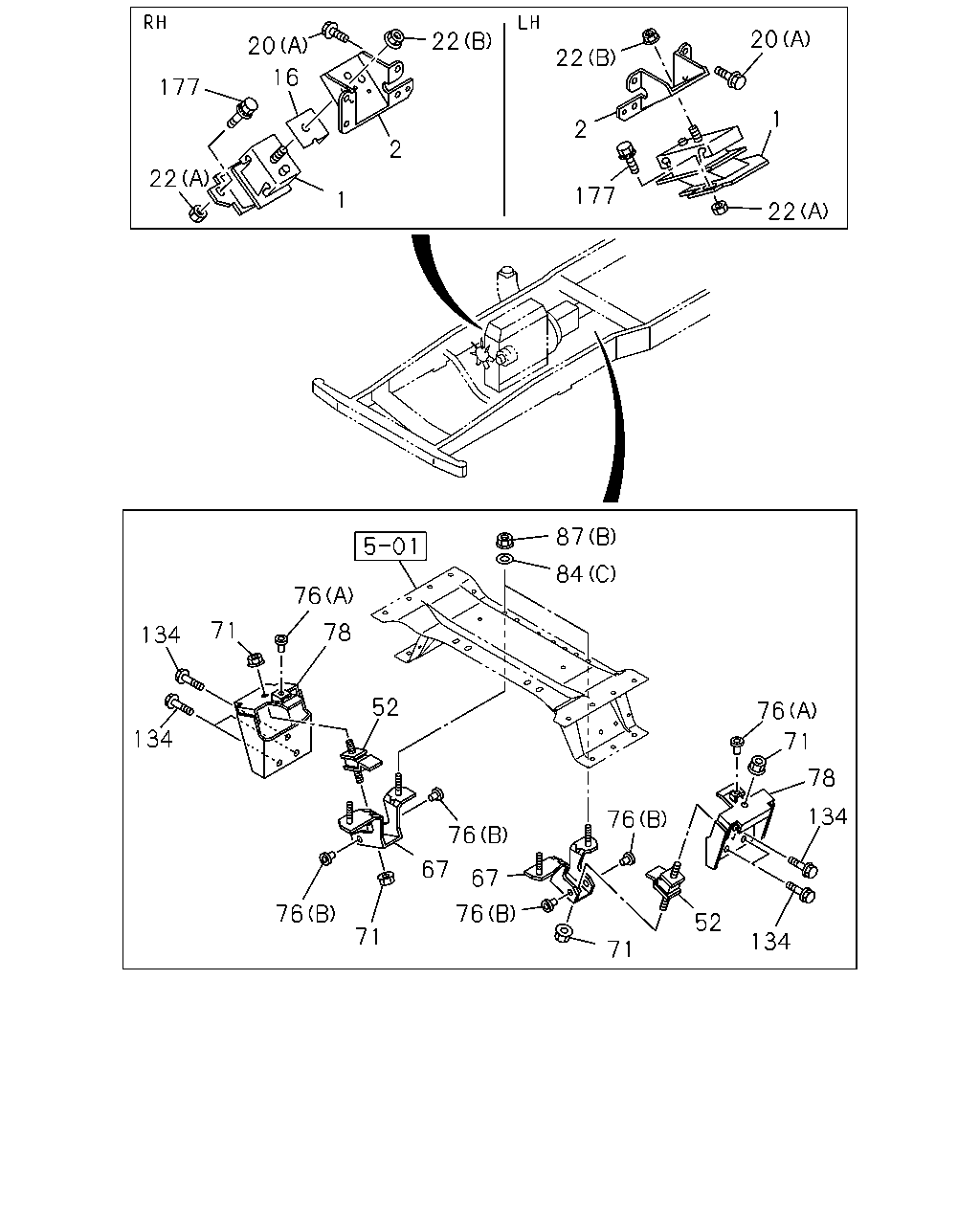

çizim 507715
177 22 1 2 16 20 22 22 2 177 22 1 20 87 84 76 71 78 134 134 52 76 71 76 67 67 76 71 76 52 78 76 71 134 134
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-893-1 01 1 1512- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-895-1 01 1 1512- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97520-598-0 01 1 1512- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97520-599-0 01 1 1512- ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 1512- ●
2 00.029 FOOT; ENG 8-97287-639-2 01 1 1512- ●
2 00.029 FOOT; ENG 8-97300-156-0 01 1 1512- ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT
00.027 		8-94365-486-0 01 1 1512- ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28161-020-0 08 1 1512- ●
20 00.029 BOLT; ENG FOOT
(D) M10X22 W/LK WASHER 		0-50541-022-0 05 1 1512- ●
20 00.029 BOLT; ENG FOOT
(B) M14X25 W/LK WASHER 		0-50541-425-0 01 1 1512- ●
20 00.029 BOLT; ENG FOOT
00.034 (C) M10X28 		8-94329-952-1 02 1 1512- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (B) M12 FLANGE 		0-91180-112-0 02 1 1512- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (A) M10 FLANGE 		0-91180-210-0 04 1 1512- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 1512- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97325-567-1 01 1 1512- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97371-918-1 01 1 1512- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-908-2 01 1 1512- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-94111-909-2 01 1 1512- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE IDN 		0-91180-110-0 04 1 1512- ● ●
76 00.002 STOPPER; ENG MTG RUBBER
(B) 		8-97039-947-1 04 1 1512- ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (A) 		8-94111-904-0 02 1 1512- ● ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-560-1 01 1 1512- ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-561-1 01 1 1512- ●
78 00.029 BRACKET; ENG MTG,RR 8-94133-393-2 01 1 1512- ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
(A) ID=10.5 OD=32 		0-91614-810-0 04 1 1512- ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
(B) ID=10.2 		0-91510-610-0 04 1 1512- ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
(C) ID=10.5 OD=22 		0-91614-610-0 02 1 1512- ●
87 00.029 NUT; ENG MTG RR
03.162 (A) M10 FLANGE IDN 		0-91180-110-0 04 1 1512- ● ●
87 00.029 NUT; ENG MTG RR
00.833 (B) M10 		0-91110-510-0 04 1 1512- ●
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 1512- ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 1512- ● ●
