0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#171321) — 102 parça

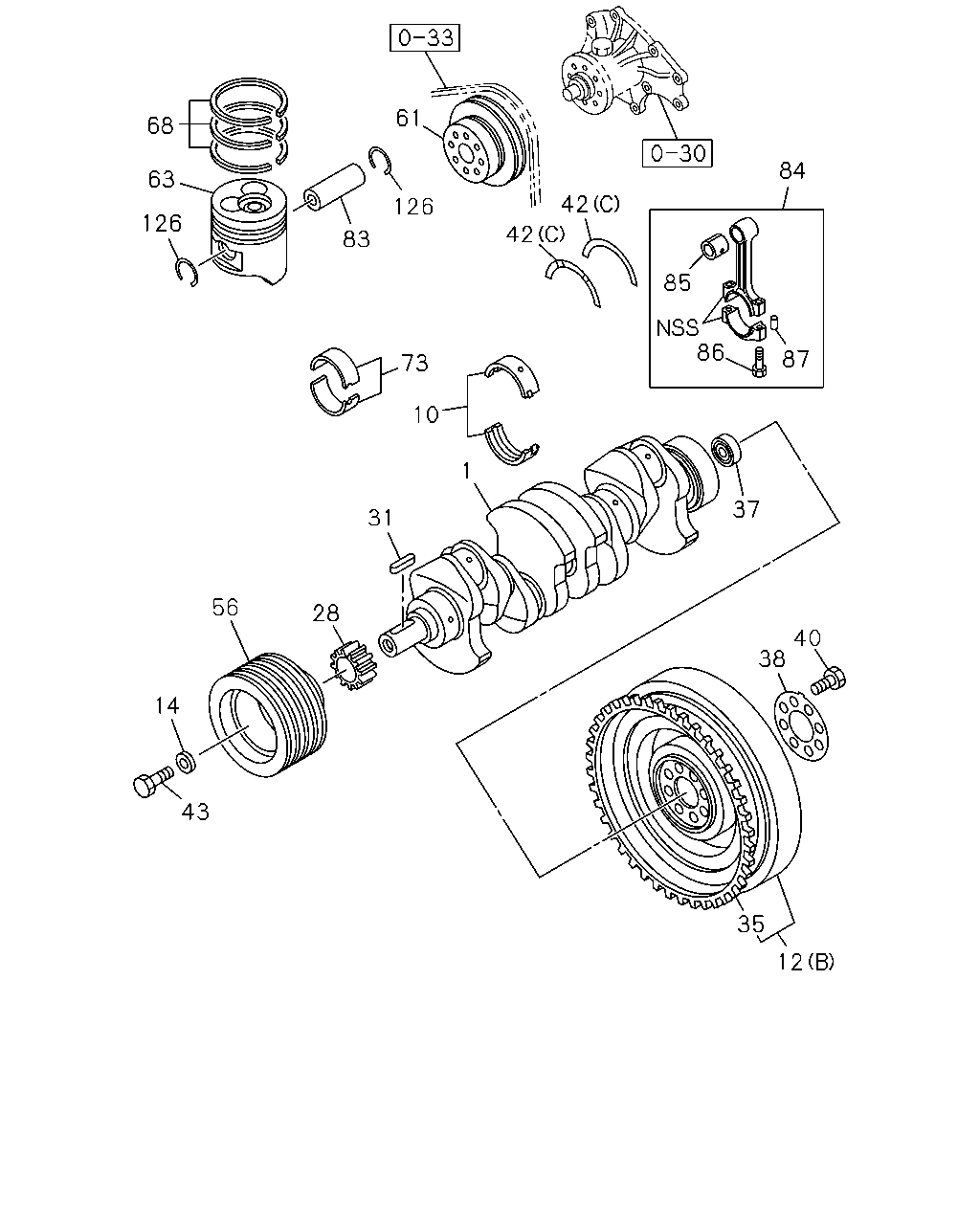

68 63 126 83 126 61 42 42 84 85 86 87 37 73 10 1 31 28 56 14 43 35 12 38 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.646 CRANKSHAFT	8-97112-981-3	01	1	1512-	●
1	00.646 CRANKSHAFT	8-97331-853-1	01	1	1512-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1512-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1512-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1512-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	1512-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	1512-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	1512-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-967-0	05	1	1512-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-968-0	05	1	1512-		●
12	00.666 FLYWHEEL (A)	8-97330-892-1	01	1	1512-	●
12	00.666 FLYWHEEL (B) IDN	8-97034-430-2	01	1	1512-		●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	1512-		●
28	00.728 GEAR; CR/SHF Z=42	8-97109-626-1	01	1	1512-	●
28	00.728 GEAR; CR/SHF Z=21	8-97229-593-1	01	1	1512-		●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	1512-		●
35	00.673 GEAR; RING Z=138	8-97046-366-1	01	1	1512-	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	1512-		●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	1512-		●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT BEST VALUE PARTS	5-87610-165-0	01	1	1512-		●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-98210-373-0	01	1	1512-	●
38	00.862 WASHER; FLYWHEEL ID=50.5 OD=97	8-98171-700-0	01	1	1512-		●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	1512-	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	1512-		●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1512-	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1512-	●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-98040-704-0	02	1	1512-		●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	1512-		●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	1512-	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97204-204-0	01	1	1512-		●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	1512-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	1512-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98209-745-0	04	1	1512-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-610-0	04	1	1512-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-611-0	04	1	1512-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	1512-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-2	04	1	1512-		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	1512-	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	1512-	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1512-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	1512-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	1512-		●
84	00.603 ROD ASM; CONN	8-97135-032-6	04	1	1512-	●
84	00.603 ROD ASM; CONN	8-98013-962-4	04	1	1512-		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	04	1	1512-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97289-264-1	04	1	1512-		●
86	00.623 BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1512-	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1512-		●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	1512-		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	08	1	1512-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	1512-		●

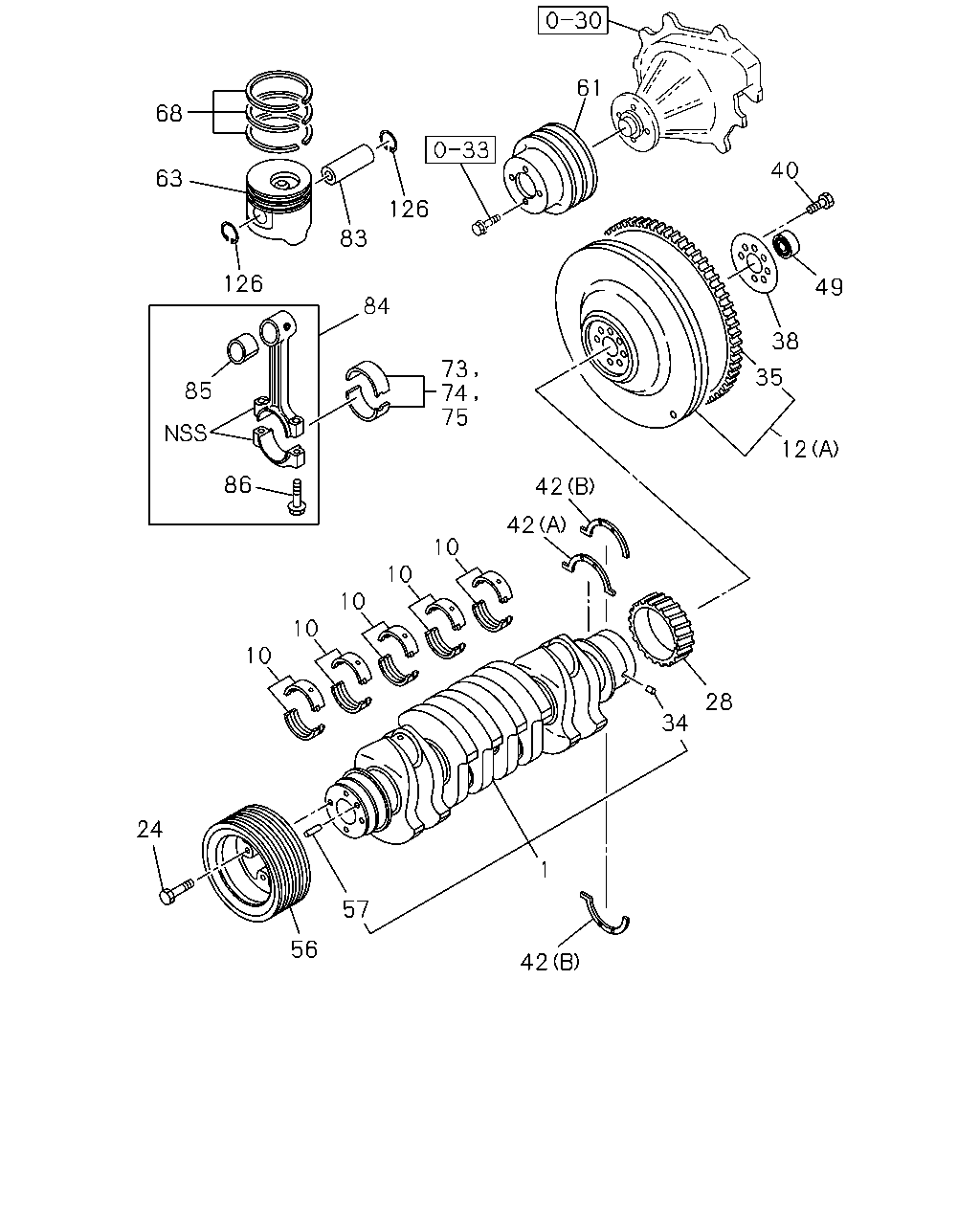

68 63 126 85 86 83 84 126 61 40 49 38 35 12 28 34 1 42 57 56 24 10 10 10 10 10 42 42 75 74 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.646 CRANKSHAFT	8-97112-981-3	01	1	1512-	●
1	00.646 CRANKSHAFT	8-97331-853-1	01	1	1512-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1512-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1512-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1512-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	1512-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	1512-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	1512-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-967-0	05	1	1512-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-968-0	05	1	1512-		●
12	00.666 FLYWHEEL (A)	8-97330-892-1	01	1	1512-	●
12	00.666 FLYWHEEL (B) IDN	8-97034-430-2	01	1	1512-		●
24	00.659 BOLT; DAMPER M16X42	8-97028-733-0	04	1	1512-	●
28	00.728 GEAR; CR/SHF Z=42	8-97109-626-1	01	1	1512-	●
28	00.728 GEAR; CR/SHF Z=21	8-97229-593-1	01	1	1512-		●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1512-	●
35	00.673 GEAR; RING Z=138	8-97046-366-1	01	1	1512-	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	1512-		●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-98210-373-0	01	1	1512-	●
38	00.862 WASHER; FLYWHEEL ID=50.5 OD=97	8-98171-700-0	01	1	1512-		●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	1512-	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	1512-		●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1512-	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1512-	●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-98040-704-0	02	1	1512-		●
49	00.669 BEARING; PILOT	8-98208-431-0	01	1	1512-	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	1512-	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97204-204-0	01	1	1512-		●
57	00.662 PIN; PULLEY 00.862 OD=8 L=20	9-08150-820-0	02	1	1512-	●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	1512-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	1512-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98209-745-0	04	1	1512-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-610-0	04	1	1512-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-611-0	04	1	1512-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	1512-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-2	04	1	1512-		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	1512-	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	1512-	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1512-		●
74	00.616 METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	1512-	●
75	00.616 METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	1512-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	1512-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	1512-		●
84	00.603 ROD ASM; CONN	8-97135-032-6	04	1	1512-	●
84	00.603 ROD ASM; CONN	8-98013-962-4	04	1	1512-		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	04	1	1512-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97289-264-1	04	1	1512-		●
86	00.623 BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1512-	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1512-		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	08	1	1512-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	1512-		●
