◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51642 - NLR/NMR(INDONESIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#171319) — 32 parça

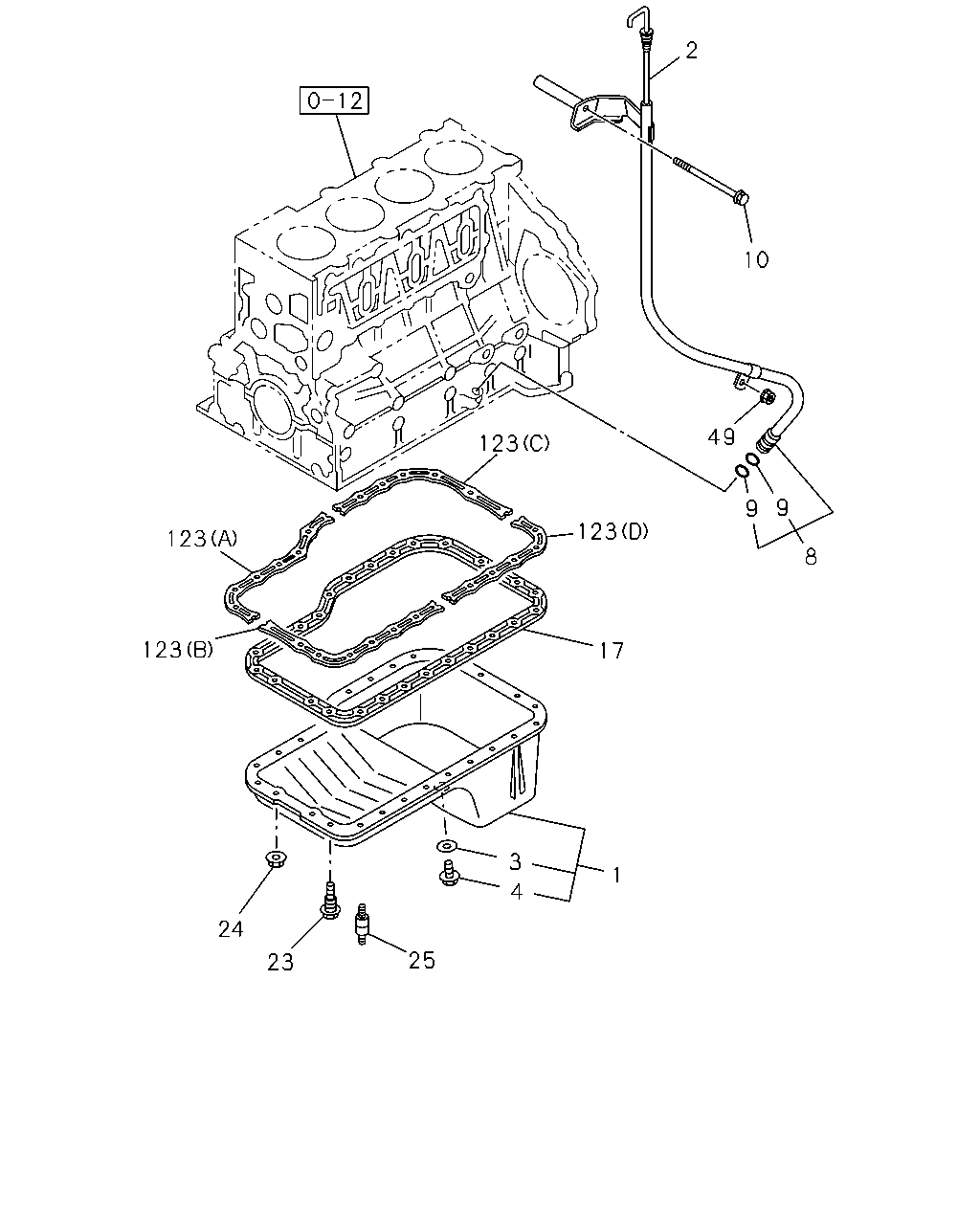

çizim 507034
2 10 49 9 9 8 17 123 123 123 123 24 23 25 4 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.426 PAN ASM; OIL 8-98203-596-0 01 1 1512- ●
1 01.426 PAN ASM; OIL 8-98000-123-0 01 1 1512- ●
2 01.516 GAUGE; OIL LEVEL 8-98210-002-0 01 1 1512- ●
2 01.516 GAUGE; OIL LEVEL 8-97231-295-0 01 1 1512- ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 1512- ● ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 1512- ● ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97200-567-1 01 1 1512- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97221-497-0 01 1 1512- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 01 1 1512- ● ●
10 01.516 BOLT; GUIDE TUBE
09.171 M10X110 FLANGE 		0-28156-011-0 01 1 1512- ●
17 01.429 GASKET; OIL PAN 8-97364-386-0 01 1 1512- ●
23 01.428 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 1512- ●
24 01.453 NUT; OIL PAN
01.062 M8 FLANGE IDN 		0-91180-108-0 13 1 1512- ●
25 01.453 STUD; OIL PAN
M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE 		8-97190-391-0 01 1 1512- ●
25 01.453 STUD; OIL PAN
01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 09 1 1512- ●
49 01.516 NUT; GUIDE TUBE
03.162 M10 FLANGE IDN 		0-91180-110-0 01 1 1512- ●
123 01.516 RUBBER; SEAL OIL
(A) 		8-97186-988-0 01 1 1512- ●
123 01.516 RUBBER; SEAL OIL
(B) 		8-97186-994-0 01 1 1512- ●
123 01.516 RUBBER; SEAL OIL
(C) 		8-97186-998-0 01 1 1512- ●
123 01.516 RUBBER; SEAL OIL
(D) 		8-97187-000-0 01 1 1512- ●

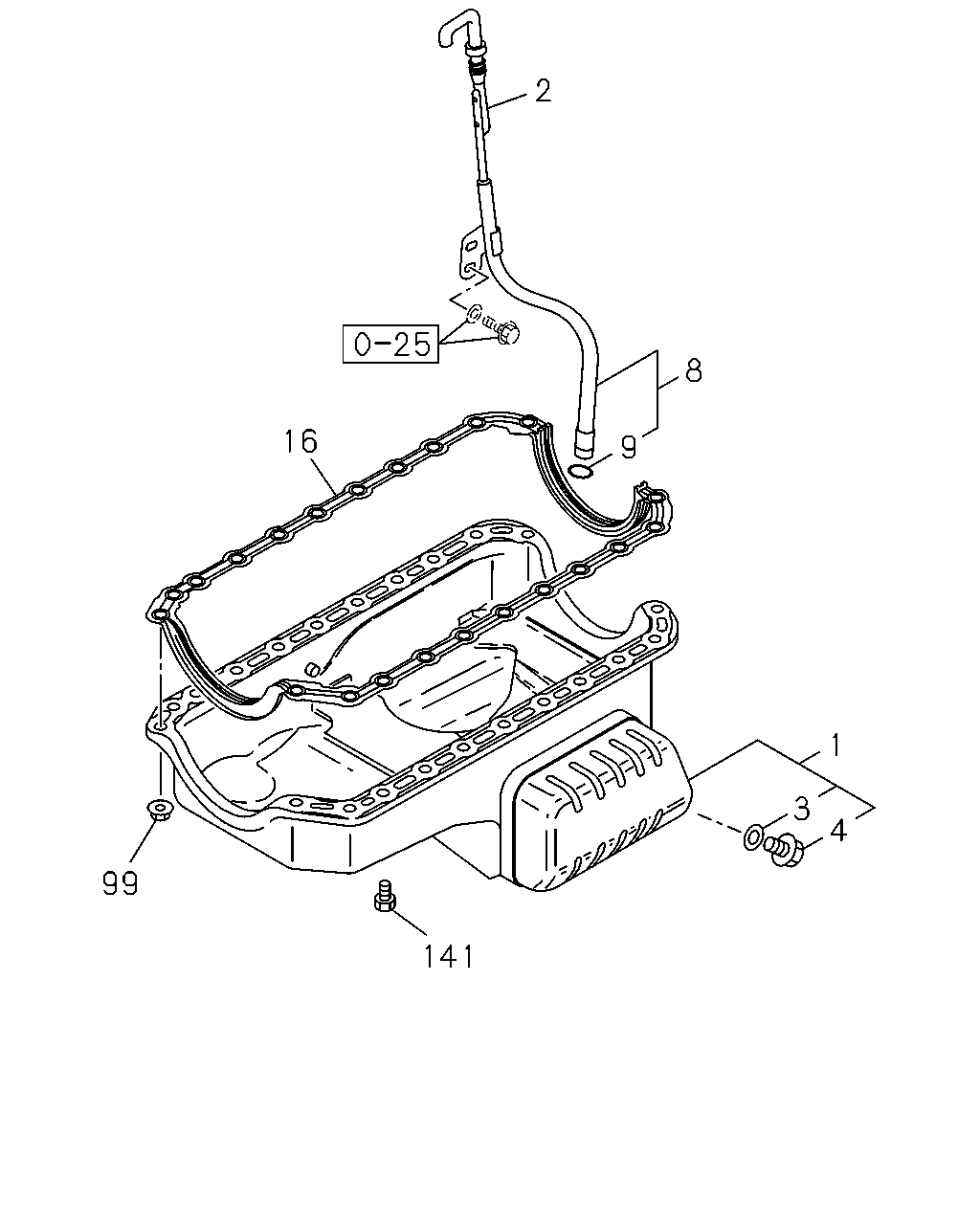

çizim 507035
2 8 9 16 99 141 3 1 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.426 PAN ASM; OIL 8-98203-596-0 01 1 1512- ●
1 01.426 PAN ASM; OIL 8-98000-123-0 01 1 1512- ●
2 01.516 GAUGE; OIL LEVEL 8-98210-002-0 01 1 1512- ●
2 01.516 GAUGE; OIL LEVEL 8-97231-295-0 01 1 1512- ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 1512- ● ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 1512- ● ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97200-567-1 01 1 1512- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97221-497-0 01 1 1512- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 01 1 1512- ● ●
16 01.429 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97080-194-0 01 1 1512- ●
99 01.453 NUT; BRKT TO OIL PAN FIX
06.164 M8 FLANGE 		5-09440-010-0 10 1 1512- ●
141 01.428 BOLT; BRKT TO OIL PAN FIX 8-94133-973-2 12 1 1512- ●
