0-12 — CYLINDER BLOCK (#171318) — 101 parça

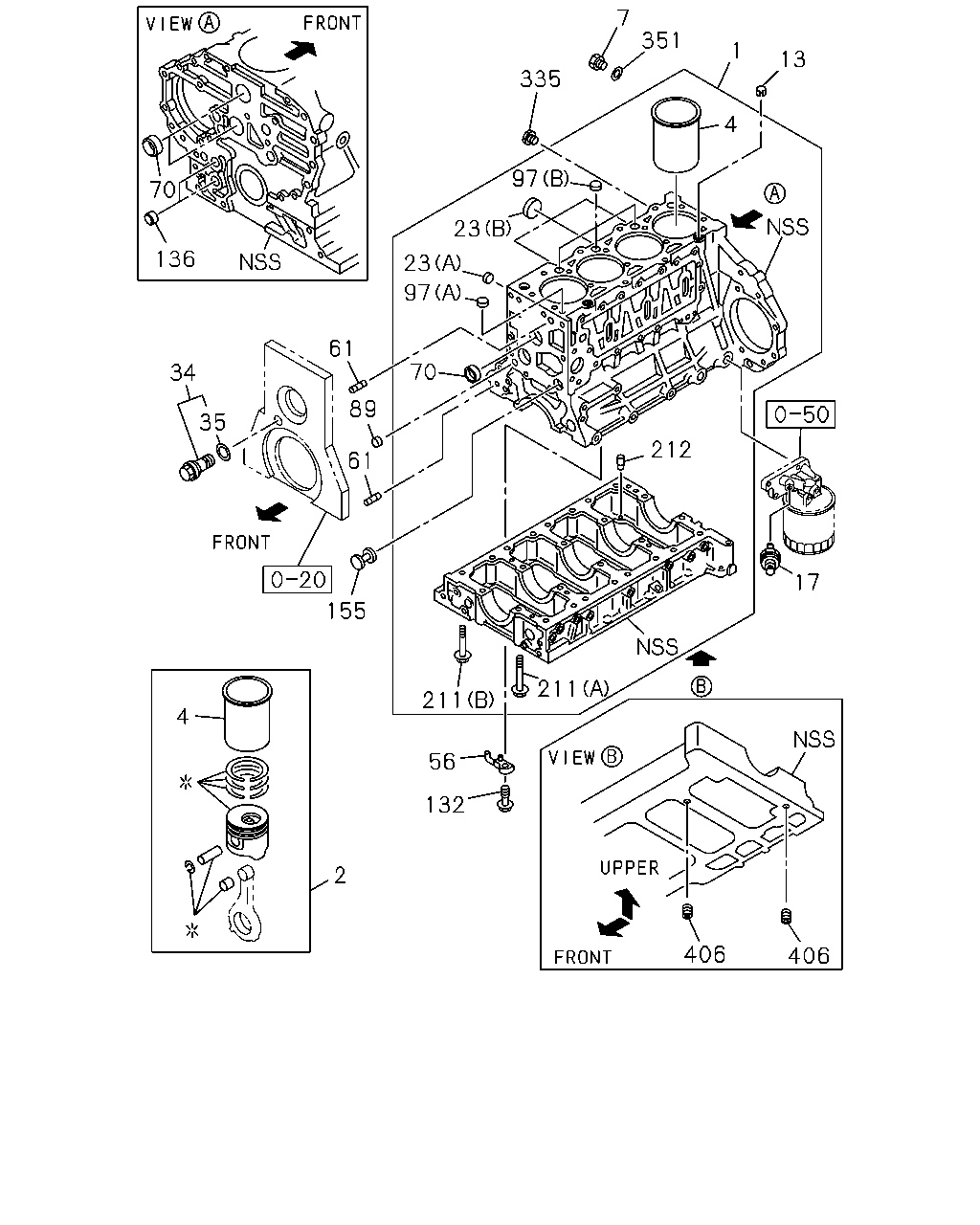

13 1 351 7 335 4 97 23 23 97 70 89 61 61 155 212 17 136 70 34 35 4 2 132 211 56 211 406 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.033 BLOCK ASM; CYL	8-98204-534-0	01	1	1512-	●
1	00.033 BLOCK ASM; CYL	8-97352-707-2	01	1	1512-		●
2	00.030 LINER SET; ENG CYL OD GRADE=1X,ID GRADE=NON	5-87816-317-0	04	1	1512-	●
2	00.030 LINER SET; ENG CYL OD GRADE=3X,ID GRADE=NON	5-87816-318-0	04	1	1512-	●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87813-193-2	04	1	1512-		●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87813-194-2	04	1	1512-		●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87813-195-2	04	1	1512-		●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87813-196-2	04	1	1512-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-048-1	04	1	1512-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-049-1	04	1	1512-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	1512-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	1512-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	1512-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	1512-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	1512-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	1512-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	1512-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	1512-		●
7	00.034 PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	1512-	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1512-		●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	1512-	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1512-		●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	1512-	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	1512-		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	1512-	●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	1512-	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (E) OD=18	5-11219-008-0	03	1	1512-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	1512-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	1512-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	1512-		●
34	01.609 VALVE; OIL RELIEF 00.213	8-97328-859-0	01	1	1512-	●
35	01.609 GASKET; RELIEF VLV ID=23.3	8-94173-412-0	01	1	1512-	●
56	01.519 JET; OIL,PISTON COOLING	8-97213-294-1	04	1	1512-	●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	1512-	●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	1512-		●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	1512-	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	1512-		●
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=20	9-11129-128-0	03	1	1512-	●
97	00.034 CUP; SEALING 00.253 (A) OD=16	5-11129-006-0	01	1	1512-	●
97	00.034 CUP; SEALING 00.253 (B) OD=22	8-97209-609-0	03	1	1512-	●
132	01.519 VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	1512-	●
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1512-	●
155	01.531 PLUG; OIL GALLERY END	8-98209-879-0	01	1	1512-	●
211	01.428 BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	1512-	●
211	01.428 BOLT; CRANKCASE 00.293 (A) M14X115 W/FLANGE	8-97077-638-0	10	1	1512-	●
212	01.428 PIN; CRANKCASE 04.510 OD=10 L=20	8-97135-423-0	02	1	1512-	●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97329-617-0	01	1	1512-	●
351	01.531 GASKET; COCK,WATER DRAIN ID=10.2 OD=15.2	1-09630-083-0	01	1	1512-	●
406	01.531 PLUG; CRANK CASE 01.073 PT3/8	5-09605-005-0	02	1	1512-	●

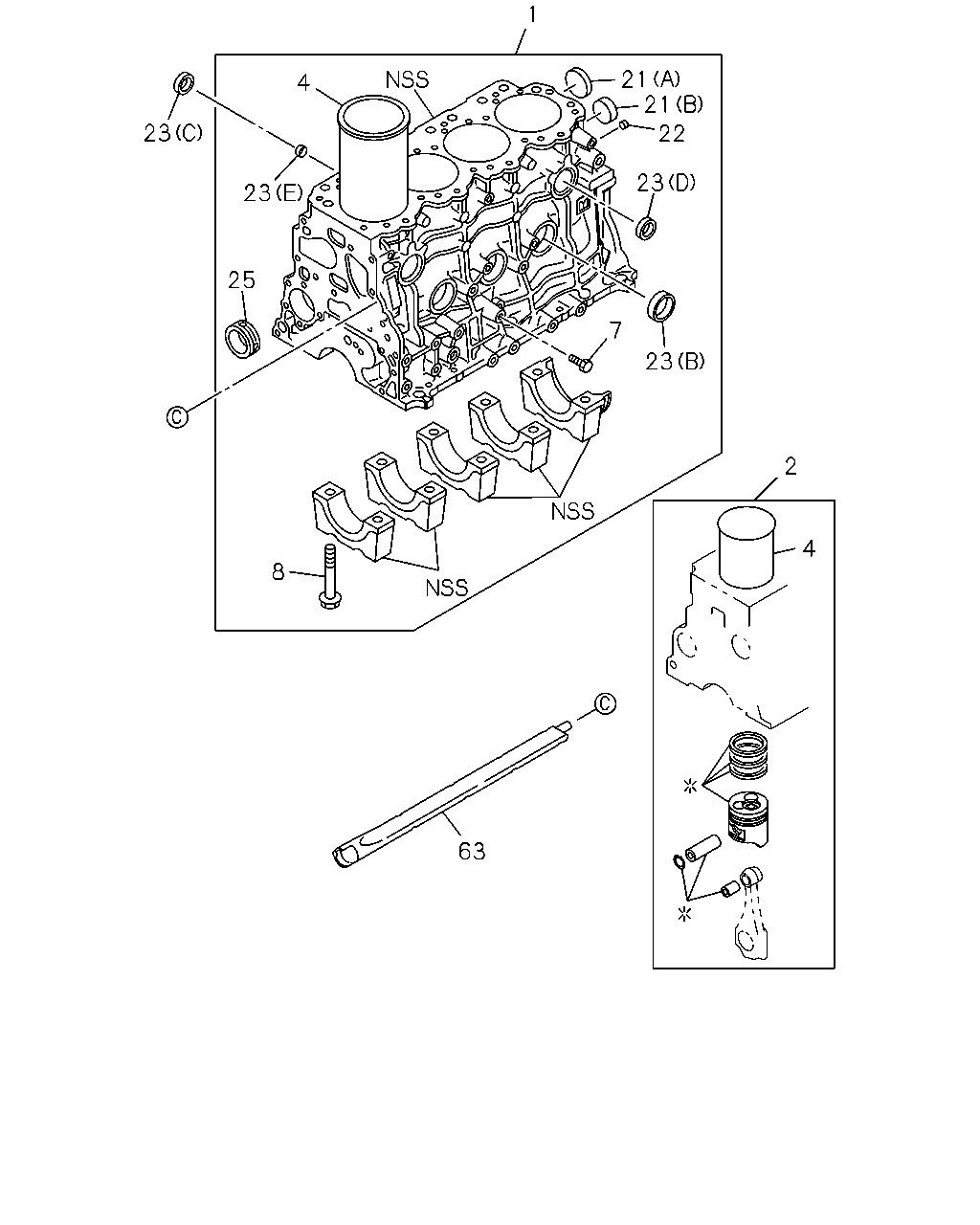

21 22 21 23 23 7 1 4 23 23 25 8 63 4 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.033 BLOCK ASM; CYL	8-98204-534-0	01	1	1512-	●
1	00.033 BLOCK ASM; CYL	8-97352-707-2	01	1	1512-		●
2	00.030 LINER SET; ENG CYL OD GRADE=1X,ID GRADE=NON	5-87816-317-0	04	1	1512-	●
2	00.030 LINER SET; ENG CYL OD GRADE=3X,ID GRADE=NON	5-87816-318-0	04	1	1512-	●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87813-193-2	04	1	1512-		●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87813-194-2	04	1	1512-		●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87813-195-2	04	1	1512-		●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87813-196-2	04	1	1512-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-048-1	04	1	1512-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-049-1	04	1	1512-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	1512-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	1512-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	1512-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	1512-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	1512-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	1512-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	1512-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	1512-		●
7	00.034 PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	1512-	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1512-		●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1512-		●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1512-		●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1512-		●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	1512-		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	1512-	●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	1512-	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (E) OD=18	5-11219-008-0	03	1	1512-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	1512-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	1512-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	1512-		●
25	00.539 METAL; CM/SHF CENTER & REAR	8-97378-147-0	02	1	1512-		●
25	00.539 METAL; CM/SHF FRONT	8-97378-148-0	01	1	1512-		●
63	01.153 DUCT; WATER,C/BL	8-94419-436-2	01	1	1512-		●

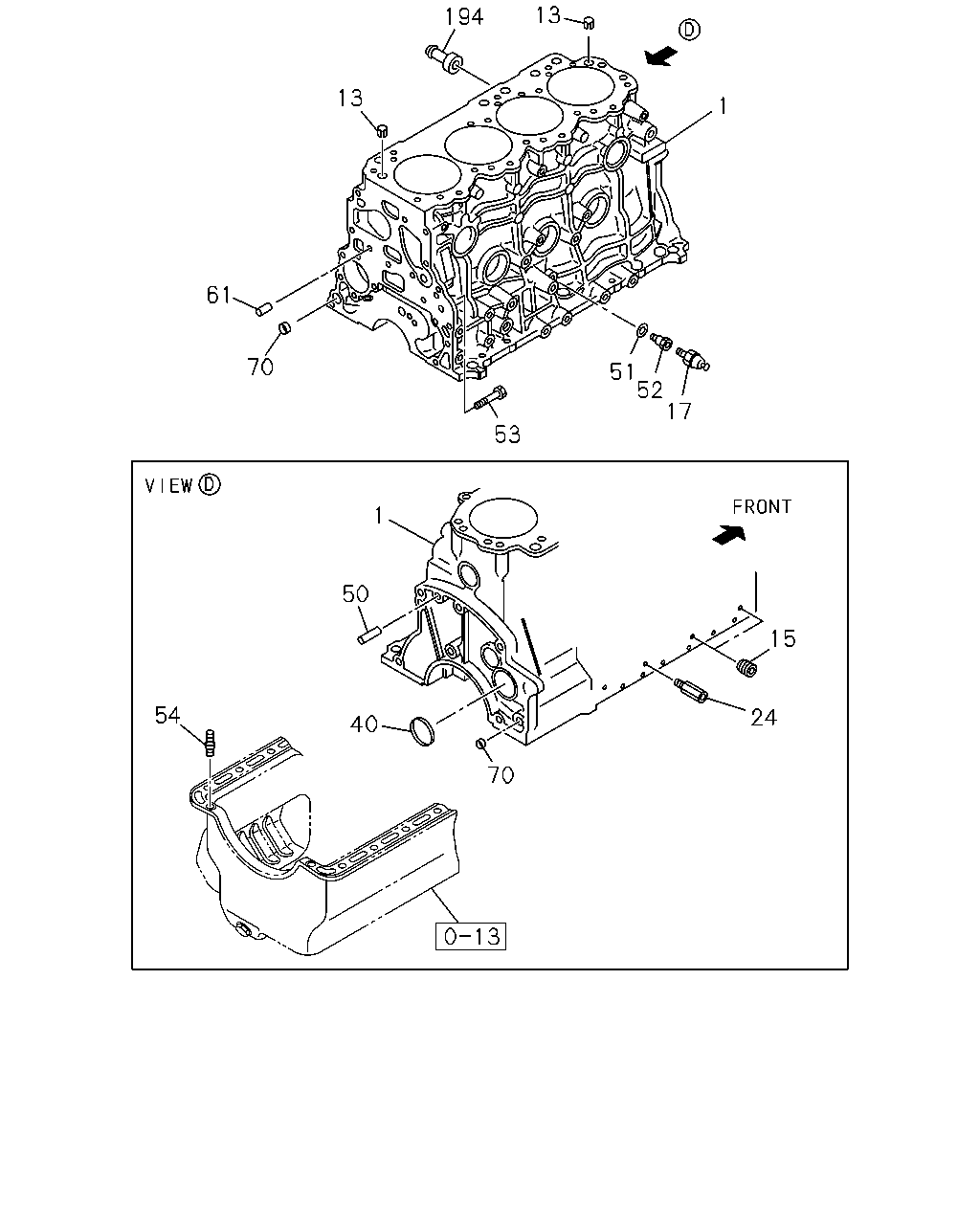

13 194 13 61 70 53 51 17 52 1 1 50 40 70 54 15 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.033 BLOCK ASM; CYL	8-98204-534-0	01	1	1512-	●
1	00.033 BLOCK ASM; CYL	8-97352-707-2	01	1	1512-		●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	1512-	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1512-		●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	02	1	1512-		●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	1512-	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	1512-		●
24	01.531 NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	1512-		●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-1	01	1	1512-		●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	1512-		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	1512-		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	1512-		●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	1512-		●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	1512-		●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	1512-	●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	1512-		●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	1512-	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	1512-		●
194	00.439 PIPE; OIL DRAIN,C/BL	8-97137-781-0	01	1	1512-		●
