Isuzu WW
▶
TRUCKS
▶
FTR
▶
11731 - FTR INDONESIA
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶
2-01 — CLUTCH
(#171299) — 44 parça
◀

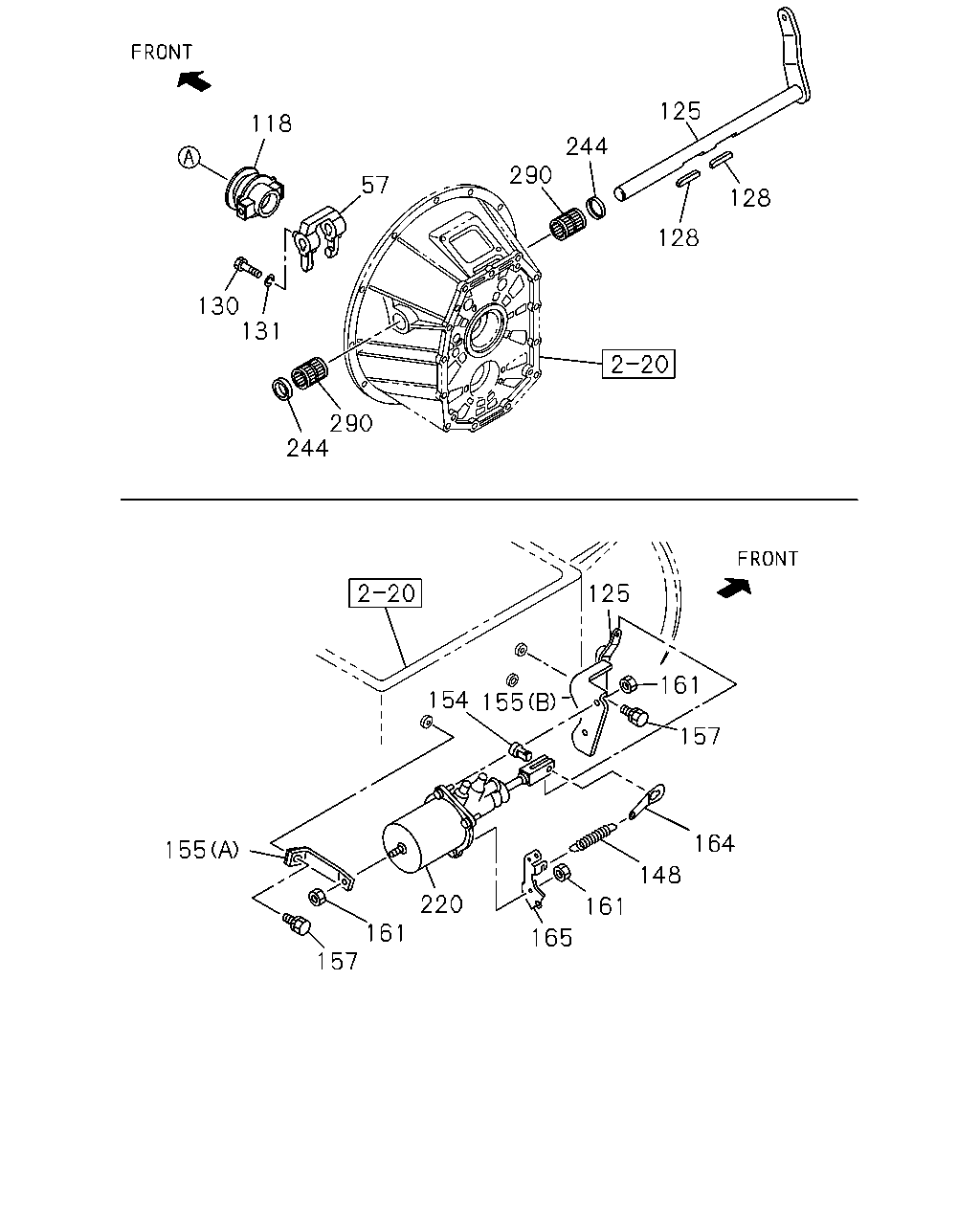

[201A] SHAFT AND CLUTCH BOOSTER (19 parça)
[201A] DISC AND PLATE (25 parça)
▶
118
57
131
130
244
290
290
244
125
128
128
154
155
125
161
157
164
148
161
165
220
161
157
155
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
FORK; SHIFT,CLU
1-31341-048-2
01
1
1512-
118
BEARING; CLU RELEASE
1-31310-026-0
01
1
1512-
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-109-0
01
1
1512-
125
SHAFT; CLU
1-31342-335-0
01
1
1512-
128
KEY; FEATHER,CLU SHAFT
9-09867-008-0
02
1
1512-
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
1512-
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
1512-
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
1512-
154
PIN; JAW JOINT
1-31424-009-0
01
1
1512-
155
BRACKET; MINIPACK
(A)
1-31429-475-1
01
1
1512-
155
BRACKET; MINIPACK
(B)
1-31429-478-0
01
1
1512-
157
BOLT; BRKT
M10X25 FLANGE
0-28751-025-0
03
1
1512-
161
NUT; BRKT
M10 FLANGE
0-91180-210-0
05
1
1512-
164
EYE; SPRING
1-31426-041-0
01
1
1512-
165
BRACKET; SPR EYE,MINIPACK,FLEX TUBE
1-47477-789-0
01
1
1512-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-511-2
01
1
1512-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS
1-87610-089-0
01
1
1512-
244
SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T).
1-09625-002-0
02
1
1512-
290
BEARING; NEEDLE
NTN
1-09811-002-1
02
1
1512-
140
1
172
85
85
96
96
105
106
101
102
98
102
101
2
91
84
92
91
88
89
89
109
137
102
101
85
85
96
96
98
222
102
101
105
106
107
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
14"
1-31260-040-1
01
1
1512-
1
DISC; CLUTCH
BEST VALUE PARTS
1-87610-140-0
01
1
1512-
2
PLATE ASM; PRESSURE,CLU
1-31220-411-0
01
1
1512-
2
PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS
1-87610-147-0
01
1
1512-
84
PLATE; PRESSURE
14"
1-31221-136-0
01
1
1512-
85
BUSHING; RELEASE LEVER
9-31239-116-0
08
1
1512-
88
COVER SUB ASM; CLU
1-31211-038-0
01
1
1512-
89
PLATE; STRAP
1-31229-001-0
08
1
1512-
91
SEAT; SPR
(A) ID=37 H=25
1-31219-012-0
08
1
1512-
91
SEAT; SPR
(B) ID=37 H=15
1-31219-013-0
08
1
1512-
92
SPRING; CLU
1-31214-095-0
08
1
1512-
96
PIN; RELEASE LEVER
(A) L=49.0
1-31232-005-0
04
1
1512-
96
PIN; RELEASE LEVER
(B) L=57.0
1-31232-014-0
04
1
1512-
98
SPRING; RETURN
1-31233-003-0
04
1
1512-
101
WASHER; RELEASE LEVER
IDN
1-31239-058-0
08
1
1512-
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08113-022-0
08
1
1512-
105
NUT; SUPPORT
IDN
1-31235-014-0
04
1
1512-
106
PLATE; LK,LEVER SUPPORT
(B)
1-31235-008-0
04
1
1512-
106
PLATE; LK,LEVER SUPPORT
(A)
1-31239-019-0
04
1
1512-
107
BOLT; LK PLATE
IDN
1-31239-061-0
08
1
1512-
109
WASHER; LK,STRAP
ID=10.2
0-91510-510-0
04
1
1512-
137
BOLT; CLU COVER
M10X20 FLANGE
0-28151-020-0
12
1
1512-
140
PIN; STRAIGHT
L=25
8-94410-361-0
02
1
1512-
172
LEVER KIT; RELEASE,CLU
1-87831-170-1
01
1
1512-
222
BOLT; STRAP
IDN
1-31239-059-0
04
1
1512-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
