Sayfa 1-41 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11731 - FTR INDONESIA ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶

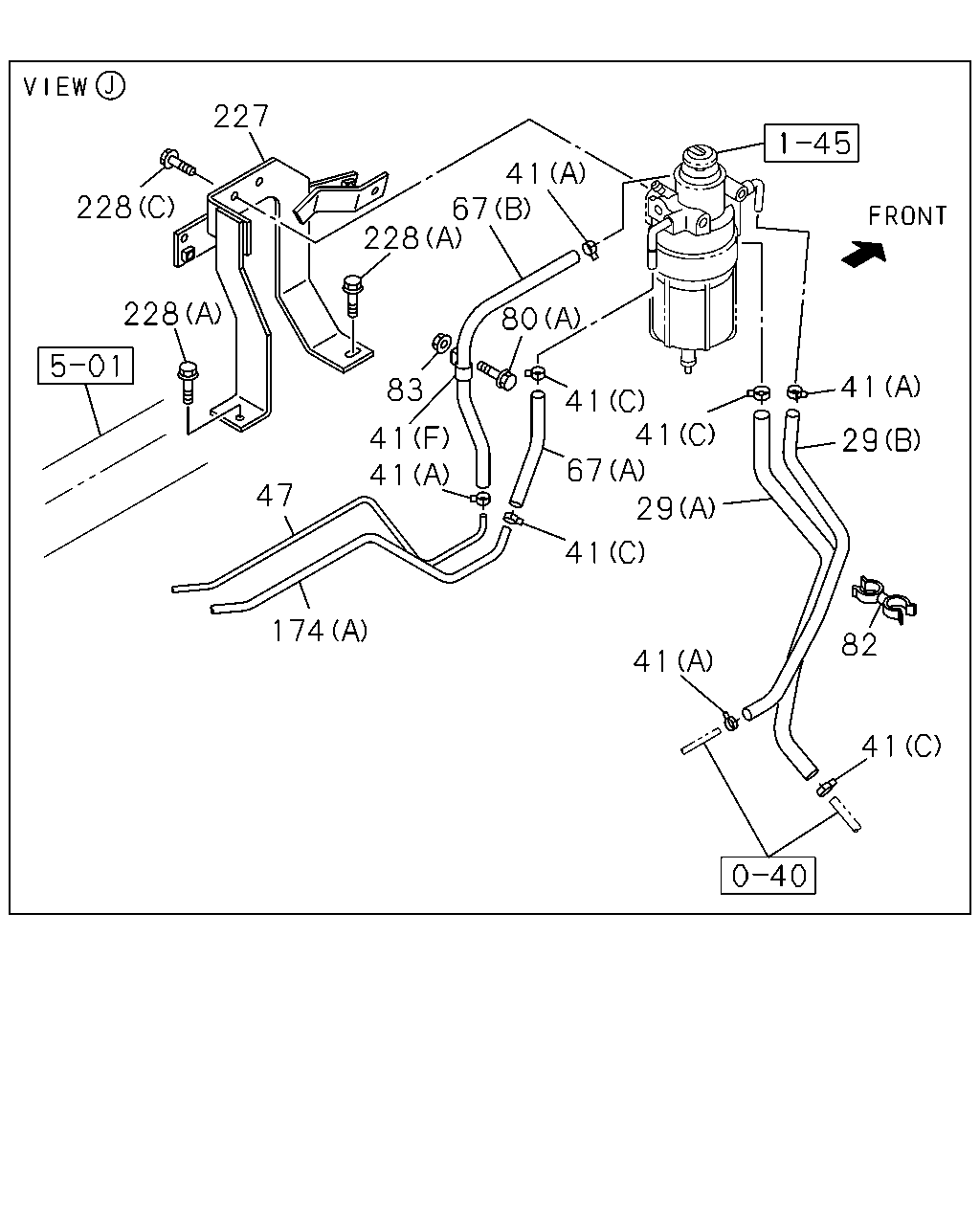

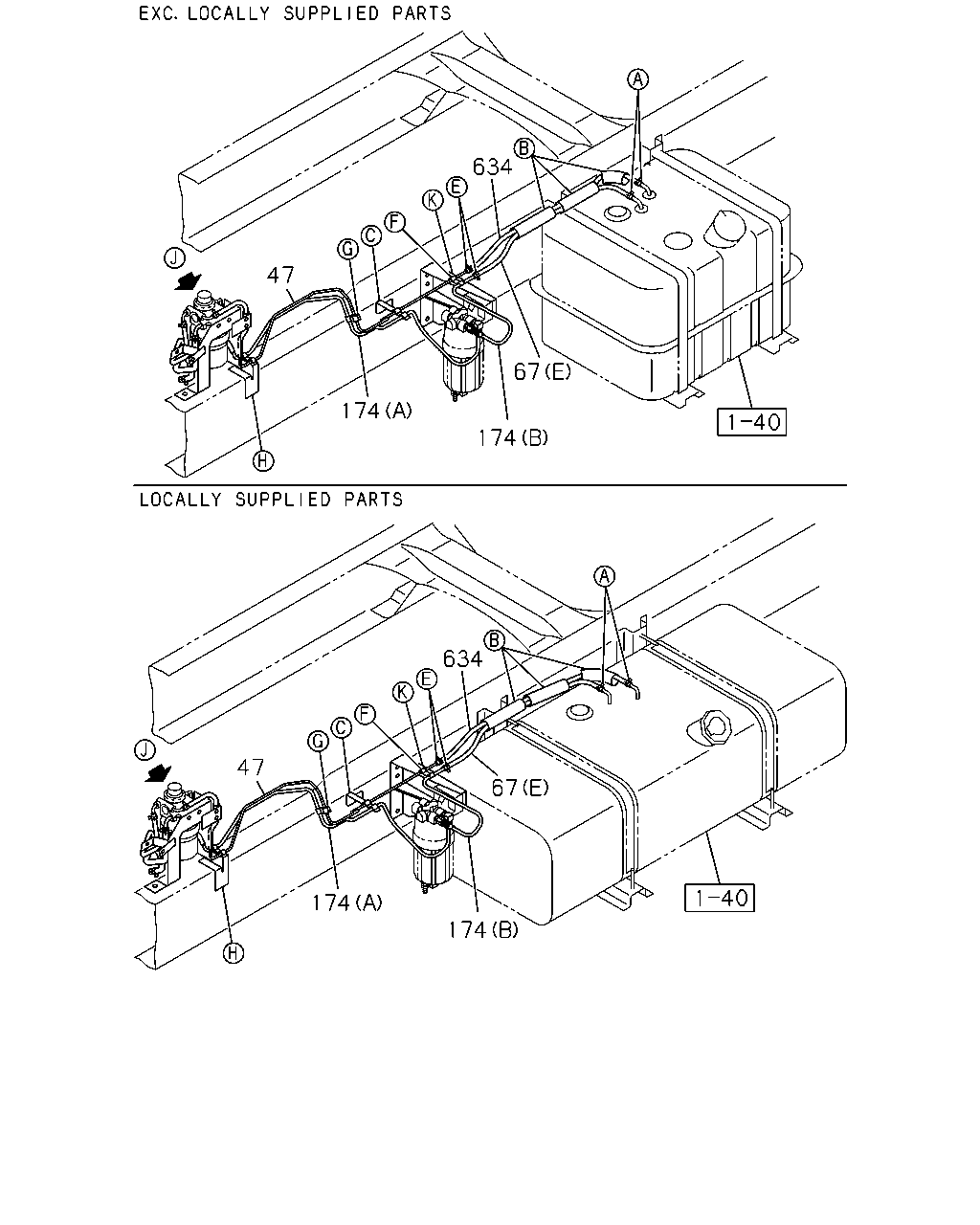

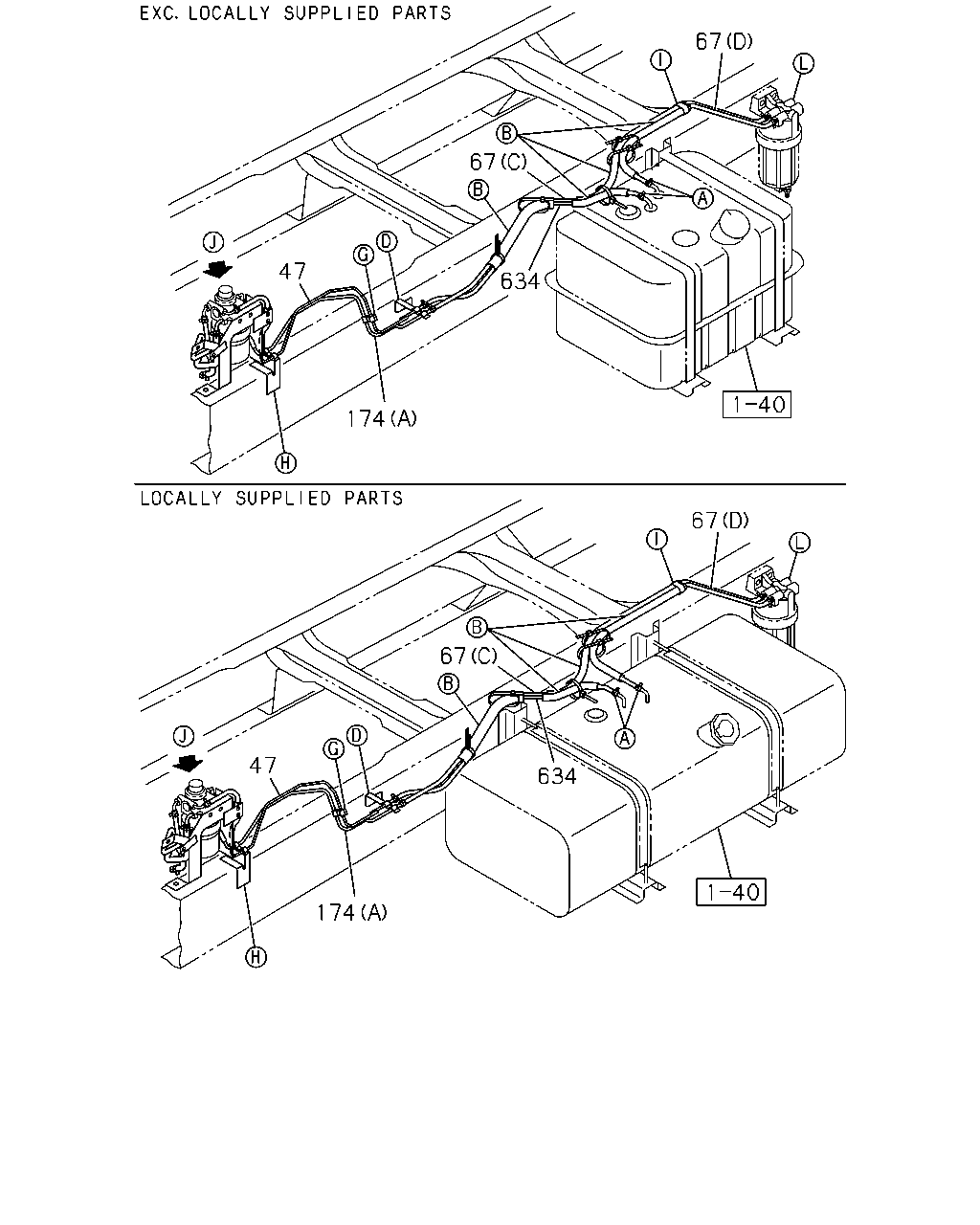

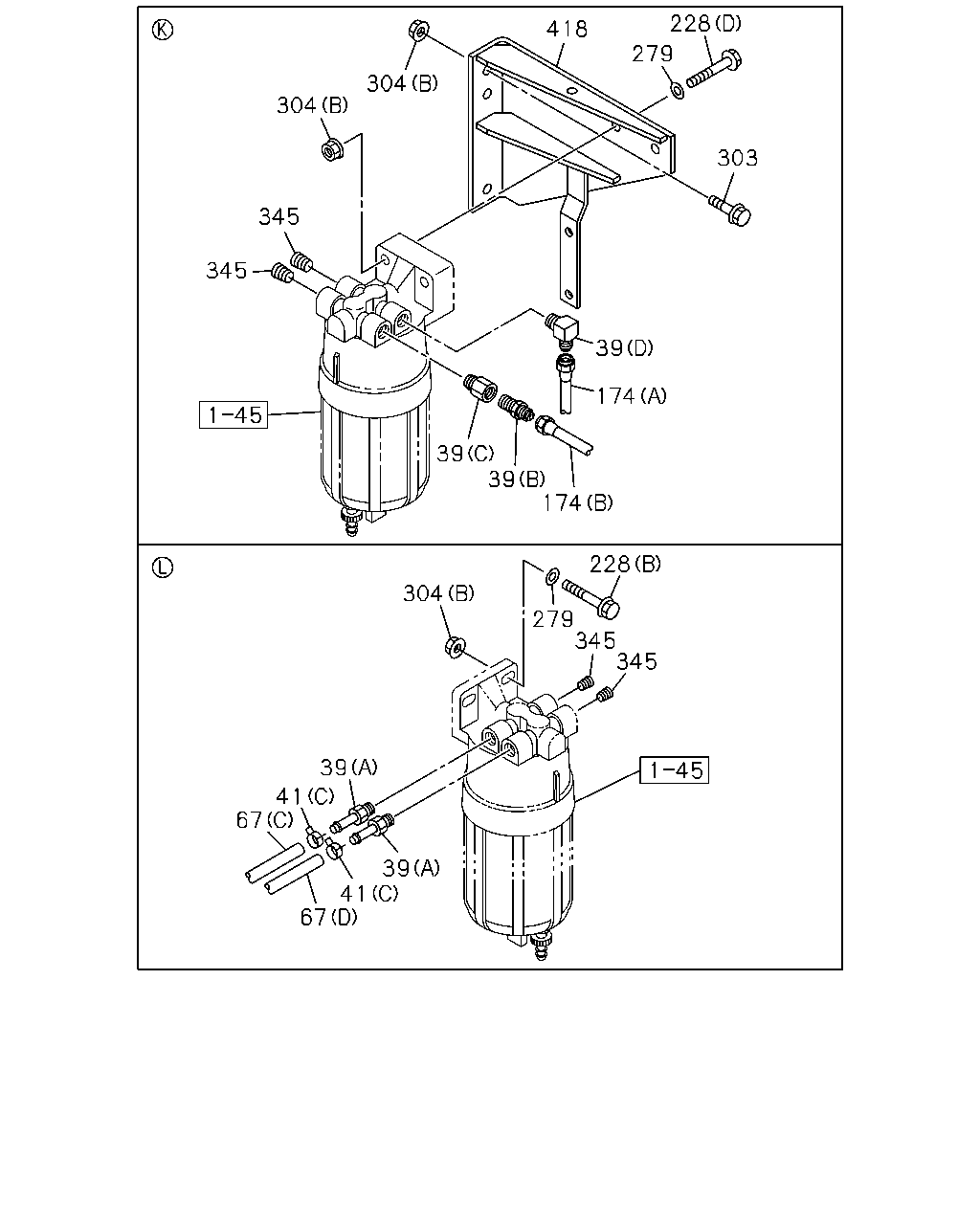

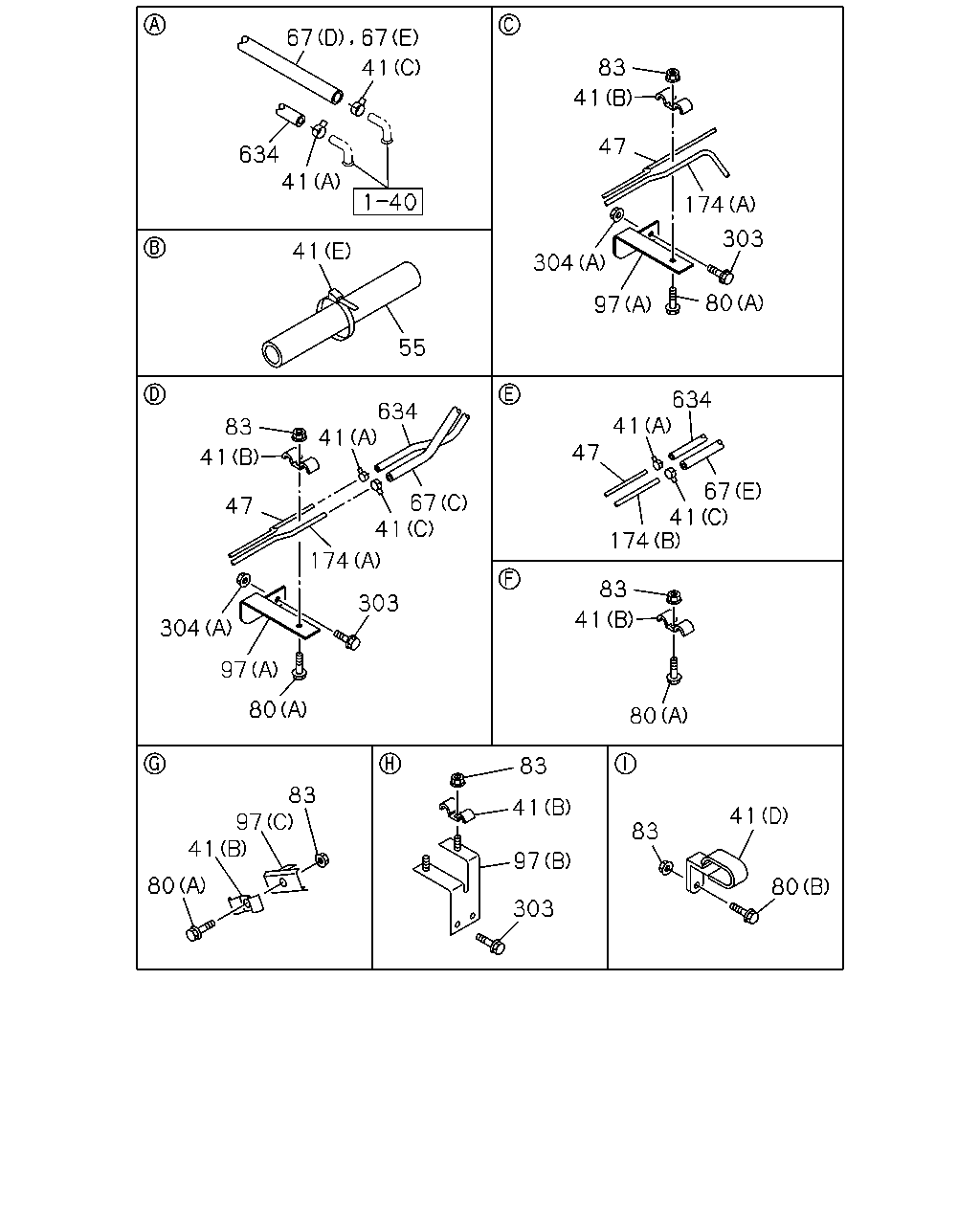

1-41 — FUEL PIPING; CHASSIS (#171294) — 130 parça

634 67 174 47 174 47 634 67 174 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	PIPE; FUEL,RETURN WHEEL BASE 3200MM(32W) L=1432 SERVICED BY L=1550	1-47428-851-0	01	1	1512-
47	PIPE; FUEL,RETURN WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) L=1058	8-98188-895-0	01	1	1512-
67	HOSE; FUEL,DELIVERY (B) L=310	0-01508-310-0	01	1	1512-
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-
67	HOSE; FUEL,DELIVERY WHEEL BASE 3200MM(32W) (E) L=800 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (D) IDN	8-98286-079-0	01	1	1512-
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (C) IDN	8-98286-080-0	01	1	1512-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3200MM(32W) (B) L=489 IDN	8-98248-098-0	01	1	1512-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3200MM(32W) (A) IDN	8-98315-276-0	01	1	1512-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (A)	8-98188-894-0	01	1	1512-
634	HOSE; RUBBER RETURN WHEEL BASE 3200MM(32W) L=730 SERVICED BY L=3000	0-01558-300-0	01	1	1512-
634	HOSE; RUBBER RETURN WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) L=1100 SERVICED BY L=3000	0-01558-300-0	01	1	1512-

67 39 39 41 67 345 345 279 304 228 174 39 39 174 39 303 228 279 418 304 304 345 345 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1512-
39	PIPE; FUEL WHEEL BASE 3200MM(32W) (B) M16 & PT3/8 STRAIGHT	1-09650-233-1	01	1	1512-
39	PIPE; FUEL WHEEL BASE 3200MM(32W) (D) M16 & NPTF3/8 ELBOW	1-09650-447-0	01	1	1512-
39	PIPE; FUEL WHEEL BASE 3200MM(32W) (C) NPTF3/8 & RC3/8	1-09660-548-0	01	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=15 H=24 L=20	1-09700-606-0	01	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16 IDN	8-94238-568-0	06	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13 IDN	8-94238-571-0	06	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3200MM(32W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3200MM(32W) (E) L=250 IDN	5-09707-030-1	03	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (D) ID=24 & 24 L=49	1-09701-018-0	01	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (D) ID=15 & 19 H=33 L=25	1-09701-317-0	02	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (E) L=250 IDN	5-09707-030-1	04	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (C) ID=16 IDN	8-94238-568-0	02	1	1512-
67	HOSE; FUEL,DELIVERY (B) L=310	0-01508-310-0	01	1	1512-
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-
67	HOSE; FUEL,DELIVERY WHEEL BASE 3200MM(32W) (E) L=800 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (D) IDN	8-98286-079-0	01	1	1512-
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (C) IDN	8-98286-080-0	01	1	1512-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3200MM(32W) (B) L=489 IDN	8-98248-098-0	01	1	1512-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3200MM(32W) (A) IDN	8-98315-276-0	01	1	1512-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (A)	8-98188-894-0	01	1	1512-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1512-
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE IDN	0-28650-820-0	02	1	1512-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3200MM(32W) (D) M10X50 FLANGE	0-28051-050-0	02	1	1512-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (B) M10X60 FLANGE IDN	0-28051-060-0	02	1	1512-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1512-
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	04	1	1512-
303	BOLT; BRKT M8X40 FLANGE	0-28650-840-0	01	1	1512-
303	BOLT; BRKT WHEEL BASE 3200MM(32W) M10X35 FLANGE IDN	0-28651-035-0	02	1	1512-
304	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	03	1	1512-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1512-
304	NUT; BRKT WHEEL BASE 3200MM(32W) (B) M10 FLANGE	0-91180-210-0	02	1	1512-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1512-
418	BRACKET; PRE FUEL FILTER WHEEL BASE 3200MM(32W)	8-98136-381-0	01	1	1512-

227 228 228 47 174 41 41 83 80 41 67 41 41 82 41 29 41 41 41 67 228 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL (B)	8-98196-274-0	01	1	1512-
29	HOSE; FUEL (A) IDN	8-98286-146-0	01	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=15 H=24 L=20	1-09700-606-0	01	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16 IDN	8-94238-568-0	06	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13 IDN	8-94238-571-0	06	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3200MM(32W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3200MM(32W) (E) L=250 IDN	5-09707-030-1	03	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (D) ID=24 & 24 L=49	1-09701-018-0	01	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (D) ID=15 & 19 H=33 L=25	1-09701-317-0	02	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (E) L=250 IDN	5-09707-030-1	04	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (C) ID=16 IDN	8-94238-568-0	02	1	1512-
47	PIPE; FUEL,RETURN WHEEL BASE 3200MM(32W) L=1432 SERVICED BY L=1550	1-47428-851-0	01	1	1512-
47	PIPE; FUEL,RETURN WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) L=1058	8-98188-895-0	01	1	1512-
67	HOSE; FUEL,DELIVERY (B) L=310	0-01508-310-0	01	1	1512-
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-
67	HOSE; FUEL,DELIVERY WHEEL BASE 3200MM(32W) (E) L=800 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (D) IDN	8-98286-079-0	01	1	1512-
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (C) IDN	8-98286-080-0	01	1	1512-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3200MM(32W) (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1512-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1512-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (B) M8X30 FLANGE	0-28650-830-0	03	1	1512-
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	1512-
83	NUT; CLIP,FUEL TANK WHEEL BASE 3200MM(32W) M8 FLANGE IDN	0-91180-108-0	04	1	1512-
83	NUT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) M8 FLANGE IDN	0-91180-108-0	06	1	1512-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3200MM(32W) (B) L=489 IDN	8-98248-098-0	01	1	1512-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3200MM(32W) (A) IDN	8-98315-276-0	01	1	1512-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (A)	8-98188-894-0	01	1	1512-
227	BRACKET; FUEL SEDIMENTER IDN	8-98179-497-0	01	1	1512-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1512-
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE IDN	0-28650-820-0	02	1	1512-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3200MM(32W) (D) M10X50 FLANGE	0-28051-050-0	02	1	1512-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (B) M10X60 FLANGE IDN	0-28051-060-0	02	1	1512-

67 67 634 41 41 41 55 304 80 97 303 174 47 41 83 83 634 41 41 47 174 67 41 303 80 97 304 634 41 47 67 41 174 83 41 80 41 83 80 303 97 41 83 83 97 41 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=15 H=24 L=20	1-09700-606-0	01	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16 IDN	8-94238-568-0	06	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13 IDN	8-94238-571-0	06	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3200MM(32W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3200MM(32W) (E) L=250 IDN	5-09707-030-1	03	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (D) ID=24 & 24 L=49	1-09701-018-0	01	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (D) ID=15 & 19 H=33 L=25	1-09701-317-0	02	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (E) L=250 IDN	5-09707-030-1	04	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (C) ID=16 IDN	8-94238-568-0	02	1	1512-
47	PIPE; FUEL,RETURN WHEEL BASE 3200MM(32W) L=1432 SERVICED BY L=1550	1-47428-851-0	01	1	1512-
47	PIPE; FUEL,RETURN WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) L=1058	8-98188-895-0	01	1	1512-
55	COVER; PIPE,FUEL TANK WHEEL BASE 3200MM(32W) L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1512-
55	COVER; PIPE,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) L=150 SERVICED BY L=1300	1-09360-677-1	04	1	1512-
67	HOSE; FUEL,DELIVERY (B) L=310	0-01508-310-0	01	1	1512-
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-
67	HOSE; FUEL,DELIVERY WHEEL BASE 3200MM(32W) (E) L=800 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (D) IDN	8-98286-079-0	01	1	1512-
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (C) IDN	8-98286-080-0	01	1	1512-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3200MM(32W) (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	1512-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1512-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (B) M8X30 FLANGE	0-28650-830-0	03	1	1512-
83	NUT; CLIP,FUEL TANK WHEEL BASE 3200MM(32W) M8 FLANGE IDN	0-91180-108-0	04	1	1512-
83	NUT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) M8 FLANGE IDN	0-91180-108-0	06	1	1512-
97	BRACKET; CLIP (C)	1-47475-427-1	01	1	1512-
97	BRACKET; CLIP (A)	8-98126-612-0	01	1	1512-
97	BRACKET; CLIP (B) IDN	8-98183-587-0	01	1	1512-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3200MM(32W) (B) L=489 IDN	8-98248-098-0	01	1	1512-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3200MM(32W) (A) IDN	8-98315-276-0	01	1	1512-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (A)	8-98188-894-0	01	1	1512-
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	04	1	1512-
303	BOLT; BRKT M8X40 FLANGE	0-28650-840-0	01	1	1512-
303	BOLT; BRKT WHEEL BASE 3200MM(32W) M10X35 FLANGE IDN	0-28651-035-0	02	1	1512-
304	NUT; BRKT (A) M8 FLANGE IDN	0-91180-108-0	03	1	1512-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1512-
304	NUT; BRKT WHEEL BASE 3200MM(32W) (B) M10 FLANGE	0-91180-210-0	02	1	1512-
634	HOSE; RUBBER RETURN WHEEL BASE 3200MM(32W) L=730 SERVICED BY L=3000	0-01558-300-0	01	1	1512-
634	HOSE; RUBBER RETURN WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) L=1100 SERVICED BY L=3000	0-01558-300-0	01	1	1512-

174 47 67 67 67 67 634 174 47 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	PIPE; FUEL,RETURN WHEEL BASE 3200MM(32W) L=1432 SERVICED BY L=1550	1-47428-851-0	01	1	1512-
47	PIPE; FUEL,RETURN WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) L=1058	8-98188-895-0	01	1	1512-
67	HOSE; FUEL,DELIVERY (B) L=310	0-01508-310-0	01	1	1512-
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-
67	HOSE; FUEL,DELIVERY WHEEL BASE 3200MM(32W) (E) L=800 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1512-
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (D) IDN	8-98286-079-0	01	1	1512-
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (C) IDN	8-98286-080-0	01	1	1512-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3200MM(32W) (B) L=489 IDN	8-98248-098-0	01	1	1512-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3200MM(32W) (A) IDN	8-98315-276-0	01	1	1512-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) (A)	8-98188-894-0	01	1	1512-
634	HOSE; RUBBER RETURN WHEEL BASE 3200MM(32W) L=730 SERVICED BY L=3000	0-01558-300-0	01	1	1512-
634	HOSE; RUBBER RETURN WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W),WHEEL BASE 6500MM(65W) L=1100 SERVICED BY L=3000	0-01558-300-0	01	1	1512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
