1-40 — FUEL TANK (#171293) — 71 parça

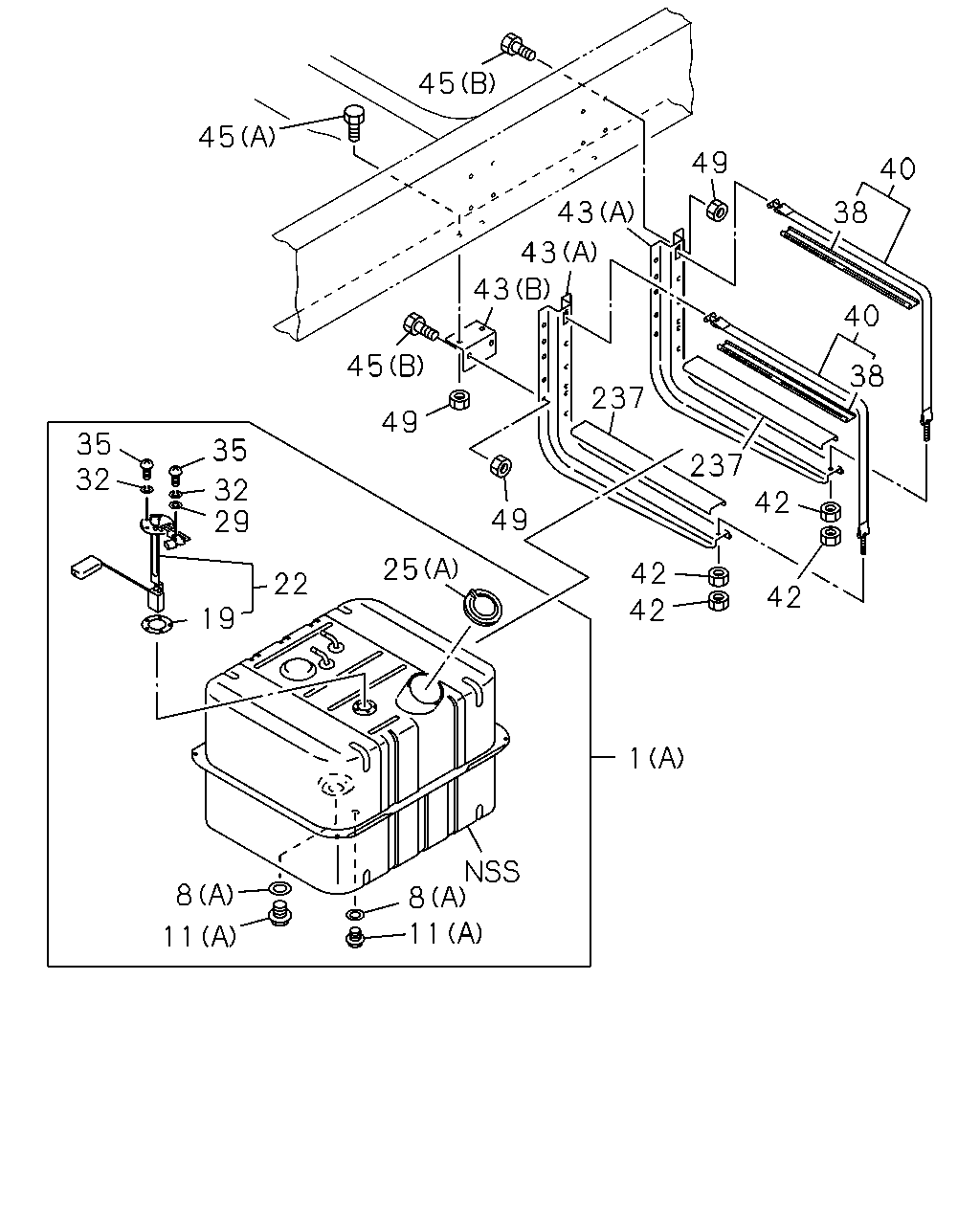

45 45 45 43 43 43 49 49 40 38 40 38 42 42 42 42 237 237 49 25 1 8 11 11 19 8 22 29 35 32 32 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL LOCALLY SUPPLIED PARTS<TKH> (B) 1345X532X322 200L IDN	8-98122-992-3	01	1	1512-
1	TANK; FUEL EXC. LOCALLY SUPPLIED PARTS<TKH> (A) 720X610X496 200L	8-98182-507-0	01	1	1512-
8	GASKET; DRAIN PLUG,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (B) ID=30 IDN	8-98067-041-0	01	1	1512-
8	GASKET; DRAIN PLUG,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (C) ID=18.2 OD=26.0 IDN	9-09571-418-0	01	1	1512-
8	GASKET; DRAIN PLUG,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A) ID=14.2 OD=23.0 IDN	9-09572-014-0	02	1	1512-
11	PLUG; DRAIN,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (B) M30 IDN	8-98067-038-0	01	1	1512-
11	PLUG; DRAIN,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (C) M18 IDN	8-98068-006-0	01	1	1512-
11	PLUG; DRAIN,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A) M14X14 IDN	9-09862-156-0	02	1	1512-
19	GASKET; FUEL TANK UNIT ID=42 OD=71 IDN	5-83148-001-0	01	1	1512-
22	UNIT; FUEL TANK LOCALLY SUPPLIED PARTS<TKH> IDN	8-98099-320-0	01	1	1512-
22	UNIT; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH>	1-83141-124-0	01	1	1512-
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP KEY LOCK<N05> (B)	8-97387-179-0	01	1	1512-
25	CAP; FILLER,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A)	1-22440-046-1	01	1	1512-
29	WASHER; PL,FUEL TANK UNIT EXC. LOCALLY SUPPLIED PARTS<TKH> ID=5.3	0-91610-505-0	01	1	1512-
32	WASHER; LK,FUEL TANK UNIT EXC. LOCALLY SUPPLIED PARTS<TKH> ID=5.1	0-91510-505-0	05	1	1512-
35	SCREW; FUEL TANK UNIT LOCALLY SUPPLIED PARTS<TKH> M5X12 W/LK WASHER	0-36220-512-0	05	1	1512-
35	SCREW; FUEL TANK UNIT EXC. LOCALLY SUPPLIED PARTS<TKH> M5X10	0-34218-510-0	05	1	1512-
38	INSULATION; SUPPORT BELT EXC. LOCALLY SUPPLIED PARTS<TKH> L=650	1-22553-022-1	02	1	1512-
40	BELT; SUPPORT,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> L=880 IDN	8-98042-715-1	02	1	1512-
40	BELT; SUPPORT,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> L=1030	1-22550-204-2	02	1	1512-
42	NUT; SUPPORT BELT LOCALLY SUPPLIED PARTS<TKH> M12	0-91110-512-0	04	1	1512-
42	NUT; SUPPORT BELT EXC. LOCALLY SUPPLIED PARTS<TKH> M10	0-91110-510-0	04	1	1512-
43	BRACKET; FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (C) IDN	8-98088-123-0	01	1	1512-
43	BRACKET; FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (D) IDN	8-98122-883-0	01	1	1512-
43	BRACKET; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (B) FRONT	8-98182-492-0	01	1	1512-
43	BRACKET; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (B) REAR	8-98182-493-0	01	1	1512-
43	BRACKET; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A)	8-98202-542-0	02	1	1512-
45	BOLT; BRKT,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (A) M12X40 FLANGE	0-28651-240-0	08	1	1512-
45	BOLT; BRKT,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (B) M12X35 FLANGE	0-28651-235-0	12	1	1512-
45	BOLT; BRKT,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A) M12X40 FLANGE	0-28651-240-0	04	1	1512-
49	NUT; BRKT LOCALLY SUPPLIED PARTS<TKH> M12 FLANGE	0-91180-212-0	08	1	1512-
49	NUT; BRKT EXC. LOCALLY SUPPLIED PARTS<TKH> M12 FLANGE	0-91180-212-0	16	1	1512-
237	GASKET; BRKT TO FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> L=580	1-22553-003-0	02	1	1512-

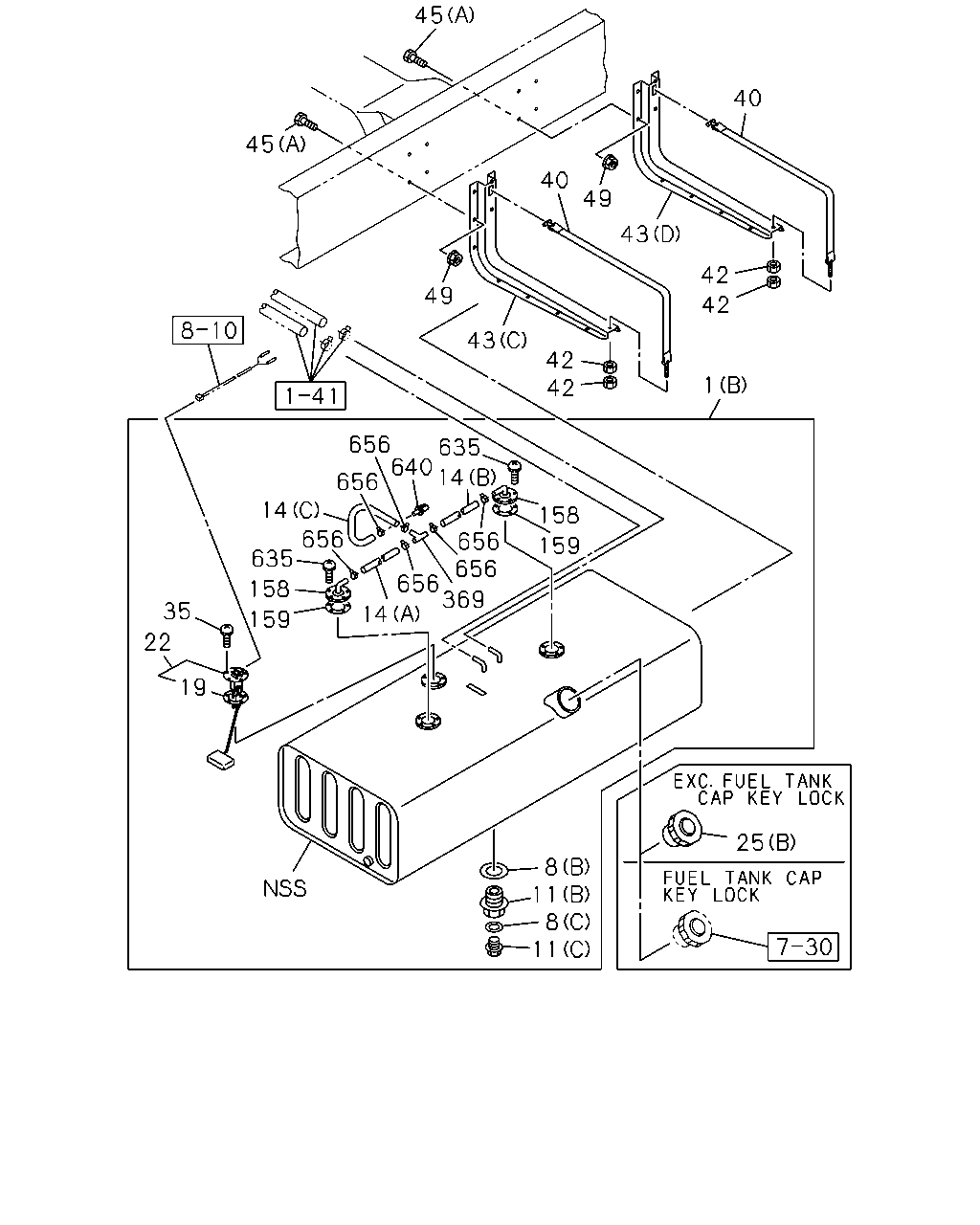

635 656 14 640 656 14 656 656 158 159 369 656 14 159 635 158 35 22 19 8 11 8 11 25 1 42 42 43 49 40 43 49 42 45 42 45 656 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL LOCALLY SUPPLIED PARTS<TKH> (B) 1345X532X322 200L IDN	8-98122-992-3	01	1	1512-
1	TANK; FUEL EXC. LOCALLY SUPPLIED PARTS<TKH> (A) 720X610X496 200L	8-98182-507-0	01	1	1512-
8	GASKET; DRAIN PLUG,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (B) ID=30 IDN	8-98067-041-0	01	1	1512-
8	GASKET; DRAIN PLUG,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (C) ID=18.2 OD=26.0 IDN	9-09571-418-0	01	1	1512-
8	GASKET; DRAIN PLUG,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A) ID=14.2 OD=23.0 IDN	9-09572-014-0	02	1	1512-
11	PLUG; DRAIN,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (B) M30 IDN	8-98067-038-0	01	1	1512-
11	PLUG; DRAIN,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (C) M18 IDN	8-98068-006-0	01	1	1512-
11	PLUG; DRAIN,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A) M14X14 IDN	9-09862-156-0	02	1	1512-
14	HOSE; BREATHER,OUTLET LOCALLY SUPPLIED PARTS<TKH> (A) L=430 IDN	8-98131-037-0	01	1	1512-
14	HOSE; BREATHER,OUTLET LOCALLY SUPPLIED PARTS<TKH> (C) L=460 IDN	8-98304-414-0	01	1	1512-
14	HOSE; BREATHER,OUTLET LOCALLY SUPPLIED PARTS<TKH> (B) L=90 IDN	8-98304-415-0	01	1	1512-
19	GASKET; FUEL TANK UNIT ID=42 OD=71 IDN	5-83148-001-0	01	1	1512-
22	UNIT; FUEL TANK LOCALLY SUPPLIED PARTS<TKH> IDN	8-98099-320-0	01	1	1512-
22	UNIT; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH>	1-83141-124-0	01	1	1512-
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP KEY LOCK<N05> (B)	8-97387-179-0	01	1	1512-
25	CAP; FILLER,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A)	1-22440-046-1	01	1	1512-
35	SCREW; FUEL TANK UNIT LOCALLY SUPPLIED PARTS<TKH> M5X12 W/LK WASHER	0-36220-512-0	05	1	1512-
35	SCREW; FUEL TANK UNIT EXC. LOCALLY SUPPLIED PARTS<TKH> M5X10	0-34218-510-0	05	1	1512-
40	BELT; SUPPORT,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> L=880 IDN	8-98042-715-1	02	1	1512-
40	BELT; SUPPORT,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> L=1030	1-22550-204-2	02	1	1512-
42	NUT; SUPPORT BELT LOCALLY SUPPLIED PARTS<TKH> M12	0-91110-512-0	04	1	1512-
42	NUT; SUPPORT BELT EXC. LOCALLY SUPPLIED PARTS<TKH> M10	0-91110-510-0	04	1	1512-
43	BRACKET; FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (C) IDN	8-98088-123-0	01	1	1512-
43	BRACKET; FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (D) IDN	8-98122-883-0	01	1	1512-
43	BRACKET; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (B) FRONT	8-98182-492-0	01	1	1512-
43	BRACKET; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (B) REAR	8-98182-493-0	01	1	1512-
43	BRACKET; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A)	8-98202-542-0	02	1	1512-
45	BOLT; BRKT,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (A) M12X40 FLANGE	0-28651-240-0	08	1	1512-
45	BOLT; BRKT,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (B) M12X35 FLANGE	0-28651-235-0	12	1	1512-
45	BOLT; BRKT,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A) M12X40 FLANGE	0-28651-240-0	04	1	1512-
49	NUT; BRKT LOCALLY SUPPLIED PARTS<TKH> M12 FLANGE	0-91180-212-0	08	1	1512-
49	NUT; BRKT EXC. LOCALLY SUPPLIED PARTS<TKH> M12 FLANGE	0-91180-212-0	16	1	1512-
158	VALVE; ROLL OVER & FLOAT LOCALLY SUPPLIED PARTS<TKH> IDN	8-98067-039-0	02	1	1512-
159	SEAL; ROLL OVER & FLOAT VALVE LOCALLY SUPPLIED PARTS<TKH> ID=45 OD=67 IDN	1-83149-003-0	02	1	1512-
369	JOINT; HOSE LOCALLY SUPPLIED PARTS<TKH> IDN	8-98067-080-0	01	1	1512-
635	SCREW; ROLL OVER & FLOAT VALVE LOCALLY SUPPLIED PARTS<TKH> M5X12 W/LK WASHER	0-36220-512-0	10	1	1512-
640	VENTILATOR; HOSE,BREATHER LOCALLY SUPPLIED PARTS<TKH> IDN	8-98092-398-0	01	1	1512-
656	CLAMP; FUEL TANK LOCALLY SUPPLIED PARTS<TKH> IDN	8-98304-416-0	06	1	1512-
