4-01 — PROPELLER SHAFT (#17129) — 86 parça

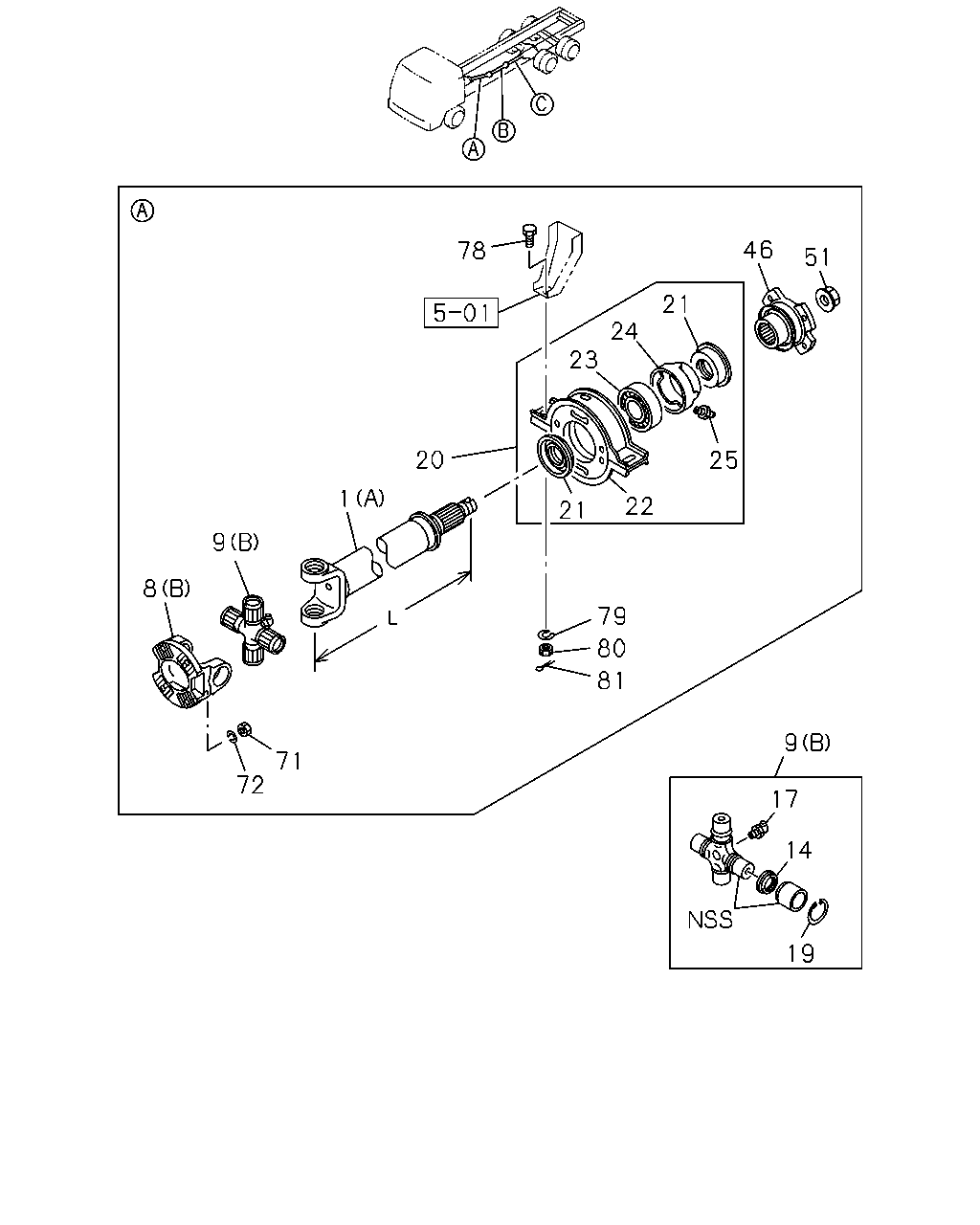

çizim 128102
46 78 51 21 24 23 20 25 1 22 21 9 8 79 80 81 9 71 72 17 14 19
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(A) L=911 		1-37152-590-0 01 1 1001-
1 SHAFT; PROP
(C) L=994 		8-98091-269-0 01 1 1001-
1 SHAFT; PROP
(B) L=824 		8-98091-295-0 01 1 1001-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 03 1 1001-
8 YOKE; FLANGE,PROP SHAFT
(B) 		8-98092-073-0 01 1 1001-
9 JOURNAL ASM; PROP SHAFT
(A) 2ND 		1-37300-095-1 AR 1 1001-
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-094-1 AR 1 1001-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-108-0 01 1 1001-
14 COVER; DUST,SPIDER 9-37352-023-0 04 1 1001-
14 COVER; DUST,SPIDER 9-37352-023-0 12 1 1001-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1001-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1001-
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST 1-09587-101-1 04 1 1001-
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 1001-
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 1001-
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 1001-
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 1001-
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 1001-
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 1001-
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 1001-
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 1001-
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 1001-
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 1001-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1001-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1001-
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 1001-
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 1001-
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 1001-
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 1001-
71 NUT; YOKE
M12 SOU 		0-91110-512-0 04 1 1001-
72 WASHER; LK,YOKE
ID=12.2 SOU 		0-91510-612-0 04 1 1001-
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1001-
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1001-
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 1001-1204
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205-
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1001-

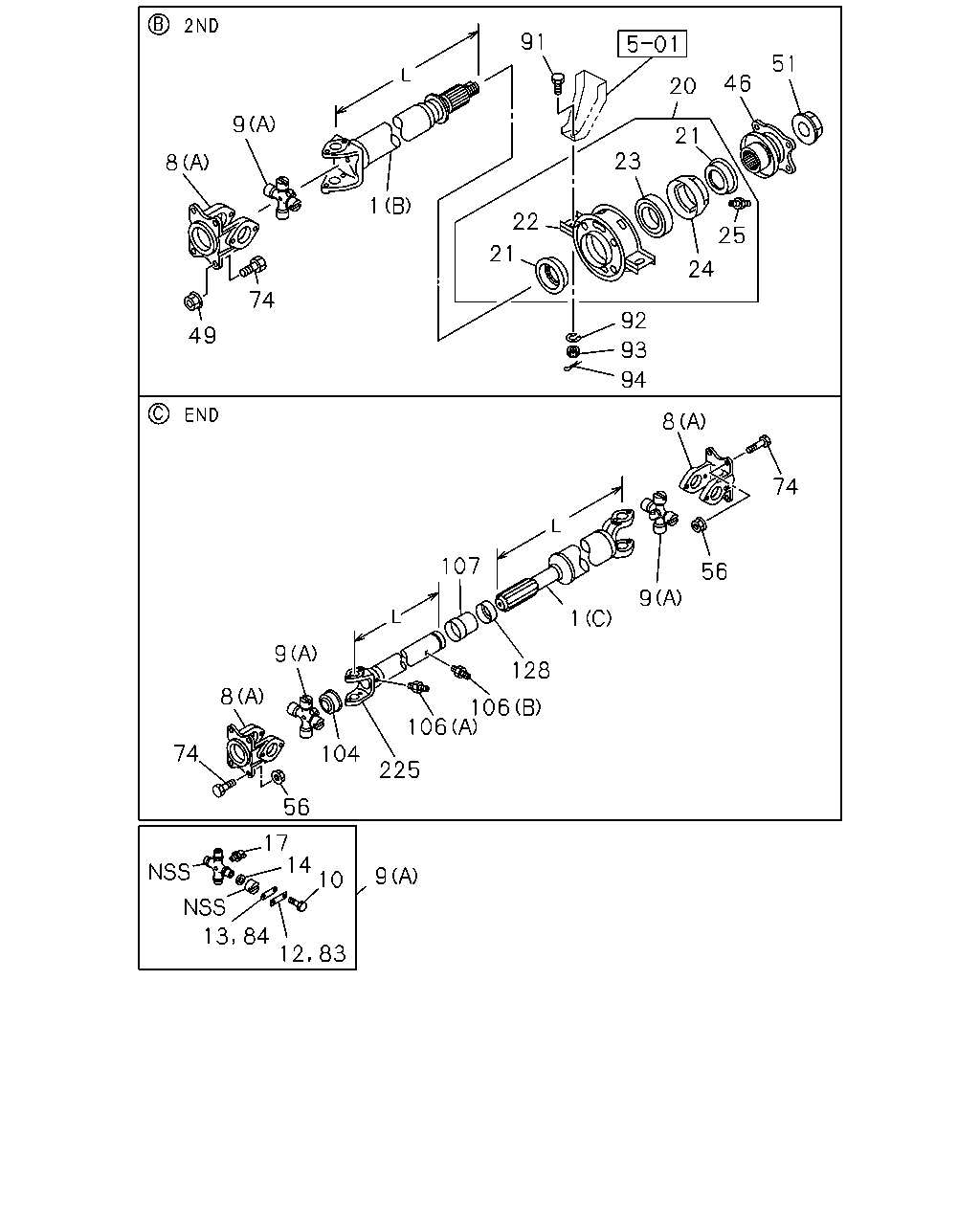

çizim 128116
91 51 46 20 9 21 23 8 1 22 25 21 24 74 92 49 93 94 8 74 107 56 9 1 9 128 8 106 106 74 104 225 56 17 14 10 9 13 84 12 83
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(A) L=911 		1-37152-590-0 01 1 1001-
1 SHAFT; PROP
(C) L=994 		8-98091-269-0 01 1 1001-
1 SHAFT; PROP
(B) L=824 		8-98091-295-0 01 1 1001-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 03 1 1001-
8 YOKE; FLANGE,PROP SHAFT
(B) 		8-98092-073-0 01 1 1001-
9 JOURNAL ASM; PROP SHAFT
(A) 2ND 		1-37300-095-1 AR 1 1001-
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-094-1 AR 1 1001-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-108-0 01 1 1001-
10 BOLT; UJT
M10X20 SOU 		0-20951-020-0 24 1 1001-
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 08 1 1001-
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 08 1 1001-
14 COVER; DUST,SPIDER 9-37352-023-0 04 1 1001-
14 COVER; DUST,SPIDER 9-37352-023-0 12 1 1001-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1001-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1001-
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 1001-
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 1001-
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 1001-
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 1001-
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 1001-
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 1001-
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 1001-
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 1001-
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 1001-
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 1001-
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 1001-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1001-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1001-
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 1001-
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 1001-
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1001-
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 1001-
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 1001-
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 1001-
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1001-
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 08 1 1001-
83 PLATE; LK,UJT,PROP SHAFT 1-37356-010-0 04 1 1001-
84 COVER; UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1001-
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1001-
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1001-
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 1001-1204
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1205-
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1001-
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 1001-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT SOU 		0-90301-410-0 01 1 1001-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) MT6 STRAIGHT 		1-09380-006-0 01 1 1001-
107 COVER; RET,SLEEVE 1-37249-137-1 01 1 1001-
128 SEAL; SLEEVE 1-37247-021-0 01 1 1001-
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-109-1 01 1 1001-
