Isuzu WW
▶
TRUCKS
▶
FTR
▶
11731 - FTR INDONESIA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#171288) — 43 parça
◀

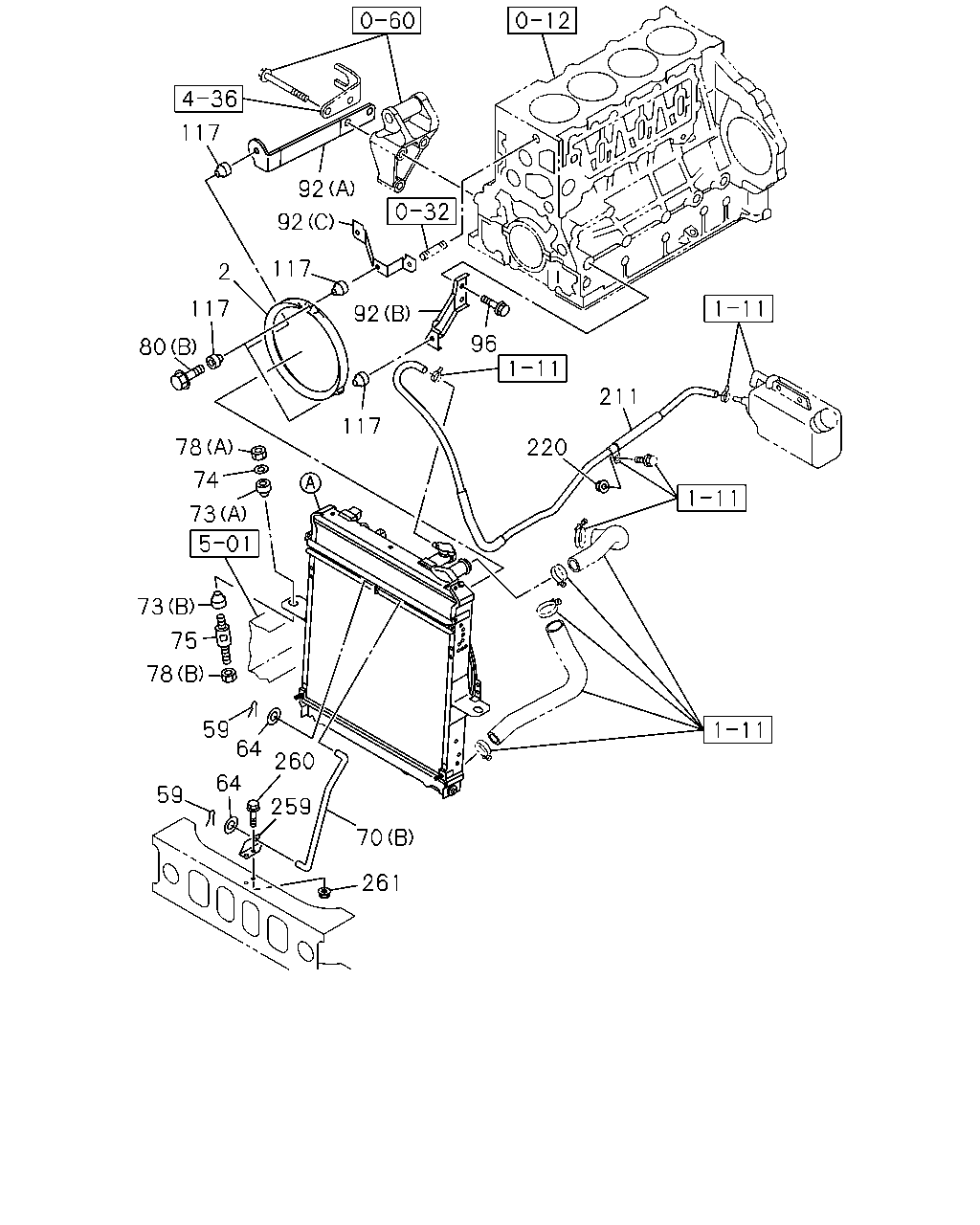

[110A] NO.1 (24 parça)

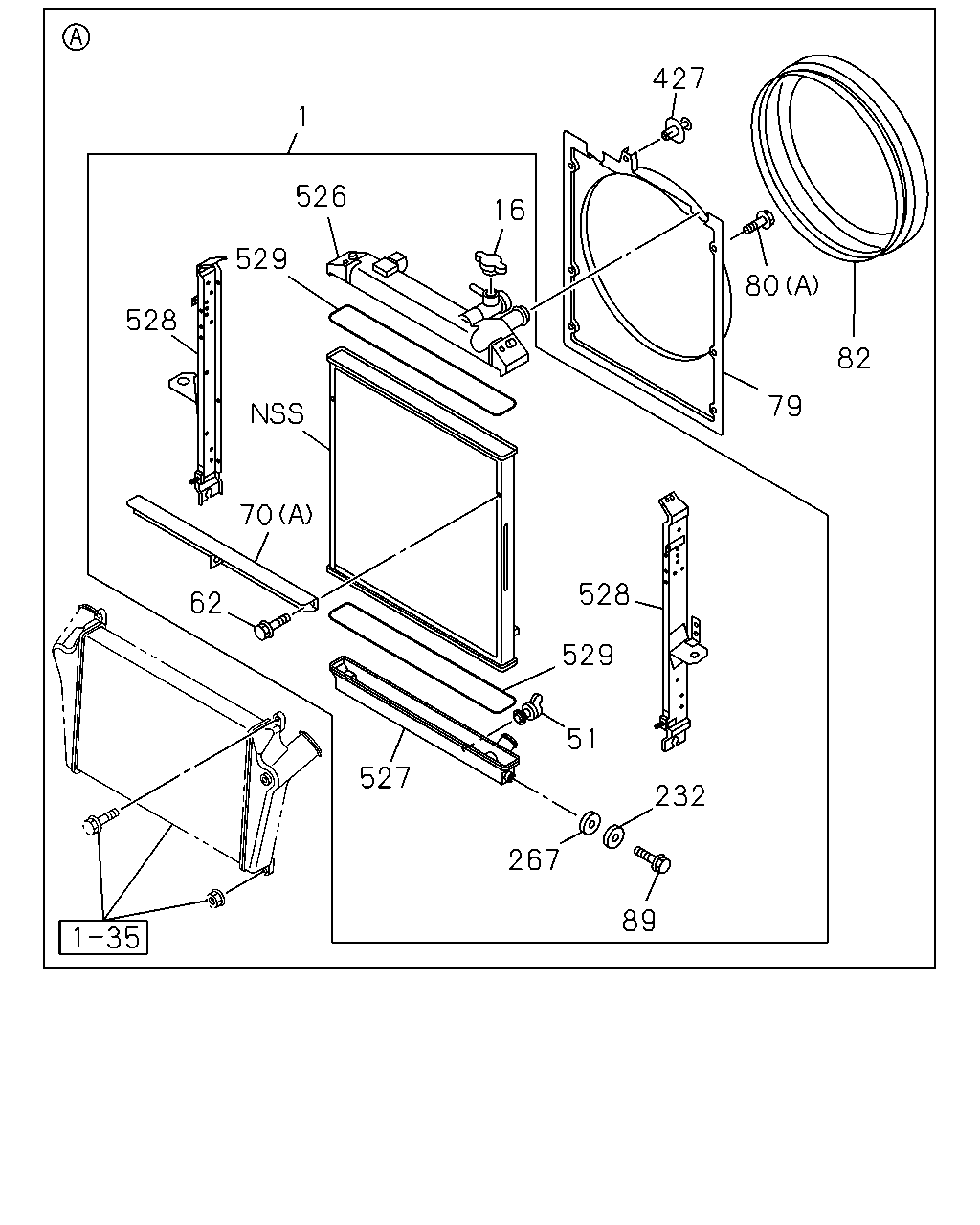

[110A] NO.2 (19 parça)
▶
220
211
96
92
117
92
92
117
117
2
80
117
73
78
73
75
78
59
64
260
259
70
261
59
64
74
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GUIDE; FAN
8-97350-995-0
01
1
1512-
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
1512-
64
WASHER; STAY TO RAD
ID=10.5
0-91610-510-0
02
1
1512-
70
STAY; RAD
(B)
8-98010-657-0
01
1
1512-
70
STAY; RAD
(A)
8-98018-941-0
01
1
1512-
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
1512-
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
1512-
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
1512-
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
1512-
78
NUT; CUSHION RUBBER
(A) M10 FLANGE
0-91180-210-0
02
1
1512-
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91180-212-0
02
1
1512-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1512-
80
BOLT; FAN GUIDE
(A) M6X16
1-21559-481-0
04
1
1512-
92
BRACKET; FAN GUIDE
(A)
8-97350-997-0
01
1
1512-
92
BRACKET; FAN GUIDE
(C)
8-97382-827-2
01
1
1512-
92
BRACKET; FAN GUIDE
(B)
8-97386-233-0
01
1
1512-
96
BOLT; STAY FIX
M10X20 FLANGE
0-28151-020-0
02
1
1512-
96
BOLT; STAY FIX
M10X75 FLANGE
8-94399-669-1
02
1
1512-
117
RUBBER; MTG,FAN GUIDE
1-09337-027-0
06
1
1512-
211
HOSE; RAD TO PIPE
8-98179-884-0
01
1
1512-
220
NUT; CLIP
M8 FLANGE IDN
0-91180-108-0
01
1
1512-
259
BRACKET; RAD STAY
8-98179-846-0
01
1
1512-
260
BOLT; BRKT
M8X20 FLANGE IDN
0-28650-820-0
02
1
1512-
261
NUT; BRKT
M8 FLANGE IDN
0-91180-108-0
02
1
1512-
1
427
16
526
529
528
70
62
527
528
529
51
232
89
267
82
79
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98181-904-0
01
1
1512-
16
CAP; RAD
IDN
8-98096-226-0
01
1
1512-
51
PLUG; DRAIN
W/GASKET IDN
8-97171-437-0
01
1
1512-
62
BOLT; STAY
M8X12 FLANGE
0-28050-812-0
02
1
1512-
70
STAY; RAD
(B)
8-98010-657-0
01
1
1512-
70
STAY; RAD
(A)
8-98018-941-0
01
1
1512-
79
GUIDE; FAN,RAD
8-98010-297-0
01
1
1512-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1512-
80
BOLT; FAN GUIDE
(A) M6X16
1-21559-481-0
04
1
1512-
82
COVER; FAN,RAD
8-98006-478-0
01
1
1512-
89
BOLT
M8X25 W/PL WASHER IDN
1-21469-153-0
02
1
1512-
232
COLLAR; DIST,CUSHION RUBBER
IDN
8-98141-232-0
02
1
1512-
267
RUBBER; CUSHION
IDN
1-21467-023-0
02
1
1512-
427
CLIP; FAN GUIDE
1-09470-009-0
01
1
1512-
526
TANK; UPR,RADIATOR CORE
IDN
8-98010-271-2
01
1
1512-
527
TANK; LWR,RADIATOR CORE
IDN
8-98032-433-1
01
1
1512-
528
PLATE; SIDE,RADIATOR CORE
IDN
8-98010-290-1
01
1
1512-
528
PLATE; SIDE,RADIATOR CORE
IDN
8-98010-291-1
01
1
1512-
529
GASKET; CORE,RADIATOR
8-98032-435-0
02
1
1512-
