◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11168 - FVM(SOUTH AFRICA) ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#17128) — 79 parça

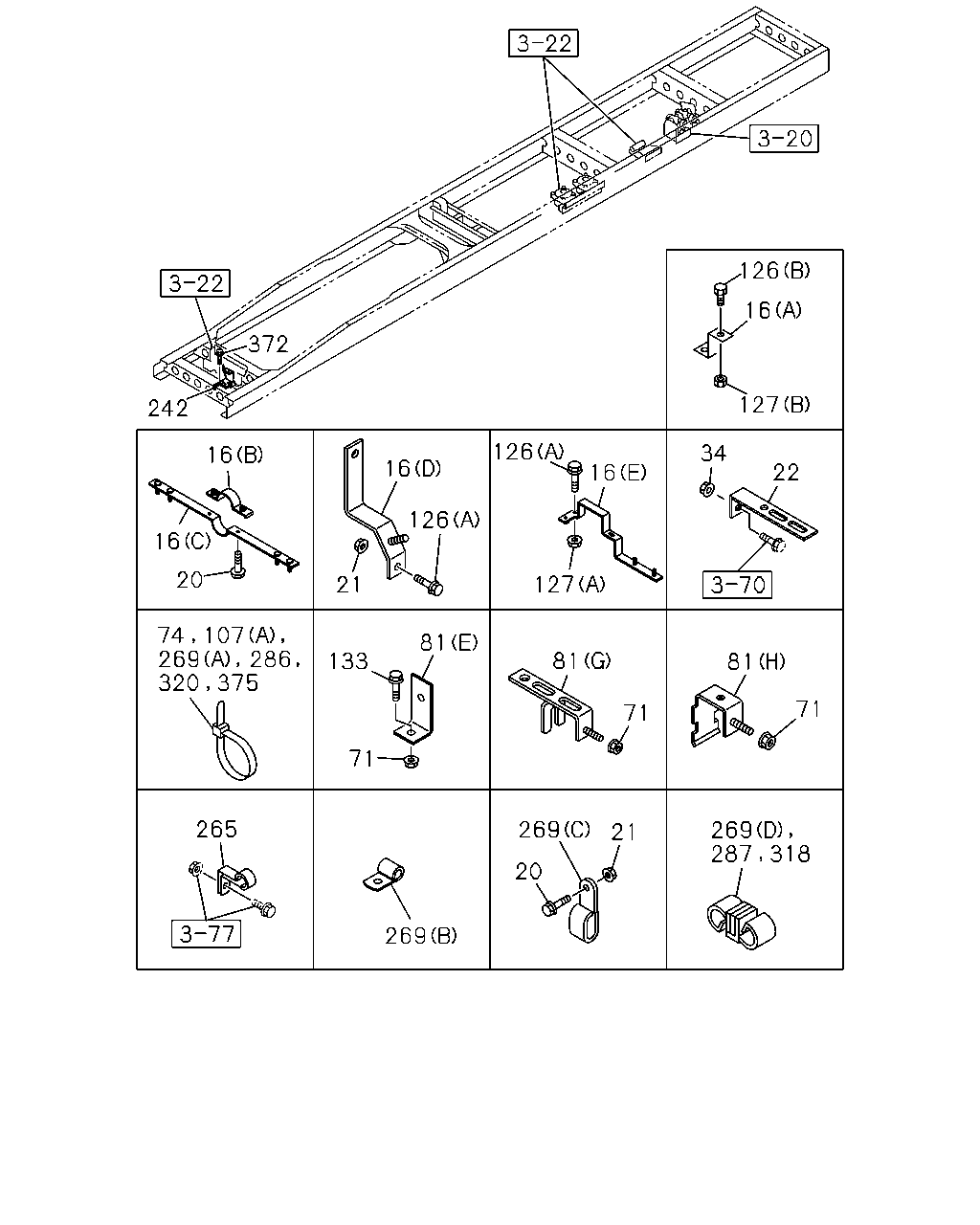

çizim 128105
126 16 372 127 242 126 34 16 16 22 16 126 16 20 127 21 81 81 133 81 71 71 71 265 269 269 21 20 269 287 318 74 107 269 286 320 375
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
(A) 		1-47475-868-0 01 1 1001-
16 BRACKET; PIPE CLIP
(B) 		1-47479-546-0 02 1 1001-
16 BRACKET; PIPE CLIP
(C) 		1-47479-720-0 02 1 1001-
16 BRACKET; PIPE CLIP
(D) 		1-47479-815-0 01 1 1001-
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 1001-
20 BOLT; CLIP
M8X10 FLANGE 		0-28050-810-0 01 1 1001-
20 BOLT; CLIP
M8X10 FLANGE 		0-28050-810-0 02 1 1001-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1001-
21 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1001-
21 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 03 1 1001-
22 BRACKET; CLIP
L=225 		1-47477-646-3 01 1 1001-
34 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1001-
71 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1106-
71 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1001-
71 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 08 1 1001-
74 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1001-
74 CLIP; NYLON TUBE
L=350 		1-09707-183-0 03 1 1001-
74 CLIP; NYLON TUBE
L=350 		1-09707-183-0 08 1 1001-
81 BRACKET; CLIP
(H) 		8-98186-380-0 01 1 1106-
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 1001-
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 1001-
81 BRACKET; CLIP
(A) L=170 		1-47479-380-0 01 1 1001-
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 1001-1509
81 BRACKET; CLIP
(F) 		8-98129-212-0 04 1 1001-1012
81 BRACKET; CLIP
(G) 		8-98177-873-0 04 1 1101-
81 BRACKET; CLIP
(E) L=65 B=25 		8-98135-584-0 01 1 1001-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 45 1 1001-
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 1001-
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 1001-
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 1001-
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE SOU 		0-28650-825-0 04 1 1001-
126 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1001-
126 BOLT; CLIP BRKT
(B) M10X35 FLANGE SOU 		0-28651-035-0 01 1 1001-
127 NUT; CLIP BRKT
(A) M8 FLANGE SOU 		0-91180-108-0 01 1 1001-
127 NUT; CLIP BRKT
(B) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1001-
133 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1001-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1001-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1001-
242 BRACKET; PIPE CLIP 8-98106-046-0 01 1 1001-
265 CLIP; NYLON TUBE
ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1001-
269 CLIP; BAND,NYLON TUBE
AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (D) ID=12 & 15 		1-09709-281-1 01 1 1012-1102
269 CLIP; BAND,NYLON TUBE
AIR DRYER<PS7> (D) ID=12 & 15 		1-09709-281-1 01 1 1103-
269 CLIP; BAND,NYLON TUBE
VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (D) ID=15 & 15 		1-09709-282-1 01 1 1012-1102
269 CLIP; BAND,NYLON TUBE
EXC. AIR DRYER<PS7> (D) ID=15 & 15 		1-09709-282-1 01 1 1103-
269 CLIP; BAND,NYLON TUBE
(C) ID=11X2 L=20 		0-95325-035-0 02 1 1001-
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1001-
269 CLIP; BAND,NYLON TUBE
(B) ID=39 L=33 		8-98009-359-0 06 1 1001-
286 CLIP; NYLON TUBE
VIN MODEL YEAR 2011<VZB> L=350 		1-09707-183-0 01 1 1012-1102
286 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1103-
287 CLIP; AIR PIPE
AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> ID=6.35 & 12 		1-09709-275-1 01 1 1012-1012
287 CLIP; AIR PIPE
VIN MODEL YEAR 2011<VZB> ID=6.35 & 6.35 		1-09709-273-1 01 1 1012-1012
287 CLIP; AIR PIPE
VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> ID=6.35 & 15 		1-09709-276-1 01 1 1012-1012
318 CLIP; AIR PIPE
AIR DRYER<PS7> ID=6.35 & 15 		1-09709-276-1 03 1 1001-
318 CLIP; AIR PIPE
EXC. AIR DRYER<PS7> ID=6.35 & 15 		1-09709-276-1 02 1 1001-
320 CLIP; BAND,FLEX FIX
L=250 SOU 		5-09707-030-1 01 1 1001-
372 BOLT; CLIP BRKT
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1001-
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1001-1011
375 CLIP; AIR PIPE
EXC. VIN MODEL YEAR 2011<VZB> L=350 		1-09707-183-0 01 1 1012-1102

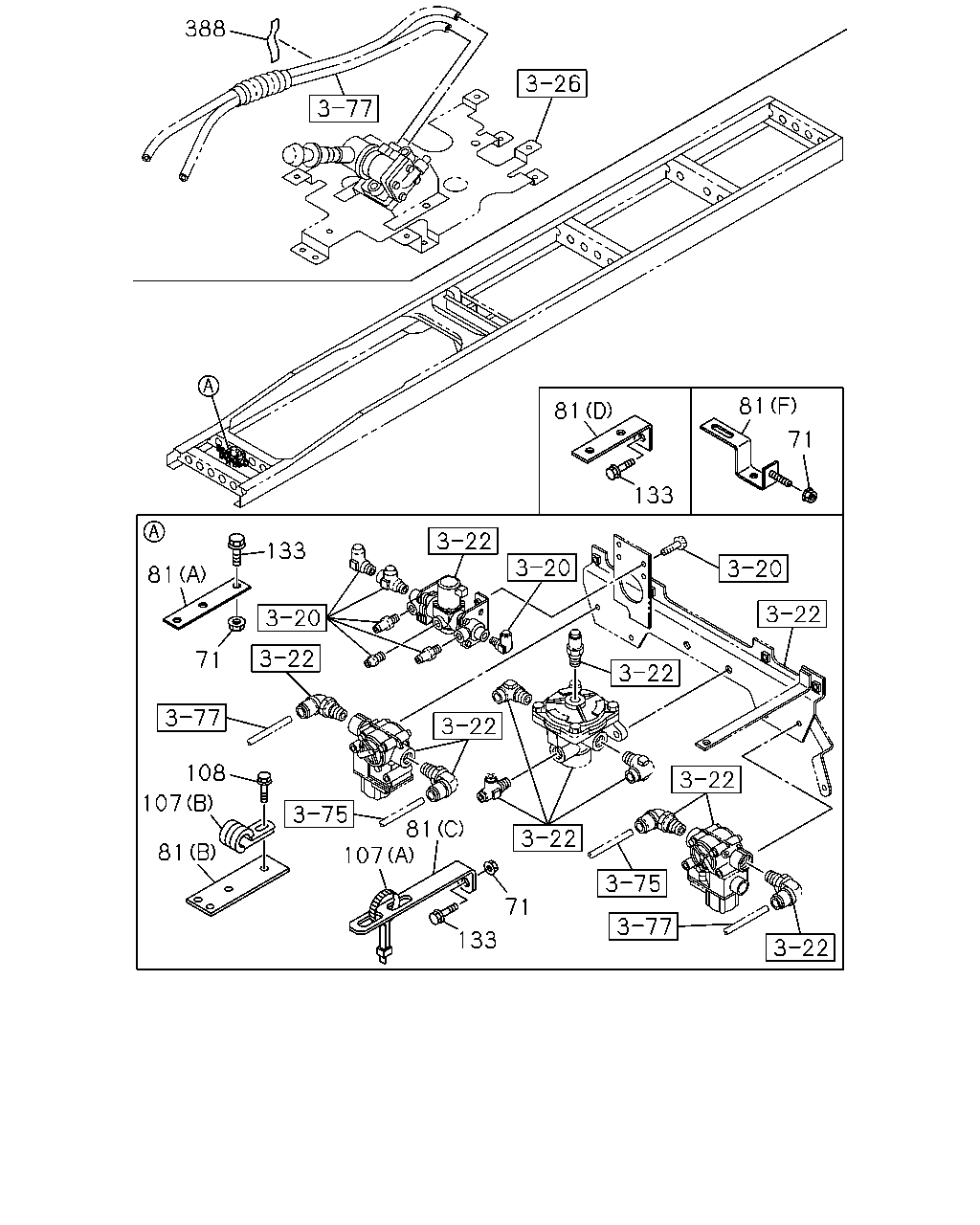

çizim 128145
388 81 81 71 133 133 81 71 108 107 81 81 107 71 133
BalonParca AdiParca NoAdetTipApplied Date
71 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1106-
71 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1001-
71 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 08 1 1001-
81 BRACKET; CLIP
(H) 		8-98186-380-0 01 1 1106-
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 1001-
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 1001-
81 BRACKET; CLIP
(A) L=170 		1-47479-380-0 01 1 1001-
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 1001-1509
81 BRACKET; CLIP
(F) 		8-98129-212-0 04 1 1001-1012
81 BRACKET; CLIP
(G) 		8-98177-873-0 04 1 1101-
81 BRACKET; CLIP
(E) L=65 B=25 		8-98135-584-0 01 1 1001-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 45 1 1001-
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 1001-
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 1001-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1001-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1001-
133 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1001-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1001-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1001-
388 SEAL
100X40 SOU 		1-72498-022-1 03 1 1001-
