Isuzu WW
▶
TRUCKS
▶
FTR
▶
11731 - FTR INDONESIA
▶
0 - Engine, Emission, Engine Electrical
▶
0-50 - OIL COOLER AND OIL FILTER
▶

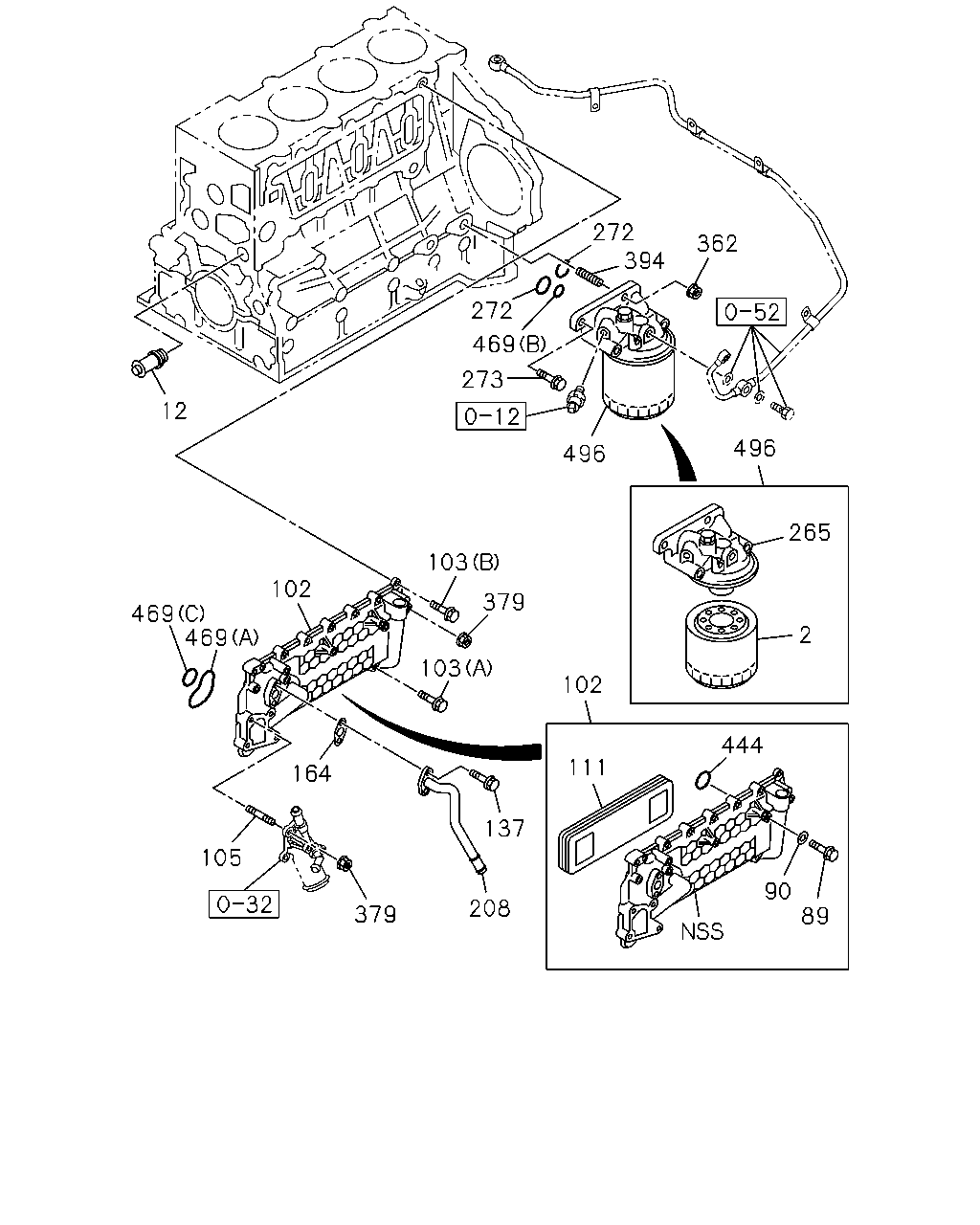

0-50 — OIL COOLER AND OIL FILTER
(#171277) — 23 parça
2
444
111
102
89
90
208
379
105
164
103
379
103
102
469
469
273
469
272
272
362
394
496
265
496
137
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
ELEMENT; OIL FILTER
8-98328-207-0
01
1
1512-
12
VALVE ASM; BYPASS
8-97013-566-2
01
1
1512-
89
BOLT; ELEMENT TO CASE
M8X16 FLANGE
0-28050-816-0
04
1
1512-
90
GASKET; BOLT,OIL COOLER
IDN
1-21729-043-0
04
1
1512-
102
COOLER ASM; OIL
8-98085-312-5
01
1
1512-
103
BOLT; OIL COOLER
(A) M8X20 FLANGE
0-28050-820-0
08
1
1512-
103
BOLT; OIL COOLER
(B) M8X35 FLANGE
0-28050-835-0
08
1
1512-
105
STUD; OIL COOLER
M8X52 L=63
8-97016-314-0
03
1
1512-
111
CORE; OIL COOLER
8-97334-100-2
01
1
1512-
137
BOLT
M8X20 FLANGE IDN
0-28650-820-0
04
1
1512-
164
GASKET; HTR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.6
8-97146-684-0
01
1
1512-
208
PIPE; WATER,HTR
8-97146-519-0
01
1
1512-
265
BODY; OIL FILTER
8-97096-677-4
01
1
1512-
272
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1
8-94399-399-0
02
1
1512-
273
BOLT; OIL FILTER
M10X30
0-59331-030-0
03
1
1512-
362
NUT; OIL FILTER
M10 FLANGE IDN
0-91180-110-0
01
1
1512-
379
NUT; OIL COOLER
M8 FLANGE IDN
0-91180-108-0
03
1
1512-
394
STUD; OIL FILTER
M10X25 L=48.5
0-49241-025-0
01
1
1512-
444
GASKET; ELEMENT TO BODY
8-97384-130-0
02
1
1512-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-94338-878-1
01
1
1512-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8
8-94399-339-0
01
1
1512-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE
8-98045-447-0
01
1
1512-
496
FILTER ASM; OIL
8-98328-202-0
01
1
1512-
