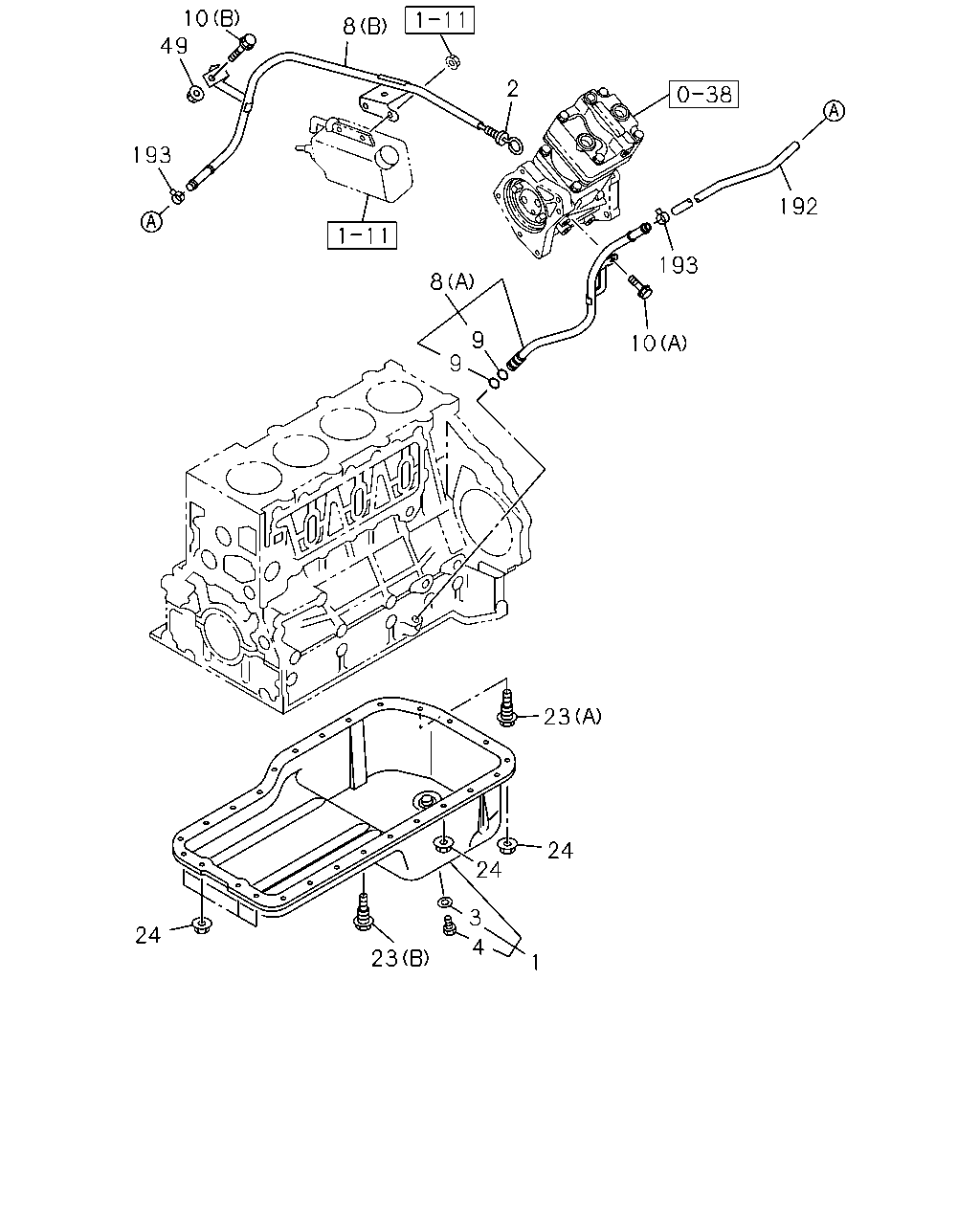

0-13 — OIL PAN AND LEVEL GAUGE
(#171259) — 15 parça
8
10
49
193
8
9
9
2
193
192
10
23
24
24
4
3
1
23
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-98191-050-0
01
1
1512-
2
GAUGE; OIL LEVEL
8-98245-516-0
01
1
1512-
3
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24
8-94158-328-0
01
1
1512-
4
PLUG; DRAIN,OIL
M14X14 IDN
8-94152-613-0
01
1
1512-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-98009-115-1
01
1
1512-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
8-98179-498-0
01
1
1512-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1512-
10
BOLT; GUIDE TUBE
(A) M6X12 FLANGE
0-28050-612-0
01
1
1512-
10
BOLT; GUIDE TUBE
(B) M8X20 FLANGE IDN
0-28650-820-0
01
1
1512-
23
BOLT; OIL PAN
(B) M8X14 W/SCOTCH GRIP
8-97047-004-1
01
1
1512-
23
BOLT; OIL PAN
(A) M8X14
8-97047-005-0
18
1
1512-
24
NUT; OIL PAN
M8 W/LK WASHER IDN
8-97581-234-0
07
1
1512-
49
NUT; GUIDE TUBE
M8 FLANGE IDN
0-91180-108-0
01
1
1512-
192
HOSE; GUIDE TUBE
8-97620-319-0
01
1
1512-
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
1512-
