◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11744 - FRR LHD EUROPE EURO6 SPACECAB LDWS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#171228) — 370 parça

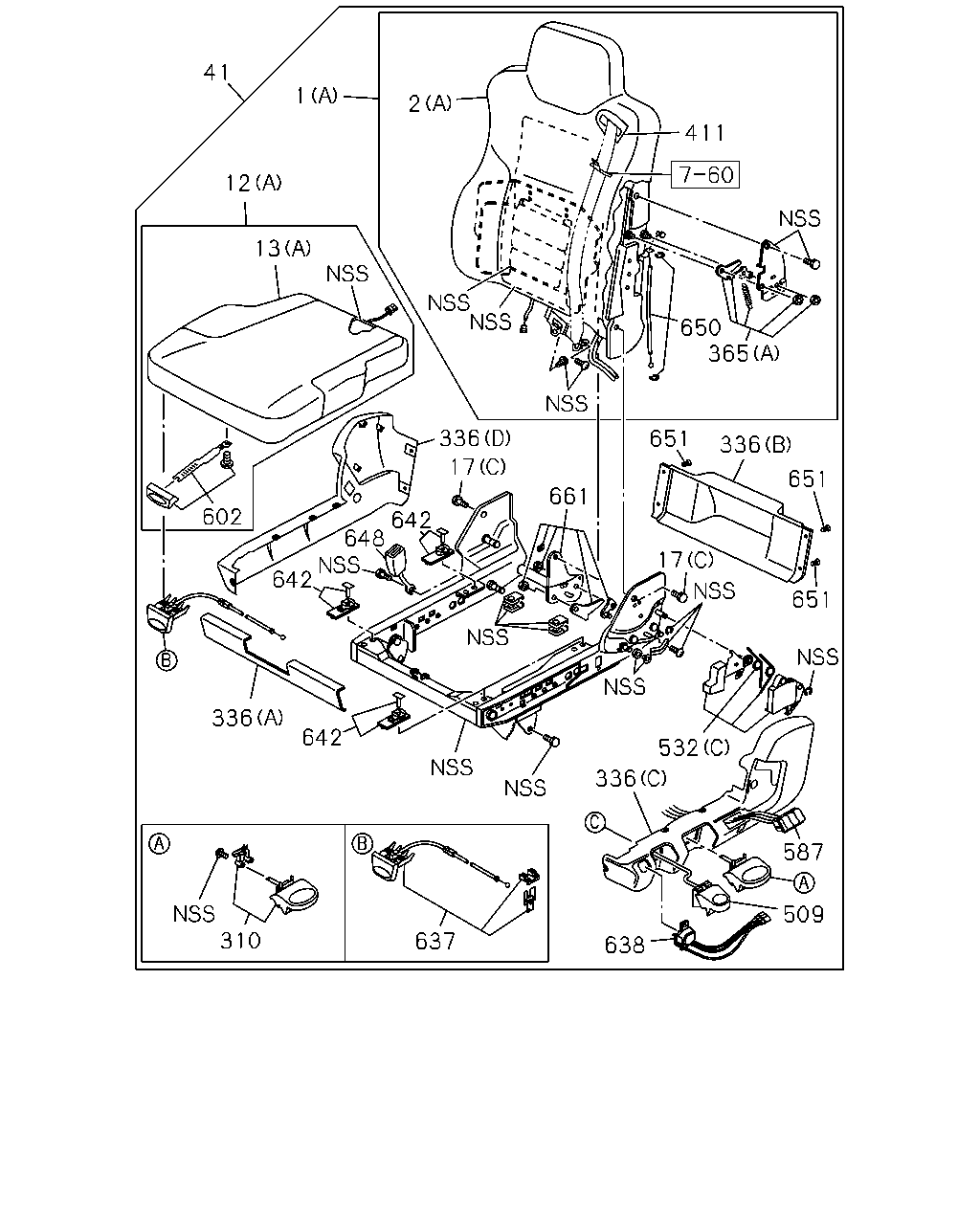

çizim 507348
41 2 1 12 13 336 661 651 365 650 411 17 642 648 642 602 336 642 336 17 336 651 651 532 587 509 638 637 310
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-408-1 01 1 1507-1512
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97466-623-0 01 1 1601-
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98097-962-0 01 1 1507-1507
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98097-962-0 01 1 1507-
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98333-914-0 01 1 1507-
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-413-0 01 1 1507-
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98232-352-0 01 1 1507-1507
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98232-352-0 01 1 1507-
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98232-352-0 01 1 1507-
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-400-2 01 1 1507-1512
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97466-613-0 01 1 1601-
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-006-0 01 1 1507-1507
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98098-006-0 01 1 1507-
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98098-006-0 01 1 1507-
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-404-2 01 1 1507-
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-007-0 01 1 1507-1507
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98098-007-0 01 1 1507-
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98098-007-0 01 1 1507-
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> (A) M10X20 		8-98062-661-0 02 1 1507-
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1507-
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		8-98097-974-0 02 1 1507-1507
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C) 		8-98097-974-0 02 1 1507-
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (C) 		8-98097-974-0 02 1 1507-
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98195-065-0 01 1 1507-1507
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98195-065-1 01 1 1507-
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98302-798-1 01 1 1507-
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98097-991-0 01 1 1507-1507
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98097-991-0 01 1 1507-
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98097-991-0 01 1 1507-
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (D) 		8-98097-977-0 01 1 1507-1507
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (D) 		8-98097-977-0 01 1 1507-1508
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (D) 		8-98333-916-0 01 1 1509-
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (D) 		8-98333-916-0 01 1 1507-
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		8-98097-983-0 01 1 1507-1507
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C) 		8-98097-983-0 01 1 1507-
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (C) 		8-98097-983-0 01 1 1507-
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98097-995-0 01 1 1507-1507
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98097-995-0 01 1 1507-
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98097-995-0 01 1 1507-
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		8-98097-996-0 01 1 1507-1507
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (B) 		8-98097-996-0 01 1 1507-
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (B) 		8-98097-996-0 01 1 1507-
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1507-
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98097-972-0 01 1 1507-1507
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98097-972-0 01 1 1507-
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98097-972-0 01 1 1507-
411 GUIDE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98097-967-0 01 1 1507-1507
411 GUIDE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98097-967-0 01 1 1507-
411 GUIDE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98097-967-0 01 1 1507-
509 LEVER; DAMPER
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98097-987-0 01 1 1507-1507
509 LEVER; DAMPER
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98097-987-0 01 1 1507-
509 LEVER; DAMPER
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98097-987-0 01 1 1507-
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-221-0 01 1 1507-
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-222-1 01 1 1507-
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		8-98097-981-0 01 1 1507-1507
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C) 		8-98097-981-0 01 1 1507-
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (C) 		8-98097-981-0 01 1 1507-
587 VALVE; LUMBAR SUPPORT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98097-985-0 01 1 1507-1507
587 VALVE; LUMBAR SUPPORT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98097-985-0 01 1 1507-
587 VALVE; LUMBAR SUPPORT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98097-985-0 01 1 1507-
602 KNOB; ADJ,SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98098-008-0 01 1 1507-1507
602 KNOB; ADJ,SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98098-008-0 01 1 1507-
602 KNOB; ADJ,SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98098-008-0 01 1 1507-
637 LEVER; SLOPE ADJ
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98097-989-0 01 1 1507-1507
637 LEVER; SLOPE ADJ
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98097-989-0 01 1 1507-
637 LEVER; SLOPE ADJ
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98097-989-0 01 1 1507-
638 VALVE; LOWERING
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98097-993-0 01 1 1507-1507
638 VALVE; LOWERING
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98097-993-0 01 1 1507-
638 VALVE; LOWERING
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98097-993-0 01 1 1507-
642 SLIDER; CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98192-932-0 04 1 1507-1507
642 SLIDER; CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98192-932-0 04 1 1507-
642 SLIDER; CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98192-932-0 04 1 1507-
648 BUCKLE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98097-976-0 01 1 1507-1507
648 BUCKLE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98097-976-0 01 1 1507-
648 BUCKLE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98097-976-0 01 1 1507-
650 CABLE
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98232-354-0 01 1 1507-1507
650 CABLE
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98232-354-0 01 1 1507-
650 CABLE
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98232-354-0 01 1 1507-
651 RIVET
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98194-075-0 04 1 1507-1507
651 RIVET
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98194-075-0 04 1 1507-
651 RIVET
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98194-075-0 04 1 1507-
661 LOCK ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98097-979-0 01 1 1507-1507
661 LOCK ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98097-979-0 01 1 1507-
661 LOCK ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98097-979-0 01 1 1507-

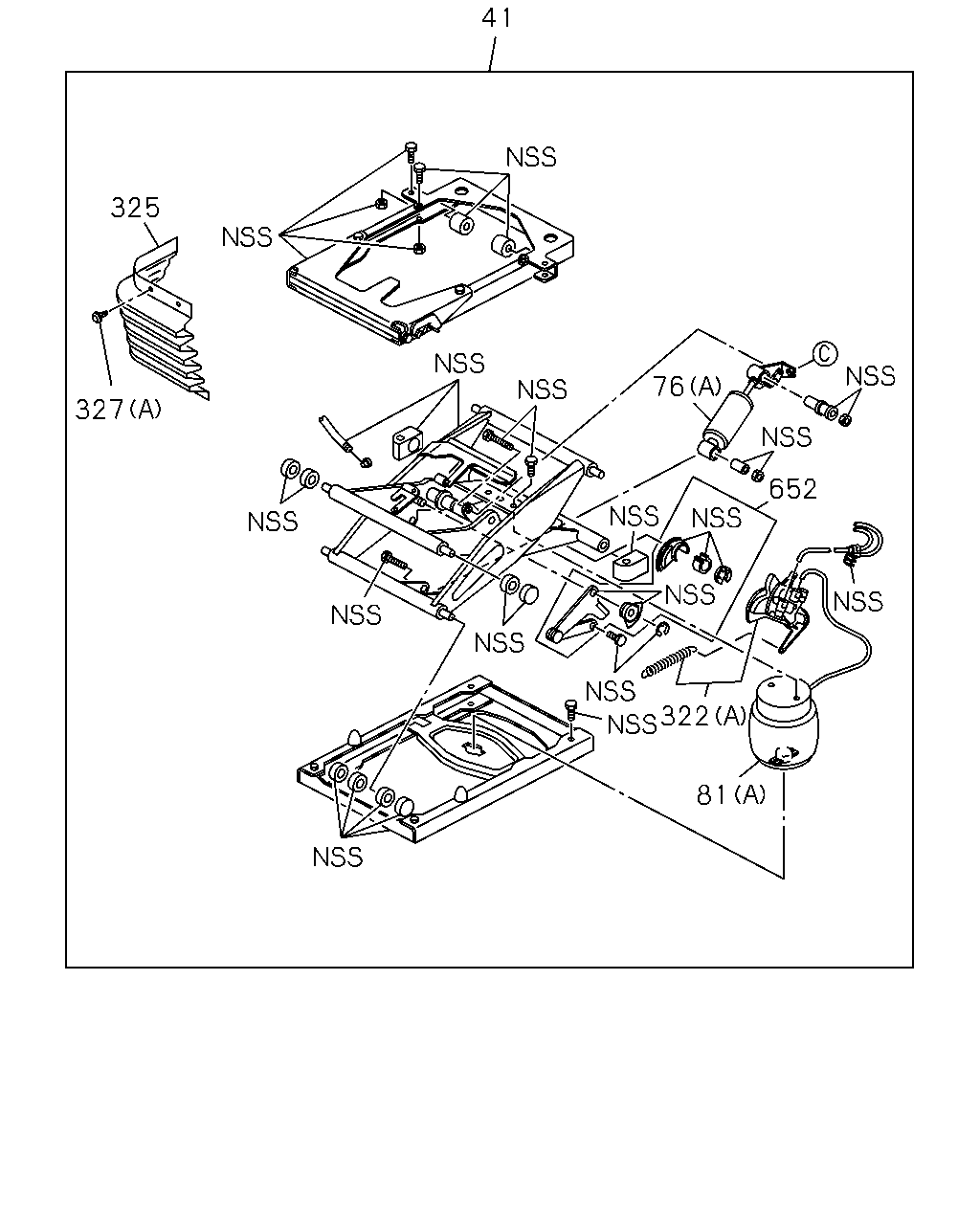

çizim 507389
41 325 327 81 322 76 652
BalonParca AdiParca NoAdetTipApplied Date
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98195-065-0 01 1 1507-1507
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98195-065-1 01 1 1507-
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98302-798-1 01 1 1507-
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 1507-
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98097-999-0 01 1 1507-1507
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98097-999-0 01 1 1507-
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98097-999-0 01 1 1507-
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> (B) 		8-98242-816-0 01 1 1507-
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-000-0 01 1 1507-1507
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98098-000-0 01 1 1507-
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98098-000-0 01 1 1507-
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-187-3 01 1 1507-
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-001-0 01 1 1507-1507
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98098-001-0 01 1 1507-1508
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98331-314-0 01 1 1509-
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98331-314-0 01 1 1507-
325 COVER; SUSPENSION DEVICE
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98098-003-0 01 1 1507-1507
325 COVER; SUSPENSION DEVICE
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98098-003-0 01 1 1507-
325 COVER; SUSPENSION DEVICE
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98098-003-0 01 1 1507-
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-004-0 01 1 1507-1507
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98098-004-0 01 1 1507-
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98098-004-0 01 1 1507-
327 CLIP; COVER
AIR SUSP DRIVER SEAT<A56> (B) 		1-09987-273-0 01 1 1507-
652 LOCK ASM; HEIGHT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98098-002-0 01 1 1507-1507
652 LOCK ASM; HEIGHT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98098-002-0 01 1 1507-
652 LOCK ASM; HEIGHT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98098-002-0 01 1 1507-

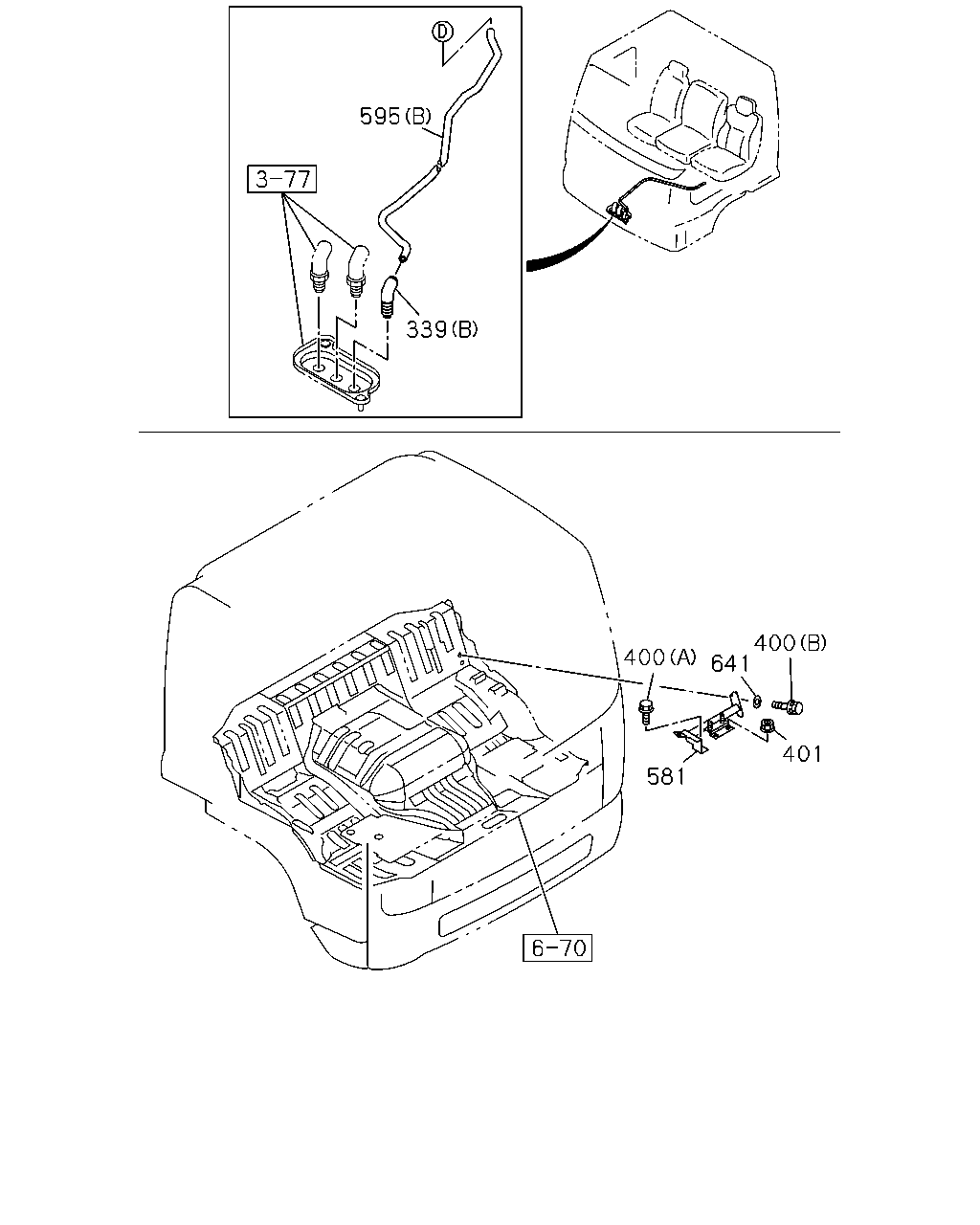

çizim 507655
595 339 400 400 641 401 581
BalonParca AdiParca NoAdetTipApplied Date
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 1507-
339 UNION; DRIVER SEAT
(B) 		8-98014-971-0 01 1 1507-
400 BOLT; SUPPORT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1507-
400 BOLT; SUPPORT
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		8-98098-996-0 02 1 1507-
401 NUT; SUPPORT
DRIVER ISRINGHAUSEN SEAT<SJA> M10 FLANGE 		0-91180-110-0 02 1 1507-
581 PIPE; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98049-531-3 01 1 1507-
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98106-348-0 01 1 1507-1507
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98106-348-0 01 1 1507-
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98106-348-0 01 1 1507-
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1507-
641 WASHER; SUPPORT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98099-007-0 02 1 1507-

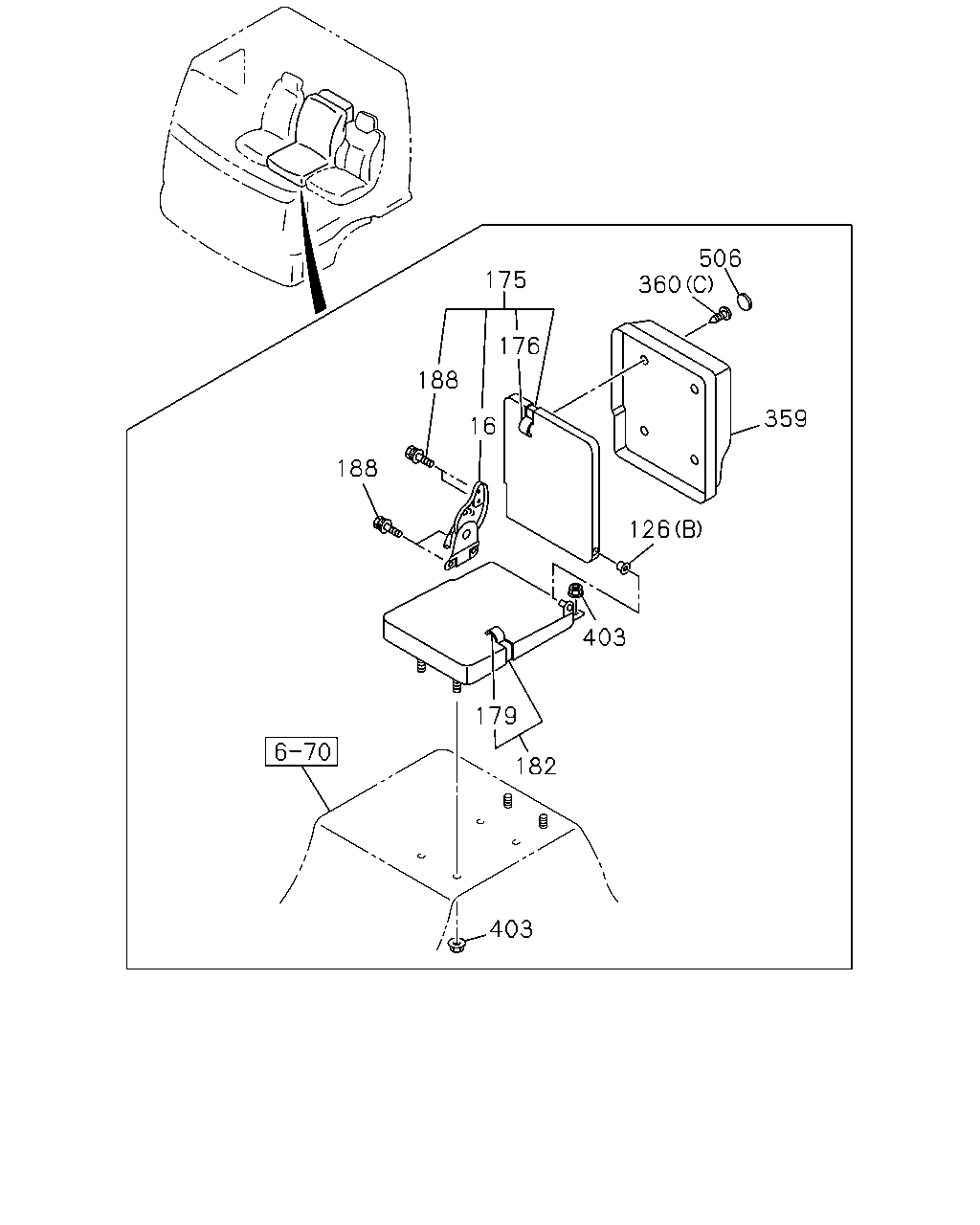

çizim 507658
506 360 359 126 176 175 188 188 16 403 179 182 403
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1507-
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> (A) 		8-98063-218-0 01 1 1507-1512
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> (A) 		8-98286-007-0 01 1 1601-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1507-
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-434-1 01 1 1507-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-435-1 01 1 1507-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-433-1 01 1 1507-
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-431-3 01 1 1507-
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1507-

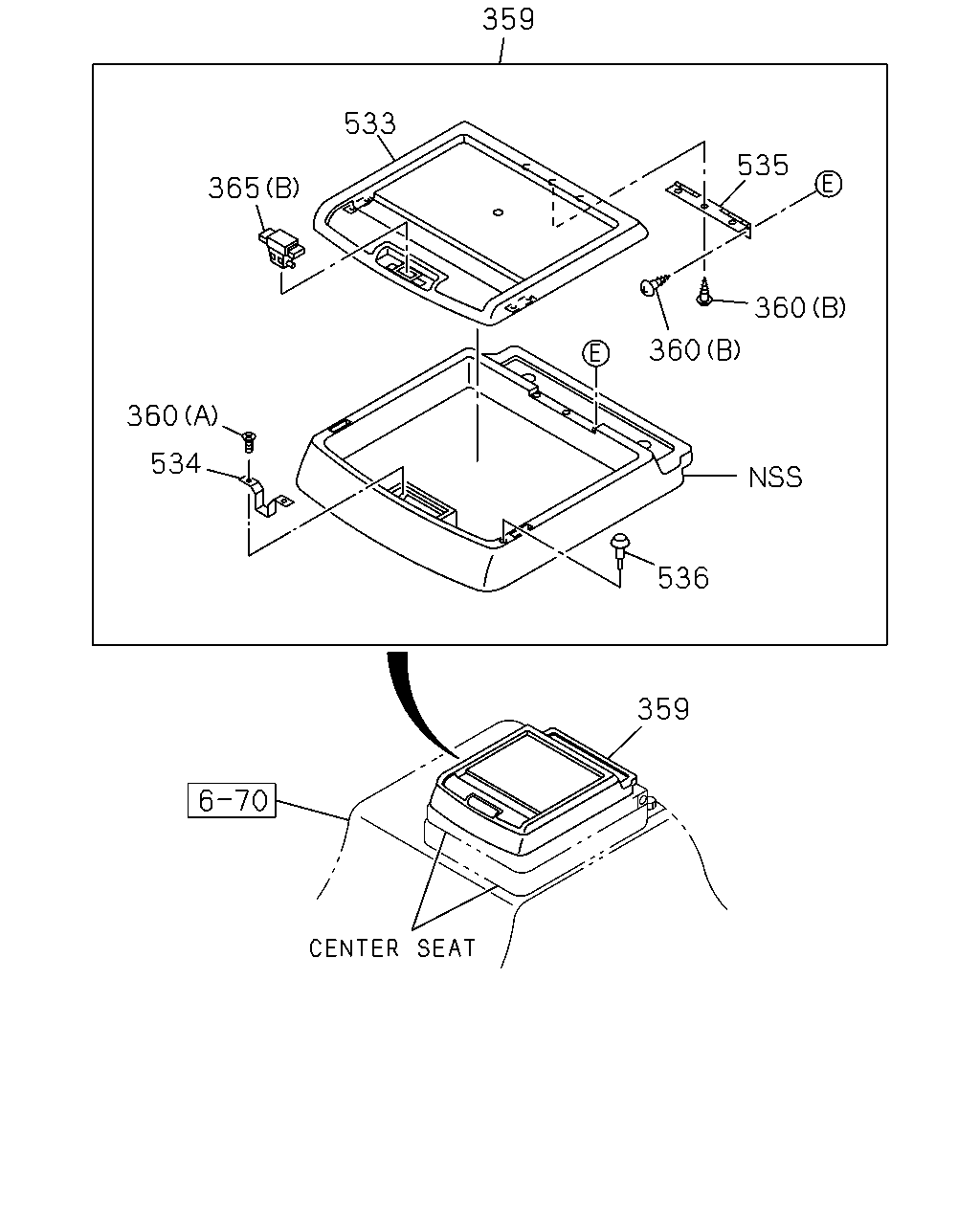

359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1507-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1507-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1507-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1507-
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 1507-
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1507-

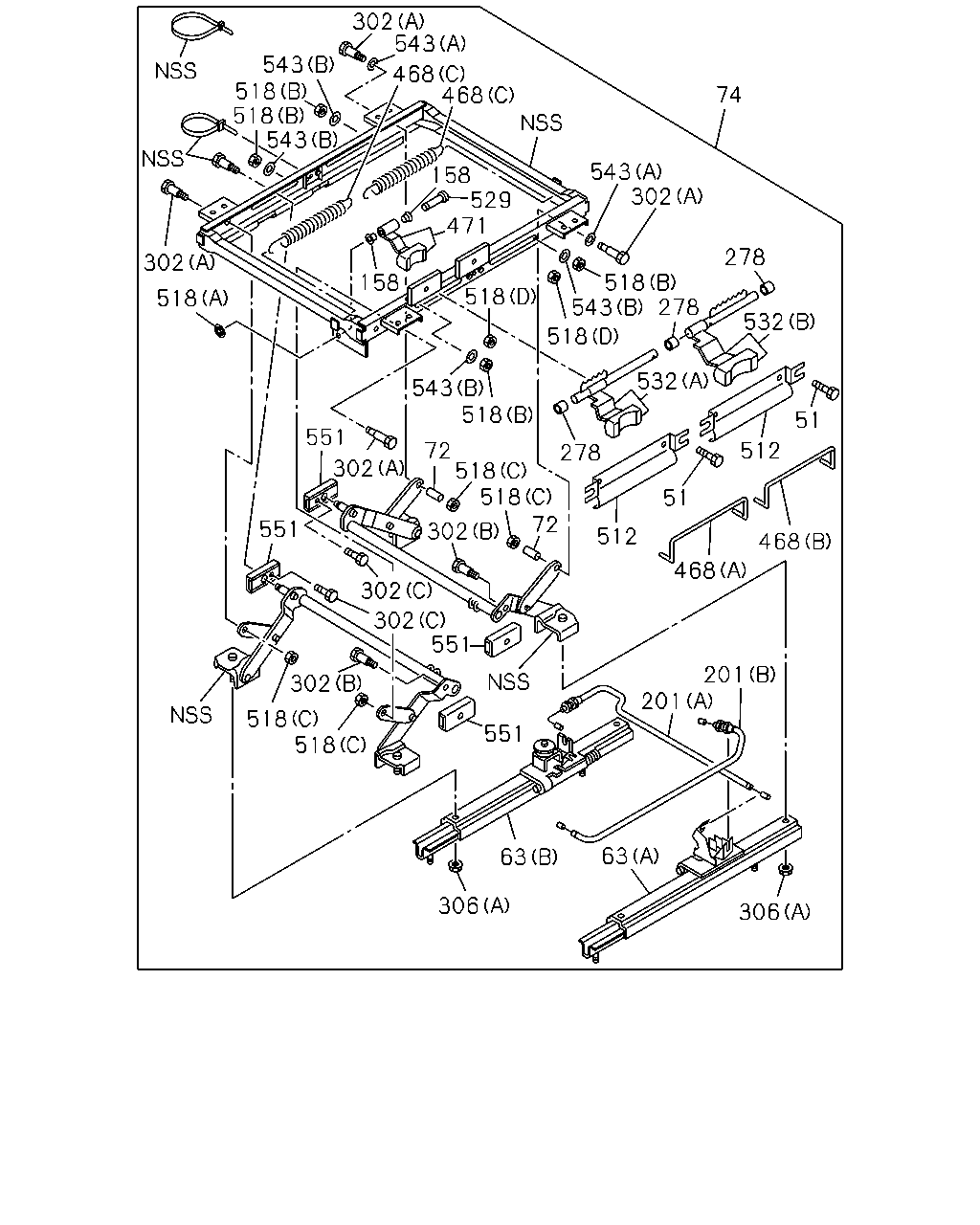

çizim 507669
302 543 518 518 543 302 518 551 551 302 518 518 302 302 302 551 551 306 63 63 201 201 306 302 518 72 518 543 518 471 529 158 158 468 468 543 543 302 518 543 518 532 278 278 74 532 51 512 51 278 512 518 72 468 468
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> 		1-75518-325-1 04 1 1507-
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-227-1 01 1 1507-
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-324-0 01 1 1507-
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		8-98098-005-0 01 1 1507-1507
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C) 		8-98098-005-0 01 1 1507-
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (C) 		8-98098-005-0 01 1 1507-
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> 		8-98291-668-0 02 1 1507-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98291-641-0 01 1 1507-
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56> 		1-75518-209-0 02 1 1507-
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> (A) L=667 		1-75518-288-0 01 1 1507-
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> (B) L=605 		1-75518-289-1 01 1 1507-
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> 		1-75518-244-0 03 1 1507-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-266-2 02 1 1507-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-336-1 02 1 1507-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> (A) 		8-98291-667-0 04 1 1507-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1507-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1507-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-206-0 01 1 1507-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-207-0 01 1 1507-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-208-0 02 1 1507-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 1507-
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> 		8-98107-870-0 01 1 1507-
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75518-245-1 02 1 1507-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-263-0 01 1 1507-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 1507-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 1507-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1507-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 1507-
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56> 		1-75518-262-0 01 1 1507-
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-221-0 01 1 1507-
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-222-1 01 1 1507-
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		8-98097-981-0 01 1 1507-1507
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C) 		8-98097-981-0 01 1 1507-
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (C) 		8-98097-981-0 01 1 1507-
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19 		8-98291-669-0 02 1 1507-
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> (B) ID=8.4 		9-09160-508-0 04 1 1507-
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> 		1-75518-265-0 04 1 1507-

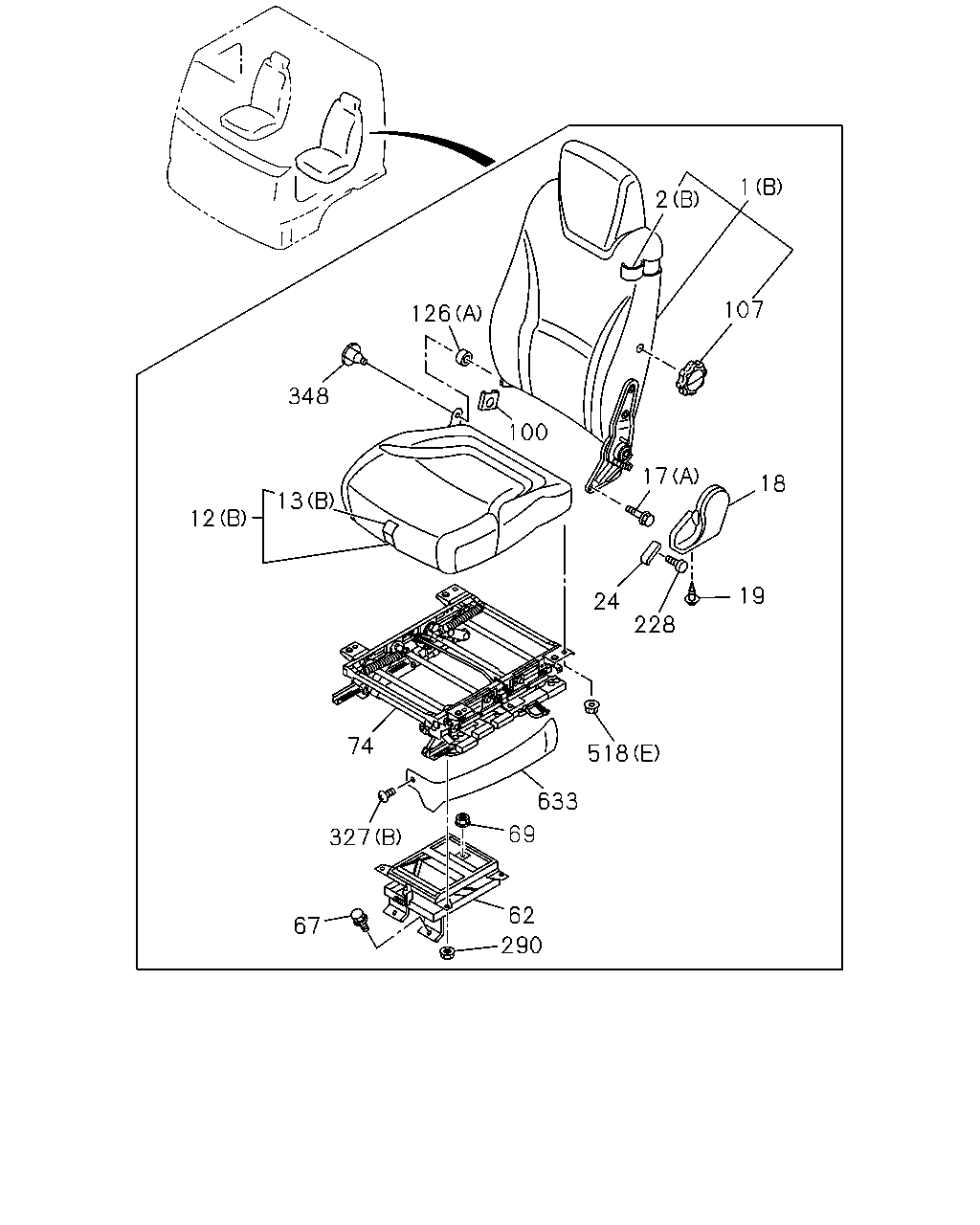

çizim 507814
2 126 348 13 12 74 327 67 290 62 69 633 518 228 24 19 18 17 107 1 100
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-408-1 01 1 1507-1512
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97466-623-0 01 1 1601-
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98097-962-0 01 1 1507-1507
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98097-962-0 01 1 1507-
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98333-914-0 01 1 1507-
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-413-0 01 1 1507-
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98232-352-0 01 1 1507-1507
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98232-352-0 01 1 1507-
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98232-352-0 01 1 1507-
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-400-2 01 1 1507-1512
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97466-613-0 01 1 1601-
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-006-0 01 1 1507-1507
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98098-006-0 01 1 1507-
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98098-006-0 01 1 1507-
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY 		8-97421-404-2 01 1 1507-
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-007-0 01 1 1507-1507
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98098-007-0 01 1 1507-
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98098-007-0 01 1 1507-
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> (A) M10X20 		8-98062-661-0 02 1 1507-
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1507-
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		8-98097-974-0 02 1 1507-1507
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C) 		8-98097-974-0 02 1 1507-
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (C) 		8-98097-974-0 02 1 1507-
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56> GRAY 		8-97409-361-0 01 1 1507-
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> M5 		8-98062-663-0 01 1 1507-
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56> GRAY 		8-97409-362-0 01 1 1507-
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-451-0 01 1 1507-
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1507-
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1507-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> 		8-98291-641-0 01 1 1507-
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56> 		8-98203-070-0 01 1 1507-1512
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56> 		8-98286-009-0 01 1 1601-
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> 		8-98063-174-0 01 1 1507-
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> (A) 		8-98063-218-0 01 1 1507-1512
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> (A) 		8-98286-007-0 01 1 1601-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1507-
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> M4 		8-98062-662-0 01 1 1507-
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> M8 FLANGE 		1-75538-207-0 04 1 1507-
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-004-0 01 1 1507-1507
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98098-004-0 01 1 1507-
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98098-004-0 01 1 1507-
327 CLIP; COVER
AIR SUSP DRIVER SEAT<A56> (B) 		1-09987-273-0 01 1 1507-
348 BOLT; HINGE,SEAT
AIR SUSP DRIVER SEAT<A56> 		8-98286-008-0 01 1 1601-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-263-0 01 1 1507-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (C) M8 		1-75518-264-0 04 1 1507-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE 		1-75538-207-0 04 1 1507-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1507-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE 		8-94152-886-0 04 1 1507-
633 COVER; ADJ,TILT
AIR SUSP DRIVER SEAT<A56> GRAY 		8-97414-118-0 01 1 1507-

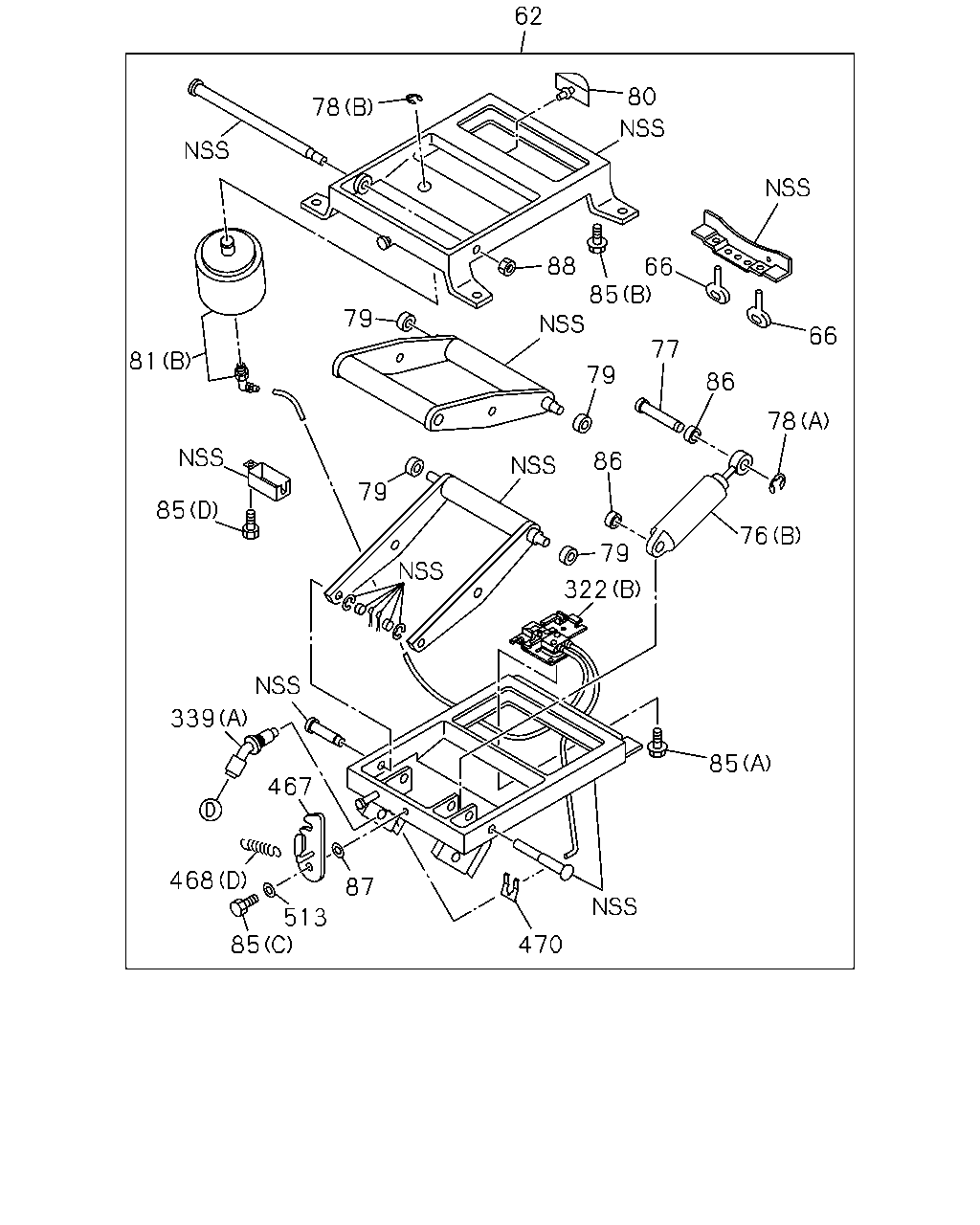

çizim 507847
78 62 81 79 88 80 66 77 66 85 79 86 76 78 86 79 85 322 85 79 470 87 513 85 468 339 467
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-451-0 01 1 1507-
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-145-0 02 1 1507-
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-139-0 01 1 1507-
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98097-999-0 01 1 1507-1507
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98097-999-0 01 1 1507-
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98097-999-0 01 1 1507-
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> 		1-75538-138-2 01 1 1507-
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (A) ID=8 		9-09185-408-0 01 1 1507-
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (B) ID=15 		9-09185-415-0 01 1 1507-
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		8-98101-900-0 02 1 1507-1507
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C) 		8-98101-900-0 02 1 1507-
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (C) 		8-98101-900-0 02 1 1507-
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-489-0 04 1 1507-
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> 		1-09987-123-0 01 1 1507-
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> (B) 		8-98242-816-0 01 1 1507-
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-000-0 01 1 1507-1507
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98098-000-0 01 1 1507-
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98098-000-0 01 1 1507-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) 		1-09980-577-1 01 1 1507-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (A) M6X12 		1-75538-208-1 02 1 1507-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1507-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1507-
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1507-
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> ID=8.2 		0-91510-508-0 01 1 1507-
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> M10 		1-75537-273-1 01 1 1507-
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> (B) 		1-75538-187-3 01 1 1507-
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98098-001-0 01 1 1507-1507
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98098-001-0 01 1 1507-1508
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98331-314-0 01 1 1509-
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98331-314-0 01 1 1507-
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) 		1-75538-131-3 01 1 1507-
339 UNION; DRIVER SEAT
(B) 		8-98014-971-0 01 1 1507-
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> 		1-75538-134-0 01 1 1507-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-206-0 01 1 1507-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-207-0 01 1 1507-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (C) 		1-75518-208-0 02 1 1507-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) 		1-75538-132-0 01 1 1507-
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> 		1-75538-137-0 01 1 1507-
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> 		1-75538-133-0 01 1 1507-

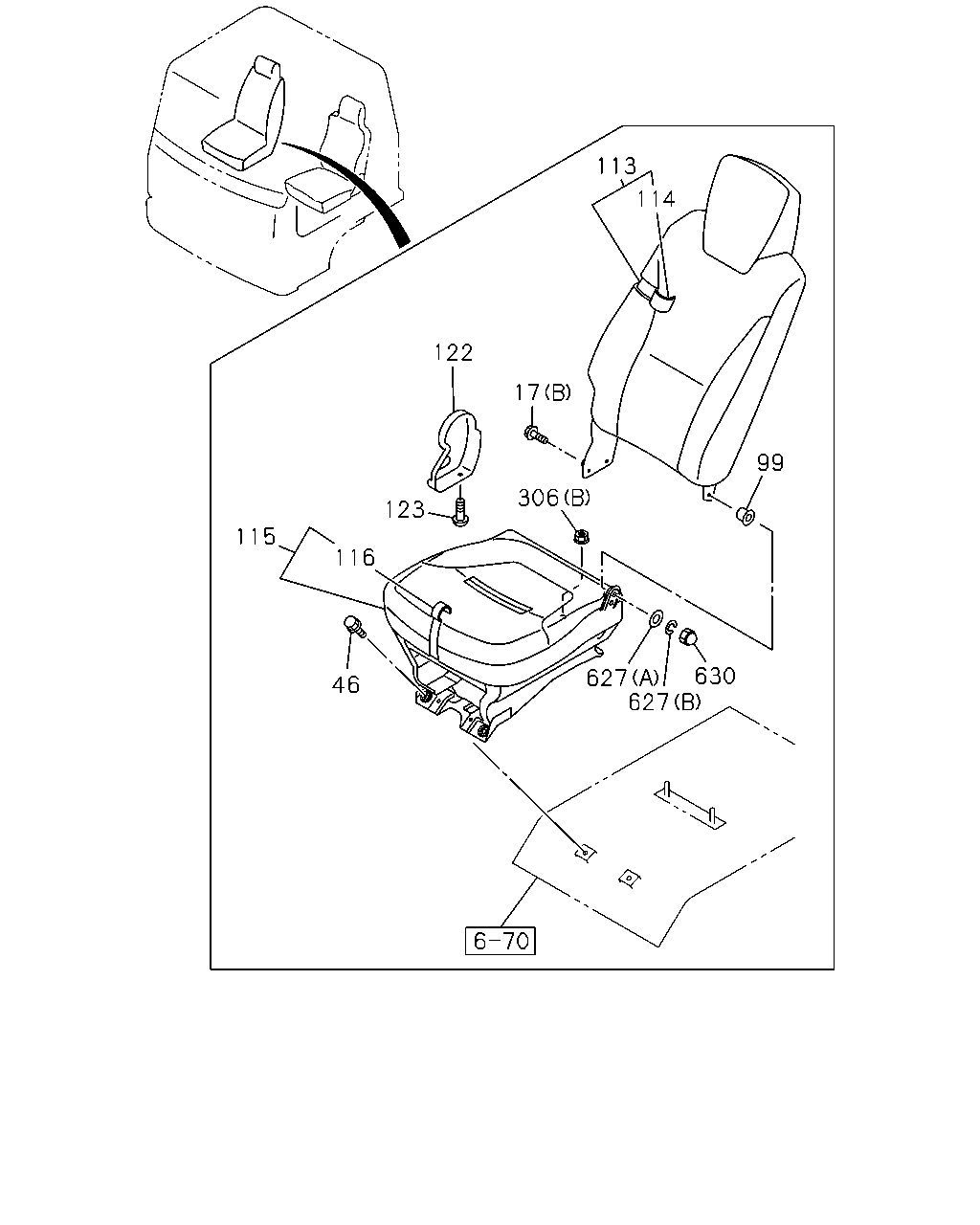

çizim 507848
113 122 114 17 306 123 116 115 46 627 627 99 630
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> (A) M10X20 		8-98062-661-0 02 1 1507-
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1507-
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		8-98097-974-0 02 1 1507-1507
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C) 		8-98097-974-0 02 1 1507-
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (C) 		8-98097-974-0 02 1 1507-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1507-
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1507-
113 BACK ASM; SEAT
DARK GRAY 		8-97421-423-0 01 1 1507-
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-425-0 01 1 1507-
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-419-2 01 1 1507-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-421-1 01 1 1507-
122 COVER; ADJ,RECLINING
GRAY 		8-97414-043-0 01 1 1507-
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 1507-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE 		1-75538-207-0 06 1 1507-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1507-
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1507-
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1507-
630 NUT; CAP
M8 		8-98063-225-0 01 1 1507-
çizim 507857
359 533 365 360 535 360 360 359 536 534
BalonParca AdiParca NoAdetTipApplied Date
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1507-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1507-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1507-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1507-
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1507-
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98097-972-0 01 1 1507-1507
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98097-972-0 01 1 1507-
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98097-972-0 01 1 1507-
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1507-
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-190-0 01 1 1507-
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1507-
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-187-0 02 1 1507-

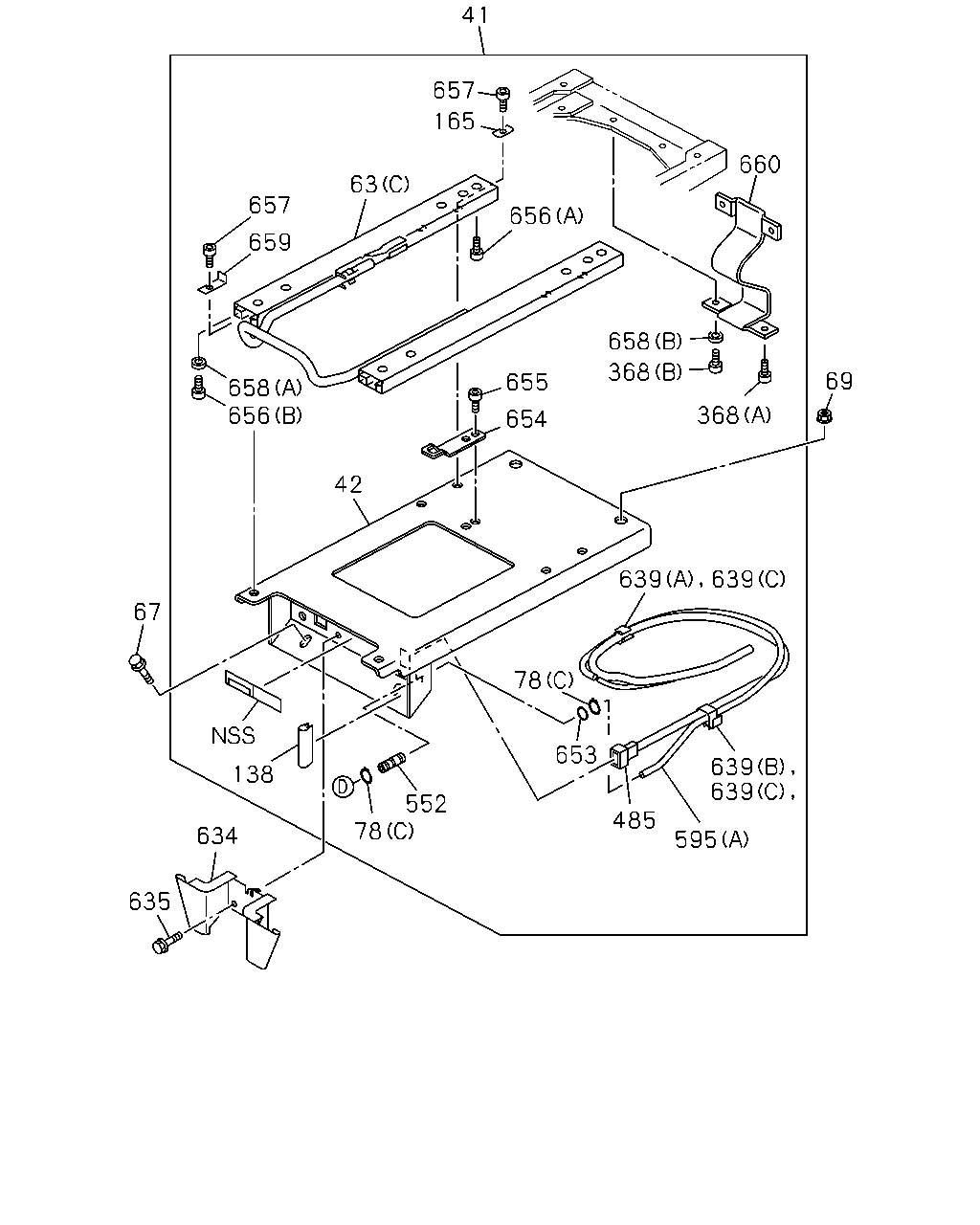

çizim 507917
41 657 656 165 63 660 658 368 368 69 639 639 654 655 78 653 485 595 639 552 639 78 635 634 138 42 656 658 659 657 67
BalonParca AdiParca NoAdetTipApplied Date
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98195-065-0 01 1 1507-1507
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98195-065-1 01 1 1507-
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98302-798-1 01 1 1507-
42 STAND; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98106-346-0 01 1 1507-1507
42 STAND; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98106-346-0 01 1 1507-
42 STAND; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98106-346-0 01 1 1507-
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (B) 		1-75518-227-1 01 1 1507-
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (A) 		1-75518-324-0 01 1 1507-
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		8-98098-005-0 01 1 1507-1507
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C) 		8-98098-005-0 01 1 1507-
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (C) 		8-98098-005-0 01 1 1507-
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1507-
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1507-
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (A) ID=8 		9-09185-408-0 01 1 1507-
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (B) ID=15 		9-09185-415-0 01 1 1507-
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT<SJA> (C) 		8-98101-900-0 02 1 1507-1507
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C) 		8-98101-900-0 02 1 1507-
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (C) 		8-98101-900-0 02 1 1507-
138 PROTECTOR; SEAT STAND
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98106-351-0 01 1 1507-1507
138 PROTECTOR; SEAT STAND
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98106-351-0 01 1 1507-
138 PROTECTOR; SEAT STAND
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98106-351-0 01 1 1507-
165 WASHER; PL
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75590-086-0 04 1 1507-1507
165 WASHER; PL
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		1-75590-086-0 04 1 1507-
165 WASHER; PL
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		1-75590-086-0 04 1 1507-
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98106-353-0 03 1 1507-1507
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98106-353-0 03 1 1507-
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98106-353-0 03 1 1507-
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		8-98106-358-0 01 1 1507-1507
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (B) 		8-98106-358-0 01 1 1507-
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (B) 		8-98106-358-0 01 1 1507-
485 HARNESS; FRT SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98106-360-0 01 1 1507-1507
485 HARNESS; FRT SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98106-360-0 01 1 1507-
485 HARNESS; FRT SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98106-360-0 01 1 1507-
552 CONNECTOR
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98101-902-0 01 1 1507-1507
552 CONNECTOR
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98101-902-0 01 1 1507-1508
552 CONNECTOR
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98308-101-0 01 1 1509-
552 CONNECTOR
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98308-101-0 01 1 1507-
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98106-348-0 01 1 1507-1507
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98106-348-0 01 1 1507-
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98106-348-0 01 1 1507-
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1507-
634 COVER; CONNECTOR,SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98088-279-0 01 1 1507-
635 BOLT; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> M6X16 		0-52000-616-0 02 1 1507-
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98106-349-0 01 1 1507-1507
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98106-349-0 01 1 1507-1508
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (C) 		8-98308-100-0 02 1 1509-
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (C) 		8-98308-100-0 02 1 1507-
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		8-98106-350-0 01 1 1507-1507
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (B) 		8-98106-350-0 01 1 1507-1508
653 GASKET
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98101-901-0 01 1 1507-1507
653 GASKET
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98101-901-0 01 1 1507-
653 GASKET
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98101-901-0 01 1 1507-
654 HOOK; STOPPER
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98106-352-0 01 1 1507-1507
654 HOOK; STOPPER
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98106-352-0 01 1 1507-
654 HOOK; STOPPER
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98106-352-0 01 1 1507-
655 BOLT; HOOK
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98106-353-0 02 1 1507-1507
655 BOLT; HOOK
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98106-353-0 02 1 1507-
655 BOLT; HOOK
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98106-353-0 02 1 1507-
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		1-75590-085-0 04 1 1507-1507
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		1-75590-085-0 04 1 1507-
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		1-75590-085-0 04 1 1507-
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		8-98106-354-0 02 1 1507-1507
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (B) 		8-98106-354-0 02 1 1507-
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (B) 		8-98106-354-0 02 1 1507-
657 BOLT; SLIDER TO STAND
DRIVER ISRINGHAUSEN SEAT<SJA> 		1-75590-085-0 06 1 1507-1507
657 BOLT; SLIDER TO STAND
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		1-75590-085-0 06 1 1507-
657 BOLT; SLIDER TO STAND
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		1-75590-085-0 06 1 1507-
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98106-355-0 02 1 1507-1507
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (A) 		8-98106-355-0 02 1 1507-
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (A) 		8-98106-355-0 02 1 1507-
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		8-98106-359-0 01 1 1507-1507
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> (B) 		8-98106-359-0 01 1 1507-
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> (B) 		8-98106-359-0 01 1 1507-
659 STOPPER
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98106-356-0 02 1 1507-1507
659 STOPPER
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98106-356-0 02 1 1507-
659 STOPPER
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98106-356-0 02 1 1507-
660 BELT; TETHER
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98106-357-0 01 1 1507-1507
660 BELT; TETHER
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLEET USER PACKAGE<6SX> 		8-98106-357-0 01 1 1507-
660 BELT; TETHER
DRIVER ISRINGHAUSEN SEAT<SJA> FLEET USER PACKAGE<6SX> 		8-98106-357-0 01 1 1507-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
