◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11744 - FRR LHD EUROPE EURO6 SPACECAB LDWS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#171224) — 128 parça

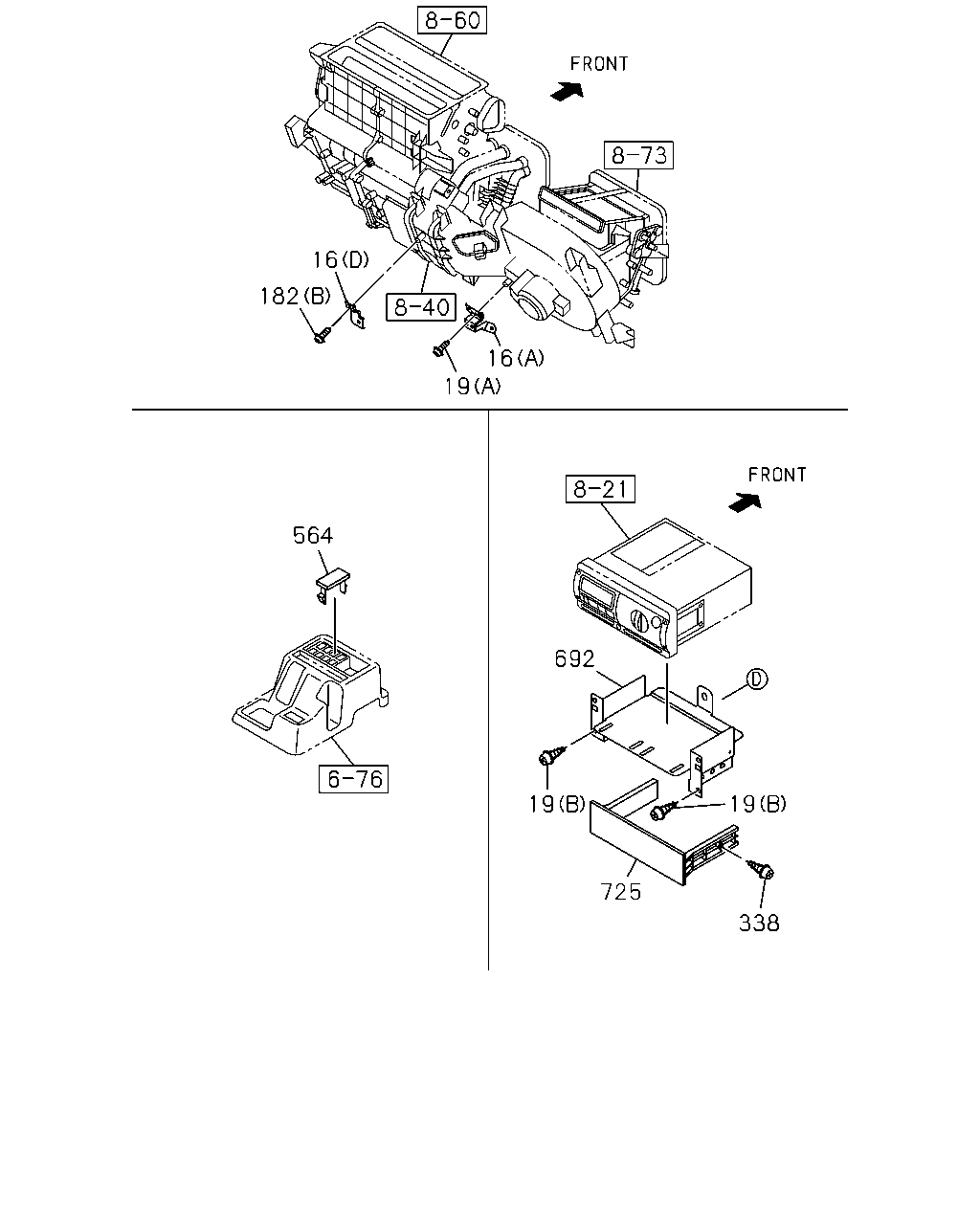

çizim 507481
16 182 16 19 692 19 338 725 19 564
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 1507-
16 BRACKET; INST PNL
(D) 		8-98017-527-0 01 1 1507-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1507-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1507-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1507-
19 SCREW; BRKT
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1509-
19 SCREW; BRKT
(B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1507-1508
19 SCREW; BRKT
KD PREPARATORY PACK<6HF> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1509-
19 SCREW; BRKT
EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1509-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1507-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1507-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1507-
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1507-
338 SCREW; COVER
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1507-1508
338 SCREW; COVER
KD PREPARATORY PACK<6HF> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1509-
338 SCREW; COVER
EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1509-
564 COVER; SW 8-97043-732-1 06 1 1507-
692 BRACKET; TACHOGRAPH 8-98094-272-0 01 1 1507-1508
692 BRACKET; TACHOGRAPH
KD PREPARATORY PACK<6HF> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98094-272-0 01 1 1509-
692 BRACKET; TACHOGRAPH
EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98094-272-0 01 1 1509-
725 COVER; TACHOGRAPH
BLACK 		8-97407-896-2 01 1 1507-

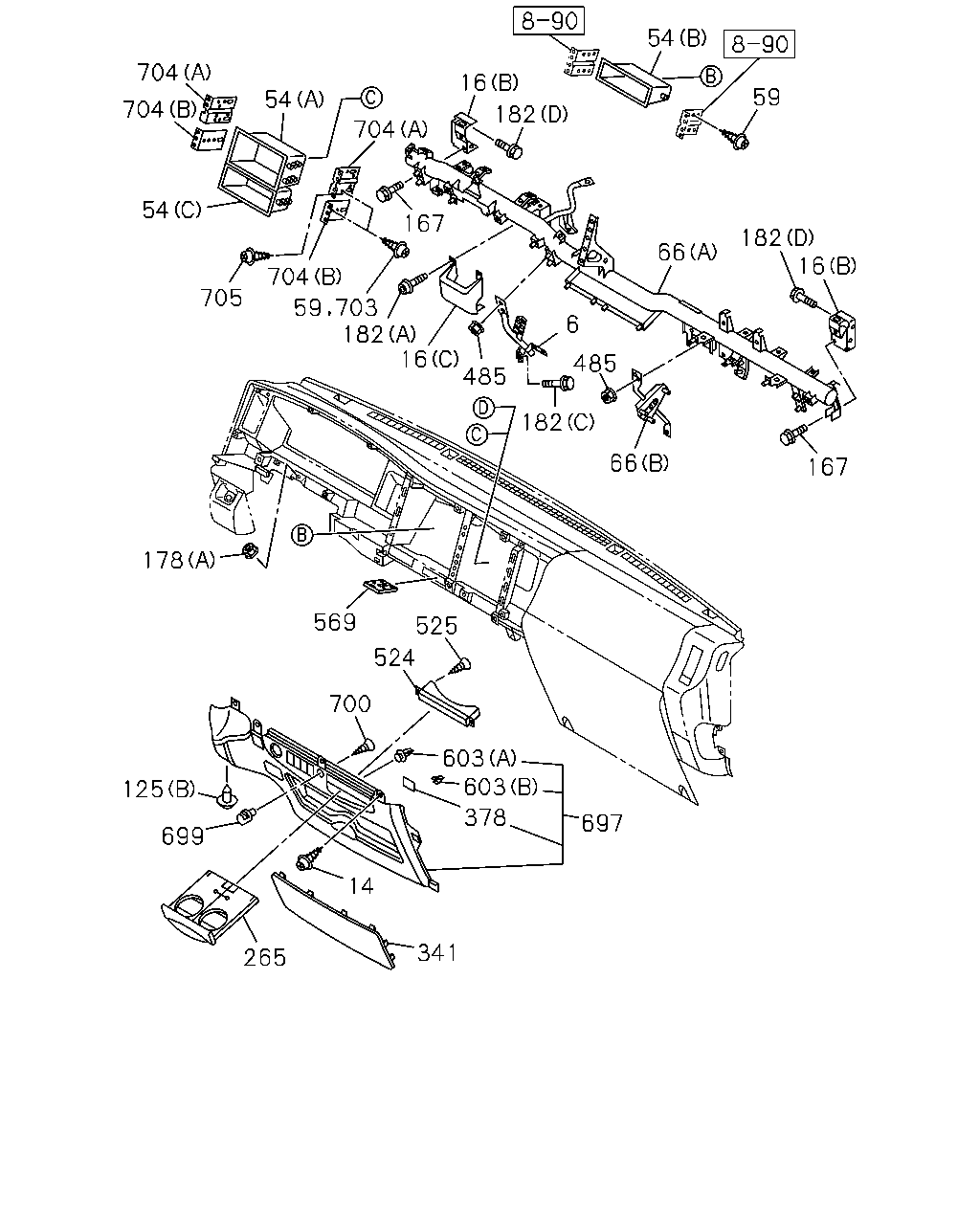

çizim 507707
704 54 704 705 704 167 703 59 704 54 16 54 59 182 66 16 167 6 485 16 182 182 485 66 182 524 569 525 178 125 697 378 341 14 265 603 603 700 699
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98064-936-1 01 1 1507-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1507-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 1507-
16 BRACKET; INST PNL
(D) 		8-98017-527-0 01 1 1507-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1507-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1507-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1507-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1507-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1507-
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1507-1508
54 POCKET; CENTER CLUSTER
EXC. KD PREPARATORY PACK<6HF> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1509-
54 POCKET; CENTER CLUSTER
KD PREPARATORY PACK<6HF> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1509-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1507-
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3) (A) 		8-98248-349-0 01 1 1507-
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98253-177-0 01 1 1507-
66 REINFORCEMENT; INST PANEL
(B) 		8-98082-466-1 01 1 1507-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1507-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1507-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1507-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1507-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1507-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1507-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1507-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1507-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1507-
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1507-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1507-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1507-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1507-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1507-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1507-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1507-
569 HOLDER; CARD 8-97410-276-1 01 1 1507-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1507-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1507-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1507-
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1507-
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1507-
697 PANEL; INST CENTER
GRAY 		8-97422-208-1 01 1 1507-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1507-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1507-
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1507-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1507-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1507-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1507-

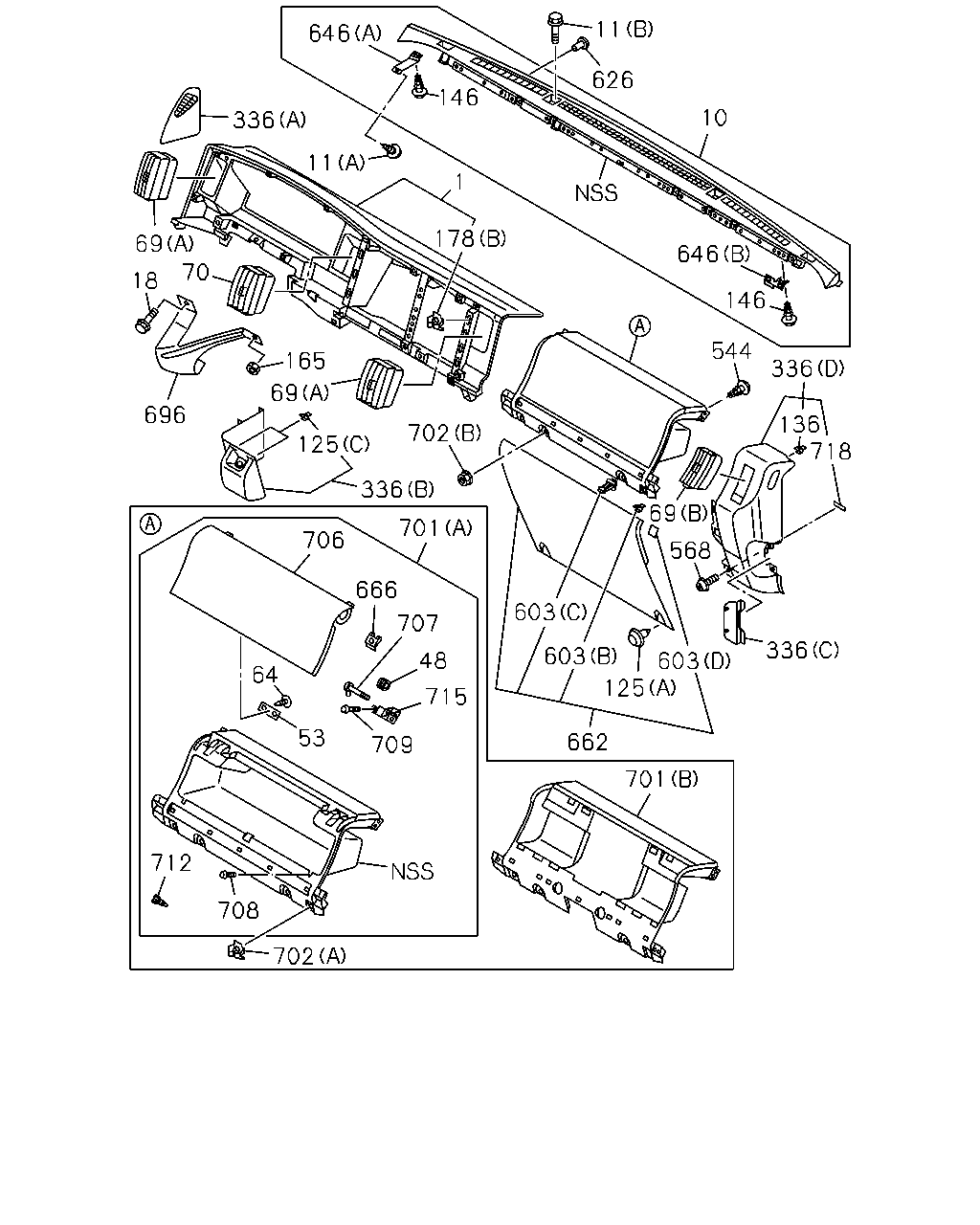

çizim 507784
336 11 646 146 1 178 69 18 70 696 69 165 125 702 336 701 706 666 707 48 715 709 53 64 712 708 702 662 701 125 603 603 603 336 568 69 718 136 336 544 146 646 10 626 11
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 1507-
10 PANEL ASM; GARNISH
GRAY 		8-97422-096-1 01 1 1507-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1507-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1507-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1507-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-763-0 01 1 1507-1508
48 SPRING; GLOVE BOX LID
AIR BAG DRIVER(AJ3) 		8-98270-763-0 01 1 1509-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-764-0 01 1 1507-1508
48 SPRING; GLOVE BOX LID
AIR BAG DRIVER(AJ3) 		8-98270-764-0 01 1 1509-
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-765-0 01 1 1507-1508
53 STRIKER; GLOVE BOX
AIR BAG DRIVER(AJ3) 		8-98270-765-0 01 1 1509-
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER(AK5) M4X85 		8-97926-404-0 02 1 1507-1508
64 SCREW; STRIKER
AIR BAG DRIVER(AJ3) M4X85 		8-97926-404-0 02 1 1509-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1507-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 1507-
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 1507-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1507-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1507-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1507-
136 CLIP; INST COVER 8-98076-254-0 02 1 1507-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1507-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1507-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1507-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1507-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1507-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1507-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1507-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1507-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1507-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1507-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1507-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1507-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1507-
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1507-
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1507-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1507-
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 1507-
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 1507-
662 COVER; LWR,INST PANEL
GRAY 		8-97419-960-2 01 1 1507-
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5 		8-97926-400-0 04 1 1507-1508
666 INSERT; INST PANEL
AIR BAG DRIVER(AJ3) M5 		8-97926-400-0 04 1 1509-
696 BRACKET; KNEE 8-98098-126-1 01 1 1507-
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97429-703-1 01 1 1507-1508
701 TRAY; INST
AIR BAG DRIVER(AJ3) (A) GRAY 		8-97429-703-1 01 1 1509-
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97417-196-2 01 1 1507-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1507-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1507-
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97429-992-0 01 1 1507-1508
706 LID; TRAY INST
AIR BAG DRIVER(AJ3) GRAY 		8-97429-992-0 01 1 1509-
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-393-0 02 1 1507-1508
707 SHAFT; TRAY INST LID
AIR BAG DRIVER(AJ3) 		8-97926-393-0 02 1 1509-
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1507-1508
708 STOPPER; TRAY INST LID
AIR BAG DRIVER(AJ3) 		8-98010-867-1 02 1 1509-
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 1507-1508
709 SCREW; TRAY INST
AIR BAG DRIVER(AJ3) M5X16 TAPPING 		0-71040-516-0 04 1 1509-
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 1507-1508
712 LOCK; TRAY INST LID
AIR BAG DRIVER(AJ3) 		8-98031-846-0 01 1 1509-
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-396-0 01 1 1507-1508
715 SUPPORT; TRAY,HINGE
AIR BAG DRIVER(AJ3) 		8-97926-396-0 01 1 1509-
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-397-0 01 1 1507-1508
715 SUPPORT; TRAY,HINGE
AIR BAG DRIVER(AJ3) 		8-97926-397-0 01 1 1509-
718 SEAL; COVER
4X35 		8-98185-153-0 01 1 1507-
