7-20 — MIRROR AND MIRROR STAY (#171222) — 133 parça

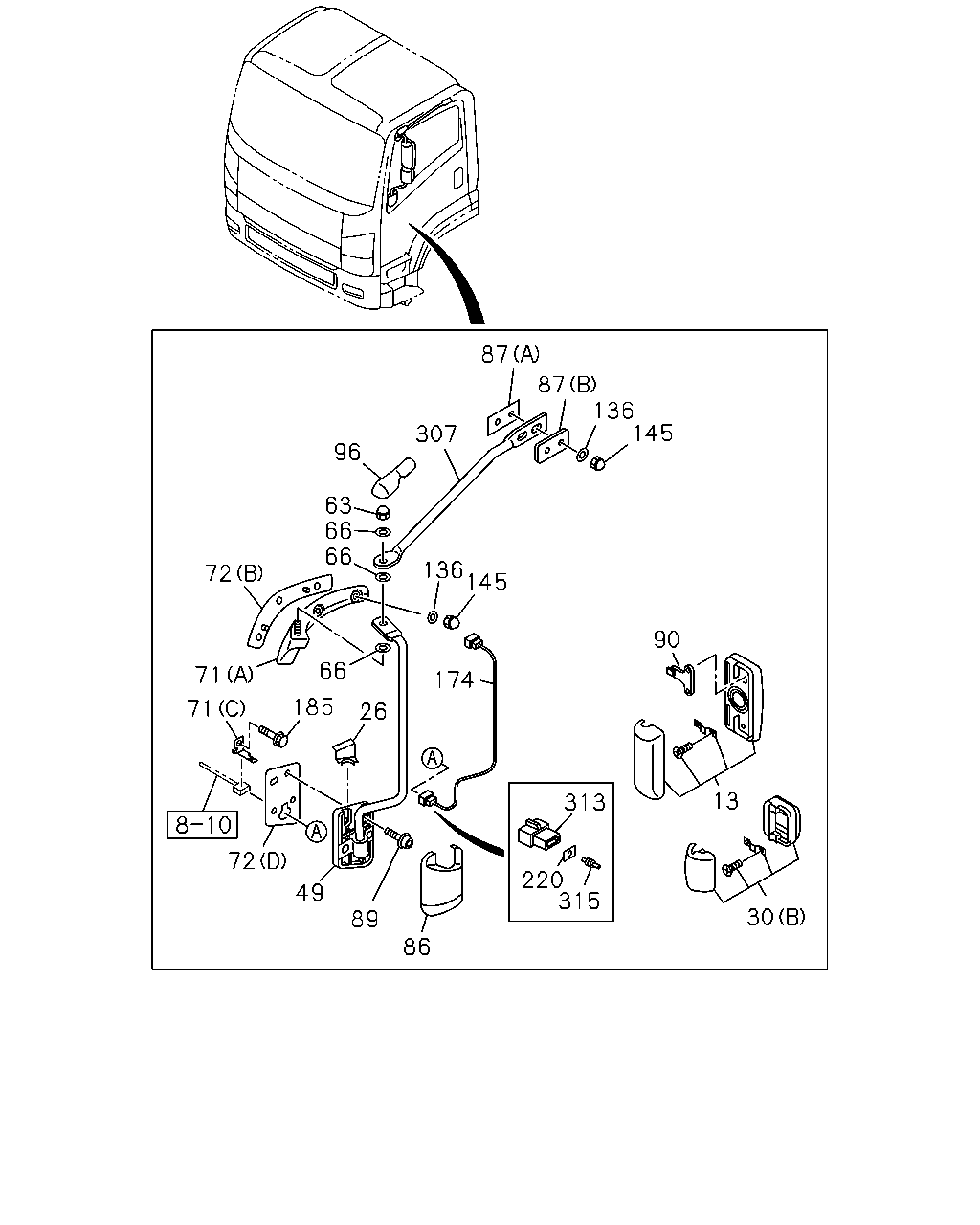

87 87 136 145 307 96 63 66 66 136 145 72 71 71 185 66 26 174 72 49 89 86 220 315 313 90 13 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98043-060-1	01	1	1507-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98043-176-1	01	1	1507-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98055-991-1	01	1	1507-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98055-992-1	01	1	1507-
26	COVER; OUTSIDE MIRROR	8-98031-805-0	01	1	1507-
26	COVER; OUTSIDE MIRROR	8-98031-806-0	01	1	1507-
30	MIRROR; UNDER (B)	8-98043-061-0	02	1	1507-
30	MIRROR; UNDER (A)	8-98043-065-0	01	1	1507-
30	MIRROR; UNDER (C)	8-98309-725-0	01	1	1507-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98166-188-0	01	1	1507-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98166-189-0	01	1	1507-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98166-180-0	01	1	1507-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98166-181-0	01	1	1507-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98166-198-0	01	1	1507-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98166-199-0	01	1	1507-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98166-210-0	01	1	1507-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98166-211-0	01	1	1507-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIR O/S RR VIEW EXTENDED LONG ARM<8MV>	8-98166-192-0	01	1	1507-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIR O/S RR VIEW EXTENDED LONG ARM<8MV>	8-98166-193-0	01	1	1507-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98166-194-0	01	1	1507-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98166-195-0	01	1	1507-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98166-206-0	01	1	1507-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98166-207-0	01	1	1507-
49	STAY; MIRROR SIDE MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98166-190-0	01	1	1507-
49	STAY; MIRROR SIDE MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98166-191-0	01	1	1507-
63	NUT; STAY M10 CAP NUT	1-09984-134-0	02	1	1507-
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1507-1508
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	1507-1508
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	1509-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	8-98039-277-2	02	1	1507-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-484-1	01	1	1507-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-793-2	01	1	1507-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-794-2	01	1	1507-
71	BRACKET; OUTSIDE MIRROR (D)	8-98064-775-0	01	1	1507-
71	BRACKET; OUTSIDE MIRROR (E)	8-98304-528-0	01	1	1507-
72	SHEET EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-98116-604-0	01	1	1507-
72	SHEET EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-98116-605-0	01	1	1507-
72	SHEET ISRAEL COUNTRY(CV4) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-98101-864-0	01	1	1507-
72	SHEET ISRAEL COUNTRY(CV4) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-98101-865-0	01	1	1507-
72	SHEET (C)	8-98031-796-0	01	1	1507-
72	SHEET (B)	8-98031-797-0	01	1	1507-
72	SHEET (E)	8-98060-225-1	01	1	1507-
72	SHEET (A)	8-98064-773-0	01	1	1507-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-802-2	01	1	1507-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-803-2	01	1	1507-
87	SPACER (A)	8-98063-786-0	02	1	1507-
87	SPACER (B)	8-98063-789-0	01	1	1507-
89	SCREW; BRKT,OUTSIDE MIRROR M8X23	8-97310-216-1	08	1	1507-
90	BRACKET; MIRROR STAY O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98129-822-0	02	1	1507-
96	CAP; MIRROR STAY	8-98080-173-0	02	1	1507-
136	WASHER; LK,BRKT,MIRROR STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1507-
145	NUT; CAP,SUB STAY M8 CAP NUT	8-98059-914-0	10	1	1507-
174	HARNESS; MIRROR ISRAEL COUNTRY(CV4) MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98125-654-0	02	1	1507-
174	HARNESS; MIRROR ISRAEL COUNTRY(CV4) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98125-653-0	02	1	1507-
185	BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> M8X16 FLANGE	0-28050-816-0	02	1	1507-
220	HOLDER; CONNECTOR ISRAEL COUNTRY(CV4) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-94447-536-0	02	1	1507-
307	STAY; MIRROR SUPPORT	8-98063-784-2	01	1	1507-
307	STAY; MIRROR SUPPORT	8-98063-785-2	01	1	1507-
313	CONNECTOR; MIRROR ISRAEL COUNTRY(CV4) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-94447-532-0	02	1	1507-
315	RUBBER ASM; CONNECTOR ISRAEL COUNTRY(CV4) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	1-82691-026-0	02	1	1507-

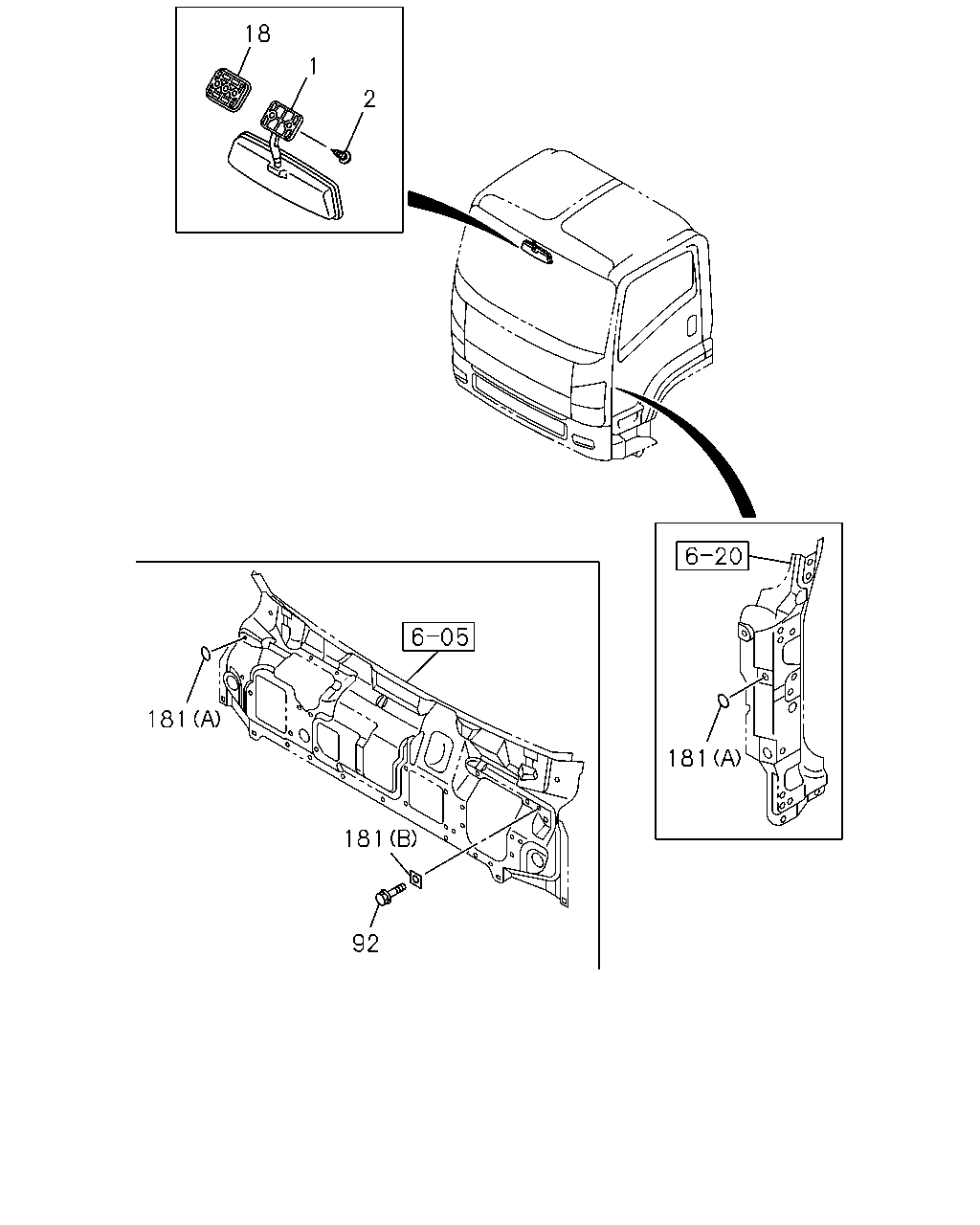

18 1 2 181 181 92 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM RR VIEW MIRROR<D31> DARK GRAY	8-98097-534-1	01	1	1507-
2	SCREW; MIRROR TO BODY RR VIEW MIRROR<D31> M6X26	8-98033-674-0	02	1	1507-
18	CLIP; MIRROR RR VIEW MIRROR<D31> DARK GRAY	8-97408-241-0	01	1	1507-
92	BOLT; STAY BRKT,MIRROR M8X16 FLANGE	8-98076-109-0	01	1	1507-
181	SEAL; BRKT (A) OD=25 BLACK	1-76798-019-0	02	1	1507-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1507-

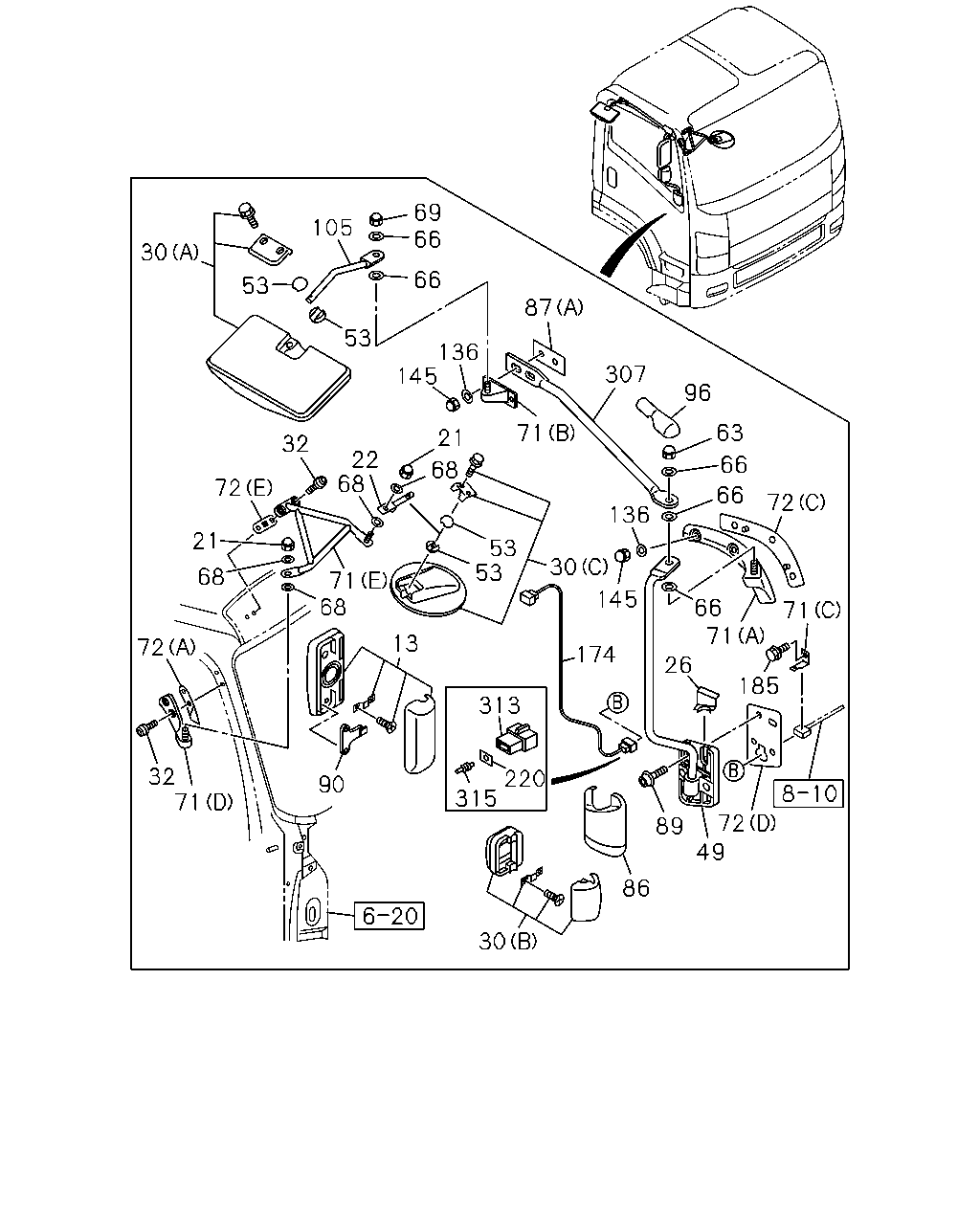

30 53 105 53 66 66 69 136 145 21 68 87 71 307 96 63 66 66 72 71 66 71 185 26 174 145 30 53 53 13 313 220 315 30 86 89 49 72 90 71 32 72 68 21 72 32 71 68 68 22 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98043-060-1	01	1	1507-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98043-176-1	01	1	1507-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98055-991-1	01	1	1507-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98055-992-1	01	1	1507-
21	NUT; MIRROR M10 CAP NUT	1-09984-134-0	02	1	1507-
22	STAY; OUTSIDE MIRROR	8-98092-493-0	01	1	1507-
26	COVER; OUTSIDE MIRROR	8-98031-805-0	01	1	1507-
26	COVER; OUTSIDE MIRROR	8-98031-806-0	01	1	1507-
30	MIRROR; UNDER (B)	8-98043-061-0	02	1	1507-
30	MIRROR; UNDER (A)	8-98043-065-0	01	1	1507-
30	MIRROR; UNDER (C)	8-98309-725-0	01	1	1507-
32	SCREW; UNDER MIRROR M8X26 W/PL WASHER	8-98067-249-2	04	1	1507-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98166-188-0	01	1	1507-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98166-189-0	01	1	1507-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98166-180-0	01	1	1507-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98166-181-0	01	1	1507-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98166-198-0	01	1	1507-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98166-199-0	01	1	1507-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98166-210-0	01	1	1507-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98166-211-0	01	1	1507-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIR O/S RR VIEW EXTENDED LONG ARM<8MV>	8-98166-192-0	01	1	1507-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIR O/S RR VIEW EXTENDED LONG ARM<8MV>	8-98166-193-0	01	1	1507-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98166-194-0	01	1	1507-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98166-195-0	01	1	1507-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98166-206-0	01	1	1507-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98166-207-0	01	1	1507-
49	STAY; MIRROR SIDE MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98166-190-0	01	1	1507-
49	STAY; MIRROR SIDE MIR O/S RR VIEW EXTENDED LONG ARM<8MV> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98166-191-0	01	1	1507-
53	PIVOT; SIDE MIRROR ID=19.1	1-71737-633-2	04	1	1507-
63	NUT; STAY M10 CAP NUT	1-09984-134-0	02	1	1507-
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1507-1508
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	1507-1508
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	1509-
68	WASHER; STAY ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1507-
69	NUT; CAP M10 CAP NUT	1-09984-134-0	01	1	1507-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	8-98039-277-2	02	1	1507-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-484-1	01	1	1507-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-793-2	01	1	1507-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-794-2	01	1	1507-
71	BRACKET; OUTSIDE MIRROR (D)	8-98064-775-0	01	1	1507-
71	BRACKET; OUTSIDE MIRROR (E)	8-98304-528-0	01	1	1507-
72	SHEET EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-98116-604-0	01	1	1507-
72	SHEET EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-98116-605-0	01	1	1507-
72	SHEET ISRAEL COUNTRY(CV4) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-98101-864-0	01	1	1507-
72	SHEET ISRAEL COUNTRY(CV4) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-98101-865-0	01	1	1507-
72	SHEET (C)	8-98031-796-0	01	1	1507-
72	SHEET (B)	8-98031-797-0	01	1	1507-
72	SHEET (E)	8-98060-225-1	01	1	1507-
72	SHEET (A)	8-98064-773-0	01	1	1507-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-802-2	01	1	1507-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-803-2	01	1	1507-
87	SPACER (A)	8-98063-786-0	02	1	1507-
87	SPACER (B)	8-98063-789-0	01	1	1507-
89	SCREW; BRKT,OUTSIDE MIRROR M8X23	8-97310-216-1	08	1	1507-
90	BRACKET; MIRROR STAY O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98129-822-0	02	1	1507-
96	CAP; MIRROR STAY	8-98080-173-0	02	1	1507-
105	STAY; SUB UNDER MIRROR	8-98080-109-2	01	1	1507-
136	WASHER; LK,BRKT,MIRROR STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1507-
145	NUT; CAP,SUB STAY M8 CAP NUT	8-98059-914-0	10	1	1507-
174	HARNESS; MIRROR ISRAEL COUNTRY(CV4) MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98125-654-0	02	1	1507-
174	HARNESS; MIRROR ISRAEL COUNTRY(CV4) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98125-653-0	02	1	1507-
185	BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> M8X16 FLANGE	0-28050-816-0	02	1	1507-
220	HOLDER; CONNECTOR ISRAEL COUNTRY(CV4) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-94447-536-0	02	1	1507-
307	STAY; MIRROR SUPPORT	8-98063-784-2	01	1	1507-
307	STAY; MIRROR SUPPORT	8-98063-785-2	01	1	1507-
313	CONNECTOR; MIRROR ISRAEL COUNTRY(CV4) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-94447-532-0	02	1	1507-
315	RUBBER ASM; CONNECTOR ISRAEL COUNTRY(CV4) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	1-82691-026-0	02	1	1507-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
