◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11744 - FRR LHD EUROPE EURO6 SPACECAB LDWS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#171212) — 57 parça

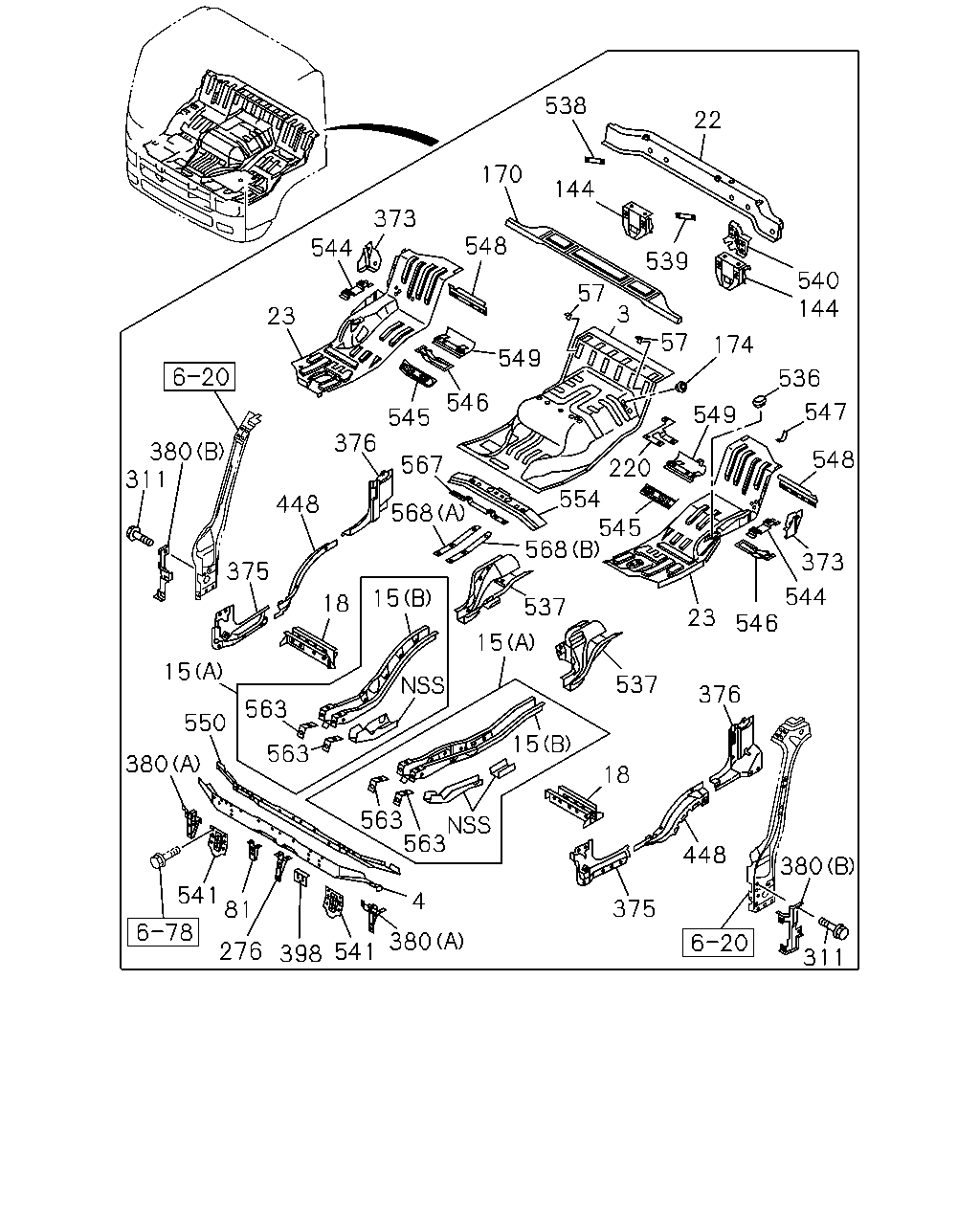

çizim 507518
373 544 23 376 545 546 549 57 539 22 144 538 170 548 567 568 448 375 380 311 15 550 380 563 563 18 15 15 537 537 18 15 563 563 4 380 541 398 276 81 541 540 144 536 547 548 373 544 546 23 376 448 375 380 311 545 554 220 549 174 57 3 568
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98269-600-0 01 1 1507-
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-819-4 01 1 1507-
4 FRAME; FLOOR,FRT 8-98077-806-1 01 1 1507-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1507-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1507-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1507-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1507-
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 1507-
18 FRAME; FLOOR,CENTER SIDE 8-98017-380-2 01 1 1507-
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 1507-
23 PANEL; FLOOR,SIDE 8-98017-358-5 01 1 1507-
23 PANEL; FLOOR,SIDE 8-98080-738-0 01 1 1507-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1507-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1507-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1507-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1507-
170 EXTENSION; RR FLOOR 8-97589-204-3 01 1 1507-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1507-
220 PATCH 8-97589-704-0 01 1 1507-
276 BRACKET; RAD GRILLE 8-98253-712-0 01 1 1507-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1507-
373 REINFORCEMENT; SEAT BELT 8-97584-367-2 01 1 1507-
373 REINFORCEMENT; SEAT BELT 8-97584-375-2 01 1 1507-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1507-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1507-
376 CLOSING; PILLAR,LWR 8-97589-553-1 01 1 1507-
376 CLOSING; PILLAR,LWR 8-97589-555-1 01 1 1507-
380 BRACKET; HEAD LAMP
(A) 		8-97589-707-1 01 1 1507-
380 BRACKET; HEAD LAMP
(A) 		8-97589-708-1 01 1 1507-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1507-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1507-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1507-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1507-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1507-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1507-
537 SUPPORT ASM; MTG RR 8-97584-390-4 01 1 1507-
537 SUPPORT ASM; MTG RR 8-97584-416-4 01 1 1507-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1507-
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1507-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1507-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1507-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1507-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1507-
545 BRACKET; SEAT FRT 8-97589-705-0 01 1 1507-
545 BRACKET; SEAT FRT 8-98050-188-0 01 1 1507-
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1507-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1507-
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1507-
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1507-
549 BRACKET; SEAT RR 8-98017-363-1 01 1 1507-
549 BRACKET; SEAT RR 8-98050-189-1 01 1 1507-
550 CLOSING ASM; MTG,FRT 8-97589-709-3 01 1 1507-
554 REINFORCEMENT; FLOOR CENTER 8-98017-330-1 01 1 1507-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1507-
567 REINFORCEMENT; CONT LEVER 8-98046-522-3 01 1 1507-
568 BRACKET; ACCEL STOPPER
(A) 		8-98089-177-0 01 1 1507-
568 BRACKET; ACCEL STOPPER
(B) 		8-98089-178-0 01 1 1507-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
