Isuzu WW
▶
TRUCKS
▶
FRR
▶
11744 - FRR LHD EUROPE EURO6 SPACECAB LDWS
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#171209) — 80 parça
◀

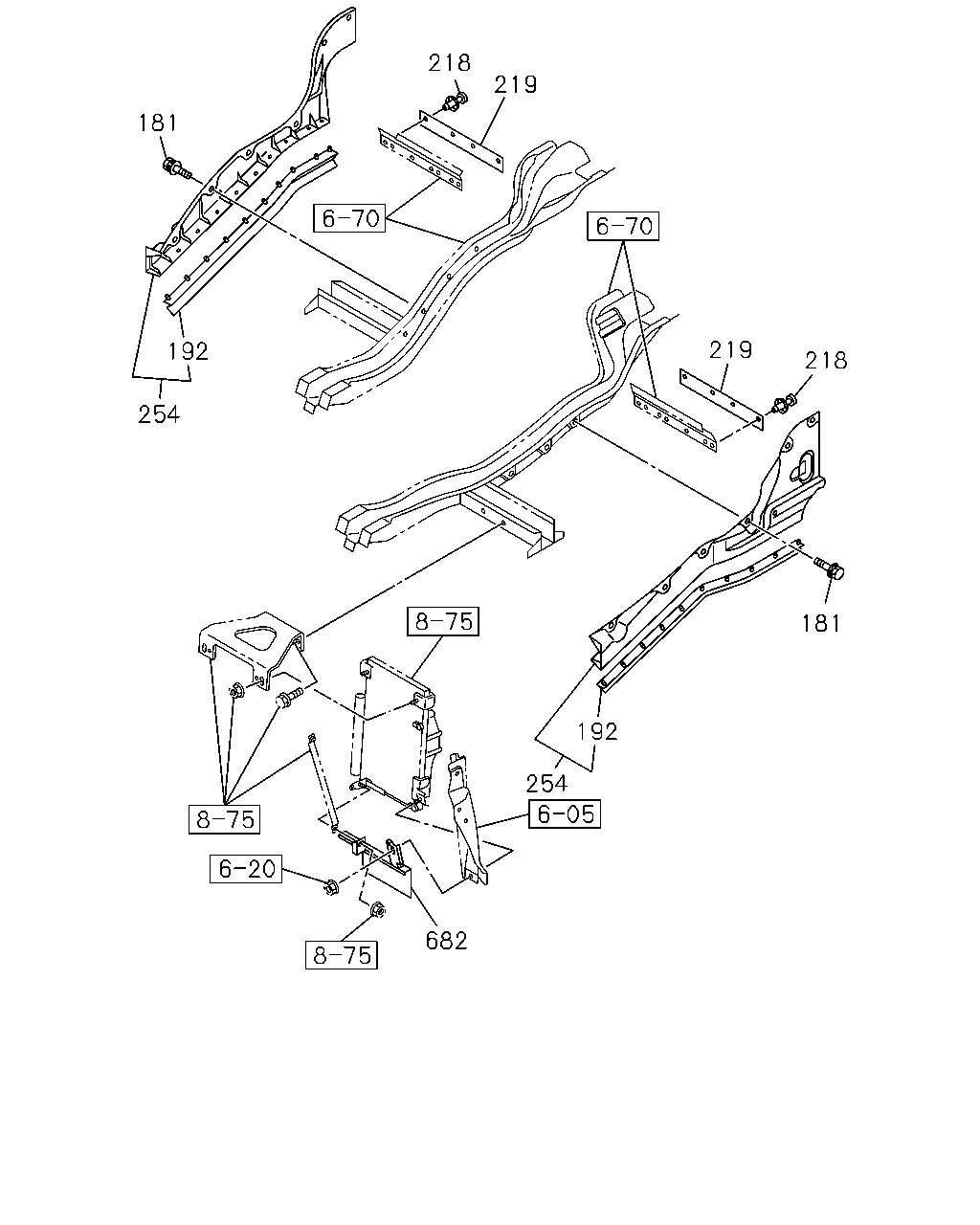

[647A] MUD COVER; SEAL AND FLAP (8 parça)

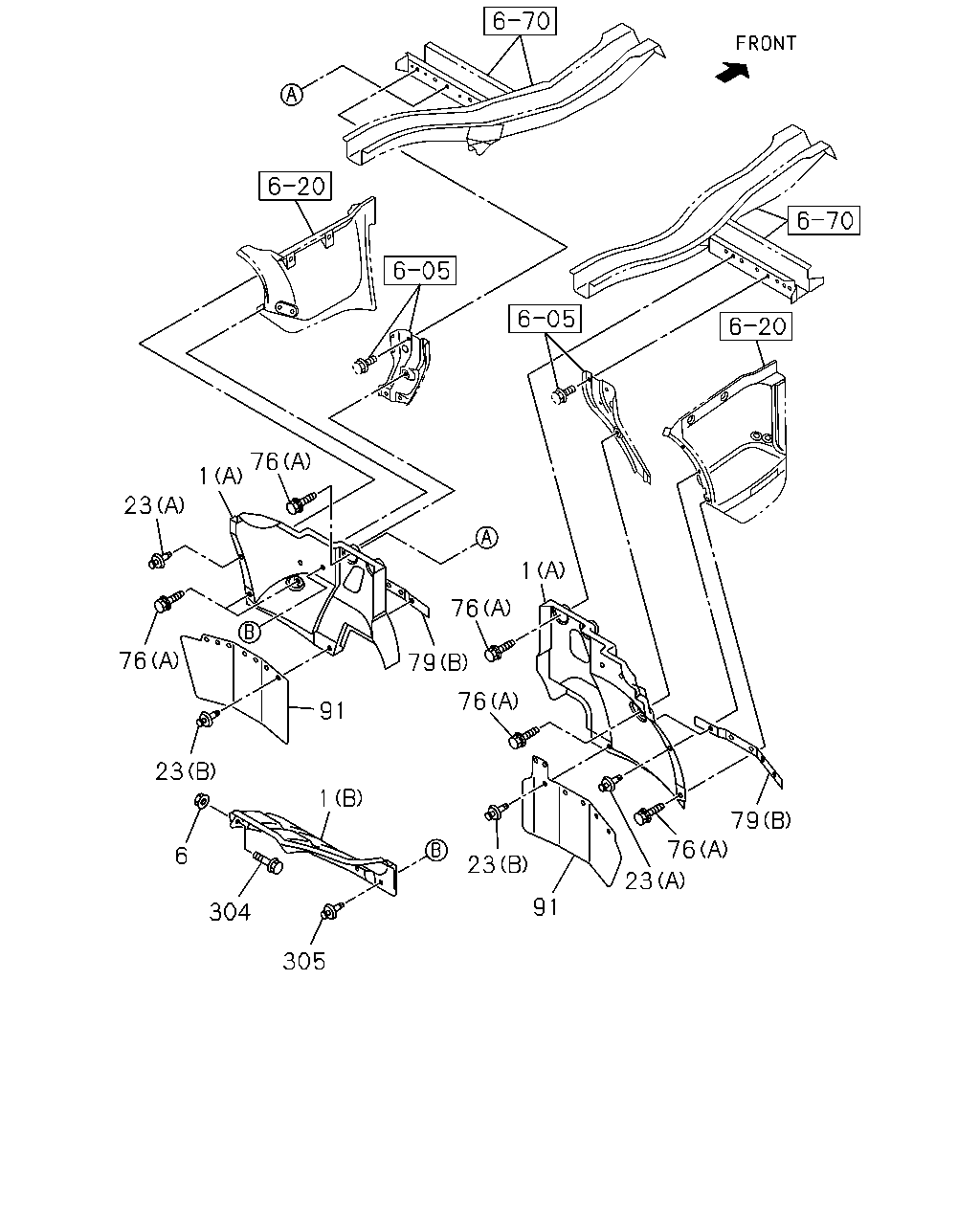

[647A] MUD GUARD; FRONT (16 parça)

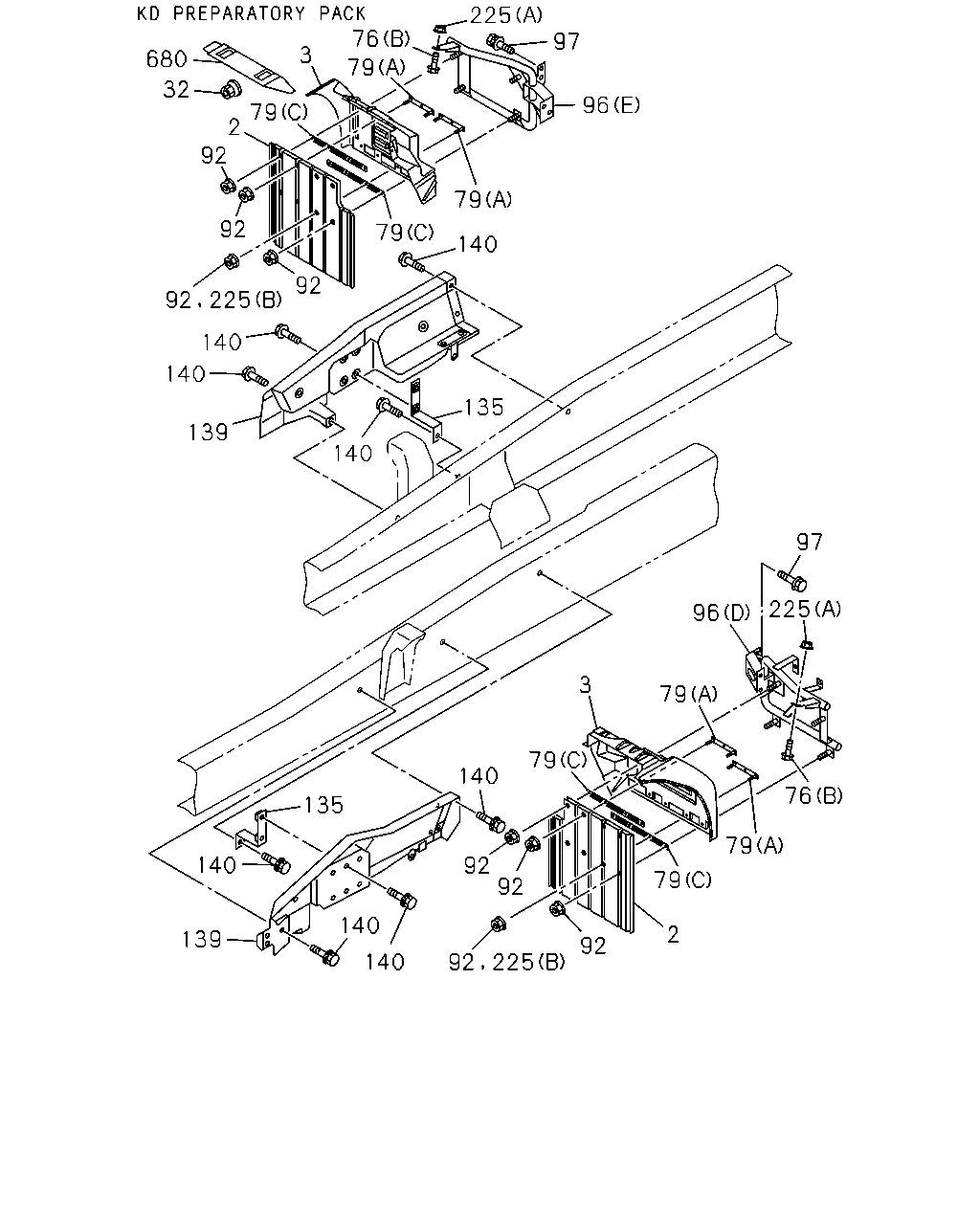

[647A] MUD GUARD; REAR AND SIDE PANEL NO.1 (29 parça)

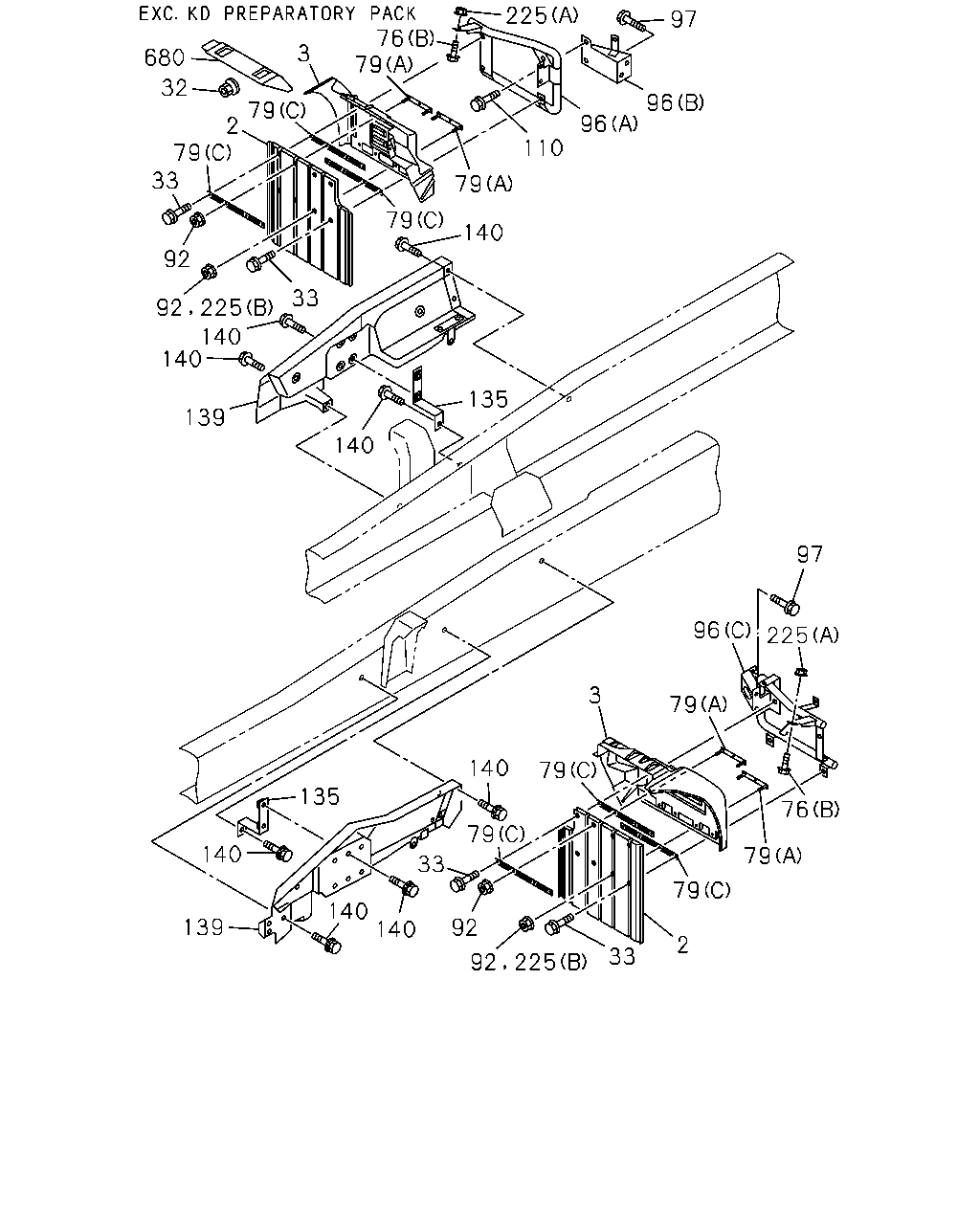

[647A] MUD GUARD; REAR AND SIDE PANEL NO.2 (27 parça)
▶
218
219
219
218
181
682
254
192
192
254
181
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
181
BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
12
1
1507-
192
SEAL; MUD COVER
8-98041-156-2
01
1
1507-
192
SEAL; MUD COVER
8-98041-157-2
01
1
1507-
218
FASTENER; RUBBER
D8X13.5
1-09987-248-1
08
1
1507-
219
FLAP; MUD GUARD
8-98041-148-1
02
1
1507-
254
COVER; MUD,VALANCE
8-98039-918-1
01
1
1507-
254
COVER; MUD,VALANCE
8-98148-212-0
01
1
1507-
682
FLAP; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60)
8-98090-119-1
01
1
1507-
76
1
23
76
23
6
304
1
305
91
79
76
76
1
23
91
23
79
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GUARD; MUD,FRT
DUMP CONTROL LEVER<RC4> (B)
8-98075-191-0
01
1
1507-
1
GUARD; MUD,FRT
(A)
8-98152-646-0
01
1
1507-
1
GUARD; MUD,FRT
(A)
8-98152-647-0
01
1
1507-
6
NUT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6 FLANGE
8-94197-199-0
02
1
1507-
23
FASTENER; MUD COVER
(B)
1-09470-001-0
08
1
1507-
23
FASTENER; MUD COVER
(A) D8X13.5
1-09987-248-1
04
1
1507-
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
04
1
1507-
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
1507-
79
RETAINER; MUD COVER
KD PREPARATORY PACK<6HF> (C)
8-98117-496-0
04
1
1507-
79
RETAINER; MUD COVER
(B)
8-98041-217-1
02
1
1507-
79
RETAINER; MUD COVER
(A)
8-98083-606-1
04
1
1507-
79
RETAINER; MUD COVER
EXC. KD PREPARATORY PACK<6HF> (C)
8-98117-496-0
06
1
1507-
91
COVER; MUD,FRT
8-98041-214-3
01
1
1507-
91
COVER; MUD,FRT
8-98057-428-2
01
1
1507-
304
BOLT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER
1-09980-495-0
02
1
1507-
305
FASTENER; SPLASH GUARD
DUMP CONTROL LEVER<RC4> D8X13.5
1-09987-248-1
02
1
1507-
680
79
32
3
79
33
92
92
225
140
139
33
140
140
135
79
140
79
110
96
96
97
225
76
79
2
135
140
139
140
140
92
33
79
140
79
3
92
225
33
79
79
76
79
96
97
225
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
COVER; MUD,TIRE RR
8-98261-617-0
01
1
1507-
2
COVER; MUD,TIRE RR
8-98261-618-0
01
1
1507-
3
GUARD; MUD,RR
8-98056-954-1
01
1
1507-
3
GUARD; MUD,RR
8-98056-965-2
01
1
1507-
32
NUT; MUD GUARD
M8 W/DISHED WASHER
8-97329-625-0
02
1
1507-
33
BOLT; MUD COVER
EXC. KD PREPARATORY PACK<6HF> M8X55 W/LK+PL WASHER
8-98125-919-0
08
1
1507-
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
04
1
1507-
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
1507-
79
RETAINER; MUD COVER
KD PREPARATORY PACK<6HF> (C)
8-98117-496-0
04
1
1507-
79
RETAINER; MUD COVER
(B)
8-98041-217-1
02
1
1507-
79
RETAINER; MUD COVER
(A)
8-98083-606-1
04
1
1507-
79
RETAINER; MUD COVER
EXC. KD PREPARATORY PACK<6HF> (C)
8-98117-496-0
06
1
1507-
92
NUT; MUD COVER
KD PREPARATORY PACK<6HF> M8 W/DISHED WASHER
8-97329-625-0
16
1
1507-
92
NUT; MUD COVER
EXC. KD PREPARATORY PACK<6HF> M8 W/DISHED WASHER
8-97329-625-0
08
1
1507-
96
STAY; MUD GUARD
KD PREPARATORY PACK<6HF> (D)
8-98056-956-1
01
1
1507-
96
STAY; MUD GUARD
KD PREPARATORY PACK<6HF> (E)
8-98140-674-0
01
1
1507-
96
STAY; MUD GUARD
EXC. KD PREPARATORY PACK<6HF> (A)
8-98124-930-0
01
1
1507-
96
STAY; MUD GUARD
EXC. KD PREPARATORY PACK<6HF> (B)
8-98124-933-0
01
1
1507-
96
STAY; MUD GUARD
EXC. KD PREPARATORY PACK<6HF> (C)
8-98126-041-0
01
1
1507-
97
BOLT; STAY TO FRAME
KD PREPARATORY PACK<6HF> M10X35 FLANGE
0-28651-035-0
08
1
1507-
97
BOLT; STAY TO FRAME
EXC. KD PREPARATORY PACK<6HF> M10X35 FLANGE
0-28651-035-0
06
1
1507-
110
BOLT; BRKT
EXC. KD PREPARATORY PACK<6HF> M10X30 FLANGE
0-28651-030-0
04
1
1507-
135
BRACKET; SIDE PANEL
1-53457-191-0
02
1
1507-
139
PANEL; SIDE
8-98090-078-0
01
1
1507-
139
PANEL; SIDE
8-98122-448-0
01
1
1507-
140
BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER
1-09030-095-0
10
1
1507-
225
NUT; MUD GUARD
(A) M8 FLANGE
0-91180-108-0
02
1
1507-
225
NUT; MUD GUARD
(B) M8 W/DISHED WASHER
8-97329-625-0
02
1
1507-
680
GUARD; MUD,UPPER
1-79931-477-1
01
1
1507-
680
2
79
3
76
79
225
97
96
79
140
79
135
140
139
140
140
225
92
92
92
92
140
135
140
140
139
92
92
92
140
79
3
79
96
97
225
76
79
79
2
92
225
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
COVER; MUD,TIRE RR
8-98261-617-0
01
1
1507-
2
COVER; MUD,TIRE RR
8-98261-618-0
01
1
1507-
3
GUARD; MUD,RR
8-98056-954-1
01
1
1507-
3
GUARD; MUD,RR
8-98056-965-2
01
1
1507-
32
NUT; MUD GUARD
M8 W/DISHED WASHER
8-97329-625-0
02
1
1507-
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
04
1
1507-
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
1507-
79
RETAINER; MUD COVER
KD PREPARATORY PACK<6HF> (C)
8-98117-496-0
04
1
1507-
79
RETAINER; MUD COVER
(B)
8-98041-217-1
02
1
1507-
79
RETAINER; MUD COVER
(A)
8-98083-606-1
04
1
1507-
79
RETAINER; MUD COVER
EXC. KD PREPARATORY PACK<6HF> (C)
8-98117-496-0
06
1
1507-
92
NUT; MUD COVER
KD PREPARATORY PACK<6HF> M8 W/DISHED WASHER
8-97329-625-0
16
1
1507-
92
NUT; MUD COVER
EXC. KD PREPARATORY PACK<6HF> M8 W/DISHED WASHER
8-97329-625-0
08
1
1507-
96
STAY; MUD GUARD
KD PREPARATORY PACK<6HF> (D)
8-98056-956-1
01
1
1507-
96
STAY; MUD GUARD
KD PREPARATORY PACK<6HF> (E)
8-98140-674-0
01
1
1507-
96
STAY; MUD GUARD
EXC. KD PREPARATORY PACK<6HF> (A)
8-98124-930-0
01
1
1507-
96
STAY; MUD GUARD
EXC. KD PREPARATORY PACK<6HF> (B)
8-98124-933-0
01
1
1507-
96
STAY; MUD GUARD
EXC. KD PREPARATORY PACK<6HF> (C)
8-98126-041-0
01
1
1507-
97
BOLT; STAY TO FRAME
KD PREPARATORY PACK<6HF> M10X35 FLANGE
0-28651-035-0
08
1
1507-
97
BOLT; STAY TO FRAME
EXC. KD PREPARATORY PACK<6HF> M10X35 FLANGE
0-28651-035-0
06
1
1507-
135
BRACKET; SIDE PANEL
1-53457-191-0
02
1
1507-
139
PANEL; SIDE
8-98090-078-0
01
1
1507-
139
PANEL; SIDE
8-98122-448-0
01
1
1507-
140
BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER
1-09030-095-0
10
1
1507-
225
NUT; MUD GUARD
(A) M8 FLANGE
0-91180-108-0
02
1
1507-
225
NUT; MUD GUARD
(B) M8 W/DISHED WASHER
8-97329-625-0
02
1
1507-
680
GUARD; MUD,UPPER
1-79931-477-1
01
1
1507-
