10635 - FSS/FTS-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

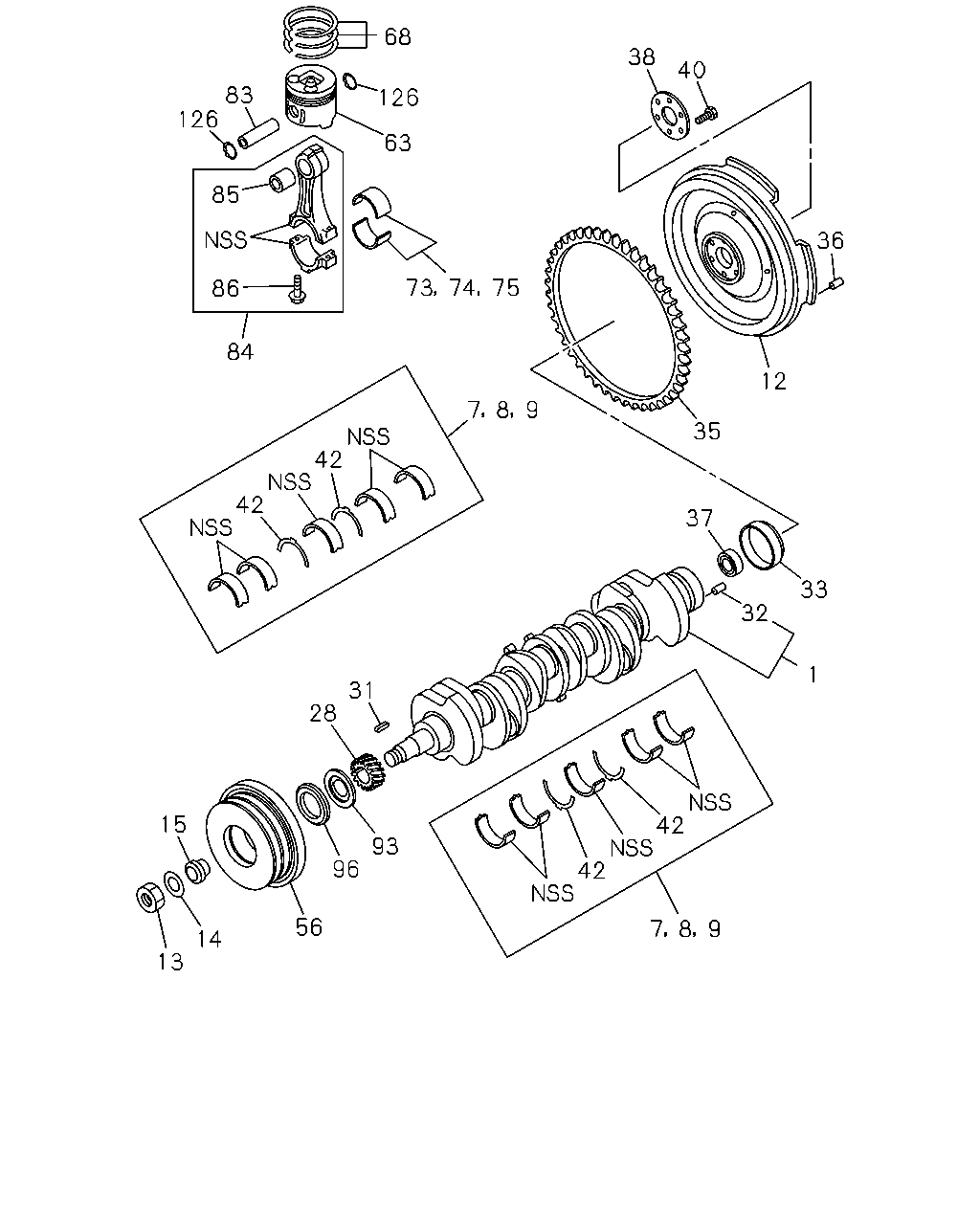

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#1712) — 32 parça
68
38
40
83
126
126
63
85
36
73
74
75
86
84
12
7
8
9
35
42
42
37
33
32
1
31
28
42
42
15
93
96
56
7
8
9
14
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
1-12310-448-0
01
1
9207-
7
METAL KIT; CRANKSHAFT,STANDARD
1-11510-074-3
01
1
9207-
8
METAL KIT; CRANKSHAFT,U/S=0.25
1-11530-074-1
01
1
9207-
9
METAL KIT; CRANKSHAFT,U/S=0.50
1-11540-074-1
01
1
9207-
12
FLYWHEEL
14 INCH
1-12331-164-3
01
1
9207-
13
NUT; STARTING HANDLE
9-09840-107-1
01
1
9207-
14
WASHER; PULLEY DAMPER
9-09851-431-0
01
1
9207-
15
BUSHING; TAPER,CR/SHF PULLEY
9-12379-045-0
01
1
9207-
28
GEAR; CR/SHF
Z=25
1-12521-008-0
01
1
9207-
31
KEY; FEATHER,CR/SHF
5-09738-001-0
01
1
9207-
32
PIN; FLYWHEEL
OD=12 L=20
9-08151-220-0
01
1
9207-
33
RING; WEAR,CR/SHF
5-12319-003-2
01
1
9207-
35
GEAR; RING
Z=129
1-12333-017-0
01
1
9207-
36
PIN; FLYWHEEL
OD=10 L=22
9-08151-022-0
02
1
9207-
37
BEARING; PILOT,TOP GEAR SHAFT
1-09800-214-0
01
1
9207-
38
WASHER; FLYWHEEL
5-12336-008-1
01
1
9207-
40
BOLT; FLYWHEEL
9-92061-638-0
06
1
9207-
42
WASHER; THRUST,CR/SHF
1-11680-001-3
02
1
9207-
56
PULLEY; CR/SHF DAMPER
3-GROOVE
1-12371-248-0
01
1
9207-
63
PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX
1-12111-781-0
06
1
9207-
63
PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX
1-12111-782-0
06
1
9207-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
1-12121-101-1
06
1
9207-
73
METAL SET; CONN ROD,STANDARD
9-12271-608-0
06
1
9207-
74
METAL SET; CONN ROD,U/S=0.25
9-12273-608-0
06
1
9207-
75
METAL SET; CONN ROD,U/S=0.50
9-12274-608-0
06
1
9207-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
9-12211-604-1
06
1
9207-
84
ROD ASM; CONN
1-12230-104-1
06
1
9207-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
1-12251-027-0
06
1
9207-
86
BOLT; CONNROD
M20X49.5
1-12235-027-1
12
1
9207-
93
THROWER; OIL,CR/SHF
1-12362-003-1
01
1
9207-
96
THROWER; DUST,CR/SHF
5-12362-003-1
01
1
9207-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
8-94107-575-1
12
1
9207-
