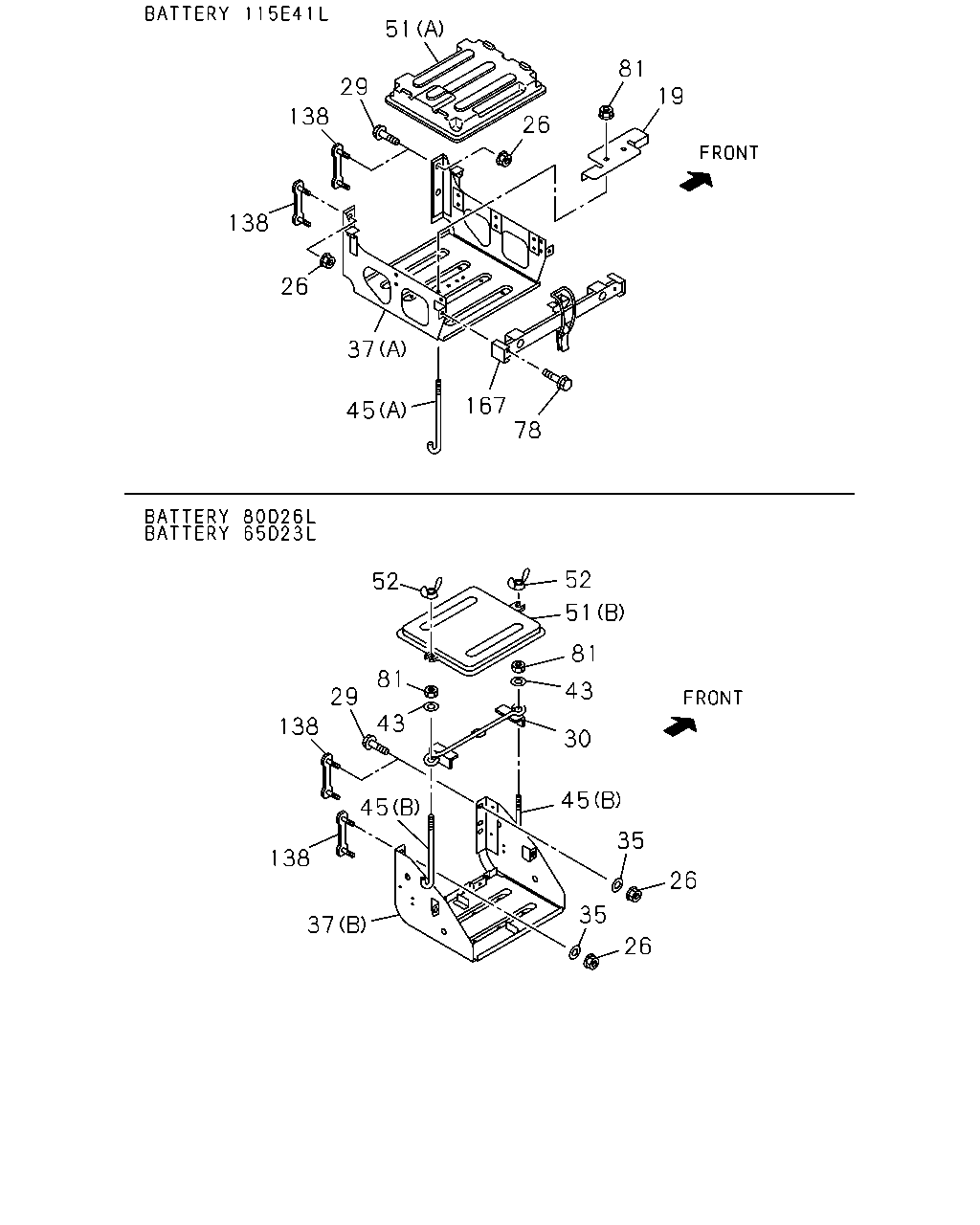

5-20 — BATTERY CARRIER (#171196) — 27 parça

81 19 26 51 29 138 138 26 37 45 167 78 52 51 81 43 30 45 35 26 26 35 52 81 43 29 138 45 138 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	STAY; BATTERY BATTERY 115E41L<8MA>	8-98120-443-0	01	1	1507-
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1507-
29	BOLT; BRKT TO FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10X35 FLANGE	0-28651-035-0	02	1	1507-
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	1507-1508
30	PLATE; BATTERY EXC. BATTERY 115E41L<8MA>	5-53615-004-1	01	1	1509-
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	1507-
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (B)	8-97384-067-2	01	1	1507-
37	BRACKET; BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A)	8-98204-178-2	01	1	1507-
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (B)	8-97384-068-2	01	1	1507-
37	BRACKET; BATTERY BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (A)	8-98204-177-2	01	1	1507-
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=8.4 OD=22	0-91614-708-0	02	1	1507-1508
43	WASHER; PL,CLAMP EXC. BATTERY 115E41L<8MA> ID=8.4 OD=22	0-91614-708-0	02	1	1509-
45	ROD; TENSION,BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A) L=235	8-98120-478-0	02	1	1507-
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (A) L=250	1-53616-108-0	02	1	1507-
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120	9-53616-615-0	02	1	1507-1508
45	ROD; TENSION,BATTERY EXC. BATTERY 115E41L<8MA> (B) L=120	9-53616-615-0	02	1	1509-
51	COVER; BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A)	8-98124-443-0	01	1	1507-
51	COVER; BATTERY BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (A)	1-53612-037-2	01	1	1507-
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	1507-1508
51	COVER; BATTERY EXC. BATTERY 115E41L<8MA> (B)	8-97120-747-0	01	1	1509-
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	1507-1508
52	NUT; WING,COVER FIX EXC. BATTERY 115E41L<8MA> M8 WING NUT	0-91118-408-0	02	1	1509-
78	BOLT; COVER BATTERY 115E41L<8MA> M8X20 FLANGE	0-28650-820-0	02	1	1507-
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	1507-
138	STUD WHEEL BASE 3400MM(34W)	8-98255-710-0	02	1	1507-
138	STUD WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W)	8-98255-710-0	01	1	1507-
167	BRACKET; STOPPER BATTERY 115E41L<8MA>	8-98204-179-2	01	1	1507-
