5-01 — FRAME AND OTHER PARTS (#171193) — 58 parça

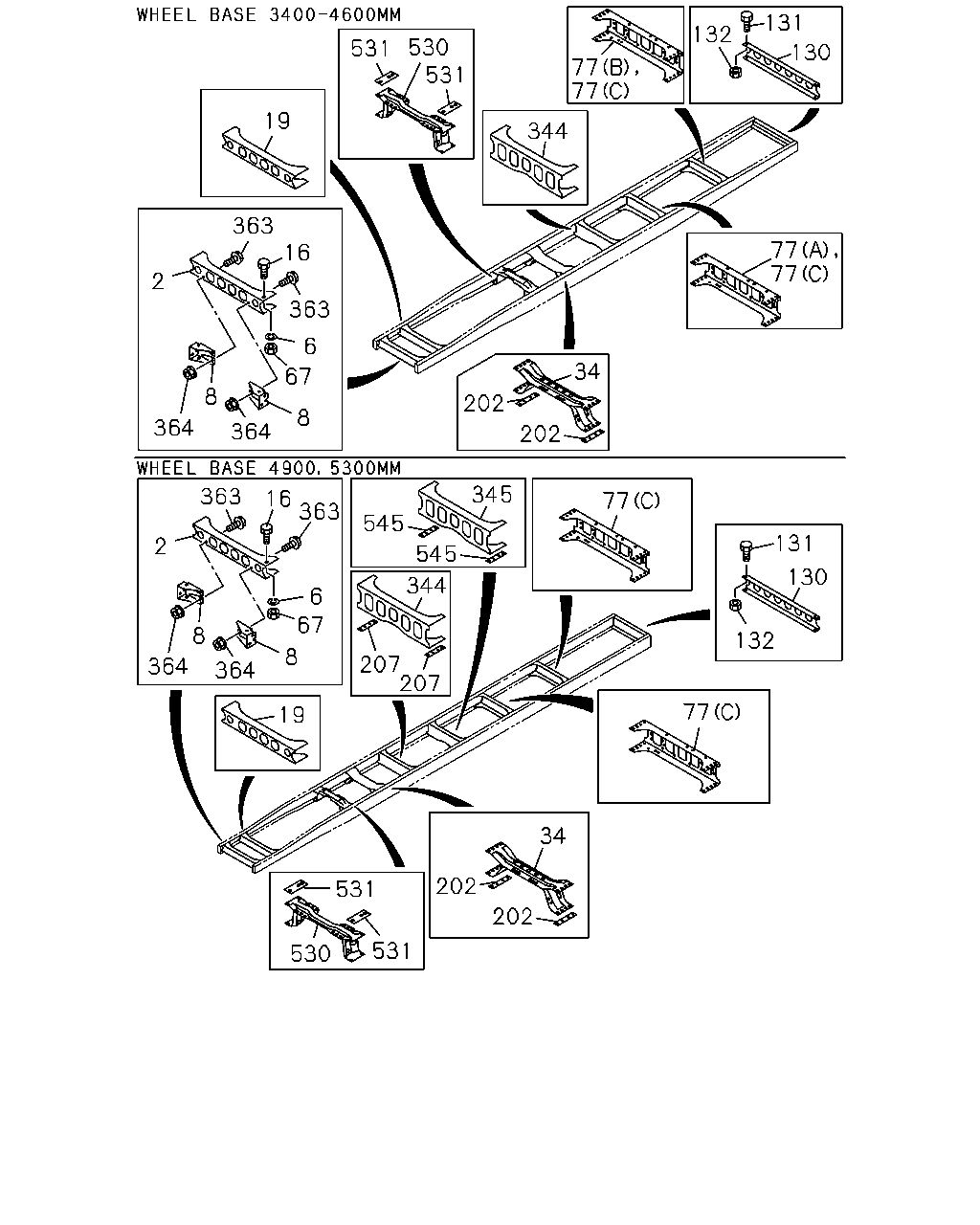

çizim 507733
19 531 530 344 531 363 2 16 363 67 6 8 364 364 8 202 34 202 77 77 130 131 132 77 77 363 16 2 364 364 363 6 67 8 207 207 344 545 545 345 77 131 130 132 77 34 202 202 531 531 530 8 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 MEMBER; CROSS,1ST 8-97609-462-9 01 1 1507- ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 1507- ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-910-2 01 1 1507- ● ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-911-3 01 1 1507- ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 1507- ● ● ● ● ●
19 MEMBER; CROSS,2ND 8-97629-428-5 01 1 1507- ● ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 1507- ● ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1507- ● ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-475-2 01 1 1507- ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-478-4 01 1 1507- ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-1 02 1 1507- ● ● ● ●
130 MEMBER; CROSS,END 8-97609-471-0 01 1 1507- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1507- ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1507- ● ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1507- ● ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1507- ● ● ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1507- ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1507- ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1507- ● ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 1507- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1507- ● ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1507- ● ● ● ● ●
530 MEMBER; CROSS,T/M 8-97609-809-3 01 1 1507- ● ● ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 1507- ● ● ● ● ●
545 SPACER; 5TH C/MBR 8-97609-758-0 02 1 1507- ●

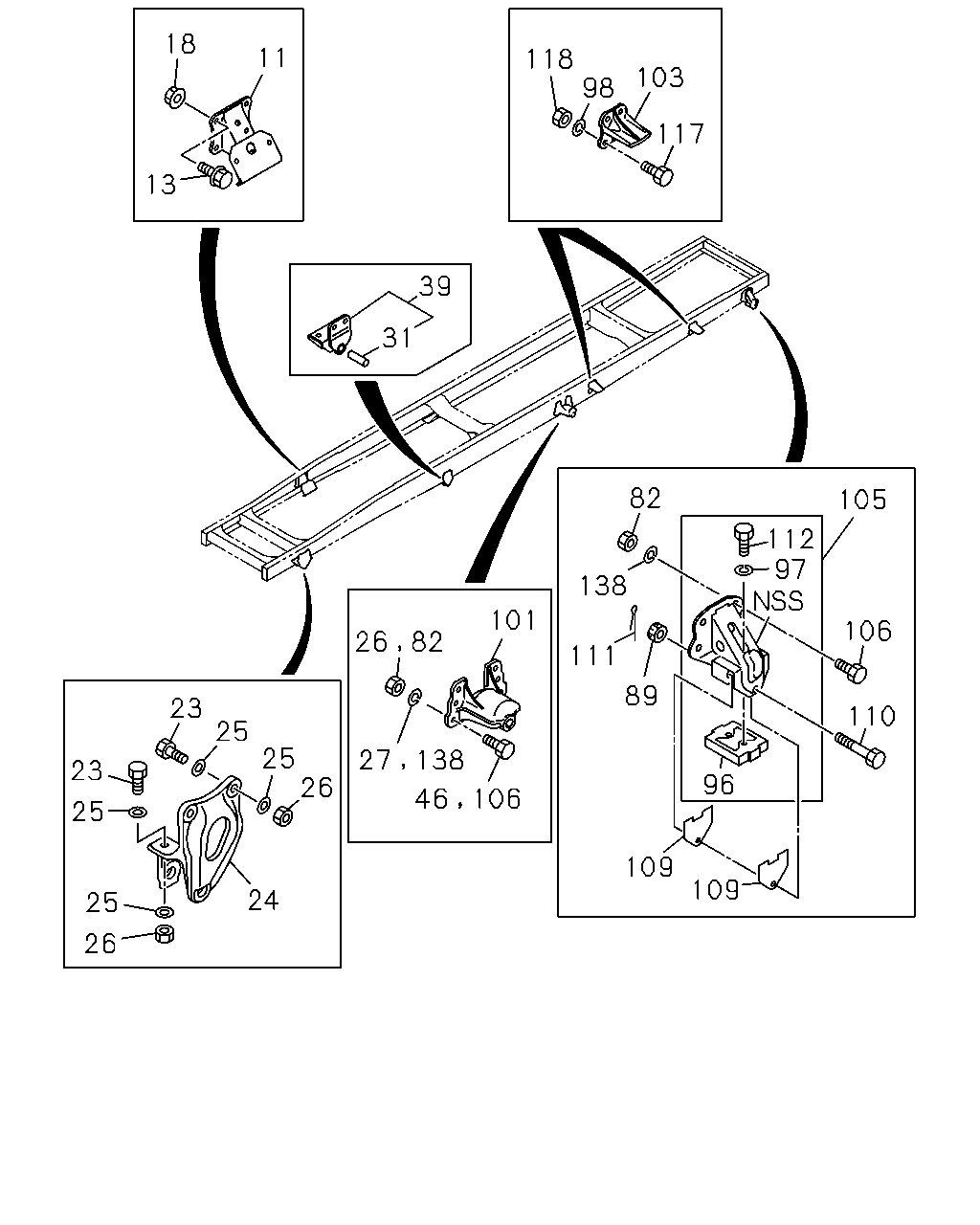

çizim 507799
103 118 11 18 13 31 39 82 138 111 101 106 138 46 27 82 26 25 25 23 23 25 25 26 24 26 109 109 96 110 106 105 112 97 117 98 89
BalonParca AdiParca NoAdetTipApplied Date A B C D E
11 BRACKET; ENG MTG 8-97639-363-0 01 1 1507- ● ● ● ● ●
11 BRACKET; ENG MTG 8-98308-041-0 01 1 1507- ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1507- ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1507- ● ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1507- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98254-442-0 01 1 1507- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98254-443-0 01 1 1507- ● ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1507- ● ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 12 1 1507- ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 08 1 1507- ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 04 1 1507- ● ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1507- ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 1507- ● ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 04 1 1507- ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 02 1 1507- ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 06 1 1507- ●
89 NUT; LEAF SPR STOPPER
M12 		0-91116-512-0 02 1 1507- ● ● ● ● ●
96 PAD; RR SPR 1-53359-051-2 02 1 1507- ● ● ● ● ●
97 WASHER; LK,PAD
ID=14.2 		0-91510-514-0 04 1 1507- ● ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1507- ● ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1507- ● ● ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1507- ● ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-072-0 02 1 1507- ● ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 02 1 1507- ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 06 1 1507- ●
109 SHIM; RR SPR 1-53359-043-1 04 1 1507- ● ● ● ● ●
110 BOLT; LEAF SPR STOPPER
M12X121 		8-98010-414-0 02 1 1507- ● ● ● ● ●
111 PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28 		0-81123-028-0 02 1 1507- ● ● ● ● ●
112 BOLT; PAD
M14X25 		0-20851-425-0 04 1 1507- ● ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1507- ● ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1507- ● ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 02 1 1507- ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 06 1 1507- ●
