◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11744 - FRR LHD EUROPE EURO6 SPACECAB LDWS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-35 - POWER STEERING CONTROL; CHASSIS SIDE ▶
4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#171184) — 53 parça

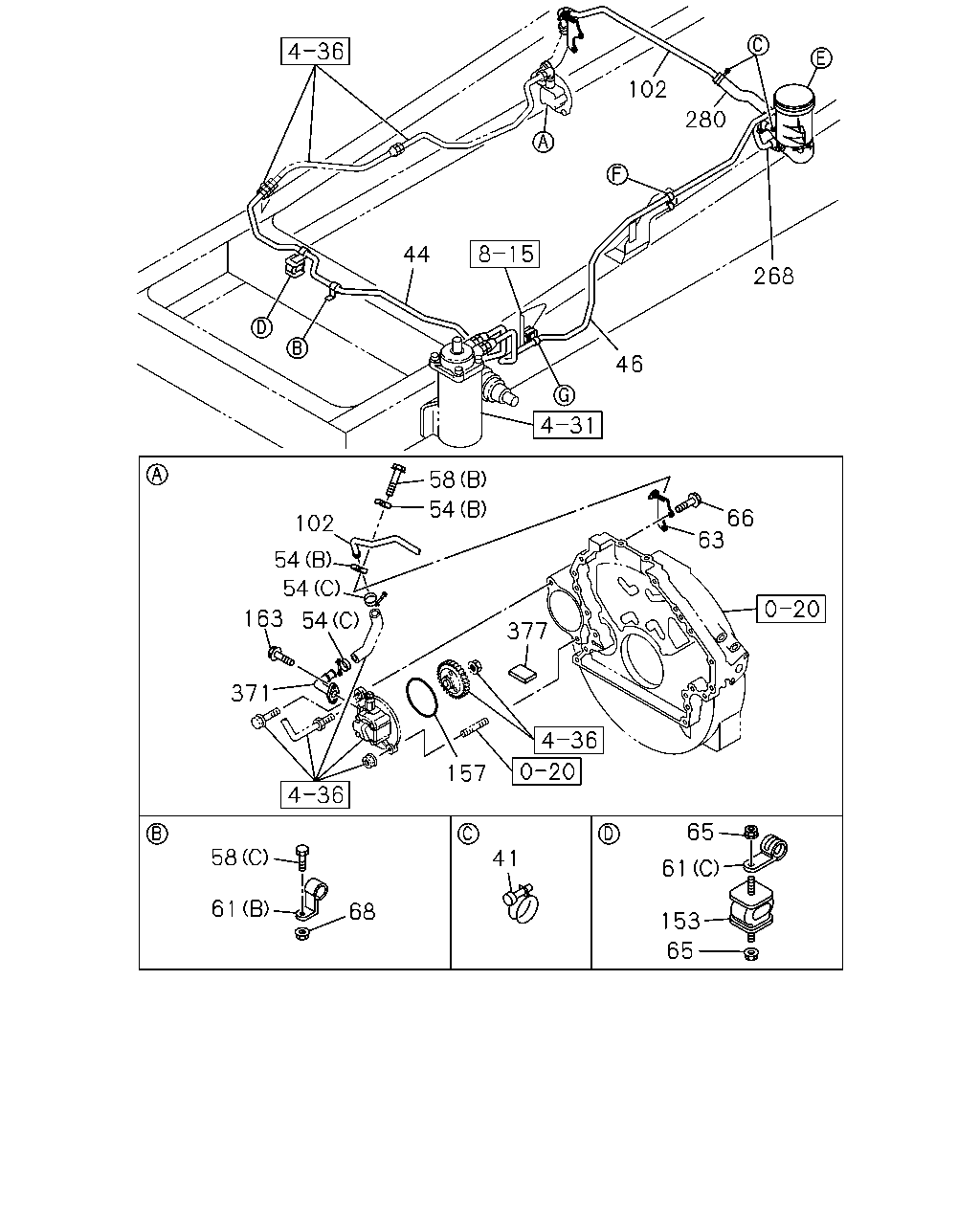

çizim 507324
44 102 280 268 46 66 63 377 58 54 102 54 54 54 163 371 157 58 61 68 41 65 61 153 65
BalonParca AdiParca NoAdetTipApplied Date
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 1507-
44 PIPE; OIL,P/S UNIT TO NIPPLE 8-98204-055-0 01 1 1507-
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=1530 		8-98126-593-0 01 1 1507-
54 CLIP; OIL PIPE
(B) ID=17 L=17 		1-09701-284-0 02 1 1507-
54 CLIP; OIL PIPE
(C) ID=32 		1-09704-085-0 02 1 1507-
54 CLIP; OIL PIPE
(A) ID=19 L=20 		0-95235-836-0 02 1 1507-
58 BOLT; CLIP
(B) M8X45 FLANGE 		0-28050-845-0 01 1 1507-
58 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1507-
58 BOLT; CLIP
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1507-
61 CLIP; OIL PIPE
(C) ID=16 L=20 		0-95235-536-0 02 1 1507-
61 CLIP; OIL PIPE
(A) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 01 1 1507-
61 CLIP; OIL PIPE
(B) ID=13 H=18 L=20 		1-09700-813-0 01 1 1507-
63 BRACKET; CLIP,P/S 8-98075-954-0 01 1 1507-
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1507-
66 BOLT; BRKT,OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1507-
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 1507-
102 PIPE; SUCTION,P/S 8-98057-017-4 01 1 1507-
153 RUBBER; CUSHION,POWER STRG PIPE 8-94158-156-1 02 1 1507-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6 		8-97386-295-0 01 1 1507-
163 BOLT; OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1507-
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE 8-98077-739-2 01 1 1507-
280 HOSE; P/S OIL PUMP,INL 8-98053-040-1 01 1 1507-
371 PIPE; OIL,INLET 8-98072-089-1 01 1 1507-
377 INSULATOR
FRIGID ZONE KIT<YL3> 		8-98270-804-0 01 1 1507-

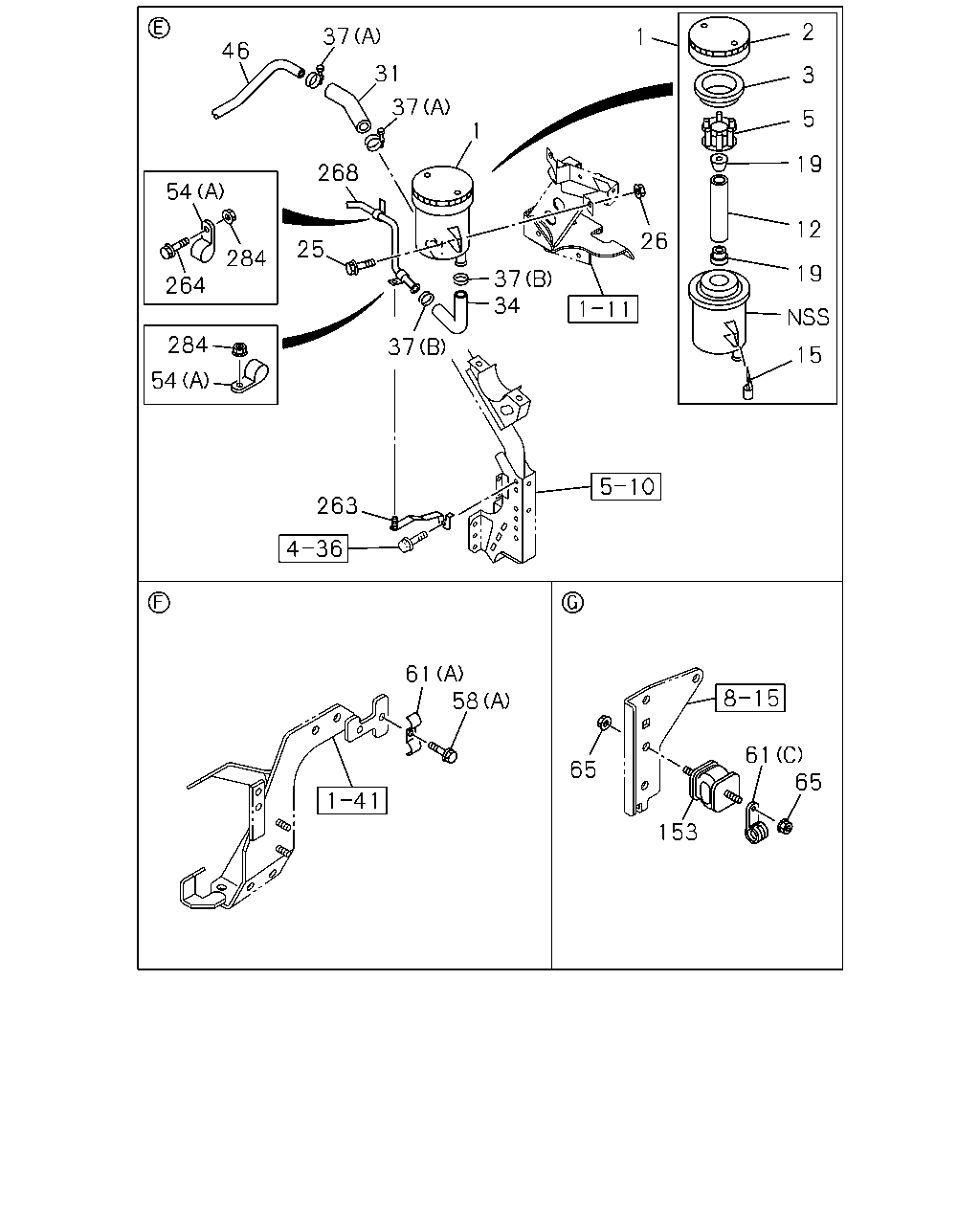

çizim 507340
46 54 284 264 284 54 25 268 31 37 1 37 1 26 37 34 37 263 2 3 5 19 12 19 15 61 65 153 65 61 58
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 8-98166-928-0 01 1 1507-
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1507-
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 1507-
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 1507-
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 1507-
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 1507-
19 SEAT; OIL TANK 1-21249-004-0 02 1 1507-
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1507-
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 1507-
31 HOSE; P/S OIL TANK,INL 8-98131-108-0 01 1 1507-
34 HOSE; P/S OIL TANK,OUTLET 8-98021-827-0 01 1 1507-
37 CLIP; HOSE,P/S
(A) ID=26 		1-09704-082-0 02 1 1507-
37 CLIP; HOSE,P/S
(B) ID=32 		1-09704-085-0 02 1 1507-
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=1530 		8-98126-593-0 01 1 1507-
54 CLIP; OIL PIPE
(B) ID=17 L=17 		1-09701-284-0 02 1 1507-
54 CLIP; OIL PIPE
(C) ID=32 		1-09704-085-0 02 1 1507-
54 CLIP; OIL PIPE
(A) ID=19 L=20 		0-95235-836-0 02 1 1507-
58 BOLT; CLIP
(B) M8X45 FLANGE 		0-28050-845-0 01 1 1507-
58 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1507-
58 BOLT; CLIP
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1507-
61 CLIP; OIL PIPE
(C) ID=16 L=20 		0-95235-536-0 02 1 1507-
61 CLIP; OIL PIPE
(A) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 01 1 1507-
61 CLIP; OIL PIPE
(B) ID=13 H=18 L=20 		1-09700-813-0 01 1 1507-
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1507-
153 RUBBER; CUSHION,POWER STRG PIPE 8-94158-156-1 02 1 1507-
263 BRACKET; P/S PIPE 8-98130-274-0 01 1 1507-
264 BOLT; PIPE BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1507-
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE 8-98077-739-2 01 1 1507-
284 NUT; PIPE
M8 FLANGE 		0-91180-108-0 02 1 1507-
