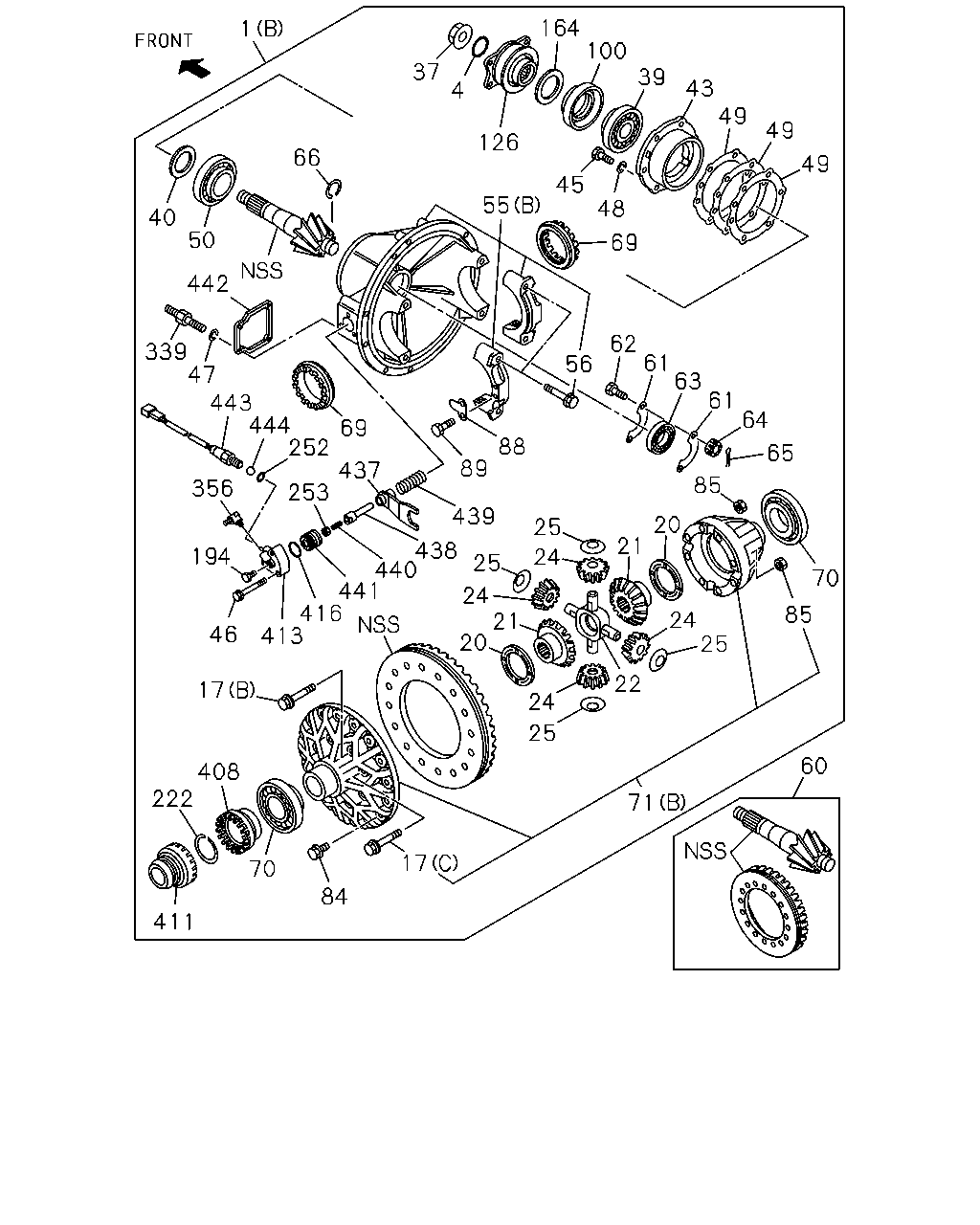

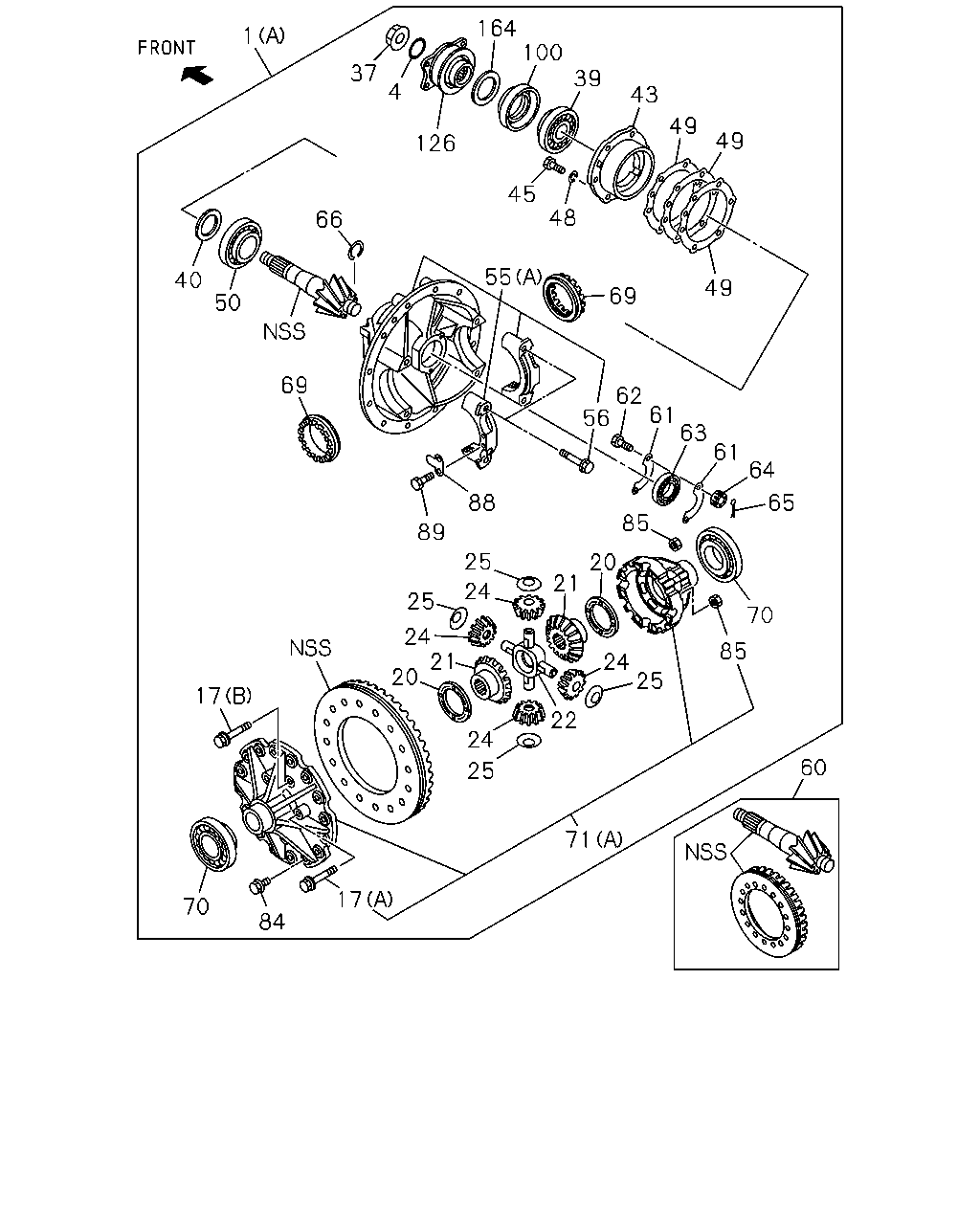

4-25 — REAR FINAL DRIVE (#171180) — 188 parça

1 66 50 40 442 339 47 443 444 252 253 356 194 46 413 17 408 222 411 70 84 17 25 24 71 60 85 70 24 25 22 21 20 85 65 64 61 63 61 62 56 88 89 439 438 440 441 416 24 21 20 25 25 24 69 48 45 126 55 4 37 164 100 39 43 49 49 49 69 437

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (B) 39/9	1-41003-550-0	01	1	1507-	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 39/9	1-41003-250-0	01	1	1507-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (B) 41/9	1-41003-549-0	01	1	1507-		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 41/9	1-41003-343-0	01	1	1507-		●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	1507-	●	●
17	BOLT; DIFF CAGE SETTING DIFF LOCK<C3N> (C) M14X112 FLANGE	1-09070-057-1	04	1	1507-	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1507-	●	●
17	BOLT; DIFF CAGE SETTING EXC. DIFF LOCK<C3N> (A) M14X121 FLANGE	1-09044-006-0	04	1	1507-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	1507-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	1507-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	1507-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	1507-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	1507-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	1507-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	1507-	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-149-0	02	1	1507-	●	●
22	SPIDER; DIFF PINION	1-41521-050-2	01	1	1507-	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-049-0	04	1	1507-	●	●
25	WASHER; THRUST,PINION ID=29 OD=60	1-41562-119-0	04	1	1507-	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	1507-	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1507-	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1507-	●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	1507-	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	1507-	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	1507-	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	1507-	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	1507-	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	1507-	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	1507-	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	1507-	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	1507-	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	1507-	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	1507-	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	1507-	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	1507-	●	●
46	BOLT DIFF LOCK<C3N> M8X60 FLANGE	0-28050-860-0	03	1	1507-	●	●
47	WASHER; LK DIFF LOCK<C3N> ID=8.2	1-09985-177-0	04	1	1507-	●	●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-812-0	06	1	1507-	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	1507-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	1507-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	1507-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	1507-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1507-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1507-	●	●
55	CARRIER; DIFF DIFF LOCK<C3N> (B)	1-41110-122-0	01	1	1507-	●	●
55	CARRIER; DIFF EXC. DIFF LOCK<C3N> (A)	1-41110-129-0	01	1	1507-	●	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1507-	●	●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-455-0	01	1	1507-	●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-729-0	01	1	1507-		●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1507-	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	1507-	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	1507-	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	1507-	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1507-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1507-	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1507-	●	●
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=22	1-41121-013-0	01	1	1507-	●	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1507-	●	●
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1507-	●	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> M138 H=30	1-41121-054-0	01	1	1507-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1507-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1507-	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1507-	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1507-	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1507-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1507-	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1507-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1507-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> (B)	1-41510-334-0	01	1	1507-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. DIFF LOCK<C3N> (A)	1-41510-343-0	01	1	1507-	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1507-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1507-	●	●
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	1507-	●	●
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	1507-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1507-	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	1507-	●	●
126	COUPLING; DRIVING PINION	1-37245-414-0	01	1	1507-	●	●
164	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	1507-	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1507-	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1507-	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1507-	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1507-	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1507-	●	●
164	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	1507-	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1507-	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1507-	●	●
194	PLUG DIFF LOCK<C3N> M12X9	0-92002-412-0	01	1	1507-	●	●
222	RING; SNAP DIFF LOCK<C3N>	1-09588-186-0	01	1	1507-	●	●
252	GASKET; CARRIER DIFF LOCK<C3N> ID=14.2	8-94462-114-0	01	1	1507-	●	●
253	NUT DIFF LOCK<C3N> M12	0-91111-512-0	01	1	1507-	●	●
339	BOLT; COVER DIFF LOCK<C3N> M6X14,M8X17 L=42	5-09309-006-1	04	1	1507-	●	●
356	NIPPLE; SHIFT UNIT DIFF LOCK<C3N> M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1507-	●	●
408	CLAW; CLU,DIFF LK DIFF LOCK<C3N>	1-41266-025-0	01	1	1507-	●	●
411	SLEEVE; CLU DIFF LOCK<C3N>	1-41266-027-0	01	1	1507-	●	●
413	CYLINDER; DIFF LK DIFF LOCK<C3N>	1-41279-021-0	01	1	1507-	●	●
416	GASKET DIFF LOCK<C3N> ID=43.7	9-09561-344-0	01	1	1507-	●	●
437	FORK ASM; SHIFT,DIFF LK DIFF LOCK<C3N>	1-41271-015-0	01	1	1507-	●	●
438	ROD; SHIFTER,DIFF LK DIFF LOCK<C3N>	1-41271-014-0	01	1	1507-	●	●
439	SPRING; RETUN,DIFF LK DIFF LOCK<C3N>	1-09580-507-0	01	1	1507-	●	●
440	SCREW SET; DIFF LK DIFF LOCK<C3N> M12X31	1-09120-021-0	01	1	1507-	●	●
441	PISTON; CHAMBER,DIFF LK DIFF LOCK<C3N>	1-41279-020-0	01	1	1507-	●	●
442	COVER; CARRIER,DIFF LK DIFF LOCK<C3N>	1-41117-005-0	01	1	1507-	●	●
443	SWITCH; STROKE DIFF LOCK<C3N>	1-82340-534-0	01	1	1507-	●	●
444	BALL DIFF LOCK<C3N>	9-00097-010-0	01	1	1507-	●	●

40 50 66 37 4 126 45 48 1 164 100 39 43 49 49 49 69 62 61 63 61 64 65 56 55 69 89 88 25 24 25 24 21 20 24 25 22 24 25 20 21 85 85 70 60 71 17 84 70 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (B) 39/9	1-41003-550-0	01	1	1507-	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 39/9	1-41003-250-0	01	1	1507-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (B) 41/9	1-41003-549-0	01	1	1507-		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 41/9	1-41003-343-0	01	1	1507-		●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	1507-	●	●
17	BOLT; DIFF CAGE SETTING DIFF LOCK<C3N> (C) M14X112 FLANGE	1-09070-057-1	04	1	1507-	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1507-	●	●
17	BOLT; DIFF CAGE SETTING EXC. DIFF LOCK<C3N> (A) M14X121 FLANGE	1-09044-006-0	04	1	1507-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	1507-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	1507-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	1507-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	1507-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	1507-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	1507-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	1507-	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-149-0	02	1	1507-	●	●
22	SPIDER; DIFF PINION	1-41521-050-2	01	1	1507-	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-049-0	04	1	1507-	●	●
25	WASHER; THRUST,PINION ID=29 OD=60	1-41562-119-0	04	1	1507-	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	1507-	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1507-	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1507-	●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	1507-	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	1507-	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	1507-	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	1507-	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	1507-	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	1507-	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	1507-	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	1507-	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	1507-	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	1507-	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	1507-	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	1507-	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	1507-	●	●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-812-0	06	1	1507-	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	1507-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	1507-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	1507-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	1507-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1507-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1507-	●	●
55	CARRIER; DIFF DIFF LOCK<C3N> (B)	1-41110-122-0	01	1	1507-	●	●
55	CARRIER; DIFF EXC. DIFF LOCK<C3N> (A)	1-41110-129-0	01	1	1507-	●	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1507-	●	●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-455-0	01	1	1507-	●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-729-0	01	1	1507-		●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1507-	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	1507-	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	1507-	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	1507-	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1507-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1507-	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1507-	●	●
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=22	1-41121-013-0	01	1	1507-	●	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1507-	●	●
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1507-	●	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> M138 H=30	1-41121-054-0	01	1	1507-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1507-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1507-	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1507-	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1507-	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1507-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1507-	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1507-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1507-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> (B)	1-41510-334-0	01	1	1507-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. DIFF LOCK<C3N> (A)	1-41510-343-0	01	1	1507-	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1507-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1507-	●	●
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	1507-	●	●
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	1507-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1507-	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	1507-	●	●
126	COUPLING; DRIVING PINION	1-37245-414-0	01	1	1507-	●	●
164	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	1507-	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1507-	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1507-	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1507-	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1507-	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1507-	●	●
164	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	1507-	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1507-	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1507-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
