◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11168 - FVM(SOUTH AFRICA) ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#17118) — 237 parça
çizim 127952
240
BalonParca AdiParca NoAdetTipApplied Date
240 REPAIR KIT; AIR CONT GOV 1-85576-467-0 01 1 1001-
çizim 128080
188 204
BalonParca AdiParca NoAdetTipApplied Date
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-304-1 01 1 1001-
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 1001-
çizim 128084
195 201 106 189 192 204 202 190 198 203 205 196 199 200 198 205 197 201 199 201 196 203 197 200
BalonParca AdiParca NoAdetTipApplied Date
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 1001-
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-247-0 01 1 1001-
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-234-0 01 1 1001-
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 1001-
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 1001-
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-232-0 02 1 1001-
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 1001-
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 1001-
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 1001-
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 1001-
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 1001-
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 1001-
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 1001-
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 1001-
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 1001-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 1001-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 1001-
çizim 128085
155 279
BalonParca AdiParca NoAdetTipApplied Date
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-033-0 01 1 1001-
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-033-0 02 1 1001-
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 1001-
279 REPAIR KIT; SILENCER 1-85576-409-0 01 1 1001-

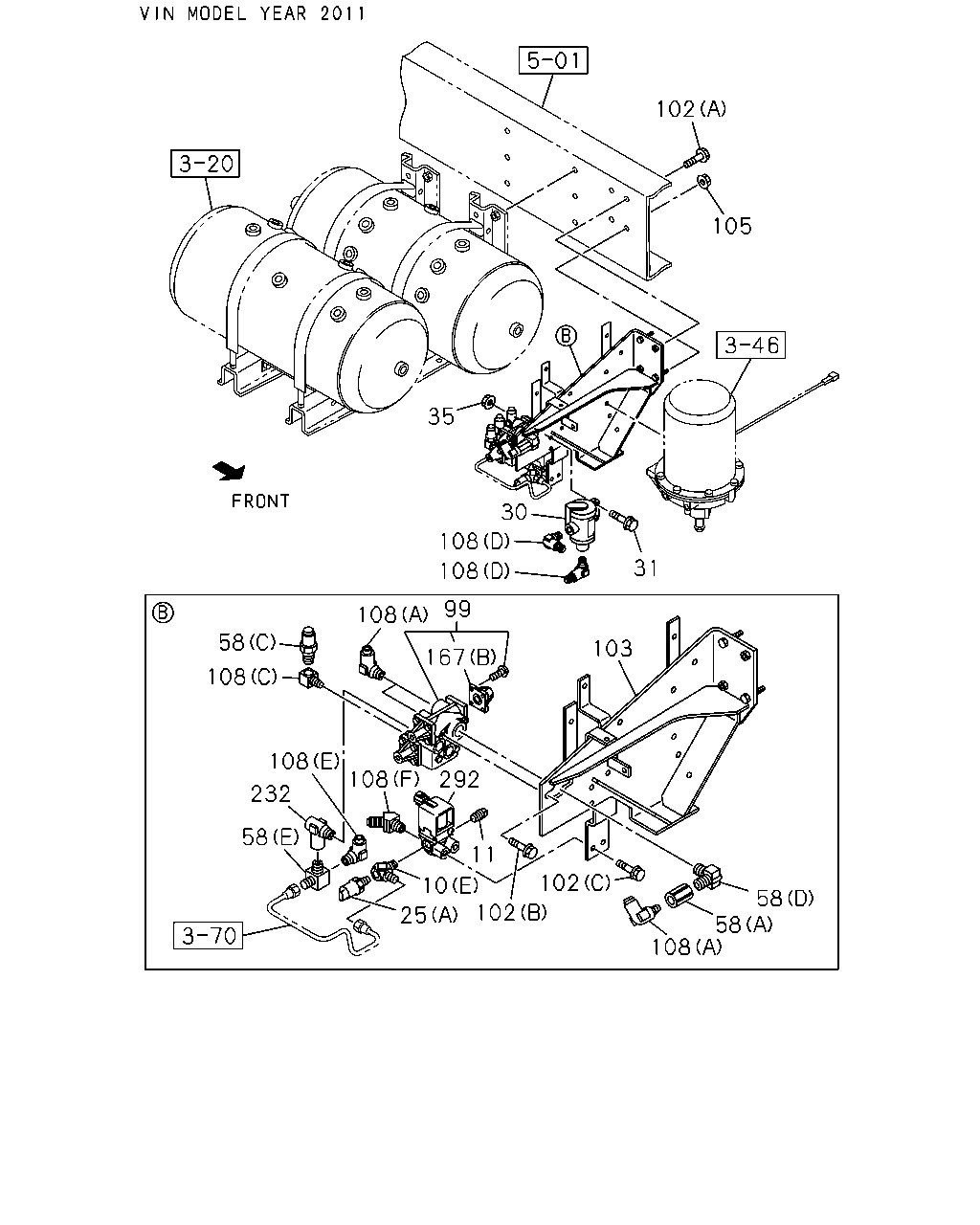

çizim 128087
102 105 31 108 108 30 35 108 99 167 58 108 108 232 108 292 58 10 25 102 11 102 58 58 108 103
BalonParca AdiParca NoAdetTipApplied Date
10 CONNECTOR
VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 3WAY SOU 		1-09656-586-1 01 1 1012-1102
10 CONNECTOR
(E) M12 & PT1/4 3WAY SOU 		1-09656-586-1 01 1 1103-
10 CONNECTOR
(D) PT1/4 & PT1/4 2WAY SOU 		1-09660-693-0 01 1 1001-
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1001-
10 CONNECTOR
(B) DIN12X2 & PT3/8 DOUBLE ELBOW SOU 		1-09661-026-0 02 1 1001-
10 CONNECTOR
(C) DIN12 & M22 STRAIGHT SOU 		1-09661-050-0 01 1 1001-
11 PLUG
VIN MODEL YEAR 2011<VZB> PT1/4 		9-99204-513-0 01 1 1012-1102
11 PLUG
PT1/4 		9-99204-513-0 01 1 1103-
25 SWITCH; PRESSURE
(A) STAMP 5.5 SOU 		8-97609-249-0 01 1 1001-
25 SWITCH; PRESSURE
(B) STAMP 2.0 		8-98010-856-2 01 1 1001-
30 GOVERNOR; AIR CONT 1-48350-093-2 01 1 1001-
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 1001-
35 NUT; GOV TO FRAME
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
58 ADAPTER
VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 01 1 1012-1102
58 ADAPTER
(C) DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 01 1 1103-
58 ADAPTER
VIN MODEL YEAR 2011<VZB> (D) DIN17 & RC3/8 & R1/2 3WAY SOU 		8-98031-238-0 01 1 1012-1102
58 ADAPTER
(D) DIN17 & RC3/8 & R1/2 3WAY SOU 		8-98031-238-0 01 1 1103-
58 ADAPTER
VIN MODEL YEAR 2011<VZB> (E) 		8-98148-475-0 01 1 1012-1102
58 ADAPTER
(E) 		8-98148-475-0 01 1 1103-
58 ADAPTER
(B) INNER PT3/8,OUTER M22 SOU 		1-09650-494-1 04 1 1001-
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT SOU 		1-09660-883-0 01 1 1001-
99 VALVE; PROTECTION
SOU 		1-48110-290-3 01 1 1001-
102 BOLT; PROTECTION VALVE
VIN MODEL YEAR 2011<VZB> (C) M8X20 FLANGE 		0-28650-820-0 02 1 1012-1102
102 BOLT; PROTECTION VALVE
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1103-
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE SOU 		0-28050-816-0 02 1 1001-
102 BOLT; PROTECTION VALVE
(A) M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
103 BRACKET; PROTECTION VALVE
VIN MODEL YEAR 2011<VZB> 		8-98173-454-0 01 1 1012-1102
103 BRACKET; PROTECTION VALVE 8-98173-454-0 01 1 1103-
103 BRACKET; PROTECTION VALVE
SOU 		8-98116-826-0 01 1 1001-1011
103 BRACKET; PROTECTION VALVE
EXC. VIN MODEL YEAR 2011<VZB> SOU 		8-98116-826-0 01 1 1012-1102
105 NUT; BRKT,VALVE
M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
108 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 ELBOW SOU 		1-48629-258-0 01 1 1012-1102
108 CONNECTOR; ELBOW
(F) M12 & PT1/4 ELBOW SOU 		1-48629-258-0 01 1 1103-1503
108 CONNECTOR; ELBOW
(F) M12 & PT1/4 ELBOW SOU 		8-98299-777-0 01 1 1504-
108 CONNECTOR; ELBOW
EXC. VIN MODEL YEAR 2011<VZB> (D) M12 & PT1/4 ELBOW SOU 		1-09650-430-0 01 1 1012-1012
108 CONNECTOR; ELBOW
(D) M12 & PT1/4 ELBOW SOU 		1-09650-430-0 01 1 1001-1011
108 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (D) M12 & PT1/4 ELBOW SOU 		1-09650-430-0 02 1 1012-1012
108 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (E) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1012-1102
108 CONNECTOR; ELBOW
(E) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1012-1102
108 CONNECTOR; ELBOW
(E) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1103-
108 CONNECTOR; ELBOW
(E) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1103-
108 CONNECTOR; ELBOW
(C) PT3/8 ELBOW SOU 		1-09660-696-0 01 1 1001-
108 CONNECTOR; ELBOW
(E) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1001-1011
108 CONNECTOR; ELBOW
(D) M12 & PT1/4 ELBOW SOU 		1-09650-430-0 01 1 1012-
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 03 1 1001-
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW SOU 		1-09661-497-0 04 1 1001-
167 COVER; VALVE
(B) SOU 		1-48119-625-0 04 1 1001-
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 1001-
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 1001-
232 VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY SOU 		8-98032-527-0 01 1 1001-
292 VALVE ASM; MAGNETIC
VIN MODEL YEAR 2011<VZB> SOU 		1-82563-871-2 01 1 1012-1102
292 VALVE ASM; MAGNETIC
SOU 		1-82563-871-2 01 1 1103-

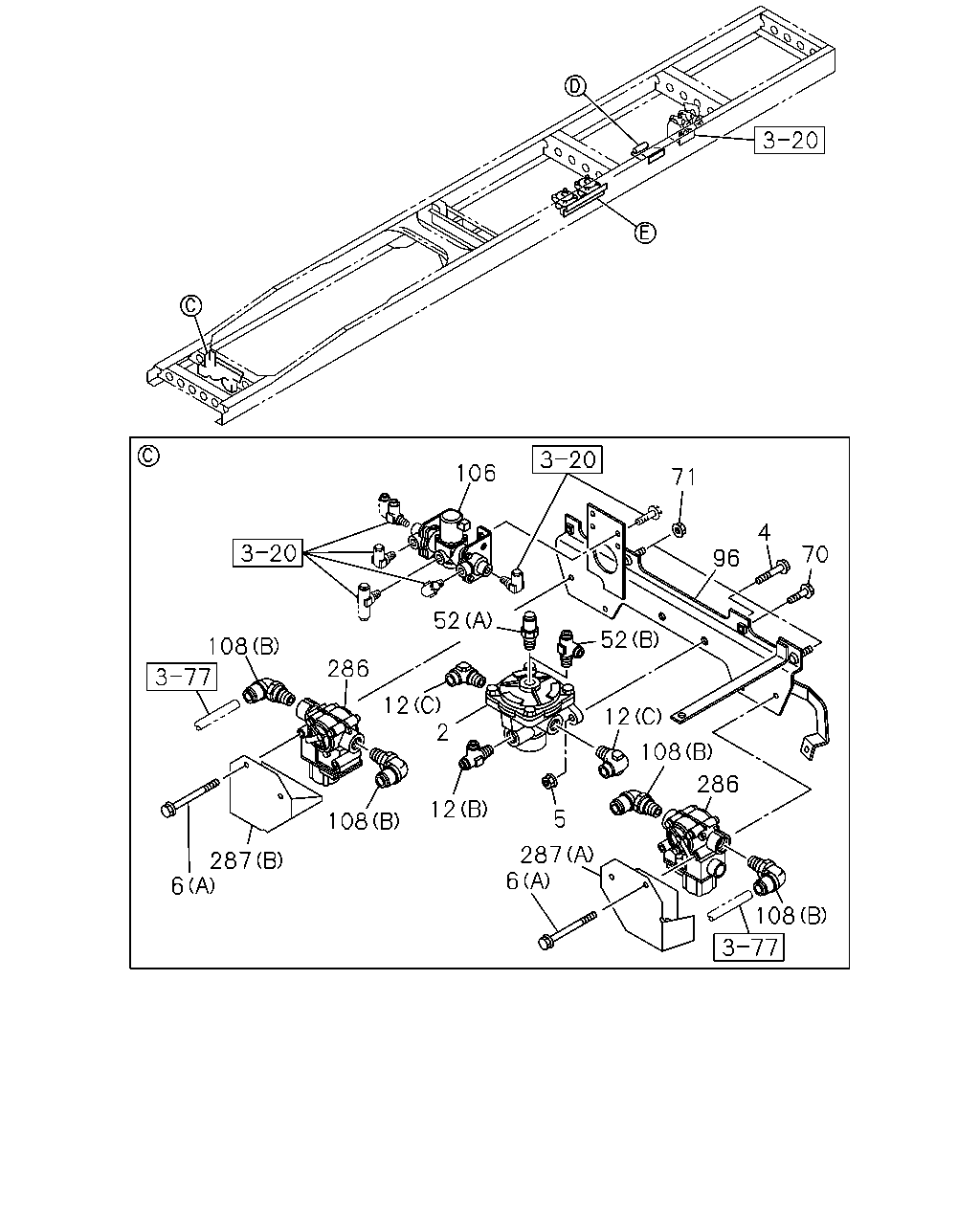

çizim 128088
106 71 4 70 96 52 52 108 286 12 2 12 108 286 12 5 108 287 6 287 6 108
BalonParca AdiParca NoAdetTipApplied Date
2 VALVE; RELAY 1-48210-875-0 01 1 1001-
2 VALVE; RELAY 1-48210-875-0 02 1 1001-
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE SOU 		0-28651-035-0 04 1 1001-
5 NUT
M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
5 NUT
M10 FLANGE SOU 		0-91180-210-0 04 1 1001-
6 BOLT; VLV
(A) M8X80 FLANGE SOU 		0-28050-880-0 04 1 1001-1410
6 BOLT; VLV
(A) M8X85 SOU 		1-09044-074-0 04 1 1411-
6 BOLT; VLV
(B) M8X35 FLANGE SOU 		0-28650-835-0 02 1 1001-
12 CONNECTOR; RELAY VLV
(A) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1001-
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1001-
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1001-
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 03 1 1001-
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 01 1 1001-
12 CONNECTOR; RELAY VLV
(B) M12 & M8 & RC3/8 3WAY SOU 		1-09661-207-0 01 1 1001-
52 CONNECTOR; RELAY VLV
(C) DIN8 & R3/8 & RC1/4 3WAY SOU 		8-97620-116-0 01 1 1001-
52 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT SOU 		1-09660-964-0 01 1 1001-
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY SOU 		1-09660-997-0 01 1 1001-
70 BOLT; AIR VLV
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1001-
71 NUT; AIR VLV
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
96 BRACKET 8-98074-613-3 01 1 1001-1410
96 BRACKET 8-98273-496-0 01 1 1411-
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 1001-
108 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 ELBOW SOU 		1-48629-258-0 01 1 1012-1102
108 CONNECTOR; ELBOW
(F) M12 & PT1/4 ELBOW SOU 		1-48629-258-0 01 1 1103-1503
108 CONNECTOR; ELBOW
(F) M12 & PT1/4 ELBOW SOU 		8-98299-777-0 01 1 1504-
108 CONNECTOR; ELBOW
EXC. VIN MODEL YEAR 2011<VZB> (D) M12 & PT1/4 ELBOW SOU 		1-09650-430-0 01 1 1012-1012
108 CONNECTOR; ELBOW
(D) M12 & PT1/4 ELBOW SOU 		1-09650-430-0 01 1 1001-1011
108 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (D) M12 & PT1/4 ELBOW SOU 		1-09650-430-0 02 1 1012-1012
108 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (E) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1012-1102
108 CONNECTOR; ELBOW
(E) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1012-1102
108 CONNECTOR; ELBOW
(E) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1103-
108 CONNECTOR; ELBOW
(E) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1103-
108 CONNECTOR; ELBOW
(C) PT3/8 ELBOW SOU 		1-09660-696-0 01 1 1001-
108 CONNECTOR; ELBOW
(E) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1001-1011
108 CONNECTOR; ELBOW
(D) M12 & PT1/4 ELBOW SOU 		1-09650-430-0 01 1 1012-
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 03 1 1001-
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW SOU 		1-09661-497-0 04 1 1001-
286 MODULATOR; FRT
SOU 		1-48240-115-0 02 1 1001-1410
286 MODULATOR; FRT
SOU 		8-98215-454-0 02 1 1411-
287 COVER; MODULATOR
(A) SOU 		1-47479-611-1 01 1 1001-1410
287 COVER; MODULATOR
(B) SOU 		8-98273-493-0 01 1 1411-
287 COVER; MODULATOR
(B) SOU 		8-98073-401-0 01 1 1001-1410
287 COVER; MODULATOR
(A) SOU 		8-98273-494-0 01 1 1411-

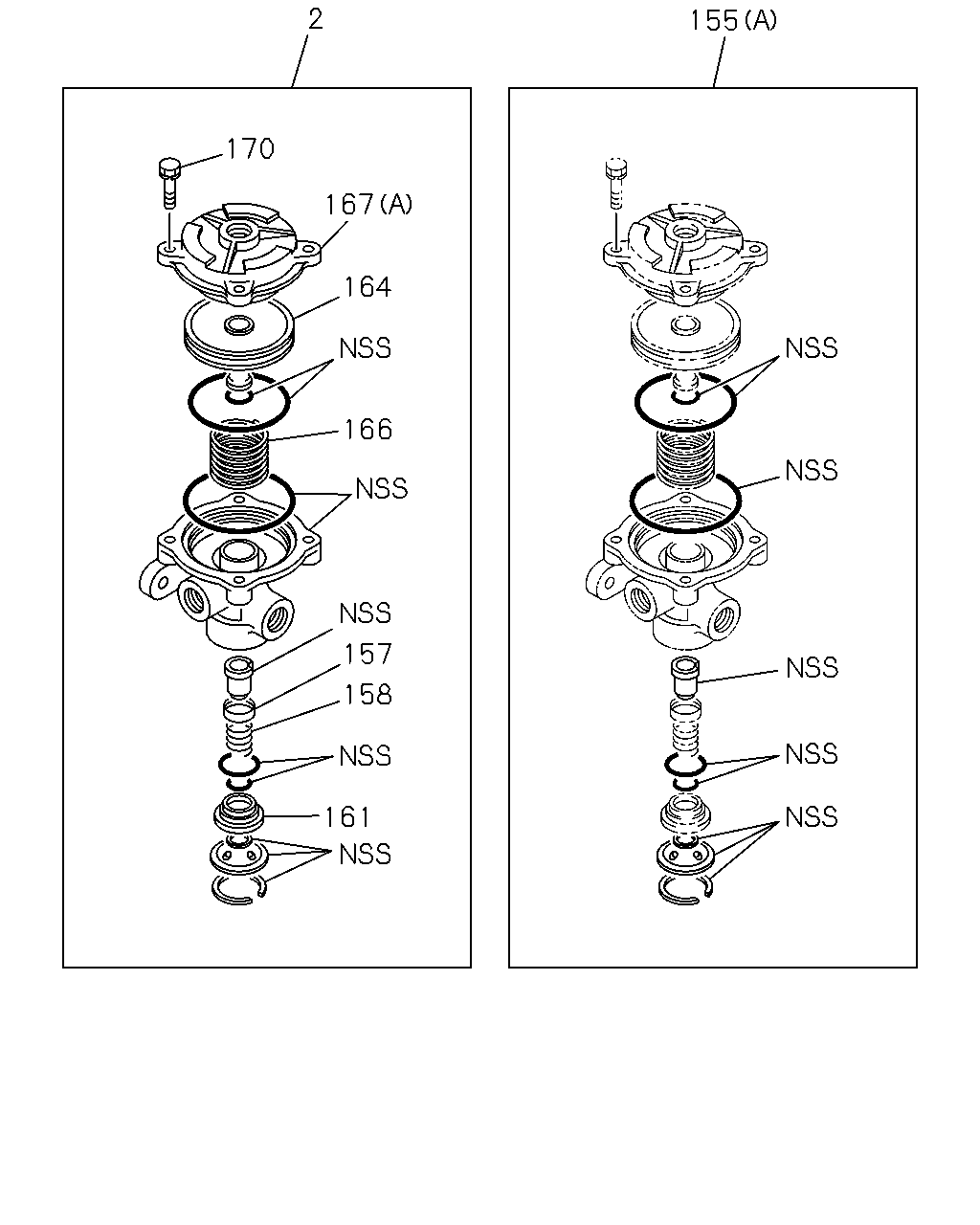

çizim 128091
2 155 170 167 164 166 157 158 161
BalonParca AdiParca NoAdetTipApplied Date
2 VALVE; RELAY 1-48210-875-0 01 1 1001-
2 VALVE; RELAY 1-48210-875-0 02 1 1001-
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-033-0 01 1 1001-
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-033-0 02 1 1001-
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 1001-
157 RETAINER; VALVE 1-48213-002-0 01 1 1001-
157 RETAINER; VALVE 1-48213-002-0 02 1 1001-
158 SPRING; VALVE 1-47819-089-0 01 1 1001-
158 SPRING; VALVE 1-47819-089-0 02 1 1001-
161 GUIDE; VALVE 1-48129-014-0 01 1 1001-
161 GUIDE; VALVE 1-48129-014-0 02 1 1001-
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 1001-
164 PISTON; RELAY VALVE 1-48219-071-0 02 1 1001-
166 SPRING; PISTON 1-47819-090-0 01 1 1001-
166 SPRING; PISTON 1-47819-090-0 02 1 1001-
167 COVER; VALVE
(B) SOU 		1-48119-625-0 04 1 1001-
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 1001-
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 1001-
170 SCREW; COVER TO BODY
SOU 		1-48219-039-0 04 1 1001-
170 SCREW; COVER TO BODY
SOU 		1-48219-039-0 08 1 1001-

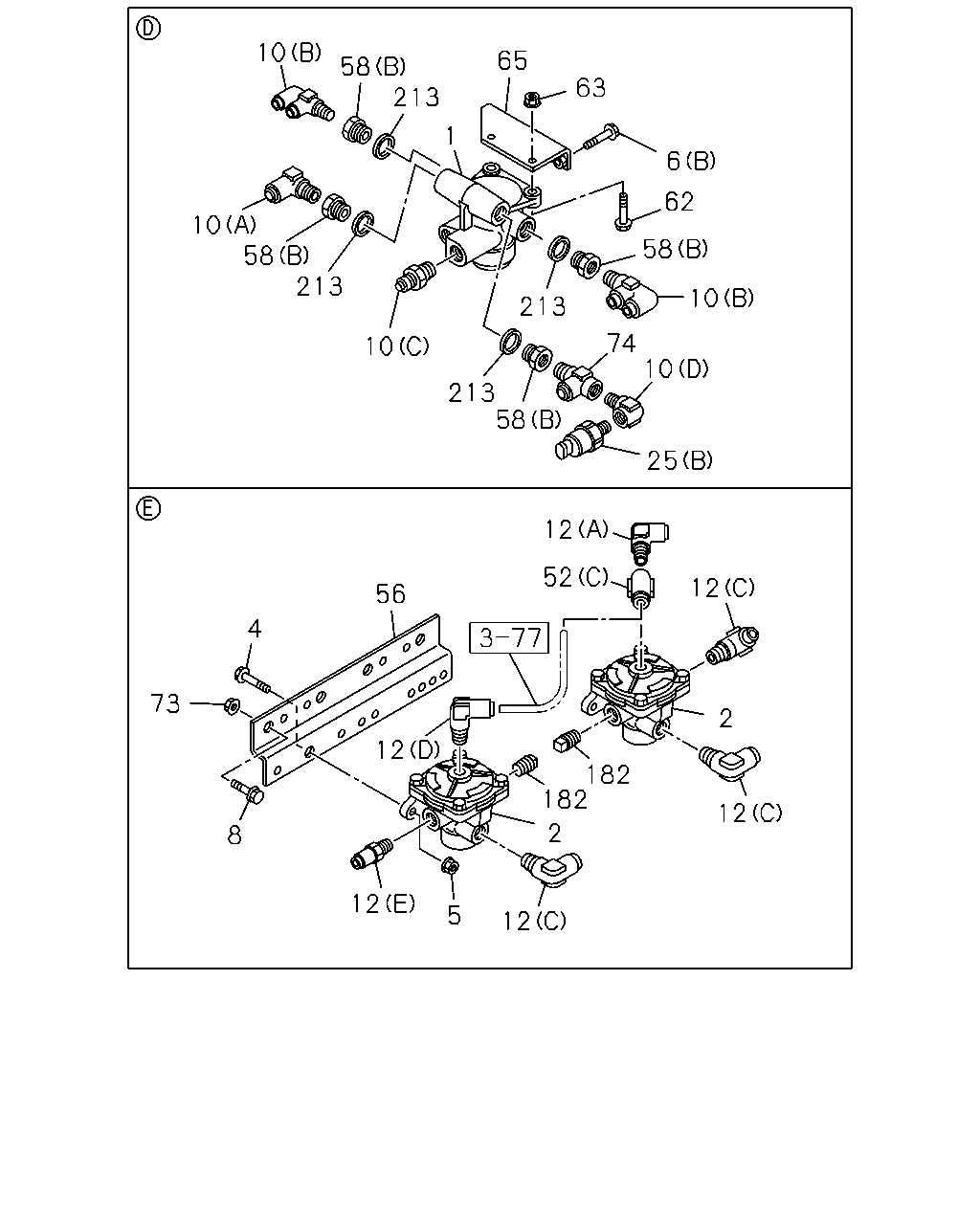

çizim 128092
10 65 58 213 63 1 6 62 10 58 213 58 10 213 74 10 10 213 58 25 12 52 12 56 4 73 2 12 182 182 12 2 8 12 5 12
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 1001-
2 VALVE; RELAY 1-48210-875-0 01 1 1001-
2 VALVE; RELAY 1-48210-875-0 02 1 1001-
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE SOU 		0-28651-035-0 04 1 1001-
5 NUT
M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
5 NUT
M10 FLANGE SOU 		0-91180-210-0 04 1 1001-
6 BOLT; VLV
(A) M8X80 FLANGE SOU 		0-28050-880-0 04 1 1001-1410
6 BOLT; VLV
(A) M8X85 SOU 		1-09044-074-0 04 1 1411-
6 BOLT; VLV
(B) M8X35 FLANGE SOU 		0-28650-835-0 02 1 1001-
8 BOLT; BRKT
M8X35 FLANGE SOU 		0-28650-835-0 03 1 1001-
10 CONNECTOR
VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 3WAY SOU 		1-09656-586-1 01 1 1012-1102
10 CONNECTOR
(E) M12 & PT1/4 3WAY SOU 		1-09656-586-1 01 1 1103-
10 CONNECTOR
(D) PT1/4 & PT1/4 2WAY SOU 		1-09660-693-0 01 1 1001-
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1001-
10 CONNECTOR
(B) DIN12X2 & PT3/8 DOUBLE ELBOW SOU 		1-09661-026-0 02 1 1001-
10 CONNECTOR
(C) DIN12 & M22 STRAIGHT SOU 		1-09661-050-0 01 1 1001-
12 CONNECTOR; RELAY VLV
(A) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1001-
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1001-
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1001-
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 03 1 1001-
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 01 1 1001-
12 CONNECTOR; RELAY VLV
(B) M12 & M8 & RC3/8 3WAY SOU 		1-09661-207-0 01 1 1001-
25 SWITCH; PRESSURE
(A) STAMP 5.5 SOU 		8-97609-249-0 01 1 1001-
25 SWITCH; PRESSURE
(B) STAMP 2.0 		8-98010-856-2 01 1 1001-
52 CONNECTOR; RELAY VLV
(C) DIN8 & R3/8 & RC1/4 3WAY SOU 		8-97620-116-0 01 1 1001-
52 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT SOU 		1-09660-964-0 01 1 1001-
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY SOU 		1-09660-997-0 01 1 1001-
56 BRACKET; RELAY VLV 1-47479-937-0 01 1 1001-
58 ADAPTER
VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 01 1 1012-1102
58 ADAPTER
(C) DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 01 1 1103-
58 ADAPTER
VIN MODEL YEAR 2011<VZB> (D) DIN17 & RC3/8 & R1/2 3WAY SOU 		8-98031-238-0 01 1 1012-1102
58 ADAPTER
(D) DIN17 & RC3/8 & R1/2 3WAY SOU 		8-98031-238-0 01 1 1103-
58 ADAPTER
VIN MODEL YEAR 2011<VZB> (E) 		8-98148-475-0 01 1 1012-1102
58 ADAPTER
(E) 		8-98148-475-0 01 1 1103-
58 ADAPTER
(B) INNER PT3/8,OUTER M22 SOU 		1-09650-494-1 04 1 1001-
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT SOU 		1-09660-883-0 01 1 1001-
62 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1001-
63 NUT; BRKT FIX
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
65 BRACKET; RELAY VLV RR 1-47471-032-0 01 1 1001-
73 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 03 1 1001-
74 CONNECTOR; 3WAY
DIN8 & R3/8 & RC1/4 3WAY 		1-09661-536-0 01 1 1001-
182 PLUG; RELAY VLV
PT3/8 		9-09204-517-0 02 1 1001-
213 GASKET
ID=22.5 SOU 		9-09571-422-0 04 1 1001-

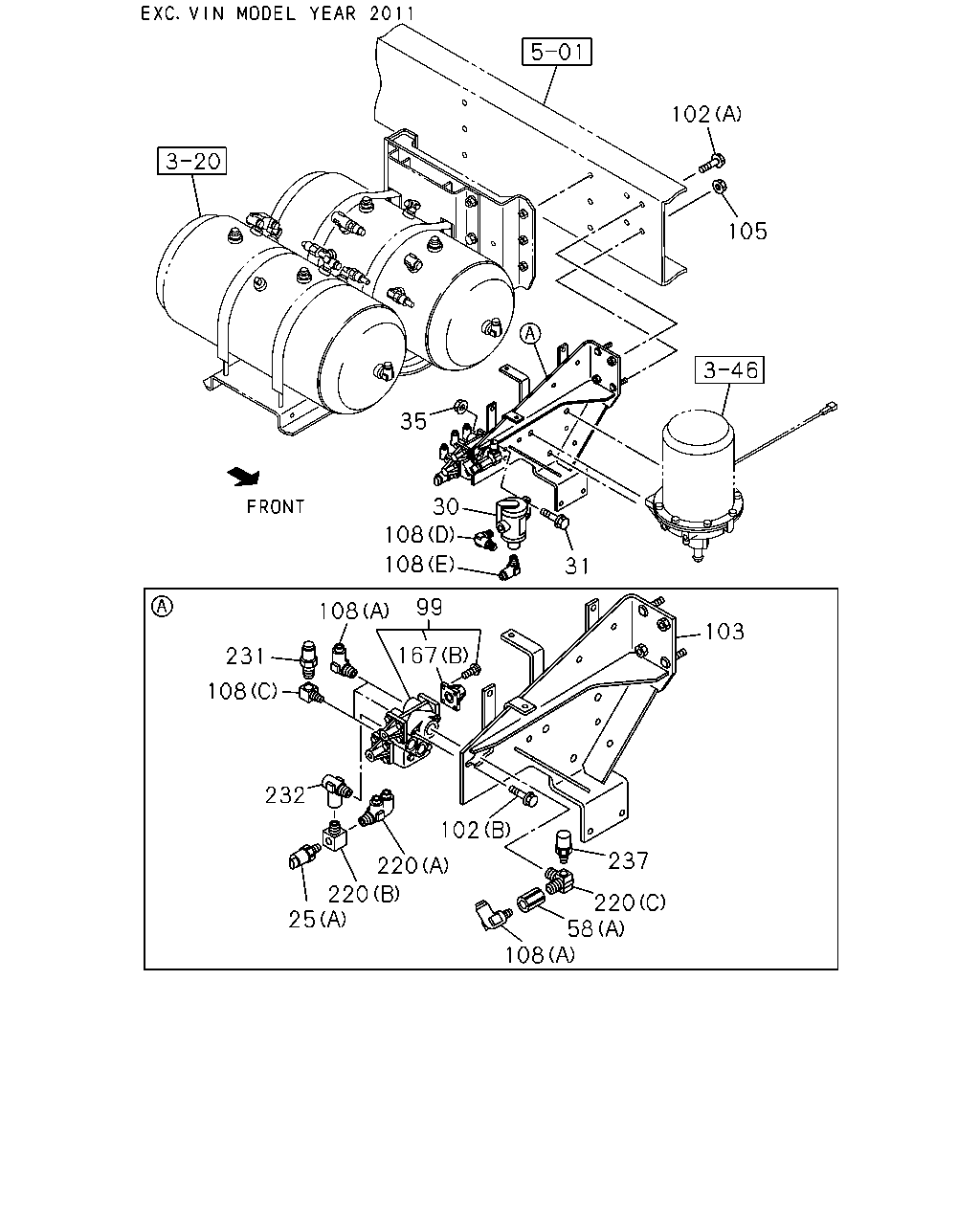

çizim 128096
35 30 31 103 108 108 108 99 167 231 108 232 220 25 220 102 237 220 58 108 105 102
BalonParca AdiParca NoAdetTipApplied Date
25 SWITCH; PRESSURE
(A) STAMP 5.5 SOU 		8-97609-249-0 01 1 1001-
25 SWITCH; PRESSURE
(B) STAMP 2.0 		8-98010-856-2 01 1 1001-
30 GOVERNOR; AIR CONT 1-48350-093-2 01 1 1001-
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 1001-
35 NUT; GOV TO FRAME
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
58 ADAPTER
VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 01 1 1012-1102
58 ADAPTER
(C) DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 01 1 1103-
58 ADAPTER
VIN MODEL YEAR 2011<VZB> (D) DIN17 & RC3/8 & R1/2 3WAY SOU 		8-98031-238-0 01 1 1012-1102
58 ADAPTER
(D) DIN17 & RC3/8 & R1/2 3WAY SOU 		8-98031-238-0 01 1 1103-
58 ADAPTER
VIN MODEL YEAR 2011<VZB> (E) 		8-98148-475-0 01 1 1012-1102
58 ADAPTER
(E) 		8-98148-475-0 01 1 1103-
58 ADAPTER
(B) INNER PT3/8,OUTER M22 SOU 		1-09650-494-1 04 1 1001-
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT SOU 		1-09660-883-0 01 1 1001-
99 VALVE; PROTECTION
SOU 		1-48110-290-3 01 1 1001-
102 BOLT; PROTECTION VALVE
VIN MODEL YEAR 2011<VZB> (C) M8X20 FLANGE 		0-28650-820-0 02 1 1012-1102
102 BOLT; PROTECTION VALVE
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1103-
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE SOU 		0-28050-816-0 02 1 1001-
102 BOLT; PROTECTION VALVE
(A) M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
103 BRACKET; PROTECTION VALVE
VIN MODEL YEAR 2011<VZB> 		8-98173-454-0 01 1 1012-1102
103 BRACKET; PROTECTION VALVE 8-98173-454-0 01 1 1103-
103 BRACKET; PROTECTION VALVE
SOU 		8-98116-826-0 01 1 1001-1011
103 BRACKET; PROTECTION VALVE
EXC. VIN MODEL YEAR 2011<VZB> SOU 		8-98116-826-0 01 1 1012-1102
105 NUT; BRKT,VALVE
M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
108 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 ELBOW SOU 		1-48629-258-0 01 1 1012-1102
108 CONNECTOR; ELBOW
(F) M12 & PT1/4 ELBOW SOU 		1-48629-258-0 01 1 1103-1503
108 CONNECTOR; ELBOW
(F) M12 & PT1/4 ELBOW SOU 		8-98299-777-0 01 1 1504-
108 CONNECTOR; ELBOW
EXC. VIN MODEL YEAR 2011<VZB> (D) M12 & PT1/4 ELBOW SOU 		1-09650-430-0 01 1 1012-1012
108 CONNECTOR; ELBOW
(D) M12 & PT1/4 ELBOW SOU 		1-09650-430-0 01 1 1001-1011
108 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (D) M12 & PT1/4 ELBOW SOU 		1-09650-430-0 02 1 1012-1012
108 CONNECTOR; ELBOW
VIN MODEL YEAR 2011<VZB> (E) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1012-1102
108 CONNECTOR; ELBOW
(E) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1012-1102
108 CONNECTOR; ELBOW
(E) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1103-
108 CONNECTOR; ELBOW
(E) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1103-
108 CONNECTOR; ELBOW
(C) PT3/8 ELBOW SOU 		1-09660-696-0 01 1 1001-
108 CONNECTOR; ELBOW
(E) DIN8 & R1/4 ELBOW SOU 		1-09660-956-0 01 1 1001-1011
108 CONNECTOR; ELBOW
(D) M12 & PT1/4 ELBOW SOU 		1-09650-430-0 01 1 1012-
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 03 1 1001-
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW SOU 		1-09661-497-0 04 1 1001-
167 COVER; VALVE
(B) SOU 		1-48119-625-0 04 1 1001-
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 1001-
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 1001-
220 CONNECTOR; 3WAY
(B) PT3/8X2 & PT1/4 3WAY SOU 		1-09656-708-0 01 1 1001-1011
220 CONNECTOR; 3WAY
EXC. VIN MODEL YEAR 2011<VZB> (B) PT3/8X2 & PT1/4 3WAY SOU 		1-09656-708-0 01 1 1012-1101
220 CONNECTOR; 3WAY
EXC. VIN MODEL YEAR 2011<VZB> (B) R3/8 & RC3/8 & RC1/4 3WAY SOU 		8-98166-127-0 01 1 1102-1102
220 CONNECTOR; 3WAY
(A) DIN12X2 & PT3/8 DOUBLE ELBOW SOU 		1-09661-026-0 01 1 1001-1011
220 CONNECTOR; 3WAY
EXC. VIN MODEL YEAR 2011<VZB> (A) DIN12X2 & PT3/8 DOUBLE ELBOW SOU 		1-09661-026-0 01 1 1012-1102
220 CONNECTOR; 3WAY
(C) DIN17 & RC3/8 & R1/2 3WAY SOU 		8-98031-238-0 01 1 1001-1011
220 CONNECTOR; 3WAY
EXC. VIN MODEL YEAR 2011<VZB> (C) DIN17 & RC3/8 & R1/2 3WAY SOU 		8-98031-238-0 01 1 1012-1102
231 CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 01 1 1001-1011
231 CONNECTOR; NYLON TUBE
EXC. VIN MODEL YEAR 2011<VZB> DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 01 1 1012-1102
232 VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY SOU 		8-98032-527-0 01 1 1001-
237 VALVE; SAFETY 1-48320-012-2 01 1 1001-
çizim 488163
241
BalonParca AdiParca NoAdetTipApplied Date
241 REPAIR KIT; PROTECTION VALVE
SOU 		1-85576-451-2 01 1 1001-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
