Isuzu WW
▶
TRUCKS
▶
FRR
▶
11744 - FRR LHD EUROPE EURO6 SPACECAB LDWS
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#171174) — 81 parça
◀

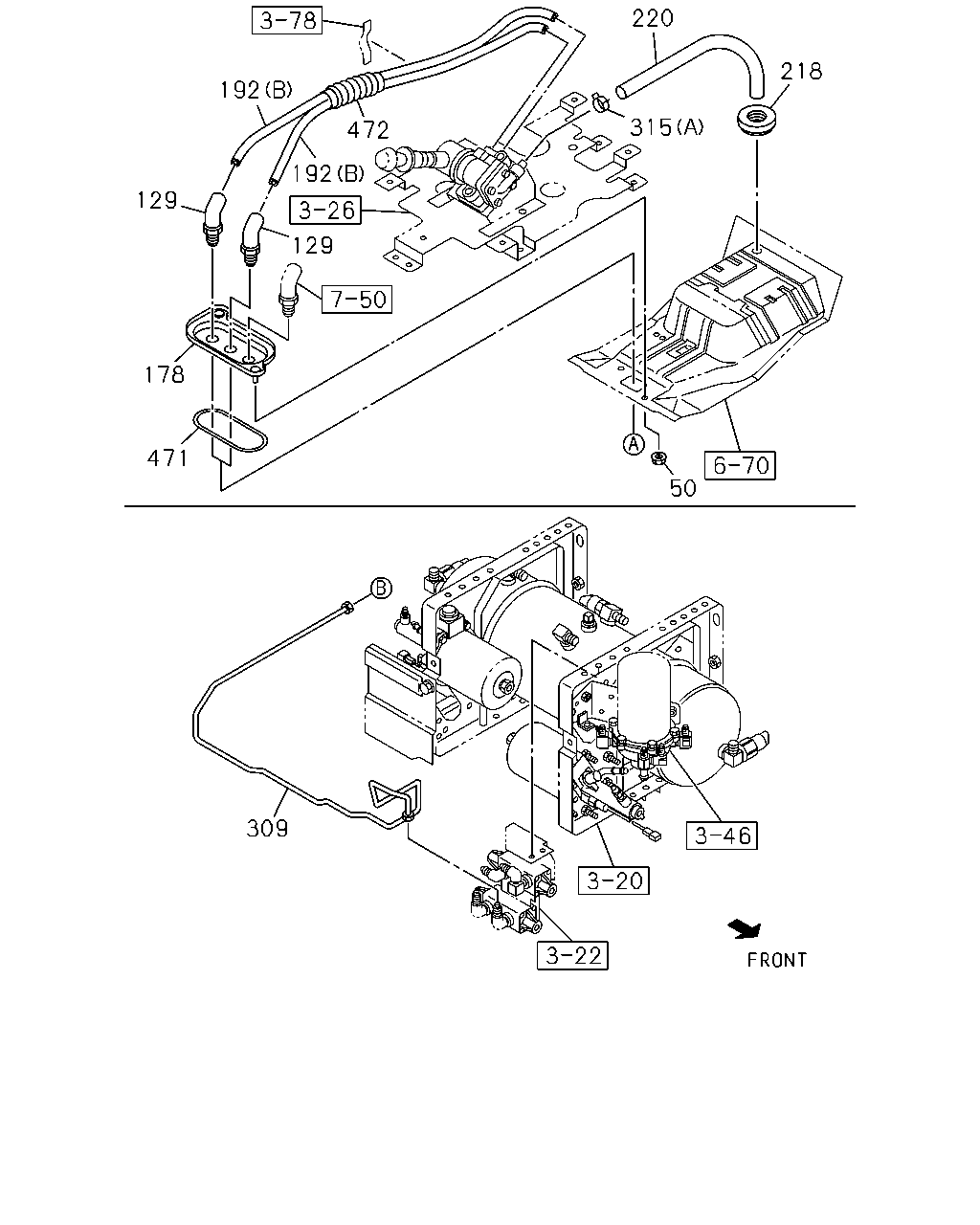

[377A] CAB AND MAIN AIR TANK (19 parça)
[377A] FRAME SIDE (19 parça)

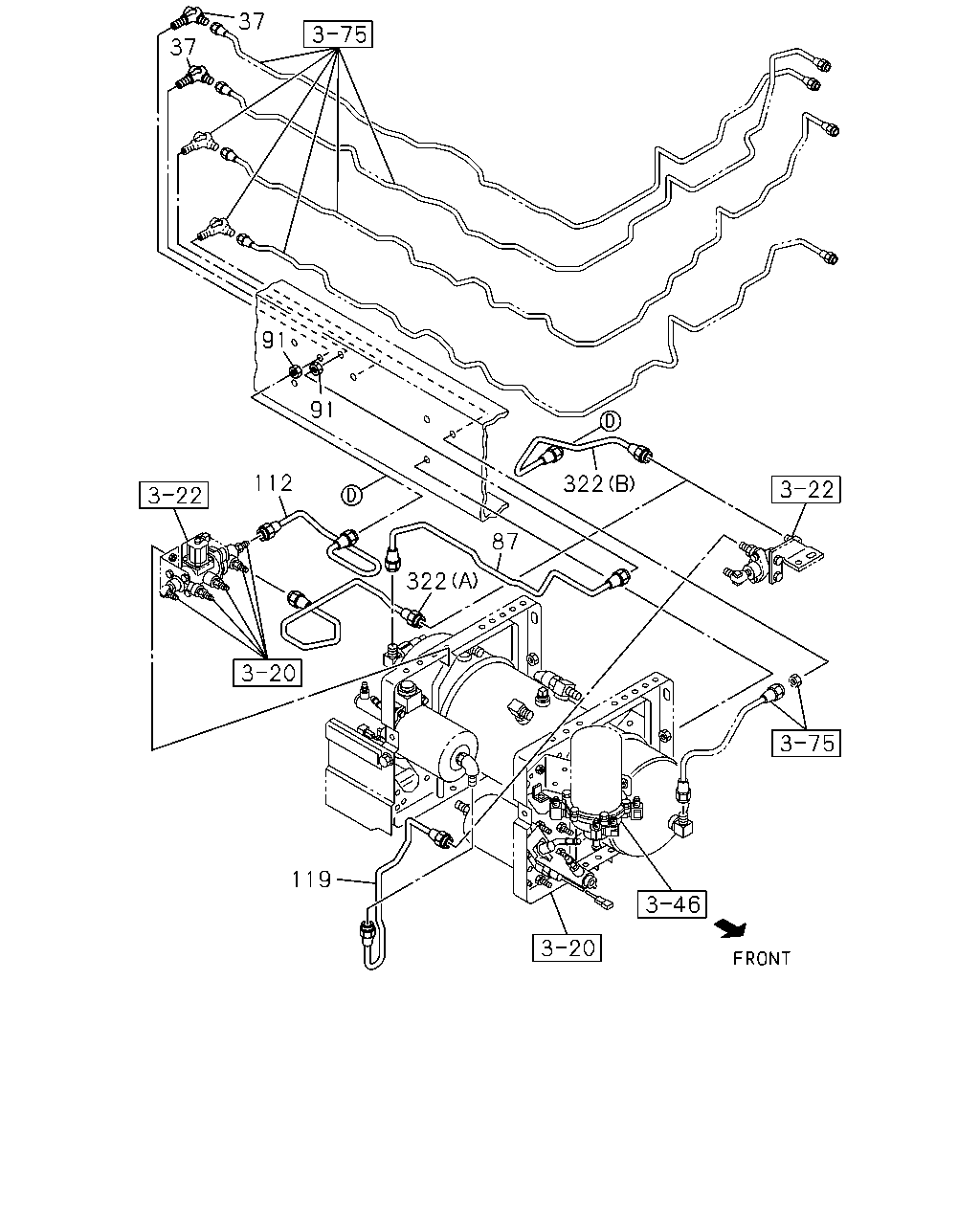

[377A] AIR TANK SIDE (7 parça)

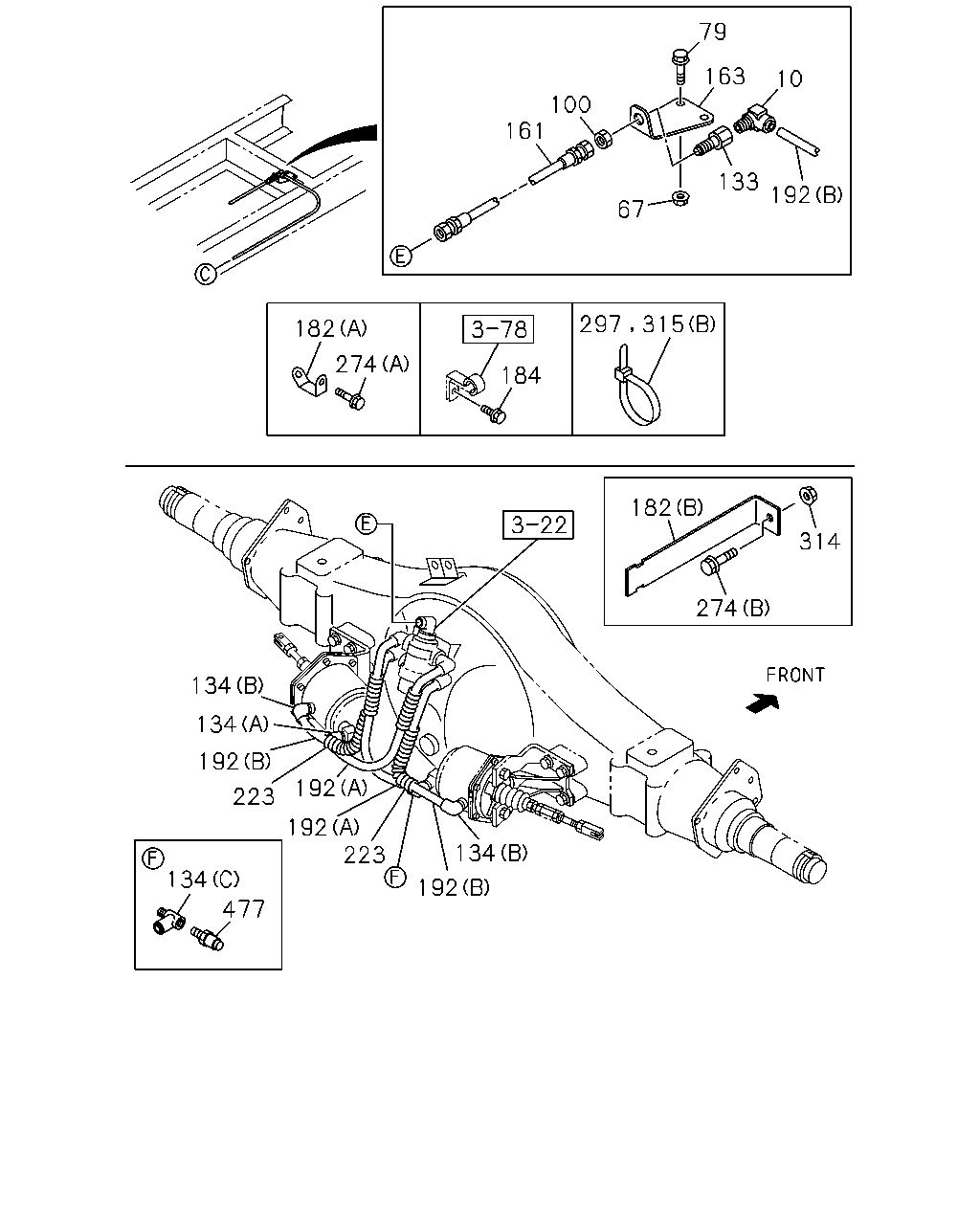

[377A] REAR AXLE SIDE (36 parça)
▶
315
220
218
50
309
471
178
129
129
192
472
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
NUT; UNION BRKT
M8 FLANGE
0-91180-108-0
02
1
1507-
129
CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW
8-97611-963-1
02
1
1507-
178
BRACKET; UNION
8-98017-054-1
01
1
1507-
192
TUBE; NYLON
(A)
8-98061-971-0
02
1
1507-
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=6
1-87411-001-0
AR
1
1507-
192
TUBE; NYLON
(B) SERVICED BY L=4000 OD=6
1-87411-002-0
AR
1
1507-
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1507-
192
TUBE; NYLON
(B) SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1507-1508
192
TUBE; NYLON
(B) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1507-
192
TUBE; NYLON
(B) SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1507-
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1507-
192
TUBE; NYLON
(B) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1507-
218
GROMMET; VINYL HOSE
OD=24
9-61166-007-0
01
1
1507-
220
HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000
9-09914-701-0
01
1
1507-
309
PIPE; AIR,MPV TO UNION
L=1354 SERVICED BY L=1400
1-47428-878-0
01
1
1507-
315
CLIP
(B) L=250
1-09707-126-0
05
1
1507-
315
CLIP
(A) ID=14
8-94238-572-0
01
1
1507-
471
SEAL; BRKT
1-79738-832-0
01
1
1507-
472
TUBE; SPUTTER
8-98067-708-0
01
1
1507-
192
192
223
192
223
97
91
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
91
NUT; PIPE UNION
M16
0-91111-516-0
03
1
1507-
97
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
01
1
1507-
97
UNION; AIR PIPE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
1507-
192
TUBE; NYLON
(A)
8-98061-971-0
02
1
1507-
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=6
1-87411-001-0
AR
1
1507-
192
TUBE; NYLON
(B) SERVICED BY L=4000 OD=6
1-87411-002-0
AR
1
1507-
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1507-
192
TUBE; NYLON
(B) SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1507-1508
192
TUBE; NYLON
(B) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1507-
192
TUBE; NYLON
(B) SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1507-
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1507-
192
TUBE; NYLON
(B) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1507-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=7
1-87411-016-0
AR
1
1507-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1507-
223
TUBE; CORRUGATE
SERVICED BY L=4000 ID=10
1-87411-020-0
AR
1
1507-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1507-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=15
1-87411-025-0
AR
1
1507-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=19
1-87411-027-0
AR
1
1507-
223
TUBE; CORRUGATE
SERVICED BY L=4000 ID=19
1-87411-028-0
AR
1
1507-
91
91
37
37
112
322
322
87
119
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
UNION; AIR PIPE
M16 ELBOW
0-92135-210-0
02
1
1507-
87
PIPE; AIR,AIR TANK TO UNION
L=709 SERVICED BY L=730
1-47428-871-0
01
1
1507-
91
NUT; PIPE UNION
M16
0-91111-516-0
03
1
1507-
112
PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> L=473
8-98067-756-0
01
1
1507-
119
PIPE; AIR,VLV TO AIR MASTER
L=640 SERVICED BY L=660
1-47428-869-0
01
1
1507-
322
PIPE; AIR,HSA VLV TO DBL CHK VLV
H.S.A SYSTEM<6EP> (A) L=673 SERVICED BY L=700
1-47428-870-0
01
1
1507-
322
PIPE; AIR,HSA VLV TO DBL CHK VLV
EXC. H.S.A SYSTEM<6EP> (B) L=246
8-98245-172-0
01
1
1507-
184
297
315
274
182
161
100
67
133
163
192
10
79
314
274
182
192
192
223
192
223
192
134
134
134
477
134
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CONNECTOR; FLEX HOSE
DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1507-
67
NUT; HOSE BRKT
M8 FLANGE
0-91180-108-0
02
1
1507-
79
BOLT; HOSE BRKT
M8X25 FLANGE
0-28650-825-0
02
1
1507-
100
NUT; UNION
M16
0-91111-516-0
01
1
1507-
133
UNION; NIPPLE
PT3/8 & M16 STRAIGHT
8-98202-001-0
01
1
1507-
134
CONNECTOR
(C) DIN12 & R3/8 & RC1/4 3WAY
1-09660-845-0
01
1
1507-
134
CONNECTOR
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1507-
134
CONNECTOR
(B) DIN6 & R3/8 ELBOW
1-09661-234-0
02
1
1507-
161
HOSE; FLEX,QUICK RELEASE VLV
L=460
1-09363-963-0
01
1
1507-
163
BRACKET; FLEX HOSE
8-98044-842-0
01
1
1507-
182
BRACKET; TUBE CLIP
WHEEL BASE 3400MM(34W) (B)
8-98206-908-0
01
1
1507-
182
BRACKET; TUBE CLIP
(A)
8-98117-686-0
01
1
1507-
184
BOLT; TUBE CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1507-
192
TUBE; NYLON
(A)
8-98061-971-0
02
1
1507-
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=6
1-87411-001-0
AR
1
1507-
192
TUBE; NYLON
(B) SERVICED BY L=4000 OD=6
1-87411-002-0
AR
1
1507-
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1507-
192
TUBE; NYLON
(B) SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1507-1508
192
TUBE; NYLON
(B) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1507-
192
TUBE; NYLON
(B) SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1507-
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1507-
192
TUBE; NYLON
(B) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1507-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=7
1-87411-016-0
AR
1
1507-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1507-
223
TUBE; CORRUGATE
SERVICED BY L=4000 ID=10
1-87411-020-0
AR
1
1507-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1507-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=15
1-87411-025-0
AR
1
1507-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=19
1-87411-027-0
AR
1
1507-
223
TUBE; CORRUGATE
SERVICED BY L=4000 ID=19
1-87411-028-0
AR
1
1507-
274
BOLT; BRKT
WHEEL BASE 3400MM(34W) (B) M8X30 FLANGE
0-28650-830-0
01
1
1507-
274
BOLT; BRKT
(A) M10X30 FLANGE
0-28651-030-0
01
1
1507-
297
CLIP; BAND
L=350
1-09707-183-0
AR
1
1507-
314
NUT; CLIP
WHEEL BASE 3400MM(34W) M8 FLANGE
0-91180-108-0
01
1
1507-
315
CLIP
(B) L=250
1-09707-126-0
05
1
1507-
315
CLIP
(A) ID=14
8-94238-572-0
01
1
1507-
477
CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR
1-47459-013-1
01
1
1507-
