3-70 — BRAKE PIPING; AIR,AIR MASTER (#171172) — 42 parça

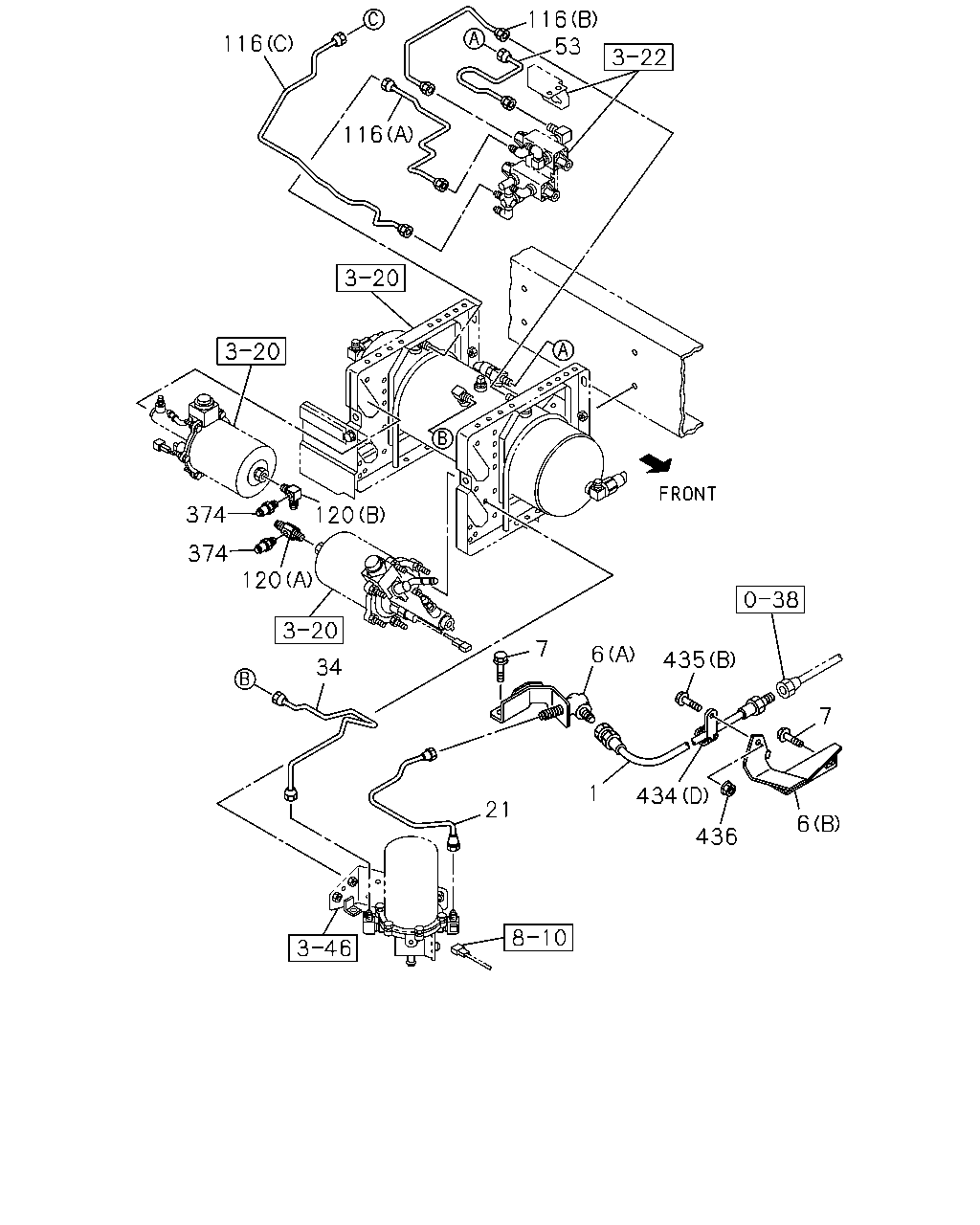

çizim 507453
53 116 116 116 374 374 120 34 21 1 7 6 435 434 436 7 6 120
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 8-98134-768-0 01 1 1507-
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98134-700-0 01 1 1507-
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		8-98226-978-0 01 1 1507-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 04 1 1507-
21 PIPE; AIR,UNION TO AIR DRYER
L=733 		8-98207-282-0 01 1 1507-
34 PIPE; AIR
L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1507-
53 PIPE; AIR,AIR TANK TO VALVE 8-98276-838-0 01 1 1507-
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 1507-
116 PIPE; AIR,PROTECTION VLV
(C) L=1098 SERVICED BY L=1100 		1-47428-815-0 01 1 1507-
116 PIPE; AIR,PROTECTION VLV
(A) L=504 		8-98276-839-0 01 1 1507-
120 CONNECTOR; AIR PIPE
(A) M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 1507-
120 CONNECTOR; AIR PIPE
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 1507-
374 CONNECTOR
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1507-
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1507-
434 CLIP
(D) ID=35 L=33 		1-09700-945-0 01 1 1507-
434 CLIP
(A) L=350 		1-09707-183-0 09 1 1507-
434 CLIP
(B) ID=18-24 L=14.5 		1-09709-298-0 02 1 1507-
435 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1507-
435 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1507-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1507-

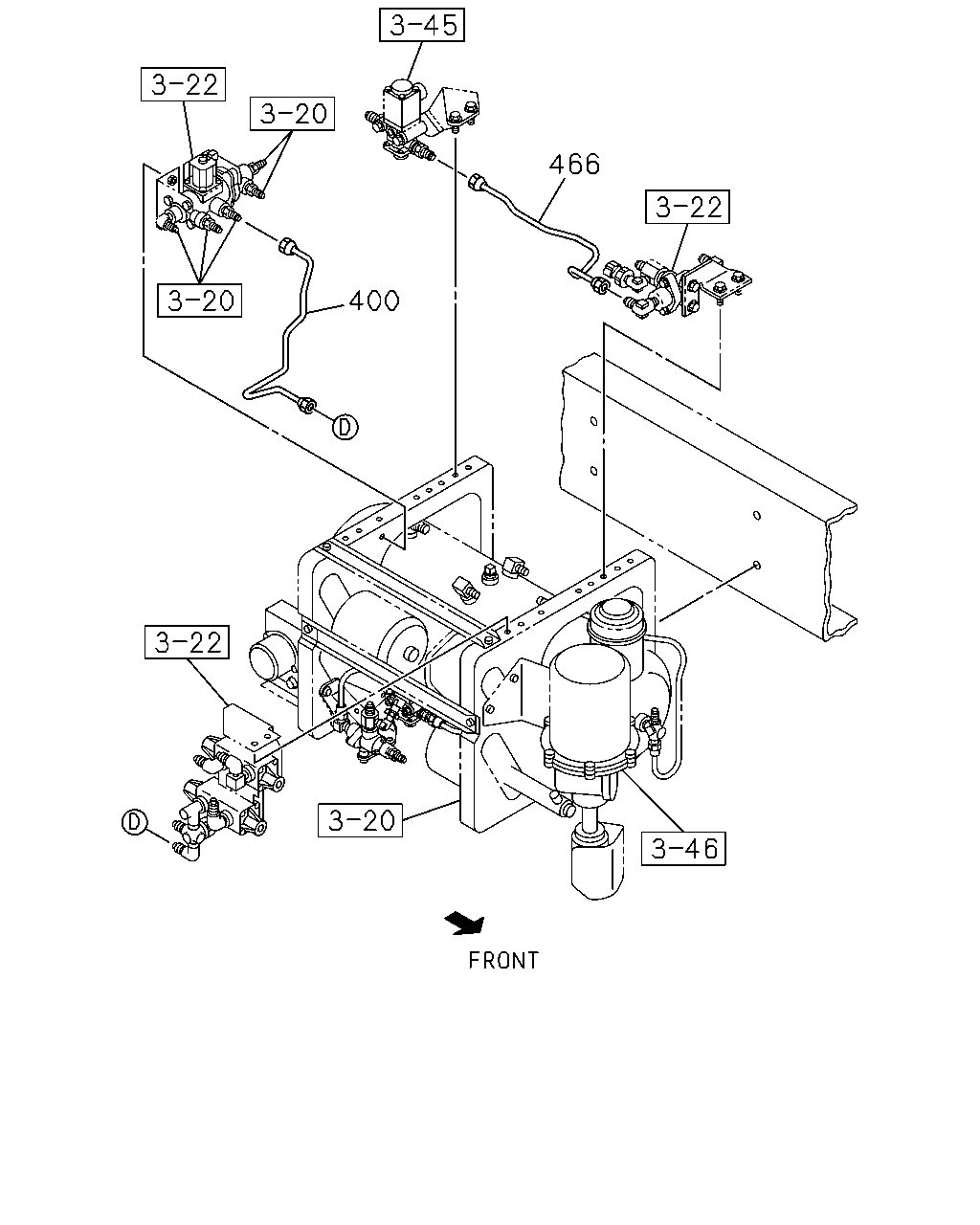

çizim 507469
400 466
BalonParca AdiParca NoAdetTipApplied Date
400 PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> L=471 		8-98245-165-0 01 1 1507-
466 PIPE; AIR,ASR 8-98245-168-0 01 1 1507-

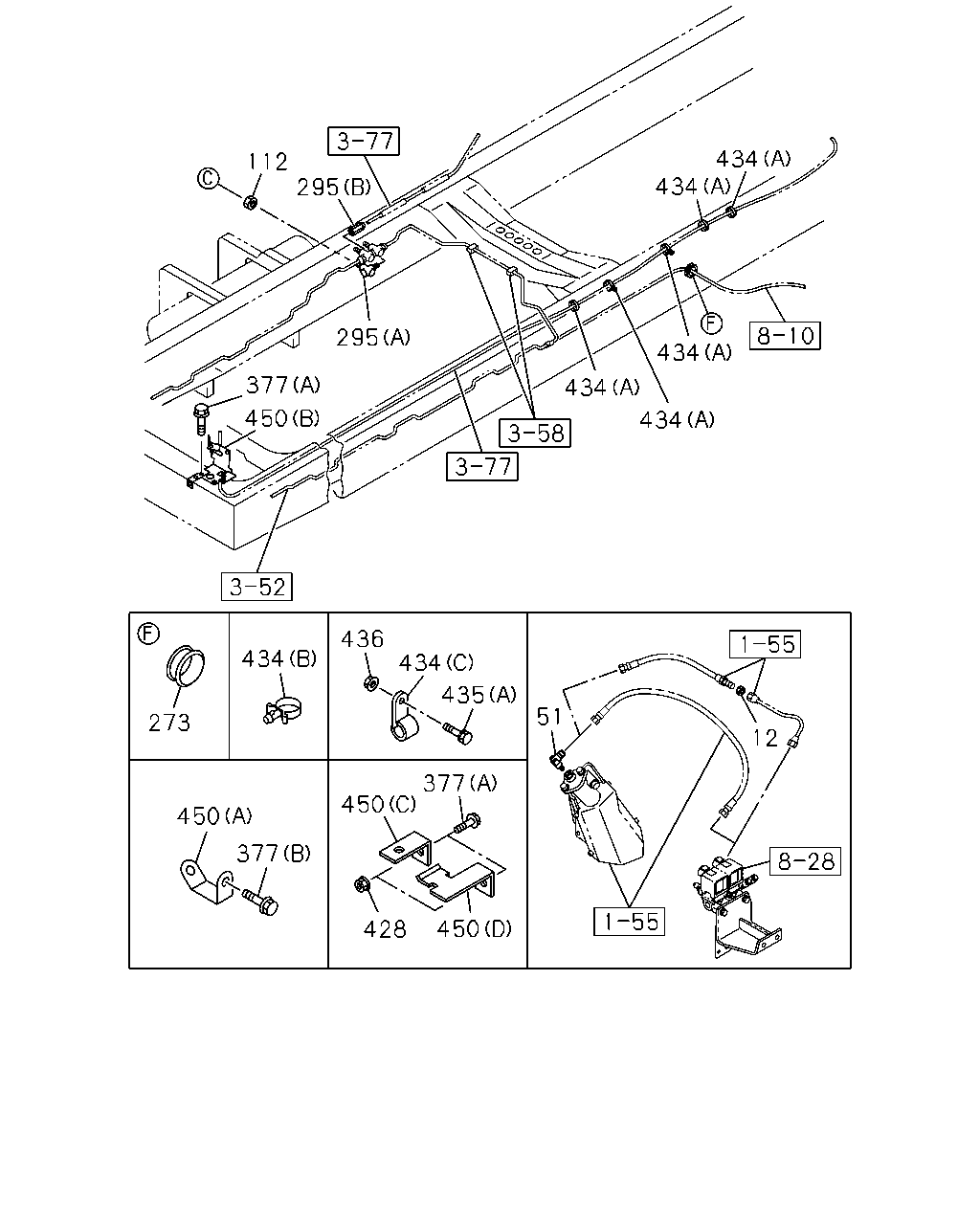

çizim 507489
112 295 295 377 450 434 434 434 434 434 51 12 435 434 436 450 428 450 377 377 450 273 434
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
WHEEL BASE 3400MM(34W) M12 		9-09840-280-0 01 1 1507-
51 UNION
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1507-
112 NUT
M12 		9-09840-280-0 01 1 1507-
273 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1507-
295 CONNECTOR; NYLON TUBE
(A) M12 ELBOW 		0-92125-206-0 01 1 1507-
295 CONNECTOR; NYLON TUBE
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1507-
377 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1507-
377 BOLT; BRKT FIX
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1507-
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1507-
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1507-
434 CLIP
(D) ID=35 L=33 		1-09700-945-0 01 1 1507-
434 CLIP
(A) L=350 		1-09707-183-0 09 1 1507-
434 CLIP
(B) ID=18-24 L=14.5 		1-09709-298-0 02 1 1507-
435 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1507-
435 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1507-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1507-
450 BRACKET; CLIP
(C) 		1-47477-694-0 01 1 1507-
450 BRACKET; CLIP
(A) 		8-98117-686-0 02 1 1507-
450 BRACKET; CLIP
(D) 		8-98157-748-0 01 1 1507-
450 BRACKET; CLIP
(B) 		8-98180-947-0 01 1 1507-
